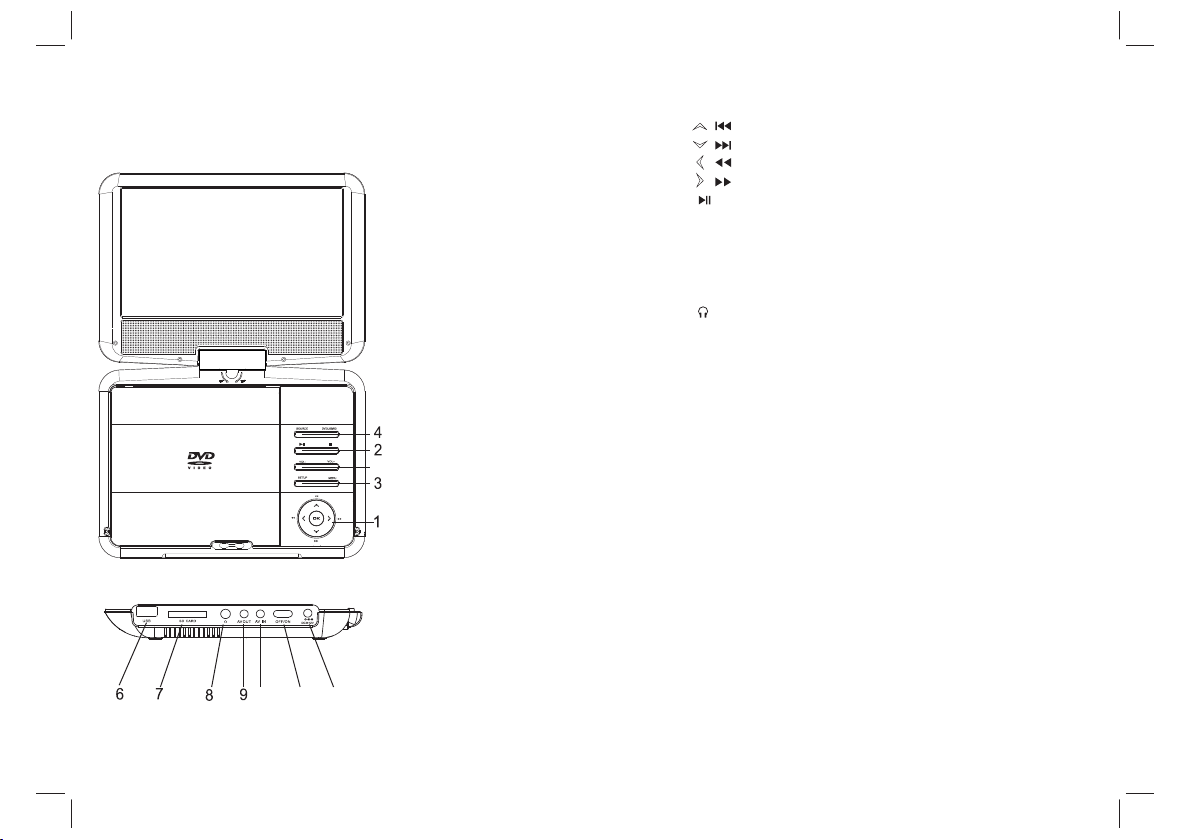

Identification of Controls

Main Unit

ENG-1

1./ Up / Prev

/ Down / Next

/ Left / REV

/ Right / FWD

2. PLAY/PAUSE/STOP

3.SETUP/MENU

4. SOURCE/DVD/USB/SD

5. VOL- / VOL+

6. USB

7. SD CARD

8. Earphone Socket

9. AV OUT

10. AV IN

11. ON/OFF

12. DC IN 9-12V

10 1112

GOTO

OSD

Remote control unit

Identification of Controls

ENG-2

1. SOURCE

DVD/AV IN

2. MUTE

Disable Audio output.

3.0-9 NUMBER BUTTON

Selects numbered items in a menu.

4.OSD

To display the playtime and status information.

5.10+ BUTTON

In order to select a track 10 or greater, first press 10+, For ex-

ample;select track 12, first press 10+, and then press number 2

button.

6. MENU

Return to DVD root menu(DVD).

7.AUDIO

DVD:Press AUDIO repeatedly during playback to hear a different

audio language or audio track, if avilable.

CD/VCD:Press AUDIO repeatedly during playback to hear a different

audio channel ( Left,Right,Mix,Stereo).

8.PLAY/PAUSE

Press PLAY/PAUSE once to pause playback, pressing PLAY/PAUSE

second time will resume the playback.

9.STOP

When this buttom is pressed once, the unit records the stopped

point,from where playback will resume if PLAY( )is pressed after

wards. But if STOP button is pressd again instead of PLAY( )

button, there will be no resume function.

10.A-B

Press A-B a third time to cancel A-B repeat and clear points A and B.

Note: During AVI/CD /VCD/SVCD playback, points A and B must be within

the same track.

During AVI/DVD playback, points A and B can be selected from different

chapters.

11.VOL+

12.Forward Skip

Go to next chapter/ track.

13.Reverse Skip

Go to previous chapter/ track to the beginning.

14. BUTTON

Press BUTTON allow skipping ahead at 5-level speed (X2-

>X4->X8->X16->X32->PLAY), press PLAY button return to

normal playback.

1314

1819

Identification of Controls

Remote control unit

ENG-3

15. BUTTON

Press BUTTON allow skipping back at 5-level speed (X2->X4-

>X8->X16->X32->PLAY), press PLAY button return to normal play-

back.

16.STEP

Step the motion in DVD mode.

17.GOTO

Goto time point , title or chapter you want in DVD Mode.

18.SUBTITLE

Press SUBTITLE repeatedly during playback to hear a different

subtitle languages.

19.ANGLE

DVD:Press ANGLE will change the view angle, on DVDs that support

this feature.

20.TITLE

Return to DVD title menu.

21.ENTER

Confirms menu selection.

22.SETUP

Accesses or removes setup menu.

23.VOL-

Adjust volume

24.REPEAT

Press REPEAT during playback to select a desired repeat mode.

DVD: you can play select repeat chapter/title/off.

CD/VCD: you can select repeat single/all/off.

25.SLOW

Press Slow button repeatedly to enter slow playback, and cycle

between different speeds. The speeds are 1/2,1/4,1/8,1/16,and

normal.

26.PROGRAM

Press PROG to get programme menu when reading DVD & VCD,

then program your wanted songs.

This function is unavailable for MP4.

27.ZOOM

DVD/VCD: Use ZOOM to enlarge or shrink the video

im-

age.

1.Press ZOOM during playback or still playback to activate the

Zoom function. The square frame appears briefly in the right bottom

of the picture.

2. Each press of the ZOOM button changes the TV screen in the

following sequence:

Parameters and specifications

Item Standard requirement

Electronical parameters

Power requirements : AC 100-240 V , 50/60 Hz

Output

VIDEO OUT

AUDIO OUT :1.2 Vrms (1 KHz, 0 dB)

Power consumption

Operating humidity

: <12W

: 5 % to 90 %

System

Laser :Semiconductor laser, wavelength 650 nm

Signal system : NTSC / PAL /AUTO

Frequency

response

Signal-to-noise ratio :More than 80 dB (ANALOG OUT connectors only)

Dynamic range :More than 85 dB (DVD/CD)

Note: Design and specifications are subject to change prior notice.

: 20Hz to 20 kHz(1dB)

Battery Parameters

Battery Specifications：

Output：7.4V

Charge / Discharge Time：

Standard charge time：3h ~ 4h

Storage and work circumstances：

1. Storage circumstances Temperature Humidity

2.Work circumstances Temperature Humidity

6 months -20 C +45 C~

-20 C +65 C~

65+20%

Standard charge

Standard discharge

0 C +45 C~

-20 C +65 C~

65+20%

1 week

ENG-4

ENG-5

Shenzhen Run Sheng Feng Power Supply

Techonolgy Co., Ltd

Floor, 4

Building, Zone A Xinfu Industrial

Park, Chongqing Road, Fuyong Street, Bao’an

District, Shenzhen, China

Model identifier

RSF-DY080-1

201000

Input voltage

100-240V

Input AC frequency

50/60Hz

Output voltage

Output current

Output power

12W

Average active efficiency

83.61% at 115V/60Hz

84.31% at 230V/50Hz

Efficiency at low load (10%)

80.95% at 115V/60Hz

77.78% at 230V/50Hz

No-load power consumption

0.05W at 115V/60Hz

0.07W at 230V/50Hz

Manufacturer’s name or trade mark,

commercial registration number and address

commercial registration number: 91440300580068676U
