GHRC and GHRCTWireless Hand-Held Remote Control Sets
For Use withVanguard Remote Ready Log Heaters and Fireplace Systems
(May also be used with RADCO approved vented gas log sets (with GA9100 RemoteValve/Pilot Kit only.
Follow installation instructions included with GA9100.)
INSTALLING REMOTE RECEIVER UNIT
1. Disconnect switch wires from the control valve.
2. Remove screws and nuts.
3. Remove switch plate (see Figure 1). Discard after removing.
4. Install remote receiver unit onto gas log heater base using clips
(2) and insulating washers provided.
5. Push clips firmly into place (see Figure 2).
6. Connect wires as shown in Figure 3.
INSTALLING WIRELESS REMOTE CONTROL
ACCESSORY
Two 9-volt alkaline batteries (not included) are required to
operate this heater with the wireless hand-held remote control
set. One battery must be installed in the receiver and one in the
hand-held remote control unit.
Note:
Only use alkaline batteries.
Installing 9-Volt Battery (Not Included) in
Receiver
1. Locate back of receiver under front burner of heater.
2. Locate the battery clip mounted on the back of the receiver.
3. Slide a 9-volt battery through the clip.
4. Attach the terminal wires to the battery.
Installing 9-Volt Battery (Not Included) in Hand-
Held Remote Control Unit
1. Remove battery cover on back of remote control unit.
2. Attach terminal wires to the battery. Place battery into the bat-
tery housing.
3. Replace battery cover onto remote control unit.
Figure 4 - Installing Receiver on the Back of the Base
Battery Cover
9-Volt Battery
Terminal
Wires
Figure 5 - Installing Battery in Hand-Held Remote Control Unit
Remote Control Unit
Battery Housing
Figure 1 - Switch Plate and Wiring Harness (Switch Plate and
Orientation May Vary Depending On Model)
Figure 3 - Connecting Wires
Wire From
Receiver
Valve
Wire From
Receiver
Figure 2 - Installing Remote Receiver
Front
Back
Wires
Nut
Nut
Screw
Front
Bac
k
Insulating
Washers
Remote
Receiver
Mounting
Clips
Battery Clip
9-Volt Battery
Receiver
Terminal Wires
REMOTE OPERATION
NOTICE: You must light the pilot before using the
hand-held remote control unit. See
Lighting Instruc-
tions
in your owner’s manual.

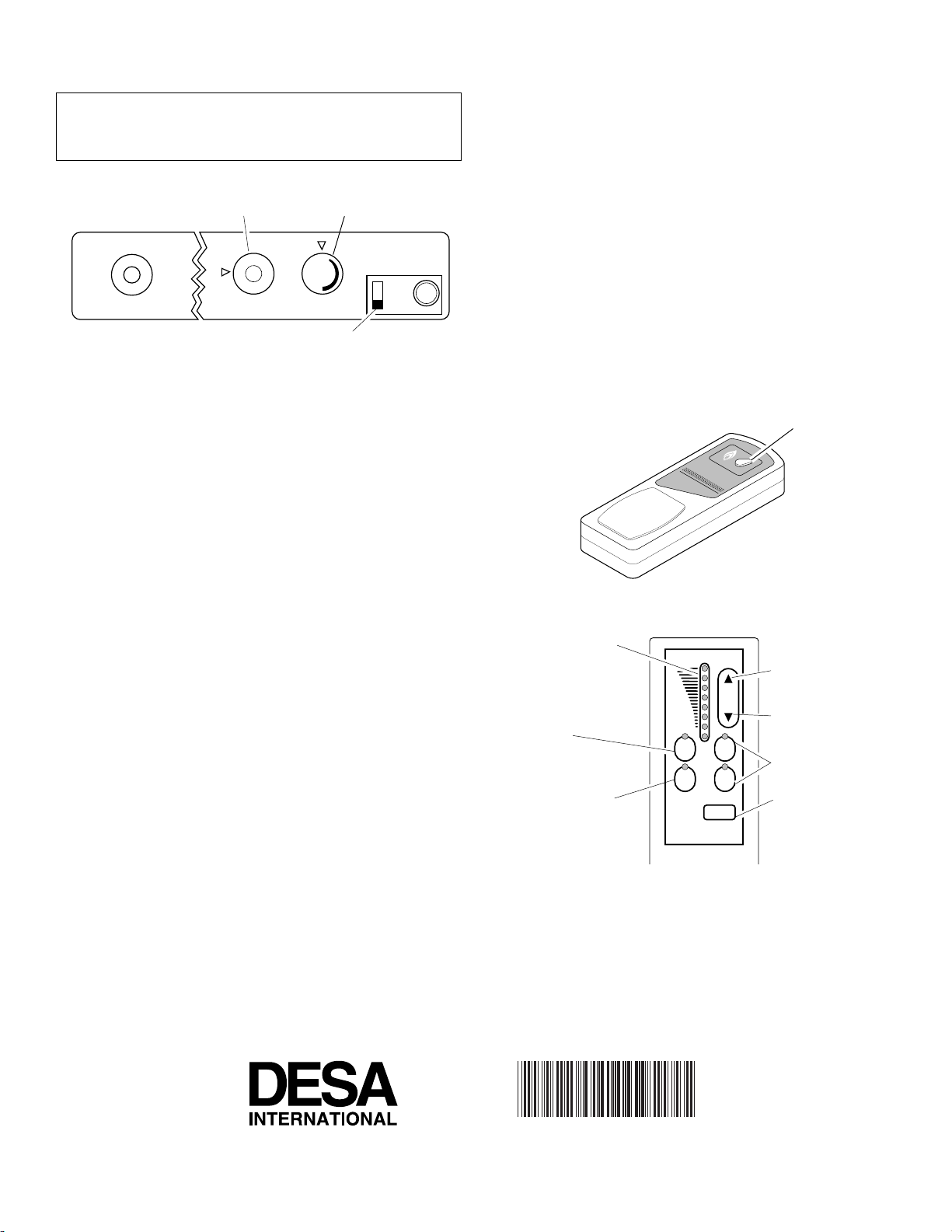

Figure6-SettingtheSelectorSwitch,ControlKnob,andFlame
Adjustment Knob for Remote Operation
Figure 8 - GHRCT Hand-Held Remote Control Unit
Selections
O
F
F
P
I
L
O
T
O
N
L
O
I
H
ON
OFF
REMOTE
Selector Switch
in Remote Position
Control Knob in
On Position Flame Adjustment Knob
TEMP
STATUS
HI
LO
MAN ON
AUTO OFF
1. After lighting, let pilot flame burn for about one minute.
This is required before the burner(s) will turn on. Turn
controlknob toONposition.Adjustflameadjustmentknob
anywhere between HI and LO. Slide the selector switch to
the REMOTE position.
Note:
The burner(s) may light if
hand-held remote ON button was on when selector switch
was last turned off.You can now turn the burner(s) on and
off with the hand-held remote control unit.
IMPORTANT:
Donot leave theselectorswitchin theAUTO
position on the handset when the pilot is not lit. This will
shorten the battery life.
IMPORTANT:
Be sure to press the ON/OFF buttons on
the hand-held remote control unit for up to 3 seconds to
assure proper operation.
2a. GHRC Series Operation:Pressthe control buttonon the
hand held remote to turn burner on. Press the control but-
ton again to turn burner off (see Figure 7).
2b. GHRCT Series Operation: Select the MAN(manual) or
AUTO button on the hand-held remote control unit (see
Figure 8).
• In manual mode, turn burners on or off by pressing the
ONorOFF buttonsonthe hand-heldremotecontrolunit.
• Inauto mode, the room temperatureis controlledby the
thermostat in the hand-held remote control unit. To in-
crease the room temperature, press the top arrow of the
TEMPbutton.To lowerthe roomtemperature,pressthe
bottom arrow of the TEMP button. At higher settings
the heater will run longer.
IMPORTANT:
Thisremotecontrolhasbeen speciallyen-
gineered to take an air temperature sample every 5.5
minutes in the auto mode. It will not respond immedi-
atelytothe temperaturesetting beingturnedupor down.
Increases Room
Temperature
Decreases Room
Temperature
Turns Burner(s)
On and Off
Shows Current
Operation Mode
The Log Heater Will
Automatically Cycle
Between Pilot and
the Heat Setting that
has been Selected
Shows Temperature
Setting
Allows Burner(s) to
be Turned On and Off
with the Hand-Held
Remote Unit
IMPORTANT:
The hand-held remote control unit must be
in the vicinity of the heater. Do not keep the hand-held
remote control unit too close to the heater.The thermostat
on the hand-held remote control unit will heat up too
quickly and turn the heater off. Ideally the hand-held re-
mote control unit should be located in a central part of the
room where the heater is located.
3. Use the STATUS button on the hand-held remote control
unit to see the operation mode being used and the tem-
perature setting selected. A red light will come on beside
the operation mode being used when the status button is
pressed.
4. To turn the burners off when operating in the manual
mode,pressthe OFFbutton.If operating in the automode,
press the MAN button, then press the OFF button. The
pilot will remain lit.
IMPORTANT:
To turnthepilot off,manually turnthecon-
trol knob on the heater to the OFF position.
Figure 7 - GHRC Hand-Held Remote Control Unit
Turns Burner(s)
On and Off
103962-01
REV. D
06/99
103962 01
NOTA UPC
Note:
For customer service, call the manufacturer at 1-888-301-
0440 or visit their web site at www.trackingtech.com.
2701 Industrial Drive
P.O. Box 90004
Bowling Green, KY 42102-9004
