Deteck FLASH DT40P Manuale utente

Thermal Receipt Printer

DT40P

User Manual

Thank you for choosing our product. The FLASH DT40P Thermal

Receipt Printer is the perfect solution for a safe, reliable and efficient

printing quality at an affordable price. We recommend reading

thoroughly all the information stipulated in this manual in order to make

the best use of this product

PLEASE TAKE NOTICE Should the equipment be altered in any way or

used in a manner for which it was not intended at the time of delivery,

the supplier of the equipment accepts no responsibility for injury or

damage to personnel or equipment. If the conditions for use of the

equipment are changed, the supplier must be contacted or the

declaration of conformity will be invalidated.

All support provided from our North

American 24/7 Support Team

1-332-228-1098

support@deteckusa.com

IMPORTANT SAFETY INSTRUCTIONS

WARNING

- Do not touch the Printer head right after Printing to avoid any burn

- Keep the machine away from heavy humidity and high temperature as

it may prevent it from working properly.

- Do not drop conductive objects into the machine to prevent internal

short circuit.

- Do not use this machine in areas where it may be exposed to water or

other liquids

- Unplug this machine from the wall before opening the back cover for

maintenance.

- Do not disassemble this machine as this may expose you to dangerous

voltages as well as electrical shocks if wrongly re-assembled. Take it to

qualified personnel for service or repair if required.

CAUTION

- When not using the machine for a prolonged period of time, please

switch off the machine and disconnect the power cord

- Ensure the cable is disconnected before moving the machine otherwise

the power cord may get damaged

- Do not pull the cord to unplug the power cord. Do not use the machine

if the power cord is damaged or the plug socket is loose.

- Do not bend excessively the power cord as it may get damaged.

- Do not place heavy objects on the cord.

Not following these instructions may result in fire, electrical shock or

damage to the machine.

SAFETY PRECAUTIONS

This product should not be exposed to:

- Shaky or vibrating surface

- High temperature including but not limited to strong sunlight, radiator

heater register.

- High humidity and dust as this may damage the machine

- Water or other liquids. In case of spilled liquid into the interior of the

machine, please stop operating, switch off and disconnect the power

cord. Contact the service center for help

- Chemical solvents such as oil, gasoline, benzene and acidic liquids. In

case of spilled liquid into the interior of the machine, please stop

operating, switch off and disconnect the power cord immediately.

- Any kind of objects dropped into the machine through the case slots or

openings .Especially conductive objects such as clips, pins, etc.

To ensure a long product cycle and quality of printing:

- Use the manufacturers' thermal paper (or similar).

- Use a dry cloth to clean the printer head. Do not use dissolved

substances, such as: benzene, thinner or alcohol wipes

- Avoid printing in a paperless state; it will seriously damage the printing

roller and thermal print head.

PACKAGE CONTENT

- Thermal Label Printer 58mm

- Power Adapter

- Paper roll

- USB-B/Serial Plug

- LAN/Serial Plug

- User Manual

PARAMETERS

Parameters

Print Method Thermal Line Printer

Print Width 48MM

Resolution 384dots/Line（8dots/mm，203dpi）

Printing Speed 70mm/Second

Interface Type USB-B Port

Line Spacing 3.75 mm（Can adjust by command）

Line No. Font A:32 character /Line - Font B:42 character/Line

Character Standard GB18030 simplified

Character Size Font A: 1.5×3.0mm (12×24Dots）

Font B：1.1×2.1mm（9×17Dots）

Character

Extended

Character set

PC437/PC850/PC860/PC863/PC865/PC1252/PC86

6/PC852 etc. 50 international language in total

Bar code UPC-A/UPC-E/JAN13(EAN13)/JAN8(EAN8)CODE3

9/ITF/CODABAR/CODE93/CODE128

Paper Type Thermal Roll

Width / Diameter 57.5±0.5mm; ≤60mm

Feed Method Easy feed (Clamshell feed)

Command Commands ESC/POS

Power Power Adaptor Input: AC 100V-240V,50-60Hz - Output：DC 12V/2A

Cashier Drawer Output: DC 12V/1A

Buffer Input Buffer 32K bytes

NV Flash 40K bytes

Product

Features

Weight 1.3lb (590g)

Dimension 7.3x5.1x4.4” (185*130*112MM)

Environment Working Te mp：5 ~ 45℃,Humidity：10 ~ 80%

Storage Tem p：-10 ~ 50℃,Humidity：10 ~ 90%（No dew）

Reliability Print Head Life 31 Miles / 50KM（print density≤12.5）

Software Driver Windows

INSTALLATION AND OPERATION

Connecting the Printer

1. Connect the power adapter cable to the printer power supply and the

USB-B Port to the Printers interface

2. If your device has a Male Serial Port connection, Please use the USB-B /

Female Serial Port cable. Plug the USB-B Port into the Printers interface

and connect the Female Serial Plug into your device. This works with our

DETECK DT800 and DT600 Money Counters

3. If your device has a Lan Port connection i.e. DETECK DT200 Money

Counter, please (1) connect the Serial Port cables together as indicated in

the picture below and (2) plug the USB-B Port into the Printers interface

and (3) connect the LAN Plug into your device

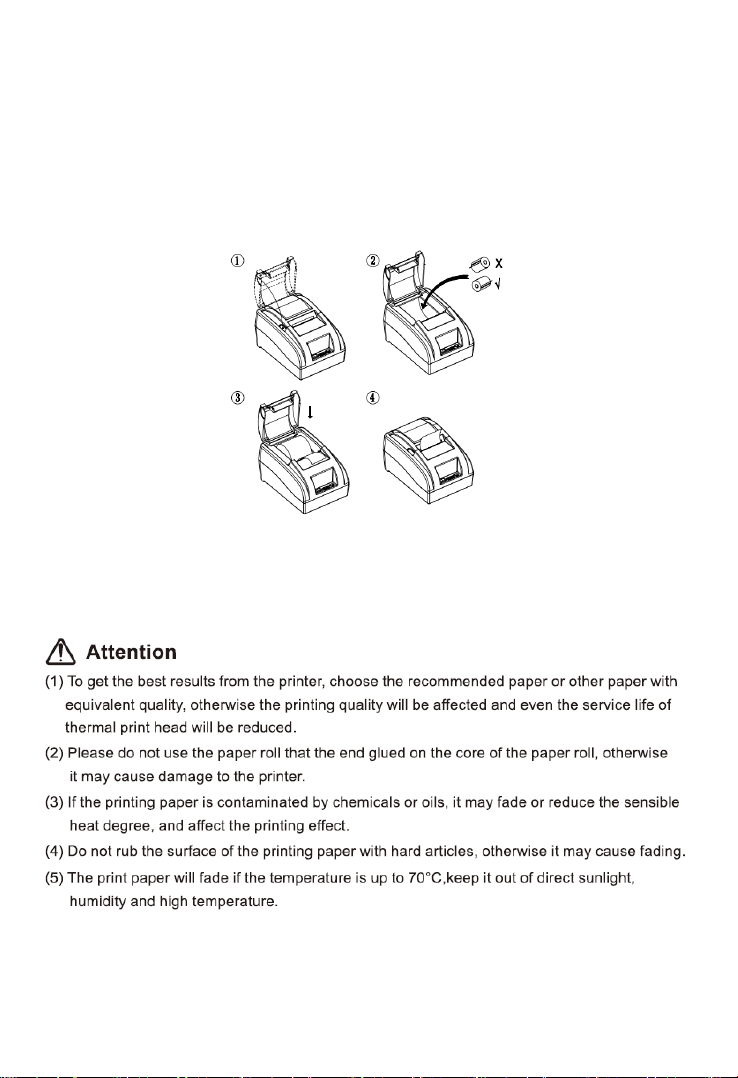

Loading Paper

1. Open the upper cover of the printer

2. Insert the roll paper as shown in the illustration

3. Pull out a part of paper, and close the cover as show in 3 and 4

4. Press down the flip cover and tear off the paper with the cutter

Note: take care of the roll direction, if inserted in the inverse direction, the

content will not print out.

Switch, Key name, Indicator and Function

1. POWER Switch

The power switch is used to turn the printer On or Off

2. (FEED) Key

Press the FEED button to advance paper or hold down to feed continuously

3. (STATUS) Green Light

If the STATUS light is off, this indicates that the printer is in normal working

state.

If the STATUS light is flashing, this indicates that the printer is short of

paper, print head overheating or error and other abnormal conditions.

4. (POWER) Red Light

The indicator light indicates the printer is connected to the power supply

and is turned on.

5. Self-Test of Printer

Make sure the printer is power off before performing this task. Press and

Hold the FEED button and then power on the printer. Release the button

within 2-5seconds to print the self-test page

6. Restore Factory Settings

When the printer connected to the power adapter, press (feed) key and

open the printer power at the same time, released the button after

approximately 10 seconds, printer is restored to factory settings.

MAINTENANCE

1. How to clean the Printer: Use a wet cloth; gently wipe the printer surface

and internal paper warehouse.

2. How to clean the Printer Core: Dip a cotton in anhydrous alcohol and

gently wipe the printer core ceramic parts

3. In case of water spill, please immediately disconnect the printer power,

and allow the printer to dry naturally. Do not expose to direct sunlight.

TROUBLESHOOTING

Error Phenomenon

Reason

Corrective Action

Printer Status

indicator is flashing

1.Lack of paper

2.Printer head is over

heating

3. Cover is not closed

properly

1. Add Printing Paper

2.Open the cover

to help

dissipate the heat

3. Close the cover

Printer only perform a

paper run, no content

Paper roll installed in

the inverse direction

Install the paper roll in the

opposite direction

Low Quality Print

Result

The print head is dirty Dip a cotton

in anhydrous

alcohol and gently wipe the

printer core ceramic parts

Unable to Print The power adaptor is

not connected

Check if the power adaptor

is properly connected

WARRANTY

This DETECK product is warranted to be free of defects in materials and

workmanship for one (1) year after the date of purchase. Please ensure

you activate your warranty by visiting our website:

https://deteckusa.com/warranty

If you need to contact Deteck Technical Service Center, please have

the following Information with you:

- Product Model

- Order ID

- Nature of the problem

- Steps already taken to resolve the problem, and the results (if any)

All support provided from our North

American 24/7 Support Team

1-332-228-1098
