Dhollandia DH-VZ Istruzioni operative



Quick guide for use of lift model

DH-VZ

Doc date :

Doc :USE-DHVZ

n/a

Last Rev date :

2011-11-04

Created / amended by : Lok3

§1 - Introduction

•

This document forms a quick guide for the use of the lift model DH-VZ. It must be read in conjunction with the general

user’s manual with regards to the safety instructions for the operator (chapter A), the periodic maintenance (chapter B),

and the legal requirements regarding period testing and certification (chapter C).

•

In case of doubt, stop immediately, and ask further advice from DHOLLANDIA prior to continuing.

§2 - Electrical controls

•

The DH-VZ is partially operated by hand, partially via a 2-button control in the lift’s body. The rotating movements of the lift frame IN /

OUT the vehicle body, rotation from the position at the loading floor 90° outwards, and the folding / unfolding of the platform is done

by hand. The electrical control is used to LIFT / LOWER the platform, when the lift frame is positioned in its work position outside the

vehicle.

•

The electrical control unit works as follows:

Consult the user’s manual before getting

started. Follow all safety instructions.

Check if the lift can be used safely, and

that no urgent maintenance or repair is

required. DO NOT continue if any unsafe

condition exists

Switch on the electrical power to the lift

(cabin switch in the driver’s cabin, or main

battery isolator switch)

Press LIFT to check if the hydraulic system

is building up pressure, and there is no

visual oil leaks.

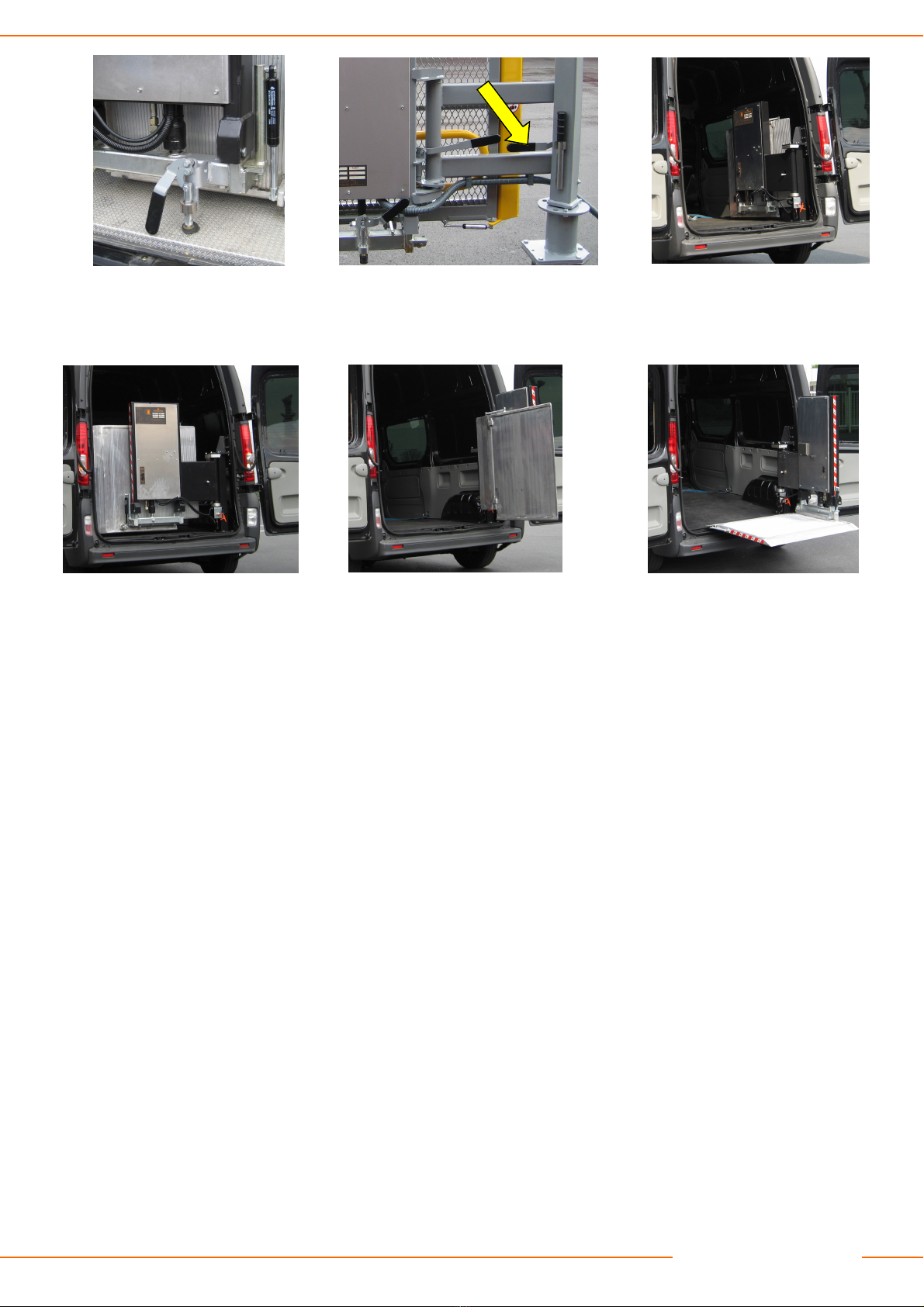

§3 - Putting the lift into service



2/4

Release the mechanical travel lock Release the rotation lock and manually

rotate the lift 90° or 180° until the lift is

behind the vehicle.

If the lift was stored in this position, it

should be rotated 90° Position behind the vehicle. Now unfold the

platform. Beware of hand and finger traps.

If the lift was stored in this position, it

should be rotated 180°

The lift is now ready for use.



Follow the loading instructions of the user’s

manual. Observe the max. nominal capaci-

ty and the loading diagrams indicating the

SWL

Release the second rotation lock in order

to rotate the lift body. Rotate the lift 90° outwards to bring it in

the position where it can start lowering

Lower the platform to the ground (or pave-

ment at the roadside)

Do not load / offload the platform before it

has reached its final parking position at the

ground

3/4

§4 - Loading and unloading



 

Use to controls to LIFT the platform to the

loading floor level of the vehicle. Release

the LIFT button when the platform has

reached its highest position

Release the rotation lock of the lift body

and manually rotate the lift body back to

the position behind the vehicle.

Lower the lift until the front of the platform

is resting on the loading floor. ... and move the load from the platform to

the vehicle floor or vice versa



§5 - Stowing the lift away in its travel position

Switch off the electrical power to the lift

(cabin switch in the driver’s cabin, or main

battery isolator switch)

Engage the mechanical travel lock

Stored position alongside the van wall (e.g.

when the van is empty) - 180° rotated.

Stored position behind the doors (e.g.

when goods inside the van prevent further

rotation) - 90° rotated.

Release the rotation lock and manually

rotate the lift 90° or 180° until the lift is in

stored position.

Fold the platform back into vertical posi-

tion. Beware of hand and finger traps.

Lift the platform to its highest position.
