Dialog Semiconductor DA14681 Come usare

Install the Dialog Wearables mobile app

from PlayStore/App store

Make sure your device is switched on

Run the app on your mobile

device and use the Scan

screen to select and connect

your wearable device

Select ‘General Settings’ from the

app’s menu and ‘Sync clock’ to

update Wearable’s date/time

Select ‘Health Settings’ from the

app’s menu to set your profile’s

parameters (age, height, etc.)

Upon successful connection the health dashboard

screen appears. This screen illustrates live health

counters of the current day for steps, calories

burned, total time of light and deep sleep and the

latest captured sample of heart rate service.

By tapping on each counter,

the application screen will

switch to the respective

historical data representation

screen.

DA14681 Wearable

Development Kit

Quick Starting Guide

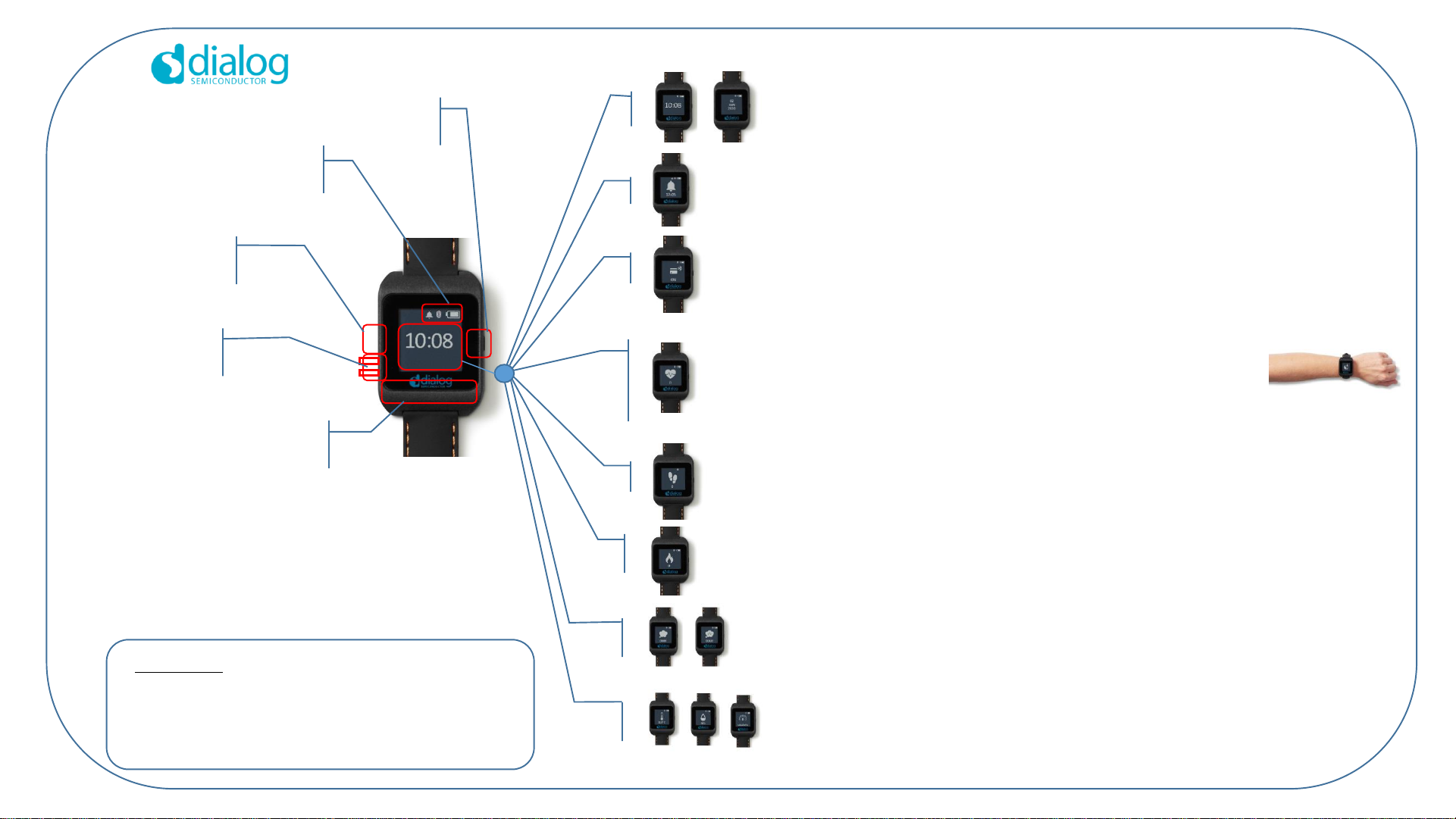

Alarm: visible when the alarm is enabled

Bluetooth: visible when connected

Battery/Charging indicator

Touch Pad effective area

Swipe over your finger to navigate

USB charging port

Time/Date: To change time press the mechanical button. Hour’s text will start blinking.

User can change time by swiping the finger over touch pad. User can change minutes

by pressing the button again. The screen exits “time setup” mode if the button is

pressed again.

OFF

Mechanical button

Alarm: Alarm is also set in a way similar to Time. On the first button press the alarm icon starts

blinking. The alarm is enabled / disabled by swiping the finger on touch pad while the icon is

blinking. The corresponding icon gets visible when alarm is enabled and invisible when disabled.

Alarm time can be set as described earlier for the time screen.

NFC: Pressing the mechanical button switches on/off the NFC. Contactless operation can be

demonstrated by approaching the device to an NFC reader.

Heart rate: To get a heart rate sample the user must place the wearable on his wrist in the way it is

demonstrated in the following picture. Then the mechanical button must be pressed. The heart rate

indication will turn into 0 and will start blinking. The HRM sensor takes 20 seconds before it can show

a valid measurement. User must keep his hand still during this period.

The Heart Rate sample will be displayed on the screen at the end of this period. The sampling will go

on until the user presses the button again to disable it. The Green LEDs at the back of the device

should blink while the heart rate sampling is enabled

Steps: The step counting operation is enabled by default. The user can disable it by pressing the

button. When step counting is disabled counter resets. If the user keeps the button pressed for 3

seconds the step counter also resets.

Calories: The user can disable/enable it by pressing the button. When Calories counting is disabled

counter resets. If the user keeps the button pressed for 3 seconds the Calories counting also resets.

Light/deep sleep: Light/Deep Sleep operation is disabled by default. The user can enable it

by pressing the button. When Light/Deep Sleep is disabled counter resets. If the user keeps

the button pressed for 3 seconds the Light/Deep Sleep also resets.

Environmental sensors: Temperature - Humidity - Pressure

The data of these environmental sensors are displayed when the user switches to

the corresponding screen.

On/Off switch

Important notes:

- The device needs to be switched on to enable charging

- Operation is highly effected under increased humidity

- Avoid connecting different Wearables to the same mobile device.

If needed, Reset DB should be selected to avoid data mix-up.

DA14681 Wearable Development Kit

Quick Starting Guide
