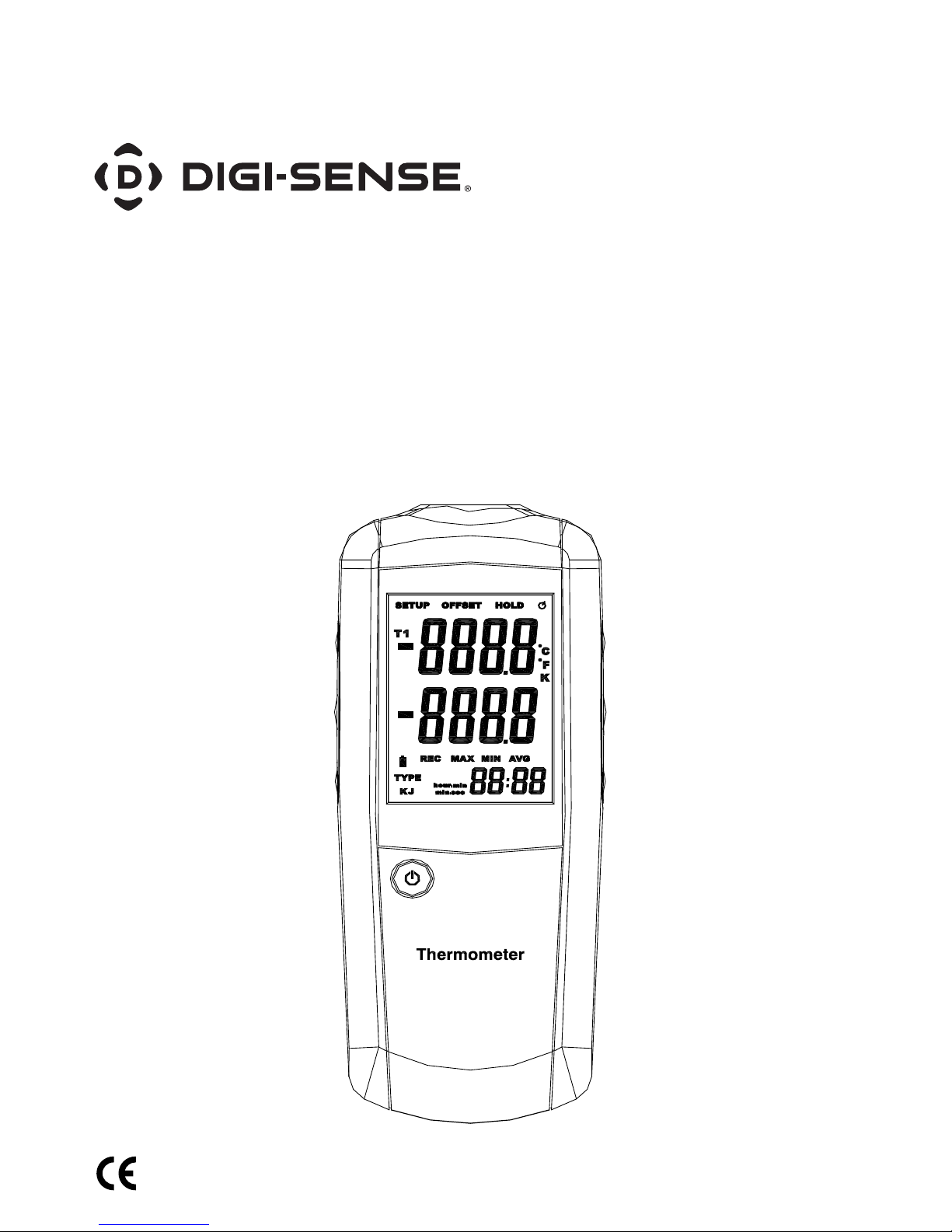

Thermocouple Thermometer
with Single Type K/J Input
with NIST-Traceable Calibration
Model 20250-01
2
Introduction
The Digi-Sense Thermocouple Thermometer with Single
Type K/J Input (Model 20250-01) offers fast response and
high accuracy. This thermometer works with one type K or
J thermocouple sensor. Advanced features include relative
time clock, offset compensation, data Hold, Max/Min/Avg
readings, and automatic power-off. The instrument is fully
tested and calibrated to NIST-traceable standards. Careful
use of this meter will provide years of reliable service.
Unpacking
Check individual parts against the list of items below. If
anything is missing or damaged, please contact your
instrument supplier immediately.
1. Meter
2. One flexible type K thermocouple probe
3. Three AAA batteries
4. User manual
5. NIST-traceable calibration report with data
3
Key Features
• Large backlit display
• Max, Min, and Avg readings
• Relative time clock on Max/Min/Avg provides a time
reference for major events
• Electronic Offset function allows compensation of
thermocouple errors to maximize overall accuracy
• User-selectable readout in °C, °F, or Kelvin (K)
• Automatic power-off (sleep) mode to conserve battery life
• Accepts a wide variety of thermocouple type K and J
probes
4

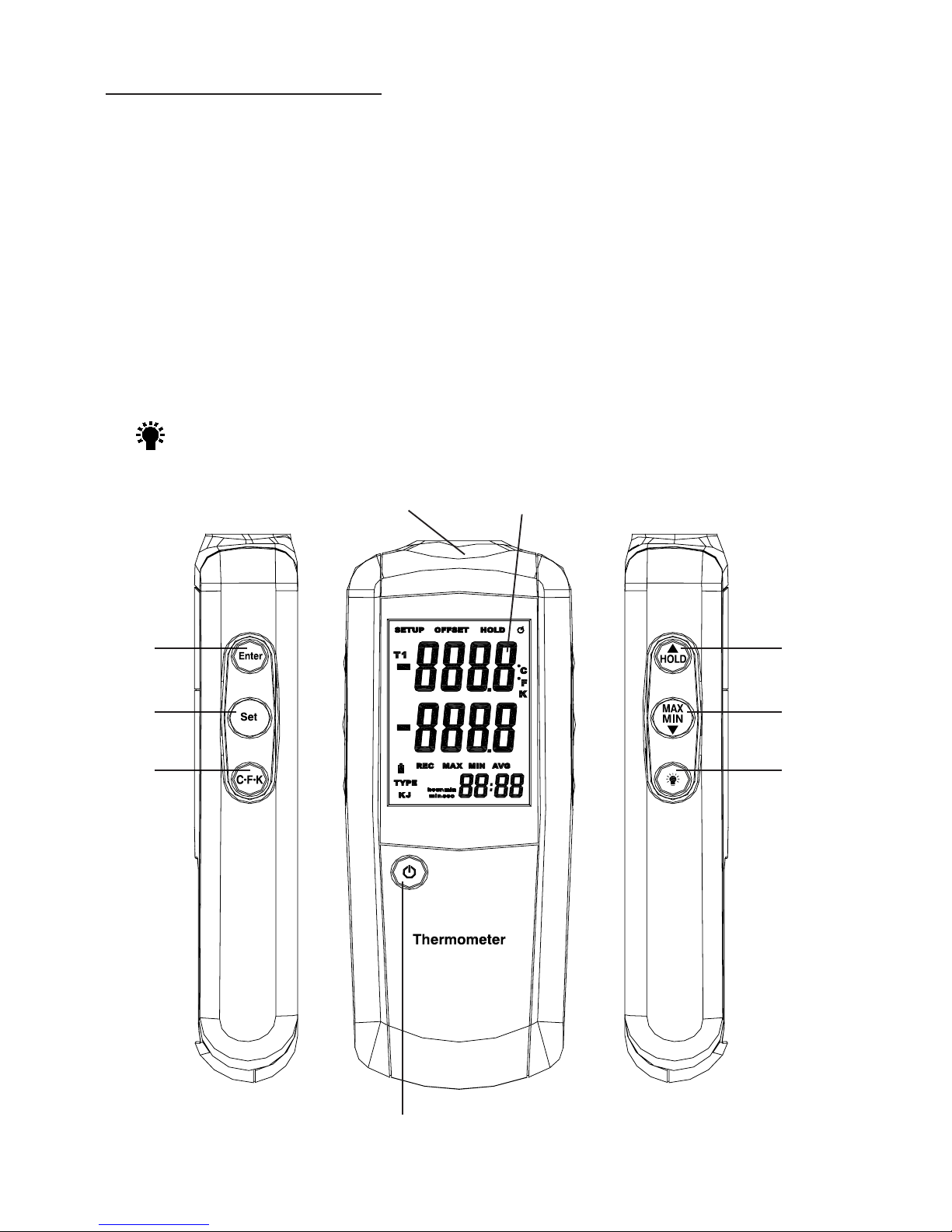

Meter Description
1. Temperature sensor input
2. LCD
3. Power on/off button
4. Enter button
5. Set button
6. °C/°F/K button
7. (Up)/Hold button
8. Max/Min/(Down) button
9.
Backlight button
5
6
1
47
8
9
3
2
5

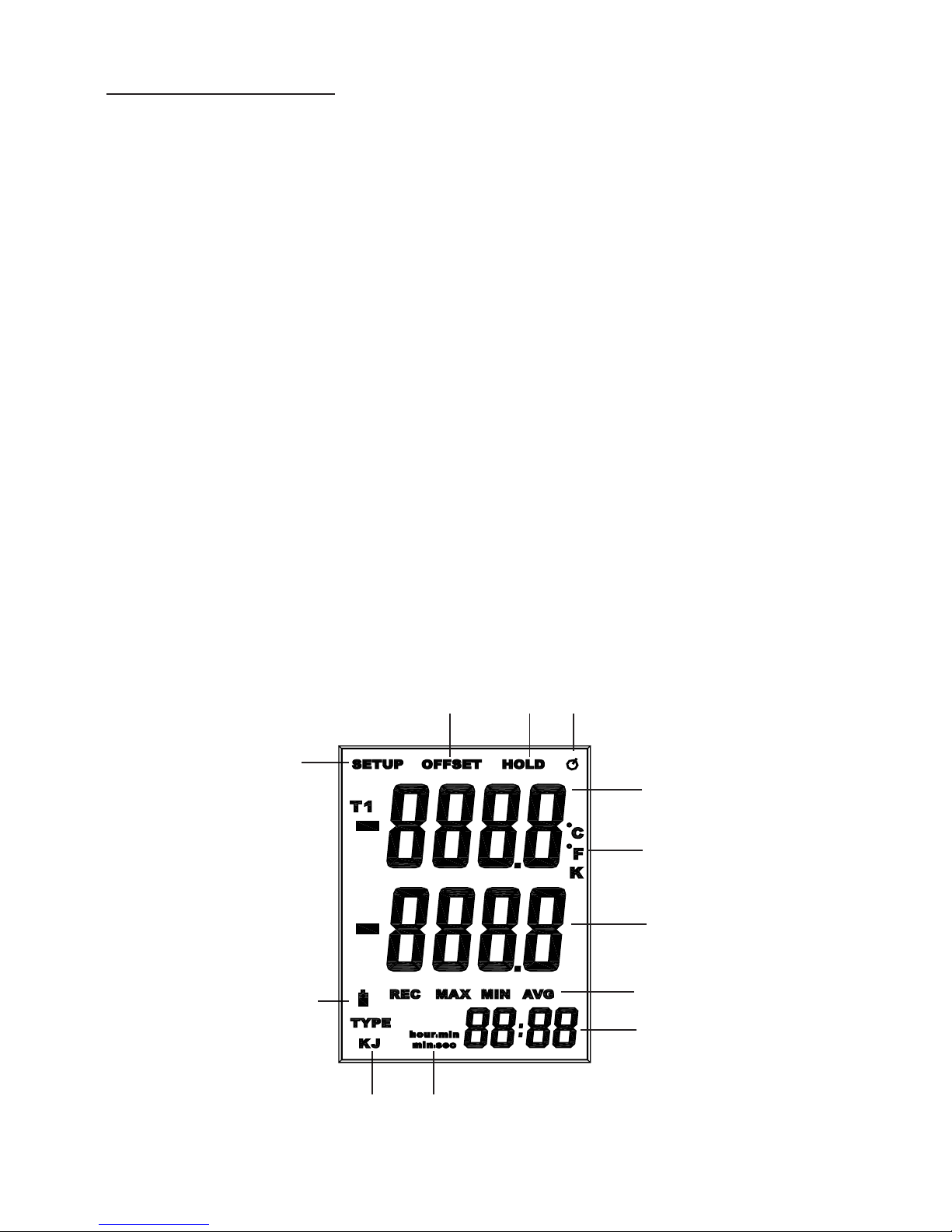

Display Layout
1. Setup mode icon
2. Offset option
3. Hold icon
4. Auto power-off icon
5. Primary temperature
display
6. User-selectable
temperature units
(°C/°F/K)
7. Secondary display
(Max, Min, Avg, or
offset)
8. MAX, MIN, AVG icons
9. Time display
10. Time icon (hour:min
or min:sec)
11. Thermocouple type
icon (K or J)
12. Low-battery indicator
11
12
2
1
3 4
5
6
7
8
9
10
6
Setup and Operation
1. Press Power on/off button to turn the unit on.
2. When thermometer is in Setup mode, press Enter
button to enter a setup option and press Enter
button again to store the displayed setting in
memory.
3. Press Set button to enter or exit Setup mode.
(See "Changing Setup Options" on page 7.)
4. Press °C/°F/°K button to switch between Celsius
(°C), Fahrenheit (°F), and Kelvin (K).
5. Press /Hold button to freeze or unfreeze the
displayed readings. When the thermometer is in
Setup mode, press /Hold button to scroll to the
Setup option you want to change or press /Hold
button to increase the displayed setting.
6. Press Max/Min/button to step through the
maximum, minimum, and average of the logged
readings. When reading, the screen will indicate
the MAX, MIN, or AVG icon. To exit the Max/Min/
Avg mode, press and hold Max/Min/button for
three seconds to return to normal operation. When
the thermometer is in Setup mode, press
Max/Min/button to scroll to the Setup option
you want to change or press Max/Min/button
to decrease the displayed setting.
7. Press Backlight button to the backlight on or off.
7
Setup Mode
Use Setup mode to change offset and sleep mode settings.
The thermometer stores the settings in its memory.
Option Menu item Settings
Type TYPE K or J
Offset OFFSET Offset range –9 to 9°F (–5 to 5°C)
Sleep mode SLP On (sleep mode on)
Off (sleep mode off)
Entering or Exiting Setup Mode
When the thermometer is in Setup mode, the display
shows the SETUP icon. Press Set button to enter or exit
the Setup mode.
Changing Setup Options
1. Press /Hold button or Max/Min/button to scroll to
the setup option you want to change.
2. Press Enter button to indicate that you want to change
this setting.
3. Press /Hold button or Max/Min/button until the
setting you want to use appears on the display.
4. Press Enter button to store the new setting in memory.
Note: Setup is disabled in MAX/MIN mode.
8
Setup Mode (continued)
Offset Function

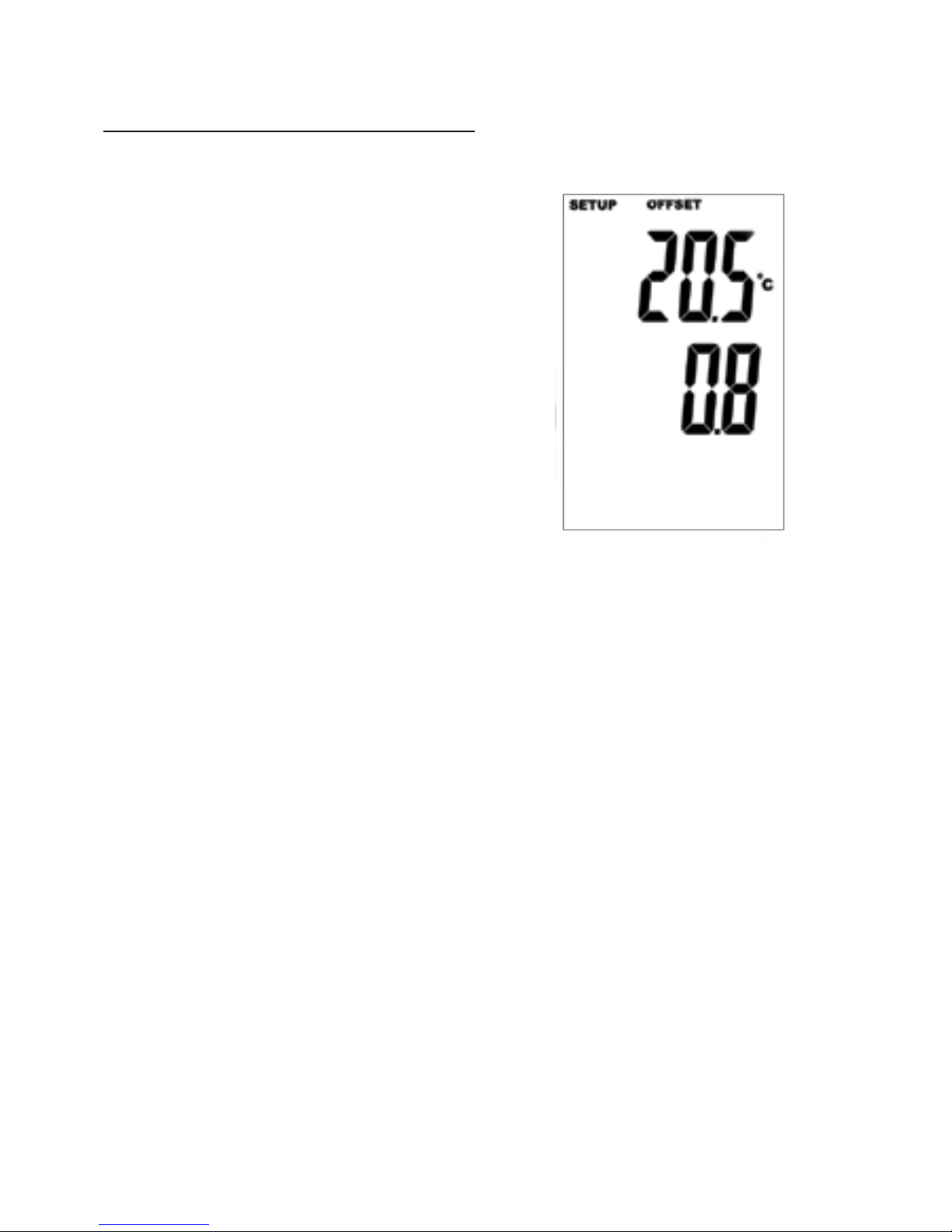

The primary display shows the
temperature plus the offset and
the secondary display shows
the offset.
1. When the thermometer is in
Setup mode, the display
shows the SETUP icon.
2. Press /Hold button or
Max/Min/button to scroll
to the OFFSET setup option
page (see Fig. 1).
3. Press Enter button to indicate
the offset in the secondary display.
4. Press /Hold button or Max/Min/button until the
value you want to use appears on the display.
5. Press Enter button to store the new setting
into memory.
Using the Offset to Adjust for Probe Errors
Use the offset option in the Setup mode to adjust the
thermometer’s readings to compensate for the errors of
a specific thermocouple. The allowable adjustment
range is ±9.0°F or ±5.0°C.
1. Plug the thermocouple into the input connector.
2. Place the thermocouple in a known, stable temperature
environment (such as an ice bath).
Fig. 1
9
Fig. 2
3. Allow the readings to stabilize.
4. In the Setup mode change the offset until the primary
reading matches the calibration temperature. (See
“Changing Setup Options" on page 7.)
Auto Power-Off (APO) Mode
The meter’s default mode is to automatically shut off
after 20 minutes of non-use. To disable the auto power-
off mode, enter the Setup mode.

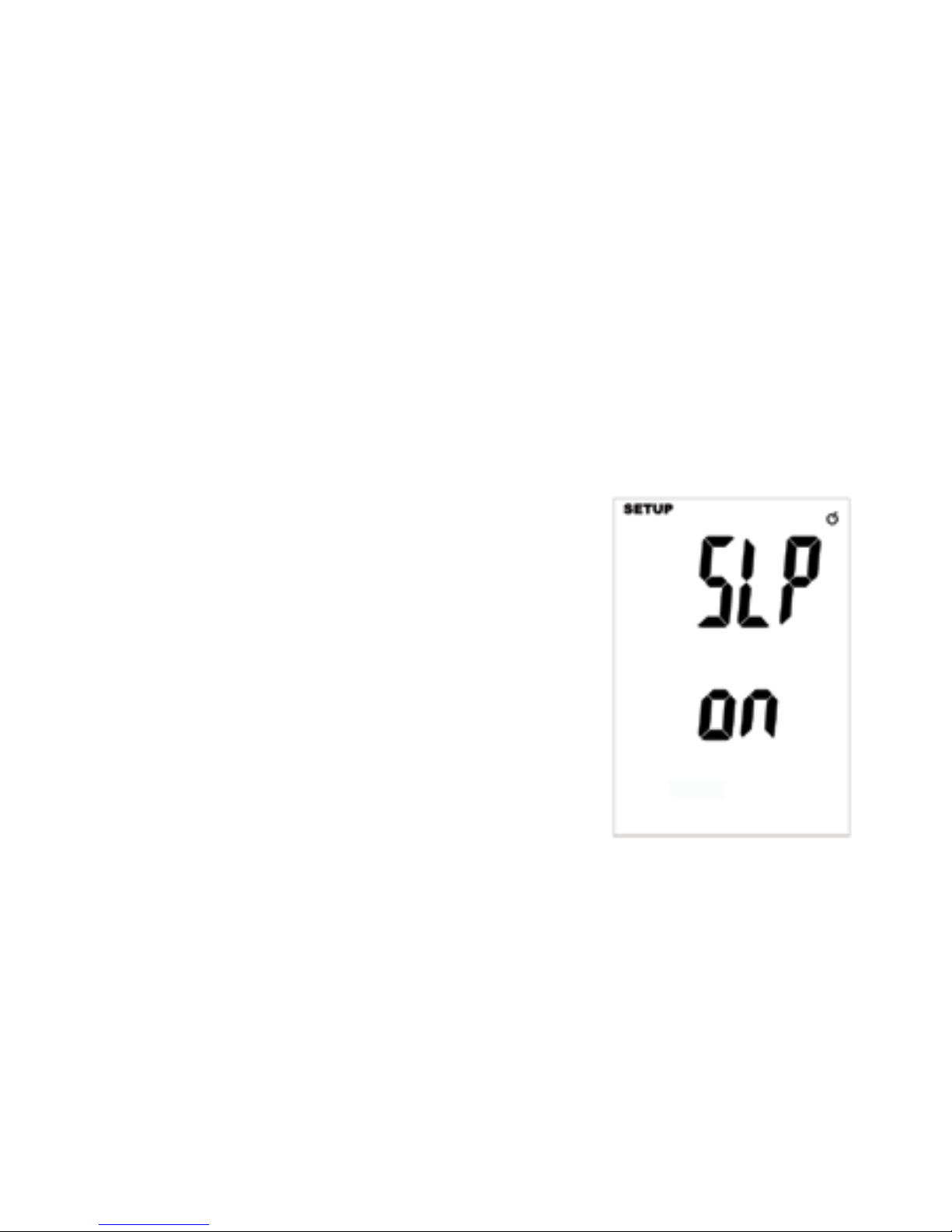

1. While in Setup mode, press
/Hold button or Max/Min/
button to scroll to the “SLP” option
screen (see Fig. 2).
2. Press ENTER button to display “On.”
3. Use the /Hold button or
Max/Min/button to toggle
between “On” (sleep mode on)
or “Off” (sleep mode off).
Note: Mode defaults back to “On”
once meter is powered off.
10
Measuring Temperatures
1. Plug the thermocouple into the T1 input connector.
Make sure that the polarity is correct.
2. Press power on/off button to turn on the thermometer.
After one second the thermometer displays the first
reading. If no thermocouple is plugged into the
selected input or the thermocouple is not connected
properly, the display shows "- - - -". If the temperature
being measured is outside the thermocouple’s valid
range, the display shows “OL” (overload).
3. Set the thermometer for the correct thermocouple
type (K or J) in Setup menu.
4. Press °C/°F/K button to select the desired
temperature scale.
Hold Function
1. Press /Hold button to freeze the readings on the
display. The display shows the HOLD icon.
2. Press /Hold button again to turn off the Hold
function.
Min/Max/Avg Function
1. Press Max/Min/button to step through the
maximum (MAX), minimum (MIN), and average
(AVG) readings. The elapsed time since entering
Max/Min mode, or the time at which the maximum
or minimum reading occurred, appears on the
display.
2. Press and hold Max/Min/button for 3 seconds
to exit Max/Min mode.
