digi-tech BP50 Manuale utente
User’s
Guide
MODELING
BASS
PROCESSOR
For your protection,please read the following:
Water and Moisture: Appliances should not be used near water
(e.g.near a bathtub,washbowl,kitchen sink,laundry tub,in a wet
basement,or near a swimming pool,etc.) Care should be taken so
that objects do not fall and liquids are not spilled into the enclosure
through openings.
These symbols are internationally accepted symbols that warn of potential
hazards with electrical products. The lightning flash means that there are
dangerous voltages present within the unit. The exclamation point indicates
that it is necessary for the user to refer to the owner's manual.
These symbols warn that there are no user serviceable parts inside the unit.
Do not open the unit. Do not attempt to service the unit yourself. Refer all
servicing to qualified personnel. Opening the chassis for any reason will void
the manufacturer's warranty. Do not get the unit wet. If liquid is spilled on
the unit,shut it off immediately and take it to a dealer for service.
Disconnect the unit during storms to prevent damage.
Operation is subject to the following conditions:
•This device may not cause harmful interference
•This device must accept any interference received,including
interference that may cause undesired operation.
• Use only shielded interconnecting cables.
• Operation of this unit within significant electromagnetic fields should
be avoided
Electromagnetic Compatibility
Warning
Power Sources: The appliance should be connected to a power
supply only of the type described in the operating instruction or as
marked on the appliance.
Grounding or Polarization: Precautions should be taken so that
the grounding or polarization means of an appliance is not defeated.
Power Cord Protection: Power supply cords should be routed so
that they are not likely to be walked on or pinched by items placed
upon or against them,paying particular attention to cords at plugs,
convenience receptacles,and the point where they exit from the
appliance.
Servicing: To reduce the risk of fire or electrical shock,the user
should not attempt to service the appliance beyond that described in
the operating instructions. All other servicing should be referred to
qualified service personnel.
For units equipped with externally accessible fuse receptacles:
Replace fuse with same type and rating only.
DECLARATION OF CONFORMITY
Manufacturer’s Name: DigiTech
Manufacturer’s Address: 8760 South Sandy Parkway
Sandy,Utah 84070 USA
declares that the product:
Product name: BP50
Product option: all (requires Class II power adapter that conforms to the requirements of
EN60065,EN60742,or equivalent.)
conforms to the following Product Specifications:
Safety: EN 60065 (1998)
EMC: EN 55013 (1990)
EN 55020 (1991)
Supplementary Information:
The product herewith complies with the requirements of the LowVoltage Directive 73/23/EEC and the EMC
Directive 89/336/EEC as amended by Directive 93/68/EEC.
Vice-President of Engineering
8760 S.Sandy Parkway
Sandy,Utah 84070,USA
Date:February 21, 2003
European Contact: Your local DigiTech Sales and Service Office or
Harman Music Group
8760 South Sandy Parkway
Sandy,Utah 84070 USA
Ph:(801) 566-8800
Fax:(801) 568-7583
Warranty
We at DigiTech are very proud of our products and back-up each one we sell with the following warranty:
1.The warranty registration card must be mailed within ten days after purchase date to validate this warranty.
2.Digitech warrants this product,when used solely within the U.S.,to be free from defects in materials and workmanship
under normal use and service.
3.Digitech liability under this warranty is limited to repairing or replacing defective materials that show evidence of
defect,provided the product is returned to DigitechWITH RETURN AUTHORIZATION, where all parts and labor will
be covered up to a period of one year.A Return Authorization number may be obtained from Digitech by telephone.
The company shall not be liable for any consequential damage as a result of the product's use in any circuit or assembly.
4.Proof-of-purchase is considered to be the burden of the consumer.
5.Digitech reserves the right to make changes in design,or make additions to,or improvements upon this product
without incurring any obligation to install the same on products previously manufactured.
6.The consumer forfeits the benefits of this warranty if the product's main assembly is opened and tampered with by
anyone other than a certified Digitech technician or, if the product is used with AC voltages outside of the range
suggested by the manufacturer.
7.The foregoing is in lieu of all other warranties,expressed or implied,and Digitech neither assumes nor authorizes any
person to assume any obligation or liability in connection with the sale of this product.In no event shall Digitech or its
dealers be liable for special or consequential damages or from any delay in the performance of this warranty due to
causes beyond their control.
NOTE:The information contained in this manual is subject to change at any time without notification.Some information
contained in this manual may also be inaccurate due to undocumented changes in the product or operating system since this
version of the manual was completed.The information contained in this version of the owner's manual supersedes all
previous versions.
Introduction
Thanks to the continuous advances in musical technology, the BP50 offers you the flexibility,
power, and capability of producing sounds never before thought possible. We recommend that
you read through this User’s Guide with your BP50 in front of you to help you better
understand its features.
Included Items
Before you get started,please make sure that the following items have been included:
• BP50
•Warranty Card
The utmost care was taken while your BP50 was being manufactured.Everything should be
included and in perfect working order. If anything is missing,contact the factory at once. Please
help us become acquainted with you and your needs by completing your warranty card or
registering online at http://www.digitech.com.
1
The Front Panel

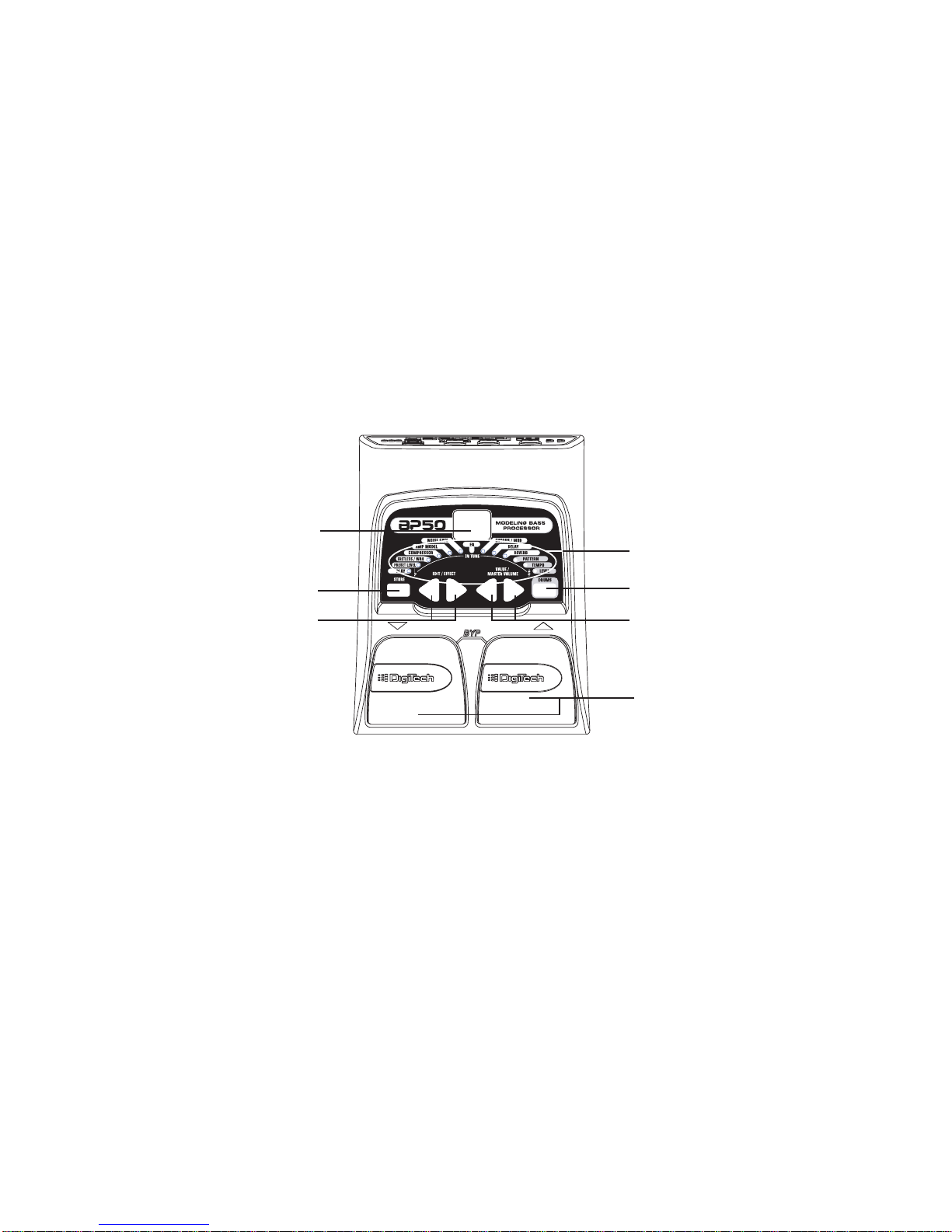

1. Footswitches -These 2 Footswitches are used to select presets,access theTuner, or bypass
the BP50. Press the Up Footswitch to increment,and the Down Footswitch
to decrement through the presets. Press both Footswitches simultaneously
to bypass the selected preset. Press and hold both Footswitches to access
theTuner.
1
2
4
5
6
7
3
2
2.Value Buttons -TheValue Buttons perform various functions depending on which mode is
selected. In Play mode, these buttons control the BP50’s Master Level. In
Edit mode, these buttons adjust the selected effect. These buttons also
change the Pattern,Tempo,and Level of the Drum machine when it is turned
on. When theTuner is on, these buttons select the tuning reference.
3. Effect/Edit Buttons - Pressing either of the Edit buttons enters Edit mode and selects the
individual effects to be edited.Press the left and right Edit buttons to
move through the effects. The effect LEDs light to identify which
effect you are editing
4. Drums -The Drums button is used to turn the BP50’s drum machine on and off . When the
Drums feature is on,the Drums LED lights and the selected drum pattern plays
continuously.
5. Effect LEDs -The Effect LEDs provide information regarding the current preset. In Edit
mode, the LEDs identify the effect selected for editing. InTuner mode, the
LEDs indicate whether the note played is sharp,flat, or in tune.
6. Display -The Display provides information for different functions depending on the selected
mode. In Play mode,the display shows the selected preset number. . In Edit mode,
the display shows the value of the parameter being adjusted. When theTuner is
selected,the display shows the note played.
7. Store -The Store button saves your custom changes to the user presets.
3
Rear Panel

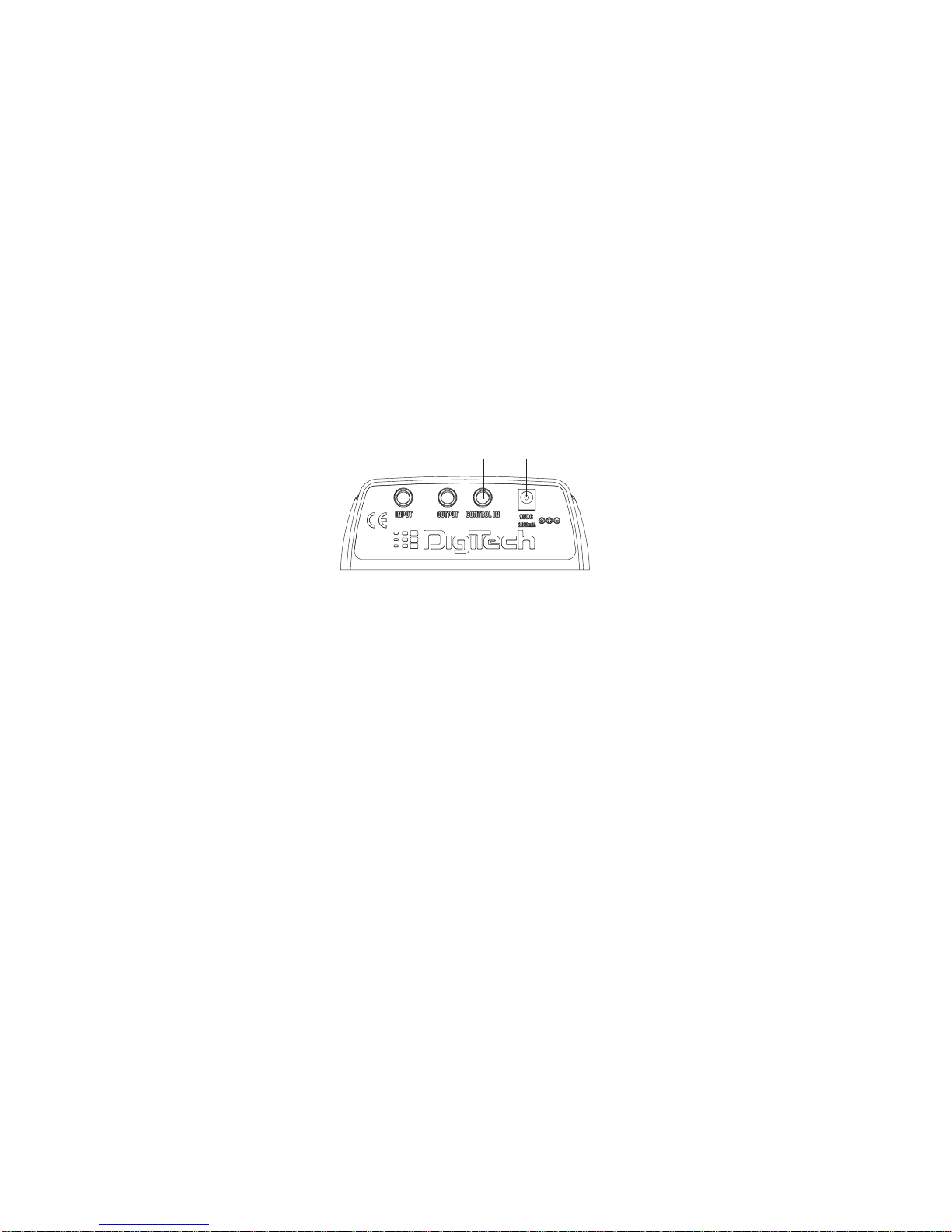

1. Input - Connect your instrument to this jack.
2. Output -This is a stereoTRS jack.Connect from this jack to the input of a single amplifier
for mono applications,or use aTRS stereo“Y” cord to connect to the inputs of 2
amplifiers for stereo applications. This jack also can be used as a headphone jack.
Note: When using the BP50 direct into a mixer or recording device, or when using
it with headphones, you can enable the Global Cabinet Modeling feature to
emulate speaker simulation on each of the BP50’s presets. (See Page 20 for
more on Global Cabinet Modeling.)
3. Control In - Connect a passive volume pedal to this jack to controlVolume, Wah, and
Whammy™in the BP50.
4. Power Input - Connect only the optional DigiTech PS200R power supply to this jack.
1 2 3 4
4
Making Connections
There are several different connection options available when using the BP50. The following
diagrams show the connections for some of these options.
Before connecting the BP50,make sure that the power to your amplifier is turned off,and the
power to the BP50 is disconnected. There is not a power switch on the BP50. To turn the BP50
off,disconnect your instrument from the Input Jack (for battery power) or disconnect the
optional PS200R power supply from the Power Jack or theAC outlet.

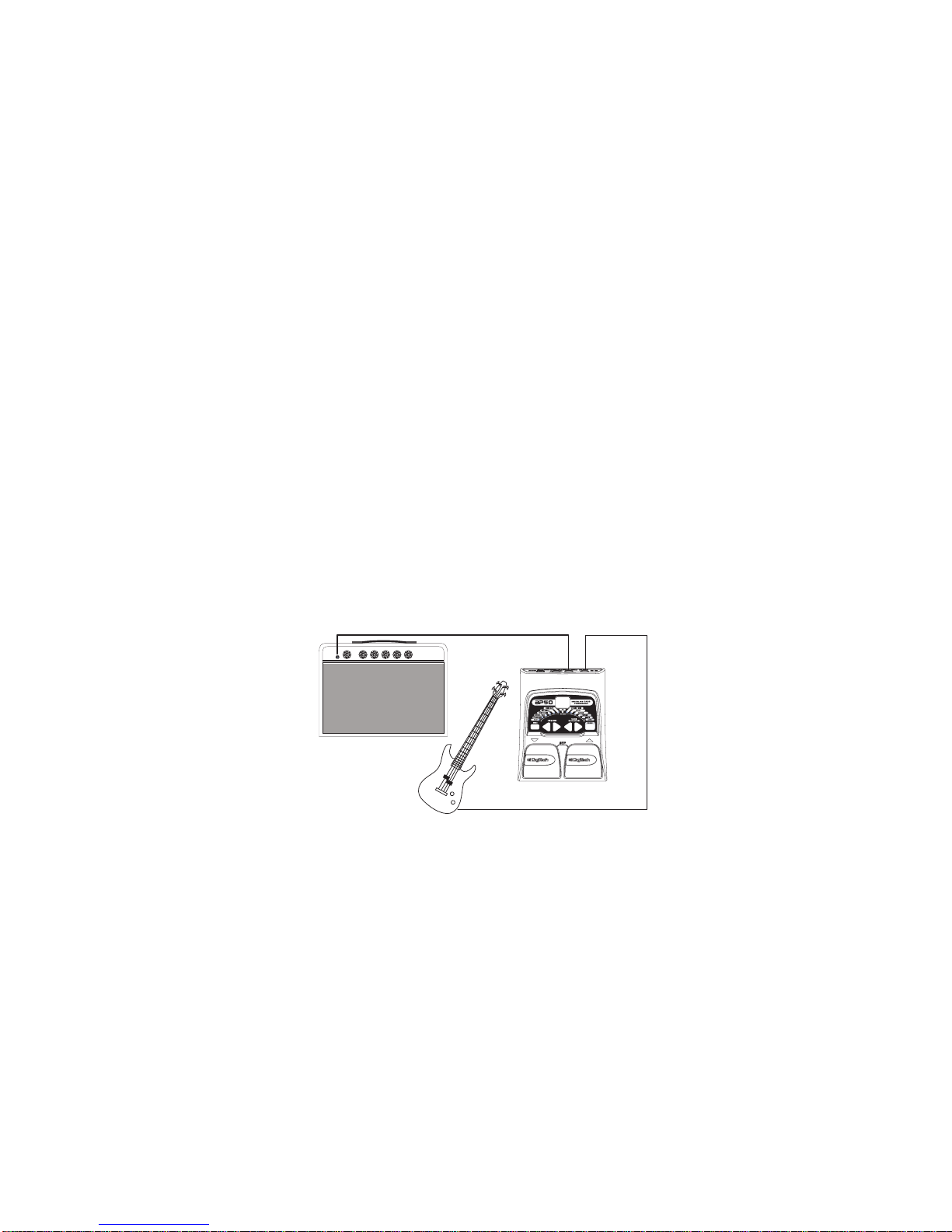

Mono Operation
Connect your bass to the Input of the BP50.Connect a single mono instrument cable from
the Stereo Output of the BP50 to the instrument input on your amplifier.
BassAmp Input / Effect Return
Input
Output
5
Stereo Operation
For stereo operation connect the bass to the Input of the BP50. Connect aTRS stereo“Y”
cord or a pair of stereo headphones to the BP50’s Output. When using a“Y” cord,connect
one end of the“Y” cord to the input of one amplifier or channel of a mixer. Connect the
second end of the“Y” cord to a second amplifier, or second channel of a mixer. If
connecting to a mixing console, set the pan controls of the mixer hard left and right to
retain stereo separation. To emulate a bass cabinet sound when using the BP50 with a
mixer or headphones,you can use Global Cabinet Modeling (see page 20).
BassAmp Input / Effect Return
Headphones or
StereoTRS "Y" Cable
Connected to Output
Input
6
