RPx400 USB Drivers and

Software Installation Guide

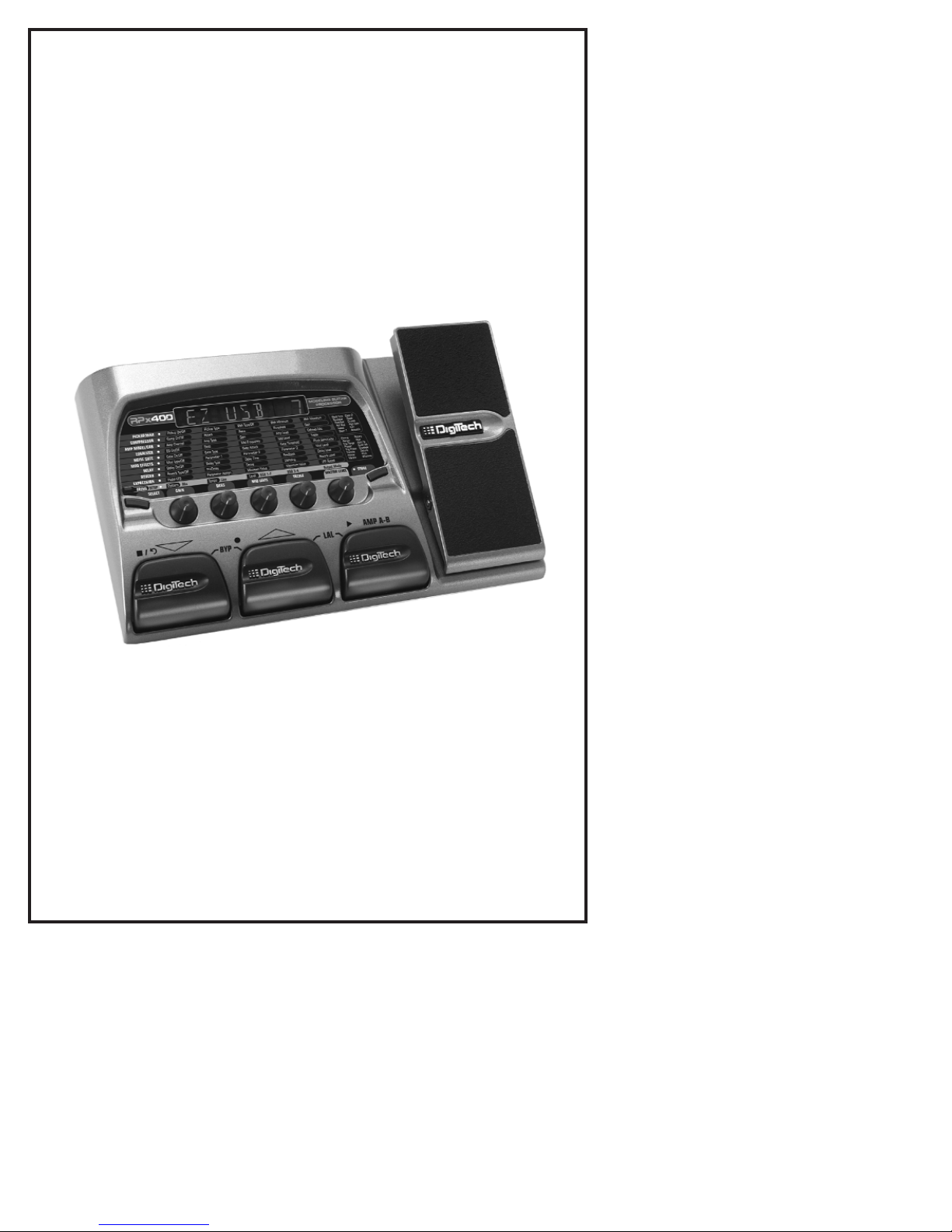

Congratulations on your purchase of a DigiTech RPx400. This installation guide

contains the information to install the required USB drivers, X-Edit editor/librarian and

Pro Tracks recording software for use with the RPx400. Please follow these

instructions carefully to ensure smooth installation of each of these components.

A. Installing Pro Tracks

1. Start your computer. Close any open programs you have running. Place the Pro

Tracks CD-ROM in your CD-ROM drive.

2. If you have autorun enabled, the Pro Tracks installation menu opens automatically,

showing you several buttons. If the menu does not appear automatically, you can

open it by selecting Start>Run and entering d:\Autorun.exe (where d:\ is the

letter of your CD-ROM drive).

3. Click the Install Pro Tracks button and follow the installation instructions on the

screen. If DirectX 8.1+ is not installed, the installer will automatically install it for

you. If DirectX is installed at this time, you will need to restart your computer and

return to Step 1.

NOTE: If you exit Setup without completing the installation, choose Start>Run, type

d:\Autorun.exe (where d:\ is your CD-ROM drive), and click OK. This will reopen

the installation menu. Click Install Pro Tracks to start installation again.

4. When the Installation Complete window appears deselect Launch Pro Tracks

and Read Me check boxes and click Finish.

5. Click Exit from Pro Tracks Installation screen.

B. Installing DigiTech USB Drivers

You must install the USB drivers to use the RPx400’s USB connection with your

computer. There are different installation procedures for Windows XP users and

Windows 2000 users. Follow the directions in the section that applies to your

operating system.

Windows XP Users

1. Take the RPx400 out of the box and plug the power in.

2. Remove the USB Warning sticker covering the RPx400’s USB port.

3. Connect the included USB cable to your computer and to the RPx400.

4. You will see multiple messages pop up from the task bar indicating that your

computer has found a new USB device. There are multiple messages because there

are four USB devices in the RPx400, two MIDI devices and two audio devices.

5. Wait until Windows has found and identified all of the USB devices from the

RPx400. When the message "Your new hardware is installed and ready to use"

appears,Windows has completed identifying your new hardware. however,

installation of the software IS NOT complete.

6. Put the X-Edit software CD into your CD-ROM drive. The installation menu should

automatically appear (if installation does not start automatically, go to Start>Run,

click on Browse, type d:\instmenu.exe (where d:\ is your CD-ROM drive), and

click OK.

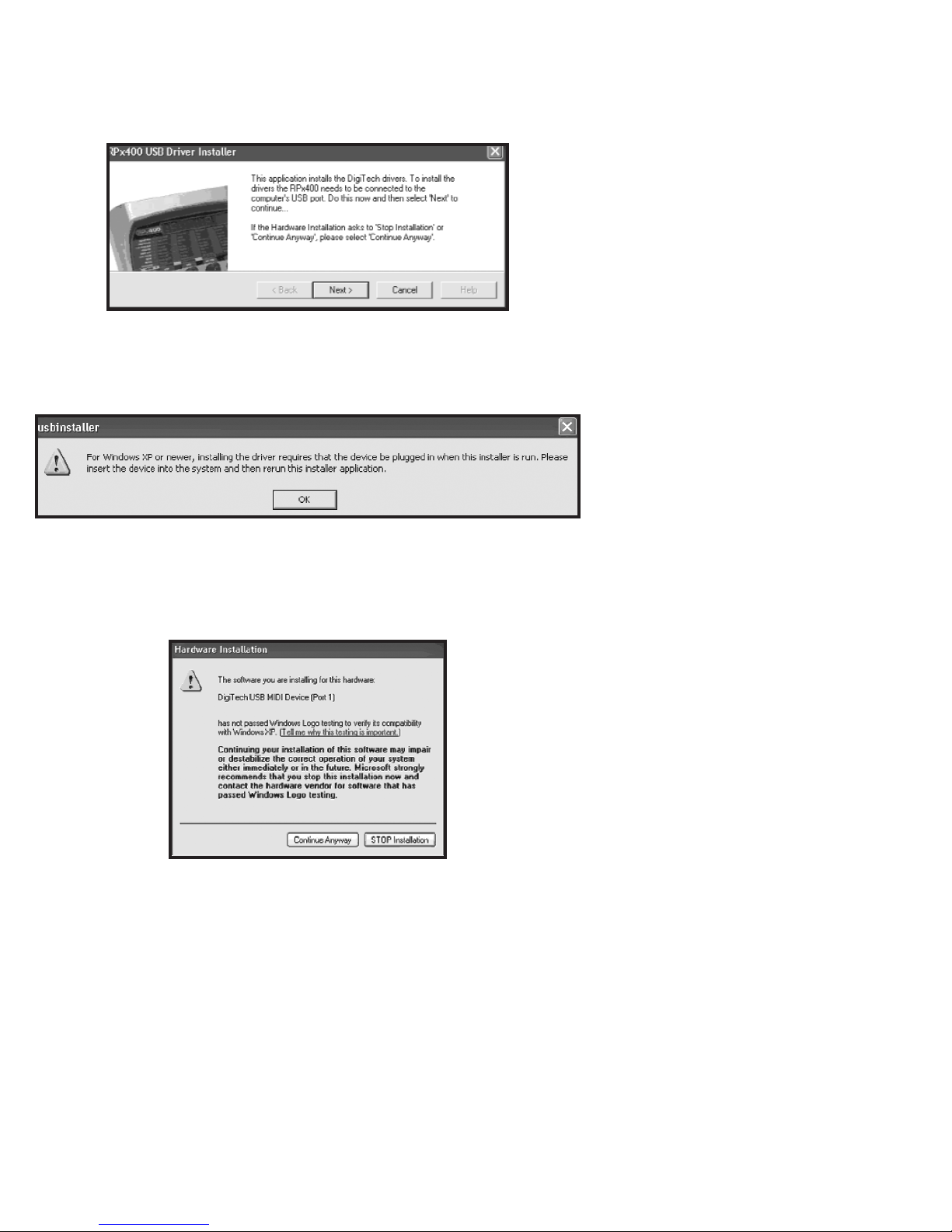

7. Now select USB Audio MIDI Drivers from the menu. You will see the following

window appear:

8. Click Next. Installation of the drivers could take several minutes.

NOTE: If you don’t have the USB cable connected to the RPx400 you will see this:

If you see this message, cancel the installation and connect the USB cable to the

RPx400 then restart the installation and begin with Step 1 of this section.

9. If the RPx400 is connected correctly to the computer you will see the following

message from Windows:

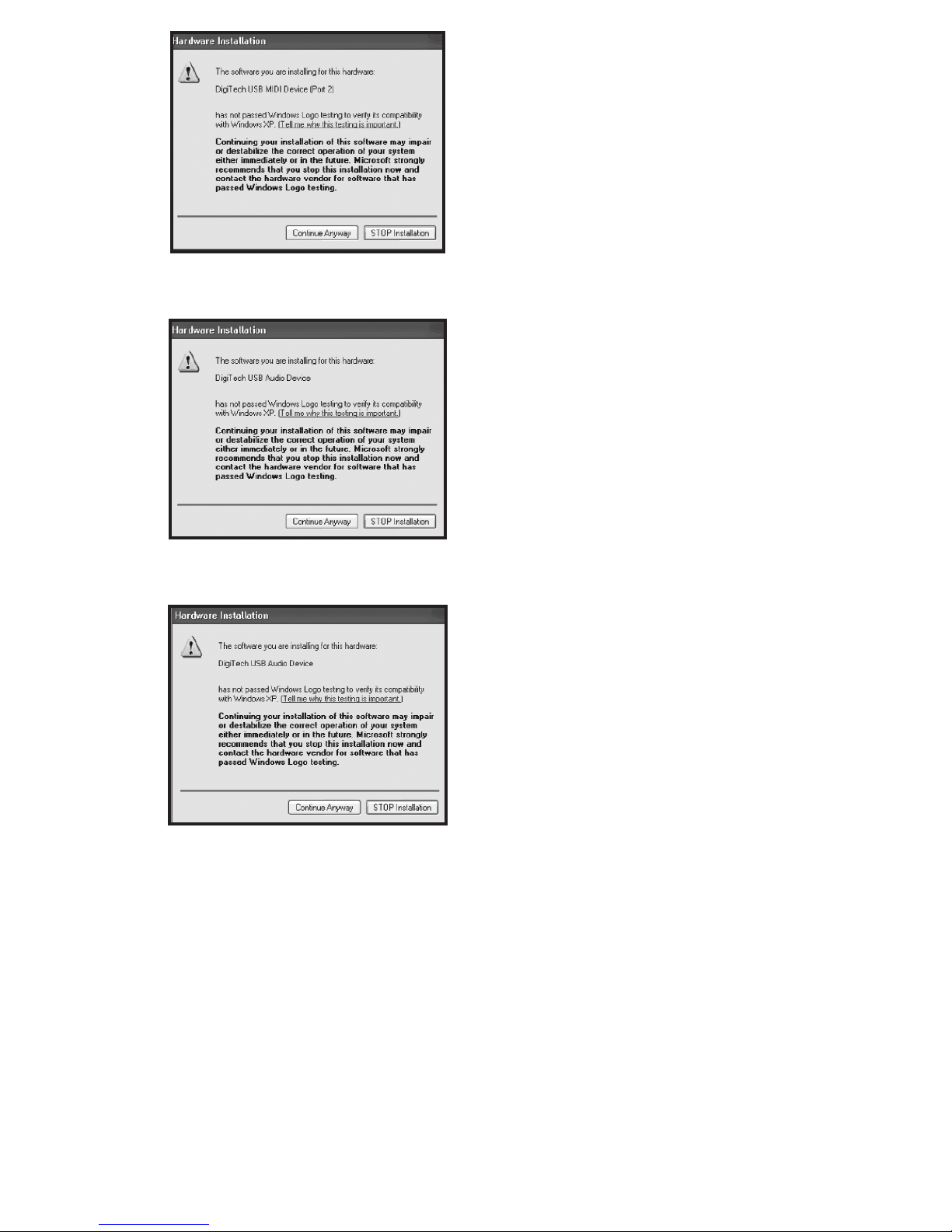

10. Click Continue Anyway and you will see:

11. Click Continue Anyway and you will see:

12. Click Continue Anyway and you will see:

13. Click Continue Anyway and you will see:

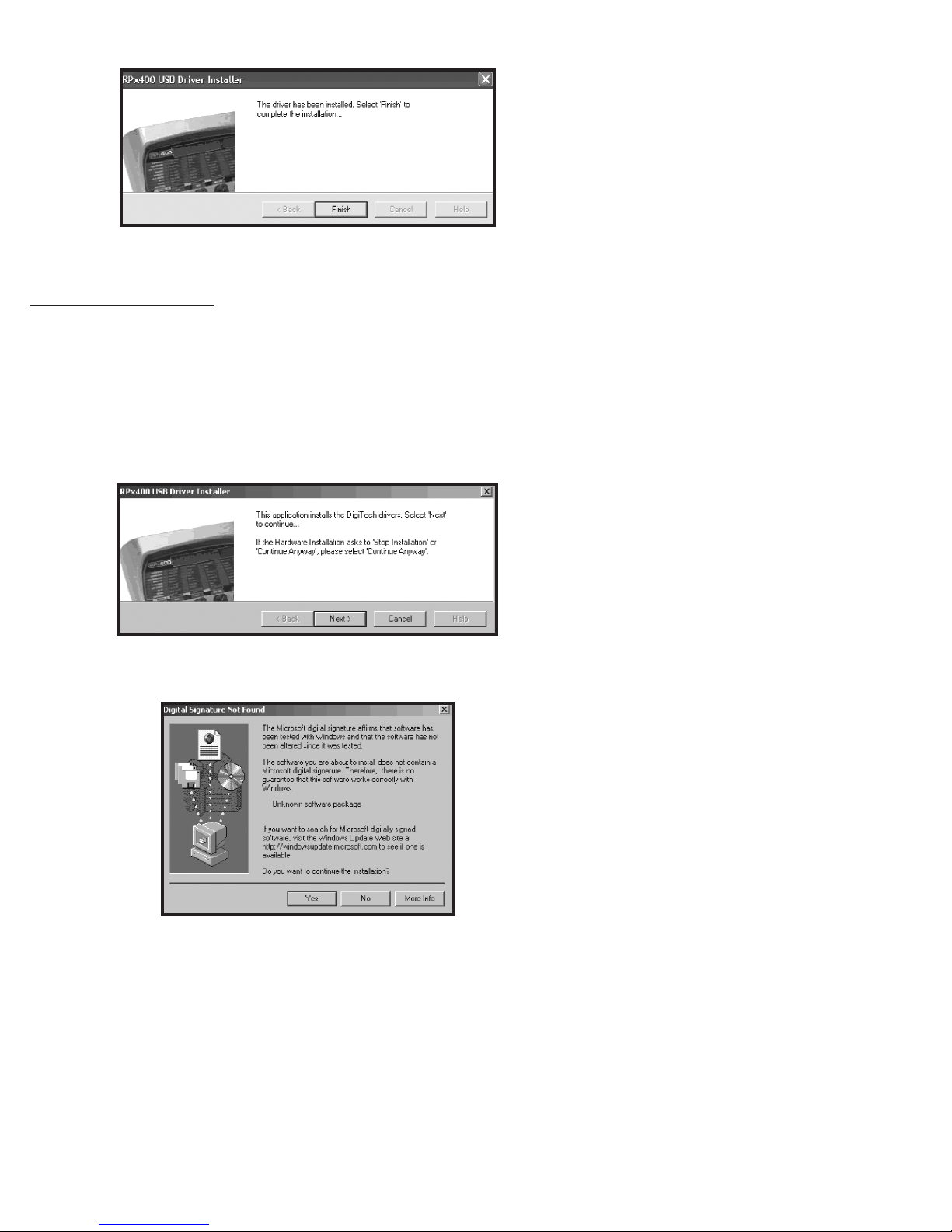

14. Click Finish. The RPx400 USB driver installation is now complete.

Windows 2000 Users

NOTE: DO NOT connect the RPx400 to your Windows 2000 computer until

AFTER the DigiTech USB drivers are installed or it may cause instability in Windows.

1. Make sure you DO NOT have the RPx400 USB plugged into your computer.

2. Put the X-Edit CD into your CD-ROM drive. The installation menu should

automatically appear (if installation does not start automatically, go to Start>Run,

click on Browse, type d:\instmenu.exe (where d:\ is your CD-ROM drive), and

click OK.

3. Select USB Audio MIDI Drivers from the menu that appears. You will see the

following window:

4. Click Next and Windows will display the following message:

5..Click Ye s and you will see the same window appear one more time. Click Ye s and

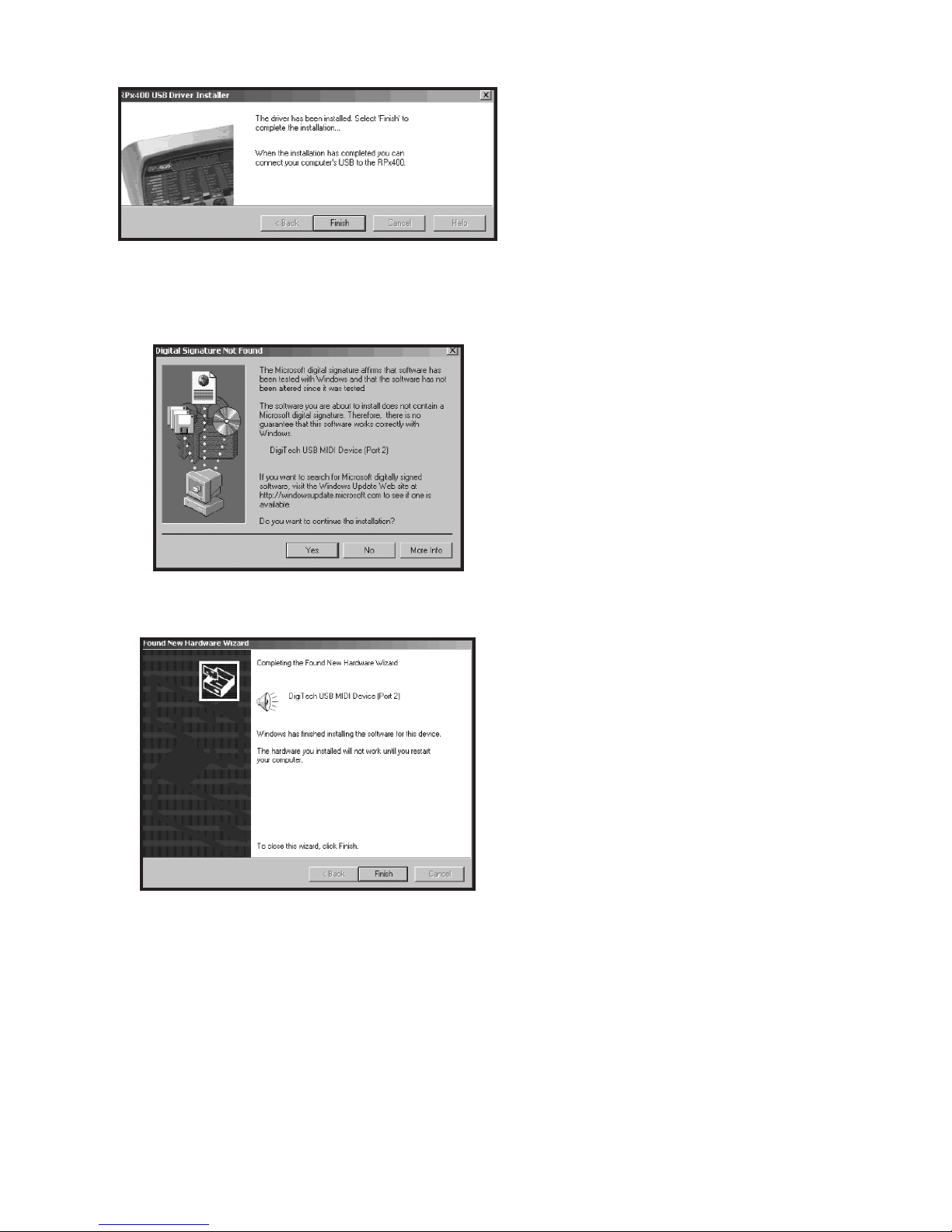

you will see:

6. Click Finish.

7. Connect the RPx400 to the computer with the included USB cable. The following

window will appear:

8. Click Ye s and you will see:

9. Click Finish and you will see:

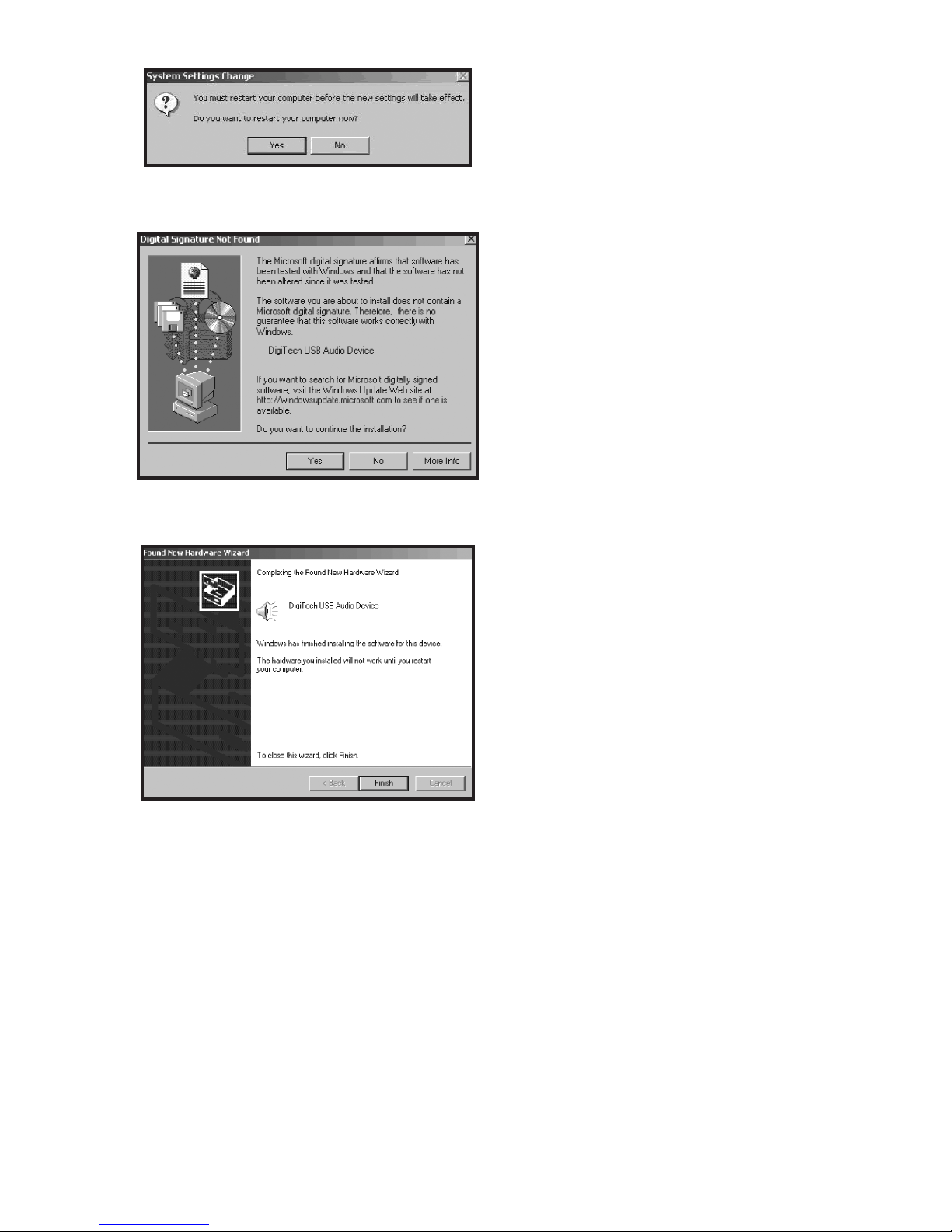

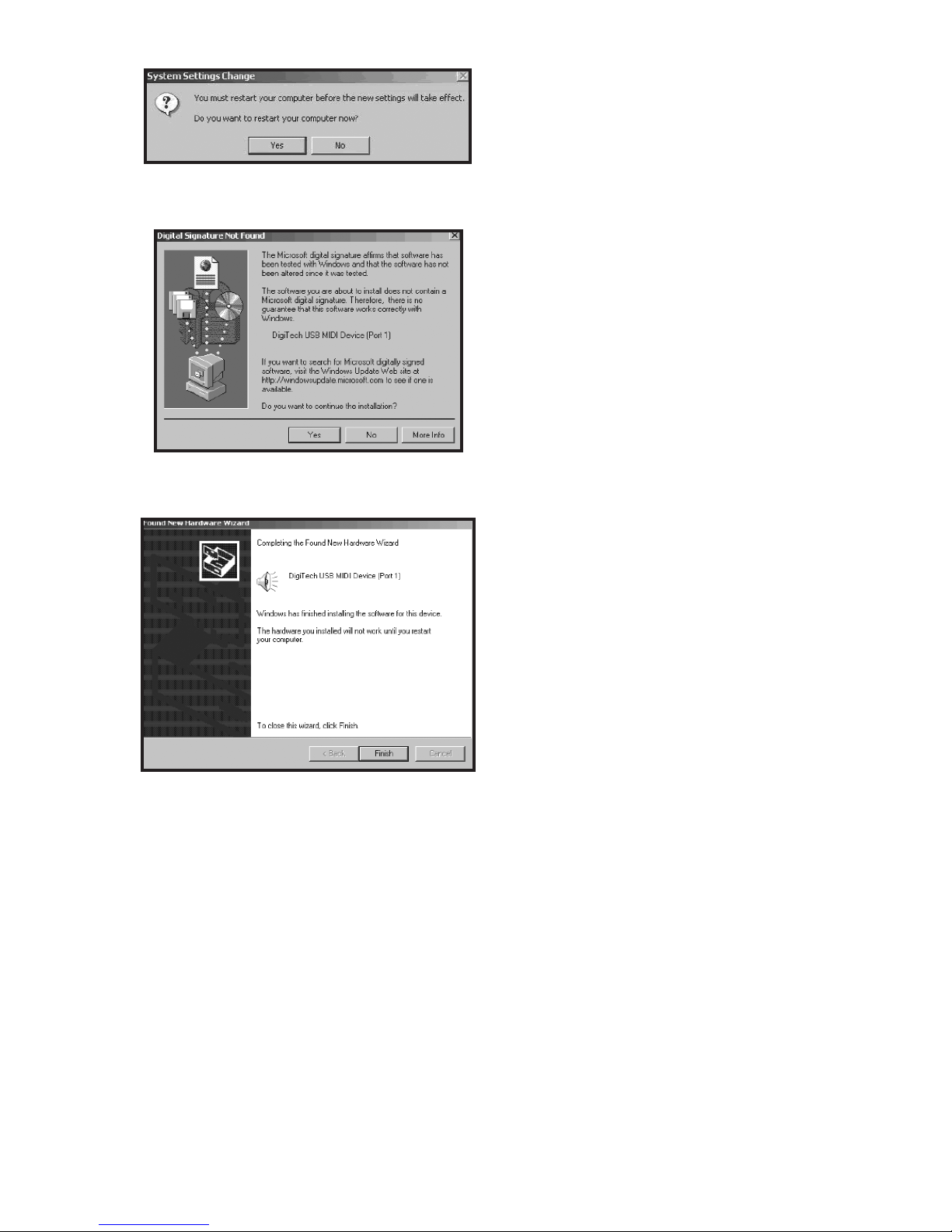

10. You DO NOT need to restart your computer yet. Click No and you will see:

11. Click Ye s and you will see:

12. Click Finish and you will see:

13. You DO NOT need to restart your computer yet. Click No and you will see:

14. Click Ye s and you will see:

15. Click Finish and you will see:

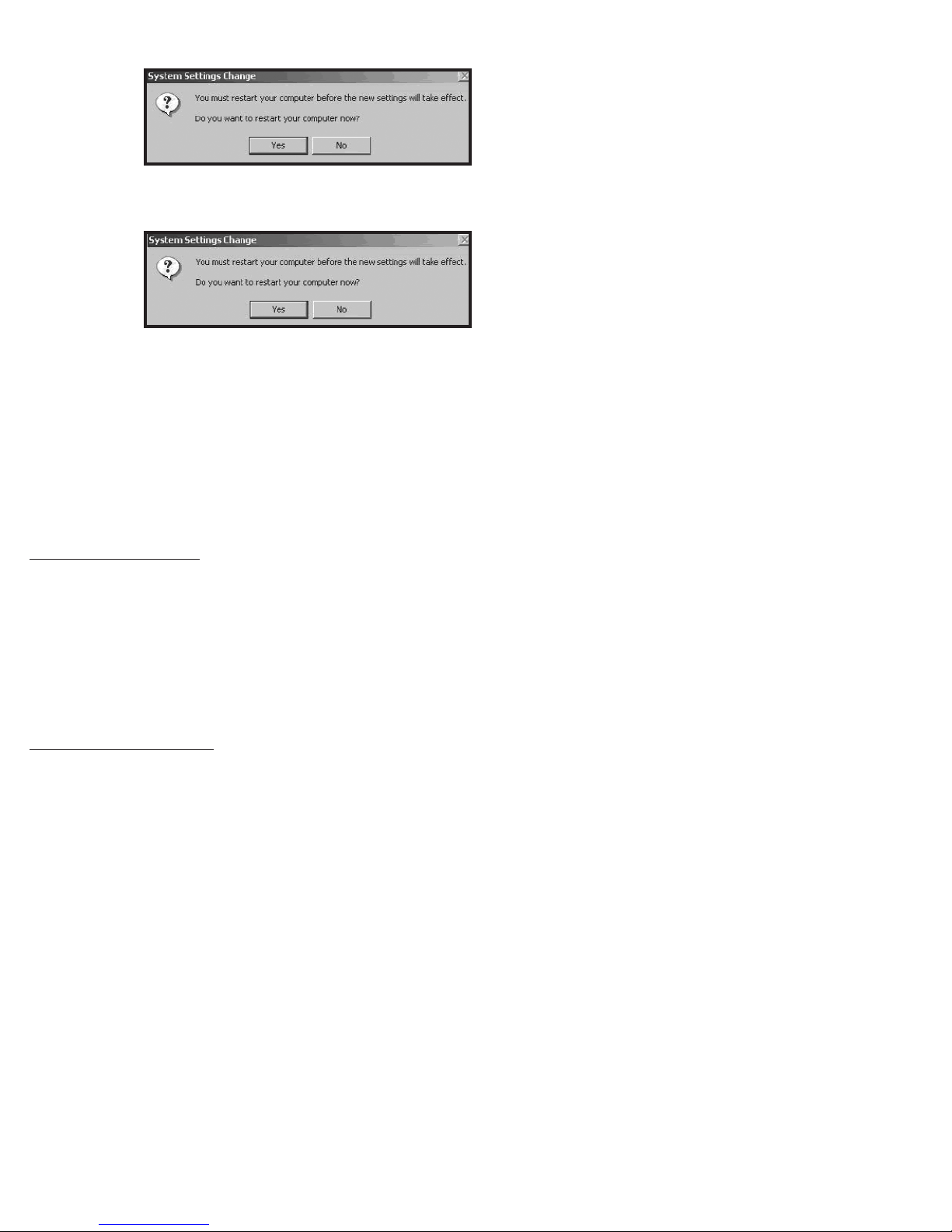

16. Click No. Repeat steps 14 and 15 once more. Then you will see:

17. This time click Yes and your computer will restart. The RPx400 USB driver

installation is now complete.

C. Setup Windows Audio and MIDI

When we installed the DigiTech USB Audio and MIDI drivers,Windows may have

automatically selected them as your default audio and MIDI outputs. This means that

your Windows sounds will be sent to the RPx400. We need to check if these have

been changed and return the settings to what they were before.

Windows XP Users

1. Select Start>Control Panel>Sound and Audio Devices.

2. Select the Audio tab.

3. Under Sound playback>Default device, open the pull-down menu and make

sure your computer’s sound card is selected.

4. Under Sound recording>Default device, open the pull-down menu and make

sure your computer’s sound card is selected.

5. Under MIDI music playback>Default device, open the pull-down menu and

make sure your MIDI device is selected.

Windows 2000 Users

1. Select Start>Settings>Control Panel.

2. Select Sounds and Multimedia.

3. Select the Audio tab.

4. Under Sound Playback>Preferred device, open the pull-down menu and make

sure your sound car is selected.

5. Under Sound Recording>Preferred device, open the pull-down menu and make

sure your sound car is selected.

6. Under MIDI Music Playback>Preferred device, open the pull-down menu and

make sure your MIDI device is selected.

These options only need to be changed once now that the drivers are installed. Later

we will change the settings in Pro Tracks to use the RPx400 for audio and MIDI.

At this point you are ready to use the RPx400 to record with Pro Tracks. You can

continue to the next section to install the X-Edit/Librarian. If you are anxious to

record, skip the Setting Up the RPx400 MIDI Section

D. Install DigiTech X-Edit Editor/Librarian

Installing X-Edit allows you to edit and store your presets on your computer. Exit any

programs that are still running before beginning the X-Edit Installation procedure.

NOTE: X-Edit requires Microsoft .NET Framework to run. This software will

automatically be installed by the X-Edit installer if it is not found on your computer. To

ensure that .NET installs smoothly, Microsoft recommends that you disable your anti

virus software before continuing. Once .NET and X-Edit are installed, you can re-

enable your anti virus protection.

CAUTION: If you are running Windows 2000 and McAfee AntiVirus, please

read the following note:

If you are running McAfee Antivirus, Microsoft recommends that you

completely un-install (NOT just disable) McAfee Antivirus from your

computer. McAfee interferes with Microsoft’s .NET installation process and

must be removed to ensure a smooth installation. Once the .NET and X-

Edit installation is compete, you may re-install McAfee and re-enable your

anti-virus protection.

1. Return to the installer menu. If it is no longer open, you can re-open it by selecting

Start>Run and entering d:\instmenu.exe (where d:\ is the letter of your CD-

ROM drive).and select DigiTech X-Edit.

2. The installer will now check your computer for Microsoft .NET Framework. If it is

found, you can skip to Step 5. If it is not found, the .NET installer will be launched.

Follow the instructions that appear. This could take several minutes and you might

see the progress bar complete and start over again several times as well. This is

normal.

3. When the .NET installer has completed, you will need to restart your computer if

you are running Windows 2000. If not, move on to the next step. After you have

restarted your computer, the installer should automatically continue. If it does not,

start over at Step 2.

4. When the Welcome to the Installation Wizard for DigiTech X-Edit 1.0

window appears, click Next.

5. Fill in the customer information. Select Anyone who uses this computer to

allow all users to use X-Edit. Select Only for me if you want to be the only user

to use X-Edit on the computer. Click Next.

6. On the next screen, click Install.

7. When the installation is complete, click Finish.
