AnywhereUSB®
Remote I/O Concentrator
User Manual
www.digi.com
AnywhereUSB User Manual (90000405 Rev. J) 3
© 2009 Digi, Digi International, the Digi logo, RealPort USB, USB Over IP, AnywhereUSB, Watchport,
Edgeport, and Hubport are either trademarks or registered trademarks of Digi International, Inc. in the
United States and/or other countries. Microsoft, Windows, Windows NT, Windows Server, Windows Vista
are trademarks of Microsoft Corporation. All other trademarks are the property of their respective holders.
Information in this documentation is subject to change without notice and does not represent a
commitment on the part of Digi International.
Digi International provides this document ―as is,‖ without warranty of any kind, either expressed or
implied, including, but not limited to, the particular purpose. Digi International may make improvements
and/or changes to this documentation or to the product(s) and/or program(s) described in this
documentation at any time.
Digi International assumes no responsibility of any errors, technical inaccuracies, or typographical errors
that may appear in this documentation, nor liability for any damages arising out of its use. Changes are
made periodically to the information herein; these changes may be incorporated in new editions of the
publication.
For U.S. Government use:
Any provision of this document and associated computer programs to the U.S. Government is with
―Restricted Rights.‖ Use, duplication, or disclosure by the government is subject to the restrictions set
forth in, subparagraph (c) (1) (ii) of the Rights in Technical Data and Computer Software clause of DFARS
52.277-7013.
For non-U.S. Government use:
These programs are supplied under a license. They may be used, disclosed, and/or copied only as
supplied under such license agreement. Any copy must contain the above copyright notice and restricted
rights notice. Use, copying, and/or disclosure of the programs is strictly prohibited unless otherwise
provided for in the license agreement.
AnywhereUSB User Manual (90000405 Rev. J) 3
Digi Contact Information
Product information is available on the Digi website, www.digi.com, including:
Support Forums
Knowledge Base
Data sheets/product briefs
Application/solution guides
For more information about Digi products, or for customer service and technical support, contact Digi
International.
To Contact Digi International by:
Use:
Mail
Digi International
11001 Bren Road East
Minnetonka, MN 55343
U.S.A.
World Wide Web:
http://www.digi.com/support/
Email
http://www.digi.com/support/
Telephone (U.S.)
(952) 912-3444 or (877) 912-3444
Telephone (other locations)
+1 (952) 912-3444 or (877) 912-3444
AnywhereUSB User Manual (90000405 Rev. J) 4
This Page is Left Intentionally Blank
AnywhereUSB User Manual (90000405 Rev. J) 5
Contents
1 Introduction 7
Product overview 7
Front Panel 7
Interpreting Status LEDs 8
Back Panel 8
2 Getting Started 9
In the Box 9
Cabling 9
3 Installing the Software 10
Installing the Drivers 10
Uninstalling the Drivers 11
4 Initial AnywhereUSB Configuration 12
Initial Configuration 12
5 Configuring the PC to Connect to an
AnywhereUSB 15
Connecting to the AnywhereUSB 15
6 Using the Configuration Utility Program 17
Configuration Unitlity Main Window 17
Menu Options 18
7 Discovering AnywhereUSBs on Other
Subnets 24
Adding IP addresses to the Discovery
List Manager 24
8 Hardware Specifications 25
Dimensions 25
Environmental 25
Power Requirements 25
9 Regulatory and Safety Information 26
AnywhereUSB User Manual (90000405 Rev. J) 6
Appendix A 29
AnywhereUSB Permitted Device List
Appendix B 31
Understanding Hubs
Appendix C 32
Configuring for Firewall Support
AnywhereUSB User Manual (90000405 Rev. J) 7
1Introduction
This chapter provides a brief overview of the AnywhereUSB® Remote I/O
Concentrator.
Product Overview
The AnywhereUSB® Remote I/O Concentrator is the first remote
networking solution to utilize USB over IP® technology, breaking the
traditional five meter distance limitation between USB device and host.
Now USB devices may be located anywhere on a wired or wireless LAN –
without a locally attached host PC. Since the host PC or server may be
located remotely, AnywhereUSB enables devices to be deployed in harsh
or non-secure environments, making it ideal for point-of-sale, kiosks,
surveillance, industrial automation, or any mission-critical enterprise
application. This Ethernet-attached solution provides five USB ports to
connect peripheral devices such as bar-code scanners and receipt
printer, as well as Digi’s Watchport®/V2 USB Camera and Watchport
Sensors.

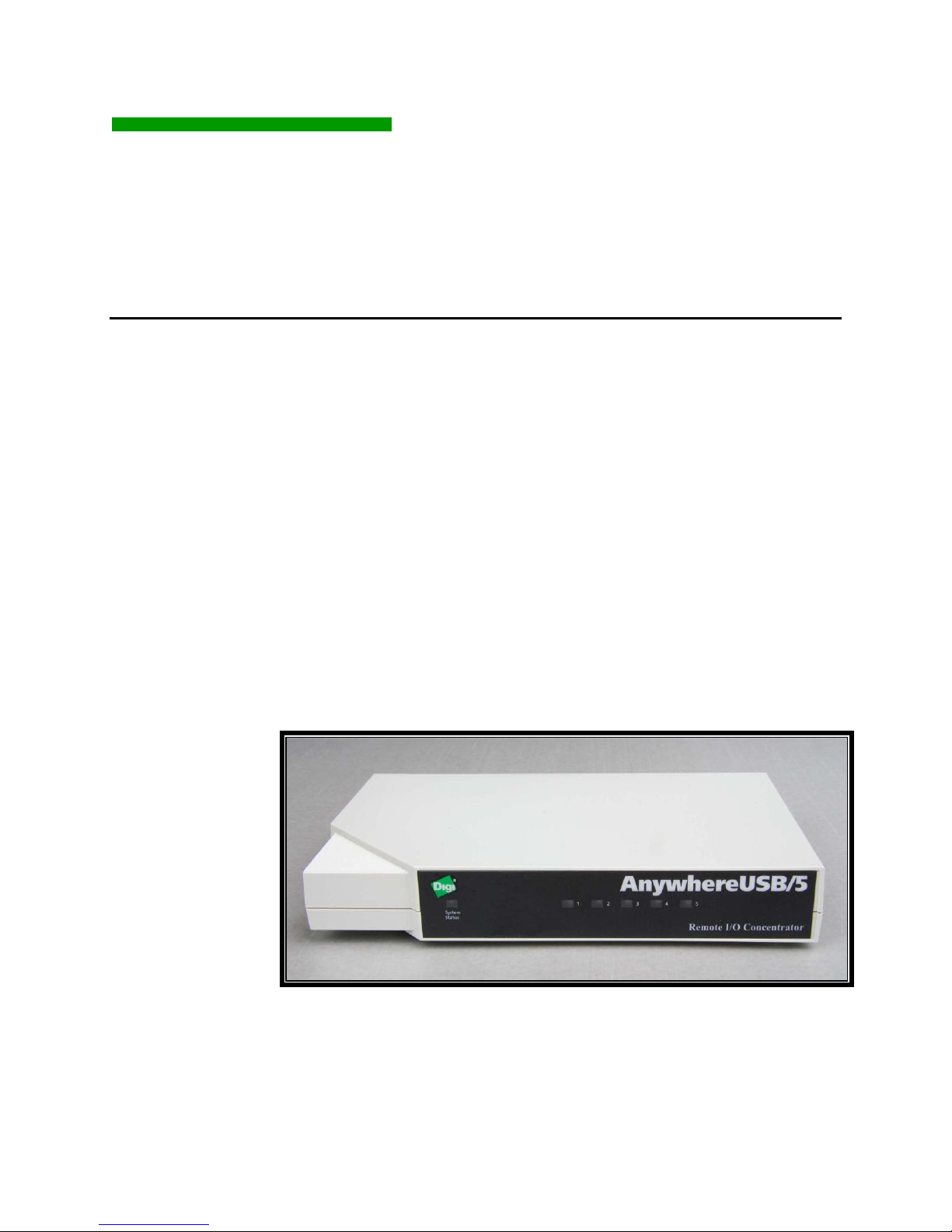

Front Panel
Figure 1
AnywhereUSB User Manual (90000405 Rev. J) 8
Interpreting the Status LEDs
The AnywhereUSB has six LEDs on the front panel: one System Status
LED and five hub LEDs. Each LED is capable of displaying three colors:
red, green, or orange.
System Status LEDs
On initial power up the System Status LED is orange for two seconds
while the system initializes and then blinks green. If DHCP is enabled and
the unit is booting up, the System Status LED will be orange while the
AnywhereUSB searches for a DHCP server. If it cannot find a DHCP
server, it will return to the default configuration to allow the Configuration
Utility to assign a static IP address.
Hub LEDs
Green hunting pattern across all LEDs
Not connected to a host PC.
Orange alternating on ports 1-3-5 and 2-4
Updating image in Flash. Do not remove power
from AnywhereUSB while flash is being updated.
Doing so will damage your AnywhereUSB.
Solid Green
Hub port is powered.
Green over Red hunting pattern
Please call customer service.

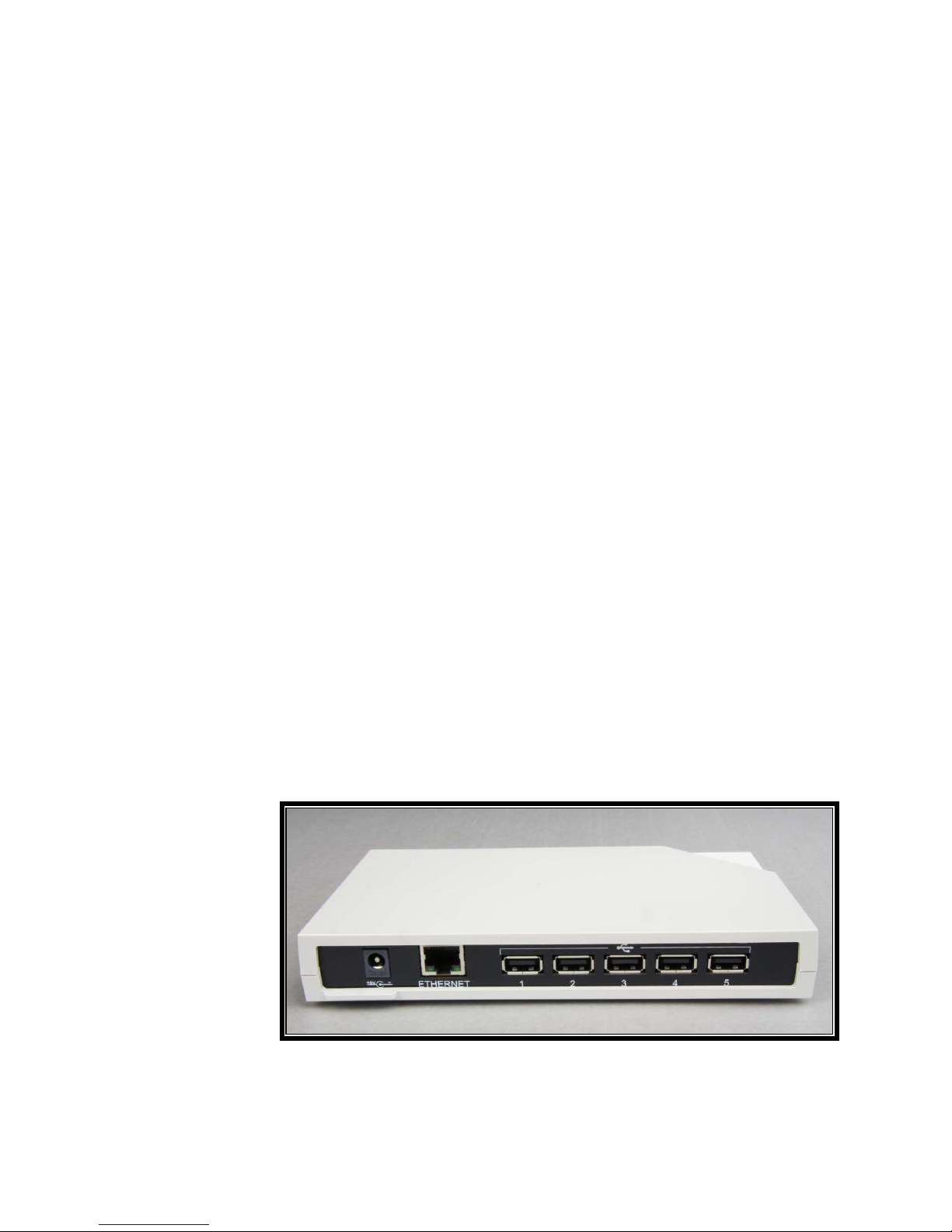

Back Panel
Figure 2
AnywhereUSB User Manual (90000405 Rev. J) 9
2Getting Started
This section explains what comes with the AnywhereUSB and how to
connect it to a Network.
In the Box
AnywhereUSB/5
Digi AnywhereUSB USB over IP Installation CD v2.60
Power Supply
Ethernet Cable
Ethernet Crossover Cable
Cabling
To connect your AnywhereUSB to a Network:
1. Connect a standard Ethernet Network to your AnywhereUSB.
2. Connect the other end of the Ethernet cable to a 10/100/1000
BaseT switch or hub.
3. Connect one end of the power supply into the back of the
AnywhereUSB and the other end into an AC outlet.
AnywhereUSB User Manual (90000405 Rev. J) 10
3 Installing the Software
This section discusses installing and uninstalling drivers.
Installing the Drivers
Installing the drivers requires the use of an account that has
administrative privileges.
For Windows XP, Server 2003, Vista, and Server 2008
1. Insert the Digi AnywhereUSB USB over IP CD into the CD drive.
2. Select Install Drivers from the Digi splash screen (see Figure 3). If
the Digi splash screen does not launch, run the AWSplash.exe
program from the CD.
3. A DOS Box will come up indicating the Install Process was
successful.
4. Press the enter key to exit the DOS Box. The unit is now ready
for configuration (see section 4).
For Windows 2000 and NT4.0
1. Insert the Digi AnywhereUSB USB over IP into the CD drive.
2. Select Install Driver from the Digi splash screen (see Figure 3).
Note: Windows 2000 and NT4.0 install v2.40 drivers only.
3. Continue until the installation process is complete. Once the
installation process is complete, the AnywhereUSB Concentrator
Configuration Utility screen will launch and is now ready for
configuration (see section 4).
