Digimerge DNP5320E Manuale utente

HIGH RESOLUTION PoE DUAL-CODEC

PROFESSIONAL OUTDOOR DAy/

NIGHT NETwORk CAmERA

DNP5320E

Page 2

www.digimerge.com

DNP5320E_Quick Installation Guide_En_R1

This installation guide provides instructions for installing the Digimerge

DNP5320E High Resolution PoE Dual-Codec Professional Outdoor Day/

Night Network Camera on your network. For all other aspects of using the

product, please refer to the user manual available at www.digimerge.com

or on the Installation CD included with this product.

• 1 x High Resolution PoE Dual-Codec Professional Outdoor Day/Night Network Camera

• 1 x DC Power Cable (Optional Use)

• 1 x Professional Stand with Cable Guide for Wall Mounting (with Mounting Hardware)

• 1 x GPIO Connector Cable

• 1 x Quick Installation Guide

• 1 x Installation CD with manuals and software

• 1 x Warranty Card

PACKAGE CONTENTS

Package Contents:

IMPORTANT!

This product must be installed in compliance with local laws and regulations.

4 Back Plate Screws

GPIO PORT (Optional)

Ethernet Port

Power

Network/Power LED Indicators

7 IR LEDs

Lens

Camera DC Power Cable Wall Mount Bracket

GPIO Connector Quick Start

Guide

Installation

DNP5320E_Quick Installation Guide_En_R1

www.digimerge.com

Page 3

Hardware Installation - PoE Enabled Install

This camera is PoE enabled (built-in). The Ethernet

Cable provides both Network Connectivity and Power

if you use this installation option (PoE equipment will

be needed. See page 16 for details).

1. Mounting Instructions: Run the Ethernet cable to

the desired location.

• Mount the stand to the wall or Ceiling using the

provided screws.

• Securely connect the camera to the stand, and

set the desired angle.

2. Network: Connect the network cable to the

Camera Ethernet Cable (Port).

NOTE: CAT-5 Ethernet Cabling has a maximum

effective range of 100m (330 ft.) depending on the

cable/switcher quality. For a longer run, a repeater

device may be required.

Hardware installation:

A. PoE Enabled Install

B. AC Powered Install

C. Optional Connections

HARDWARE CONNECTIONS

OPTION 1

These cables should be protected, as they

are not rated for outdoor use. Alternatively,

a weatherproof Ethernet cable can be

connected internally.

Page 4

www.digimerge.com

DNP5320E_Quick Installation Guide_En_R1

HARDWARE CONNECTIONS

Continued

Hardware Installation - AC Powered Install

The Hardware installation (using 12V DC

Power) consists of removing the back plate and

installing cables to the Camera.

1. Remove the Back Plate: Once the plate is

removed, access to additional ports and AC

power becomes available:

C. The back plate can now be removed. Do not

disconnect the cable from the cooling fan.

2. Power: Connect the DC power cable to

the Camera Power port, located to the right

of the Ethernet Port.

To use an external power source, the other end of

the power cable will need to be stripped so it can

be run through the Waterproof cable screw.

Hardwire the camera to the power source.

3. Once the stripped end of the DC power cable is

run through the waterproof cable screw, secure the

waterproof cable screws and then reattach the

backplate securely. If adding optional connections,

skip this step and proceed to the next page.

B. Unscrew the 2 waterproof cable screws on

the bottom of the camera.

A. Use a phillips screwdriver to loosen the 4

corner screws on the back plate.

OPTION 2

DNP5320E_Quick Installation Guide_En_R1

www.digimerge.com

Page 5

Hardware Installation - Optional Connections

The Optional Connection includes the use of the

GPIO Connector Cable for Alarm and/or PTZ

Control.

1. Connect the GPIO Connector Cable to the

GPIO Port located to the left of the Ethernet

Cable Connection. Run it through the

waterproof cable screw that is not used by the

Ethernet cable.

The exposed GPIO wires are color coded.

Please see Hardware Manual Appendix #2 for

Alarm Block connections.

HARDWARE CONNECTIONS

Continued

2. Once all wires have passed through the

opening, tighten the screw to hold the wires

securely in place. This will also provide a water

tight seal, preventing moisture from entering the

camera through the cable opening.

3. Replace the back panel, and tighten the 4

securing screws.

Replacing the Backplate & Waterproof Sealing

Screws

1. Reconnect the Waterproof screw. All connected

wires will need to pass through the opening in

this screw.

NOTE: The waterproof cable screw used to run the

Ethernet cable through does not offer extra space,

therefore any other connections should go through

the 2nd waterproof cable screw.

Page 6

www.digimerge.com

DNP5320E_Quick Installation Guide_En_R1

SOFTWARE INSTALLATION

The Digiconsole application loads

from the CD included with your

package, and provides you with the

following:

1. Web links to various resources

and documentation

2. Discovery of all the Digimerge

IP devices on the network

3. Provides Network

conﬁguration of IP Devices

4. Installs DigiConsole and

Surveillance application on your

local PC

5. Warranty information and DDNS

registration

Digiconsole Utility screen consists of

the following menus:

1. Home

2. Find Devices

3. Register

4. Install

DNP5320E_Quick Installation Guide_En_R1

www.digimerge.com

Page 7

Home:

Provides basic Digiconsole operating

instructions, links to product informa-

tion/documentation as well as 3rd party

software support links.

SOFTWARE SET-UP

Find Devices:

Locates all available Digimerge IP

devices on your network and displays

a snapshot of the results. Click on any

available device to display image on

the right side screen display.

NOTE: You may need to press the Find

Devices button several times as some

devices may not respond immediately.

If you do not see a camera image,

please check that all cables running

from the Camera are connected

properly.

Menu:

The Menu Button or right clicking on

a device icon provides access to

device speciﬁc settings:

• Edit Network Parameters

• View Live Image

• Open Device in Browser

• Update Firmware in Video Device

• Refresh the device list - in order to

remove inactive and disconnected

devices

NOTE: It is recommended that you

record the device speciﬁc MAC and

IP address for DDNS registration

purposes. If you have multiple

cameras on a local network, only

one camera needs to be conﬁgured

for DDNS.

MAC:

IP:

Page 8

www.digimerge.com

DNP5320E_Quick Installation Guide_En_R1

SOFTWARE SET-UP

Edit Network Parameters:

The Network Parameters are

automatically assigned to the

Device by the network router (by

using DHCP). These settings can

be manually changed if desired.

1. Select the IP device you would

like to edit by clicking on its icon.

2. Click on the MENU button or

right click the icon for the device

to access the menu. Select

“Edit Network Parameters” from

the menu.

3. Make the necessary changes

and click OK to save changes or

click CANCEL to close the

window without saving any of the

changes made.

NOTE: If a user name and password

were set-up on the IP Device previ-

ously, you will be required to enter

this authentication information when

attempting to access the device.

Continued

View Live Image:

View live video from the IP Device

using the Apple Quicktime program.

If this application is not installed on

your system, please download it (no

charge) at

http://www.apple.com/quicktime

OPTIONAL

If by clicking VIEWING LIVE IMAGE

the image is not automatically shown

in Quicktime, follow these steps in

Quicktime:

1. Go to FILE

2. Choose OPEN URL

3. Enter the following: rtsp://<device

IP address> (i.e. rtsp://192.168.2.102)

A device IP address can be obtained

from the Digiconsole device list.

NOTE: Minimum Quicktime version installed

should be 7.1.6. If you cannot install Quick-

time, use Microsoft Internet Explorer to view

the device. See step C3 for details.

DNP5320E_Quick Installation Guide_En_R1

www.digimerge.com

Page 9

SOFTWARE SET-UP

Continued

Open Device in Browser:

Opens up the DigiViewer Video Browser

using your default web browser (e.g.

Internet Explorer).

The DigiViewer browser allows the user

to view streaming video from the device

as well as change certain settings on the

device depending on the level of access

set by the administrator.

Once user names and passwords are set

up by the administrator, the users (except

for a VIEWER level user) are required to

enter this information every time they ac-

cess the DigiViewer.

Click (during streaming mode)

to mute the audio.

Click to capture a snapshot image

in a new browser window.

By default, the image refresh rate

is set to OFF. Move slider to the

right to set image refresh rate.

Click to bring up image brightness and contrast controls

Click to capture a video clip and send it to a FTP site. FTP

must be conﬁgured in the SETTINGS screen

Click here to start streaming video

Page 10

www.digimerge.com

DNP5320E_Quick Installation Guide_En_R1

SOFTWARE SET-UP

3 Levels of User Access:

• Administrator (current user)

• Operator (general user)

Default User Name: guest

Password:<leave blank>

• Viewer (anonymous guest)

Creating Current User Account:

1. Click SETTINGS

2. Select ACCOUNTS

3. Fill in a user name and

password in the assigned ﬁelds

4. Reconﬁrm password

5. Click UPDATE ACCOUNTS

1. Administrator: Administrator has

unrestricted access to all the

settings of the device. The

interface will only permit creation

of ONE administrator account.

2. Operator: Operator has restricted

access to the settings of the

server. The interface will only

permit creation of FIVE operator

accounts.

Note: Restrictions - View images.

Requires username and password.

3. Viewer: The interface will permit

the creation of ONE viewer

account (i.e. Anonymous Guest).

This account does not require a

password.

Note: Viewer Restrictions - View im-

ages if permission is granted by ad-

ministrator. Note that the permission

in this case refers to providing the

IP address to someone. Whomever

receives the IP address can view the

camera remotely as a anonymous

guest. No password is required.

Multiple users can access the de-

vice at the same time, however this

will limit the quality and speed of the

video as the feed is shared between

all connected users.

Continued

Indice

Altri manuali Digimerge Telecamera di sicurezza

Digimerge

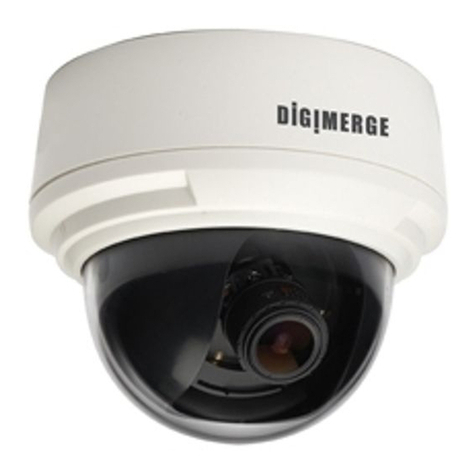

Digimerge DPV24D Manuale utente

Digimerge

Digimerge DPV14D Manuale utente

Digimerge

Digimerge Flir DBV44TL Manuale utente

Digimerge

Digimerge DPV14D Manuale utente

Digimerge

Digimerge DCDHR2532 Manuale utente

Digimerge

Digimerge DNP5220E Manuale utente

Digimerge

Digimerge DPV34WL Manuale

Digimerge

Digimerge DCV23DL Manuale utente

Digimerge

Digimerge DCBHR1035 Manuale utente

Digimerge

Digimerge DPV24DL Manuale utente

Digimerge

Digimerge DCBHR1535 Manuale utente

Digimerge

Digimerge DPP22W Manuale

Digimerge

Digimerge DPD14T Manuale utente

Digimerge

Digimerge DCB13TL Manuale utente

Digimerge

Digimerge DPV14W Manuale utente

Digimerge

Digimerge DCS100033 Manuale utente

Digimerge

Digimerge DCV54DL Manuale utente

Digimerge

Digimerge DNB6300V Manuale utente

Digimerge

Digimerge DNZ9320W Manuale utente

Digimerge

Digimerge DCBHR1037 Manuale utente

Digimerge

Digimerge DCBHR1535 Manuale utente

Digimerge

Digimerge DCV24DL Manuale utente

Digimerge

Digimerge DPV24D Manuale utente

Digimerge

Digimerge DPV24DL Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
