Digimerge DPP12D Manuale

Printed in KOREA

Instruction Guide

Model : DPP12D

Electronic Day/Night

Professional Camera

Model : DPP12D

Electronic Day/Night Professional Camera

Digimerge Technologies Inc.

INFORMATION - This equipment has been tested and found to comply with

limits for a Class A digital device, pursuant to part 15 of the FCC Rules & CE Rules.

These limits are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial environment.

This equipment generates, uses, and can radiate radio frequency energy and, if

not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications.

Operation of this equipment in a residential area is likely to cause harmful

interference in which case the user will be required to correct the interference at

his own expense.

◆

Do NOT use power sources other than those specified.

◆

Do NOT expose this appliance to rain or moisture.

This installation should be made by a qualified service person and

should conform to all local codes.

The lightning flash with an arrowhead symbol, within an equilateral

triangle is intended to alert the user to the presence of uninsulated

dangerous voltage within the product's enclosure that may be of

sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert

the user to the presence of important operating and maintenance

(servicing) instructions in the literature accompanying the appliance.

WARNING - Changes or modifications not expressly approved by the

manufacturer could void the user's authority to operate the equipment.

CAUTION : To prevent electric shock and risk of fire hazards:

Electronic Day/Night Professional Camera

■Contents

Features

Warnings and Precautions

Names and Functions of Parts

Installation

■Front 9

■Top 10

■Rear 11

■Key Extra Connector 11

■Lens

ㆍUsing the auto iris

ㆍUsing a C/CS mount lens

■Connecting to a monitor

■Connecting to power

Components 8

Camera Operation 16

■Settings 19

ㆍLENS 20

ㆍEXPOSURE 22

ㆍWHITE BALANCE 25

ㆍ DAY/NIGHT 26

ㆍDNR 28

ㆍSPECIAL 29

ㆍADJUST 33

ㆍRESET 33

ㆍEXIT 33

- CAM TITLE

- D-EFFECT

- MOTION

- PRIVACY

- SYNC

- LANGUAGE

- RETURN

Specifications 36

Limited Warranty 37

Troubleshooting 34

Electronic Day/Night Professional Camera

■Features

Warning ■

1/3”Super-HAD

™

II CCD

High Resolution : 560 TV Lines

Min. illumination 0.00004Lux (F1.2, 50 IRE, Sens-Up 256x)

OSD menu control

Internal / Linelock (phase control) function

Electronic day / night function, Sens-Up function (256x)

Motion adaptive digital noise reduction (3D-DNR)

Back light compensation (BLC)

Xtended Dynamic Range (XDR)

8-Zone privacy masking function (polygonal mosaic)

32x digital zoom

Remote OSD menu control (requires optional OSD remote)

Horizontal & vertical image mirroring

Auto sensing DC12V / AC24V

The camera requires periodic inspection.

Contact an authorised technician to carry out the inspection.

Stop using your camera when you find it malfunctioning.

If the camera emits smoke or is unusually hot for a long period,

a fire may be caused.

Do not Install the camera on a surface that can not support it.

If the camera is installed on an inappropriate surface, it may fall

and cause injury.

Do not hold plug with wet hands.

It could cause an electric shock.

Do not dis-assemble the camera.

It may result in an electric shock or other hazards.

Do not use the camera close to a gas or oil leak.

It may result in a fire or other hazards.

Electronic Day/Night Professional Camera

■Precautions

Only use the camera under conditions

where temperatures are between

-10¡C and +50¡C. Be especially

careful to provide ventilation when

operating under high temperatures.

It can cause the image quality to be

poor.

Severe lighting change or flicker can

cause the camera to work improperly.

This is one of the most important parts of

the camera. Be careful not to leave

fingerprints on the lens cover.

Do not install the camera in

extreme temperature conditions.

Do not install or use the camera in an

environment where the humidity is high.

Do not install the camera under

unstable lighting conditions.

Do not touch the front lens of the

camera.

It can cause malfunctions to occur.

If it gets wet, wipe it dry immediately.

Liquids can contain minerals that

corrode the electronic components.

If exposed to radioactivity the CCD

will fail.

It can damage the CCD.

Do not expose the camera to rain

or spill beverage on it.

Do not expose the camera to

radioactivity.

Never keep the camera pointed

directly at strong light.

Do not drop the camera and protect

it to physical shocks.

Note

ㆍIf the camera is exposed to spotlight or object reflecting strong light,

smear or blooming may occur.

ㆍPlease check that the power satisfies the normal specification before

connecting the camera.

Electronic Day/Night Professional Camera

■Components

Names and Functions of Parts ■

1. COLOR BOX CAMERA

AUTO IRIS LENS CONNECTION PLUG

3. L-WRENCH

4. C-MOUNT ADAPTOR

5. INSTRUCTION GUIDE

Front

①Lens protection cap

Cover the lens when not in use.

②CS-Mount lens adaptor

Attach the CS-Mount lens here.

③Back Focus clamp screw

Loosen the clamp screw with a L-wrench before adjusting the Back

Focal length.

Electronic Day/Night Professional Camera

■Names and Functions of Parts

Names and Functions of Parts ■

IRIS JACK OSD EXTRA

POWER

VIDEO

SET

VIDEO OUT

AC 24V IN

DC12V IN

⑪

⑤ ⑥ ⑧⑦

⑨⑩

Rear

⑤ Auto iris lens connector

Connection terminal for an auto iris lens.

⑥ Auto iris lens selection switch

Used to change between DC or Video

depending upon the type of auto liris in use.

⑦ OSD Extra

Connectstotheremotecontroller(option)

when you want to control OSD away

from the camera

⑧ Video output terminal

Sends video signals and connects

to the video input terminal of the monitor.

⑨ Power lamp

Lights up when the correct power is supplied to the camera.

⑩ Setting button

●

SET button : Used for the menu display. This button can be used toconfirm

settings after changing the value of the selected function orcurrent conditions.

●UP & DOWN buttons : Used for selecting items by moving thecursor up or

down on the menu screen.

●LEFT & RIGHT buttons: Used when changing item values, bymoving the

cursor to the left or right on the menu screen.

⑪ Power input terminal

Low voltage power connection.

Top

④Mounting Bracket

Use the screw holes provided when fixing the

camera onto a mounting bracket. Use the clamp

screw as shown in the picture.

※

The mounting bracket can be attached to either

the bottom or the top of the camera. Be careful

not to tighten the screws more than 5mm into the

body, otherwise serious damage can occur.

Key Extra Connector (Optional -ACCRC01)

Connects to the remote controller(option) when you want to set up OSD remotely.

IRIS JACK OSD EXTRA

POWER

VIDEO

SET

VIDEO OUT

AC 24V IN

DC 12V IN

OSD EXTRA

Remote Controller

④

※Contact an authorized technician for inspection.

Electronic Day/Night Professional Camera

■Installation

Installation ■

The camera is supplied without a lens. Lenses, such as auto iris,

CS-Mount and C-Mount, can be used.

1. Strip back about 8mm of the outer sheath of the auto iris lens cable.

2. Strip off about 2mm of the insulation of wires inside the

lens cable.

■

Lens

Note

ㆍUsing a DC auto iris lens is recommended to achieve the best

possible results from the camera.

ㆍPlease keep the lens clean.

ㆍForeign objects or fingerprints on the lens will result in inferior image

quality, especially in low light level conditions.

Using the auto iris

3. Remove the cover of the auto iris lens connection plug and solder the

wires to the connector pins inside the plug, as shown below.

4. Replace the auto iris lens connection plug cover. Remove the lens

protection cap and then attach the auto iris lens to the camera by

screwing it in clockwise.

5. Insert the connection plug connected to the auto iris lens cable into

the auto lens connector jack, which is located on the rear of the camera.

6. Set the lens selection switch, located on

the rear of the camera, to either DC or VIDEO,

depending on the type of auto iris lens being

used.

Pin No. LENS

DC VIDEO

Pin No.1 Damping Coil- Red (power)

Pin No.2 Damping Coil+ NC

Pin No.3 Drive+ White (video signal)

Pin No.4 Dreve- Black (GND)

IRIS JACK OSD EXTRA

POWER

VIDEO

SET

VIDEO OUT

AC 24V IN

DC12V IN

■Installation

Electronic Day/Night Professional Camera

Remove the lens protection cap and attach

the CS-Mount lens to the camera by screwing it in

clockwise.

Note

ㆍUse the specified lens connection parts as shown in the picture below.

Using of the wrong sized parts may cause damage

to the inside of the camera or result in poor fitting.

ㆍUsing oa lens which is too heavy affects the balance

of the camera and may cause a malfunction. Please

use a lens that weighs less than 450g.

ㆍSelect Av mode, if possible, when adjusting

the automatic light control (ALC) of an auto lens.

Use of PK mode may cause hunting.

When using a CS-Mount lens

1. Remove the lens protection cap and

attach the C-mount adaptor.

2. Attach the C-Mount lens to the

camera by screwing it in clockwise.

When using a C-Mount lens

Connect the video output terminal located on the rear of the camera

to the monitor.

ㆍThe connection method varies depending on the type of monitor and

accessories. Please refer to the monitor user manual.

ㆍTurn off the power when connecting.

■

Connecting to a monitor

Check the standard power requirement before connecting to power.

■

Connecting to power

IRIS JACK OSD EXTRA

POWER

VIDEO

SET

VIDEO OUT

AC 24V IN

DC12V IN

AC 24V IN

DC12V IN

AC 24V IN

DC12V IN

IRIS JACK OSD EXTRA

POWER

VIDEO

SET

VIDEO OUT

AC24V IN

DC12V IN

IRIS JACK OSD EXTRA

POWER

VIDEO

SET

VIDEO OUT

AC24V IN

DC12V IN

POWER

Dual Power Type

(AC 24V/DC 12V, AC 24V Class2)

DC Power Type (DC 12V, 500mA)

■

Camera Operation

■

Menu (English)

■

Menu (French)

SETUP menu

LENS (selection)

EXPOSURE

WHITE BAL

DAY/ NIGHT

3DNR

SPECIAL

ADJUST

EXIT

ㆍMANUAL ㆍDC/VIDEO

ㆍSHUTTER ㆍBRIGHTNESS ㆍAGC

ㆍSENSE-UP ㆍBLC ㆍD-WDR

ㆍRETURN

ㆍATW ㆍAWB ㆍAWC→SET

ㆍMANUAL ㆍINDOOR ㆍOUTDOOR

ㆍCOLOR ㆍAUTO ㆍEXT ㆍB/W

ㆍON ㆍOFF

ㆍCAMTITLE ㆍD-EFFECT ㆍMOTION

ㆍPRIVACY ㆍLANGUAGE ㆍRETURN

ㆍSYNC

ㆍFACTORY RESET ㆍRETURN

RESET

ㆍSHARPNESS ㆍBLUE ㆍRED

SET UP menu

LENS

EXPOSITION

BAL BLANC

JOUR / NUIT

3DNR

SPECIAL

AJUST.

SORTIE

ㆍMANUEL ㆍDC/VIDEO

ㆍOBTURATEUR ㆍLUMINOSITE ㆍAGC

ㆍDETECTEUR ㆍBLC ㆍD-WDR

ㆍRETOUR

ㆍATW ㆍAWB ㆍAWC→SET

ㆍMANUAL ㆍINTERIEUR ㆍEXTERIEUR

ㆍCOULEUR ㆍAUTO ㆍEXT ㆍN/B

ㆍON ㆍOFF

ㆍTITRE CAM ㆍEFFET-D ㆍMOUVEMENT

ㆍPRIVATIF ㆍLANGAGE ㆍRETOUR

ㆍSYNC

ㆍRESET USINE ㆍRETOUR

RESET

ㆍCONTOUR ㆍBLEU ㆍROUGE

Electronic Day/Night Professional Camera

Indice

Altri manuali Digimerge Telecamera di sicurezza

Digimerge

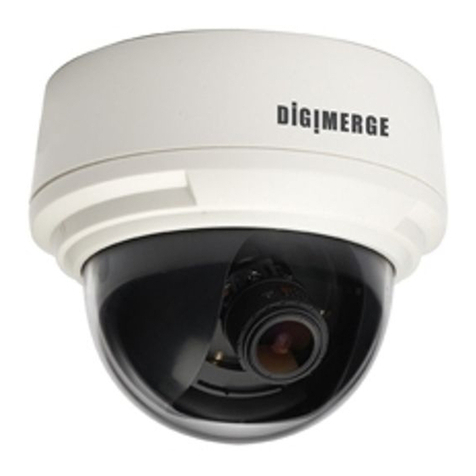

Digimerge DPV24D Manuale utente

Digimerge

Digimerge DCS100033 Manuale utente

Digimerge

Digimerge DCB13TL Manuale utente

Digimerge

Digimerge DCBHR1037 Manuale utente

Digimerge

Digimerge DPV24D Manuale utente

Digimerge

Digimerge DPV14W Manuale utente

Digimerge

Digimerge DPV24DL Manuale utente

Digimerge

Digimerge DPV34WL Manuale

Digimerge

Digimerge Flir DBV44TL Manuale utente

Digimerge

Digimerge DNP5220E Manuale utente

Digimerge

Digimerge DBD14 Manuale utente

Digimerge

Digimerge DCV24DL Manuale utente

Digimerge

Digimerge DPD14T Manuale utente

Digimerge

Digimerge DCV23DL Manuale utente

Digimerge

Digimerge DPV24D Manuale utente

Digimerge

Digimerge DPP22W Manuale

Digimerge

Digimerge DNP5320E Manuale utente

Digimerge

Digimerge DPD24W Manuale

Digimerge

Digimerge DPV24D Manuale utente

Digimerge

Digimerge DCBHR1535 Manuale utente

Digimerge

Digimerge DNZ9320W Manuale utente

Digimerge

Digimerge DPD23D Manuale utente

Digimerge

Digimerge DPV14D Manuale utente

Digimerge

Digimerge DND7220 Series Manuale utente

Manuali Telecamera di sicurezza popolari di altre marche

Okina USA

Okina USA SIR36-870VF650LP Manuale utente

Divio

Divio NDR155PA Manuale utente

Canon

Canon VB-C500D Manuale utente

Easy Access

Easy Access EasyGuard Manuale utente

Vivotek

Vivotek FD9389-EHV-v2 Manuale utente

TUYA

TUYA COSMO W2 Manuale utente

Eusso

Eusso UNC7500-IR Guida all'installazione

urmet domus

urmet domus 1096/204 Manuale utente

VC VC20 series Manuale utente

Axis

Axis Q1614 Manuale utente

ieGeek

ieGeek DD201 Manuale utente

VADDIO

VADDIO ClearVIEW HD-USB PTZ 999-6990-000 Manuale utente

Vicon

Vicon V662-D-1 Istruzioni operative

Grundig

Grundig GCH-K0274P Manuale utente

Lorex

Lorex VANTAGE LBC7032 Manuale utente

4xem

4xem WPT Manuale utente

Samsung

Samsung SCV-3082 Manuale utente

Vitek

Vitek VTC-C544 Manuale utente
