Digital Projection Vision 30 Series Manuale utente

Vision 30 Series

Communication Protocol

www.digitalprojection.com

Revision 1.0

03/28/2008

Table of Contents

Table of Contents ...............................................................................................................................................................................1

Setting up LAN communication .........................................................................................................................................................2

Connecting to the projector ...............................................................................................................................................................2

Setting up RS232 communication .....................................................................................................................................................5

Connect to the projector ...............................................................................................................................................................5

RS232 Communication parameters ..............................................................................................................................................5

Communication Protocol....................................................................................................................................................................6

Overview........................................................................................................................................................................................6

Message body ...............................................................................................................................................................................6

Mnemonic......................................................................................................................................................................................6

Modiers........................................................................................................................................................................................7

Acknowledge/Response................................................................................................................................................................7

Examples .......................................................................................................................................................................................8

ASCII commands .............................................................................................................................................................................10

Value tables ......................................................................................................................................................................................10

Setting up LAN communication

The projector is shipped with a set of default settings, these are as follows:

Description Value

DHCP On

IP address 0.0.0.0

Subnet mask 0.0.0.0

Default gateway 0.0.0.0

TCP/UDP port 1025

Username admin

Password admin

Before you connect the projector to your LAN make sure that the IP settings are set correct according to your LAN conguration.

IP settings can be changed from menu system or from the projector webpage. It can be set automatically by using DHCP (Dynamic

Host Conguration Protocol) or manually by disabling DHCP and set IP address, Subnet mask and Gateway.

Use of DHCP requires a DHCP server in the network.

When enabling DHCP please allow up to a minute for the projector to receive IP settings from the DHCP server. The IP address will be

updated and shown in the menu system.

Connecting to the projector

You have two options regarding how to make the physical connection to the projector. You can either use a crossover twisted pair (TP)

cable directly from the computer to the projector, or two straight-through TP cables with a HUB or a switch between them.

When the projector is set up with proper IP settings, you should be able to control it.

To verify the communication you can connect to the projector webpage. This is done by starting up an internet browser, like Internet

Explorer, Opera, Firefox or similar. Then type the projectors IP address (found in the projector network menu) in the address bar.

You will then see a login screen, see Figure 1.

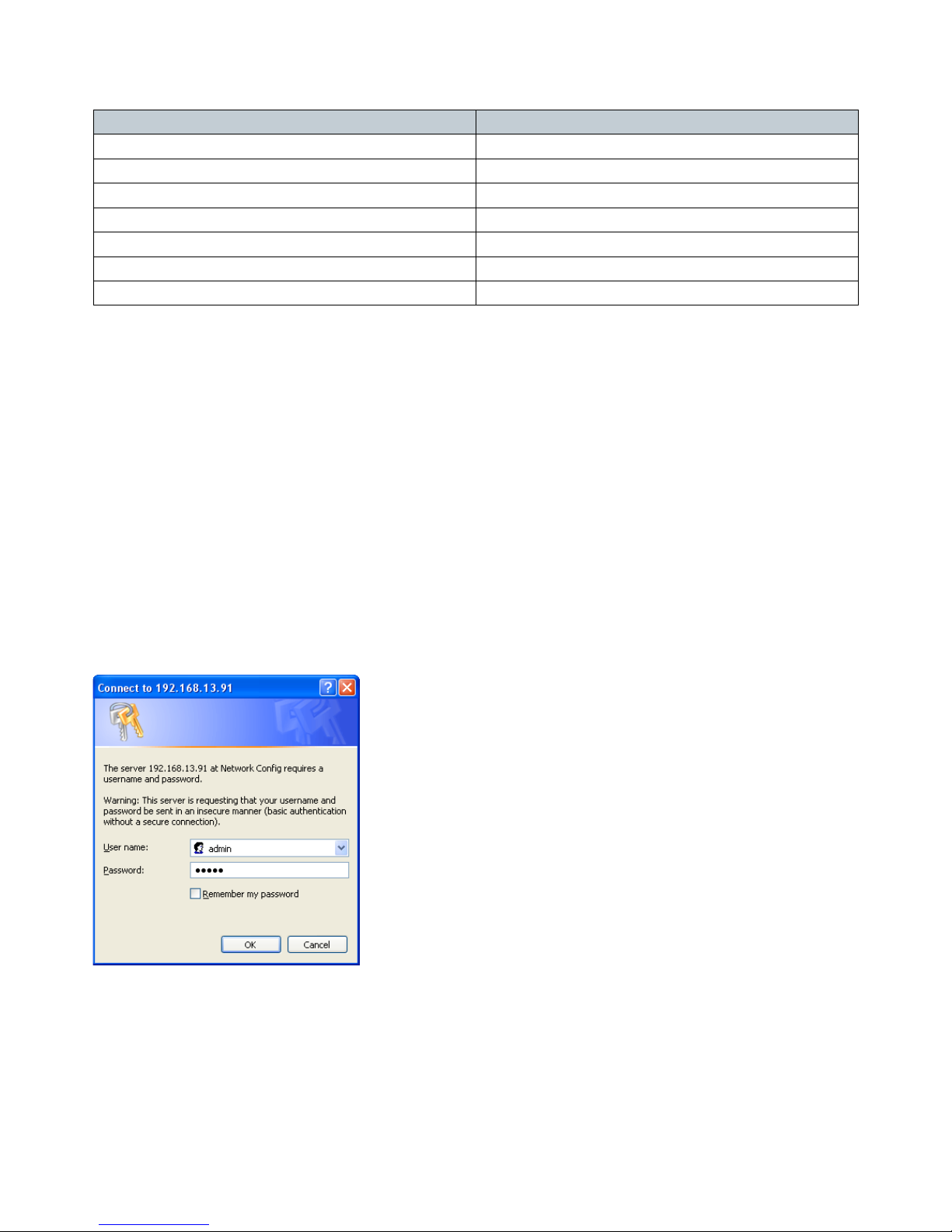

Figure 1 : Login

Type in the projectors default login name (admin) and password (admin), both are case sensitive. If both are correct, you will se a

conguration website, see Figure 2.

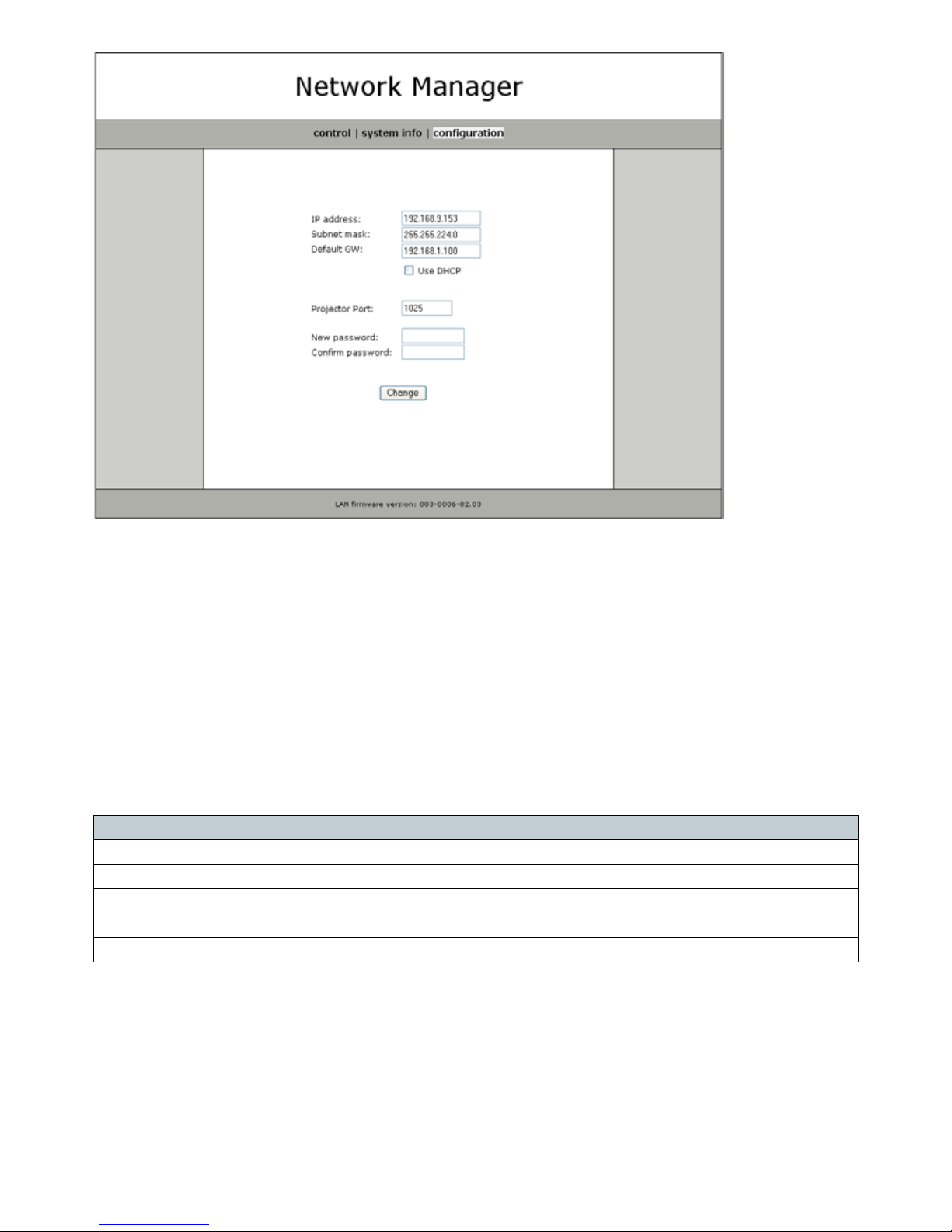

Figure 2 : Web page

On this page you can setup the projectors IP address, subnet mask, default gateway, projector port (TCP/UDP) and password. This

page also displays the current version of network rmware the projector is running.

Setting up RS232 communication

Connect to the projector

Connect the projector and host using a standard serial cable with 9-pin female to the host, and 9-pin male to the projector. Pin 2

connects to pin 2, pin 3 connects to pin 3 and pin 5 connects to pin 5.

RS232 Communication parameters

Table 1 shows supported rs232 settings:

Parameter Data

Baud rate 4800, 9600, 19200

Parity N

Databits 8

Stopbits 1

Flowcontrol None

Table 1: RS232 parameters

Baud rate is congurable from the projector’s menu system. Default baud rate is 19200.

Communication Protocol

This section describes how to use the communication protocol to control projectors remotely.

When the projects are connected to either RS232 or LAN you can control the projectors through this ASCII based protocol.

Note: Some commands will generate OSD feedback. This can be turned off from the projector’s menu system or by setting

“OSDC” to value 0 (OSD off) or value 1 (OSD show only warnings).

Overview

The protocol has the following denition:

HEADER SEPARATOR ADDRESS SEPARATOR MESSAGE BODY TERMINATOR

1 byte 1 byte 1 -3 bytes 1 byte N bytes 1 byte

Field Description Comment

Header ASCII character ‘:’ Required

Separator ASCII character ‘space’ Optional

Address 1 – 3 bytes address Optional

Terminator CR carriage return (0x0D) Required

Message body

The message body structure is as follows:

MNEMONIC SEPARATOR] MODIFIER SEPARATOR VALUES

1 byte 1 byte 1 -3 bytes 1 byte N bytes

Field Description Comment

Mnemonic 4 bytes key identier, not case sensitive Required

Modifer Single char symbol Optional

VALUES 1 – 3 bytes address Optional

Separator ASCII character ‘space’ Optional

Mnemonic

The Mnemonic is 4 bytes key identier, know as the ASCII command.

Example: POWR, SABS, IVGA

Modiers

R Relative change. Value given will be reletive to the existing value.

Example: :BRIG R10 will increase brightness with 10 steps

ARequest acknowledges. This modier is the only

used to read back the result of the command.

Default all commands send acknowledges so this will not be

necessary.

?Get current value

?M Get maximum value

?N Get minimum value

?D Get default value

?S Get default step value

Acknowledge/Response

Acknowledge is optional and ON by default. Auto acknowledge can be turned on and off with ECHO commad. It can also be activated

on a per command basis using modier A.

ACK ADDRESS SEP COMMAND SEP VALUE TERM

1 byte 3 bytes 1 byte 4 bytes 1 byte 6 bytes 1 byte

Field Description Comment

ACK ASCII character ‘%’ Always

SEP ASCII space Always

VALUE 6 bytes return value Always

TERM Termination char 0x0D (CR) Always

Most commands value returns the actual value of the requested command. If the requested command is not valid the response may

include an error message.

Code Error message Description

!00001 Access denied Current access level is too low

!00002 Not available Command currently not available.

Ex. contrast is not available when the

projector is searching

!00003 Not implemented Command to implemented

!00004 Value out of range Value out of range

Some commands could return a value that is more than 6 characters, for instance strings.

Code Extended info Description

e00001 Extended info, string A description string follows

Example:

> :seri ?

> %001 SERI e00001 07010001

Examples

The protocol accepts one single SPACE between elds, or no SPACE between elds.

‘CR’ ASCII value carriage return, hex value 0x0D.

SET-commands

SET POWER ON

: P O W R 1 ‘CR’

:POWR1’CR’

ACKNOWLEDGE POWER ON

% 0 0 1 P O W R 0 0 0 0 0 1 ‘CR’

%001 POWR 000001’CR’

SET BRIGHTNESS TO 60

: B R I G6 0 ‘CR’

:BRIG 60’CR’

ACKNOWLEDGE BRIGHTNESS

% 0 0 1 B R I G000060‘CR’

%001 BRIG 000060’CR’

INCREMENT CONTRAST

: C N T R R 1 ‘CR’

:CNTR R1’CR’

ACKNOWLEDGE INCREMENT CONTRAST

% 0 0 1 C N T R 0 0 0 0 6 1 ‘CR’

%001 CNTR 000061’CR’

DECREMENT CONTRAST with 2 steps

: C N T R R - 2 ‘CR’

:CNTR R-2’CR’

ACKNOWLEDGE INCREMENT CONTRAST

% 0 0 1 C N T R 0 0 0 0 5 9 ‘CR’

%001 CNTR 000059’CR’

GET-commands

GET current value CONTRAST

: C N T R ? ‘CR’

:CNTR?’CR’

ACKNOWLEDGE CONTRAST GET

% 0 0 1 C N T R 0 0 0 0 5 9 ‘CR’

%001 CNTR 000059’CR’

GET minimun value BRIGHTNESS

: B R I G? N ‘CR’

:BRIG ?N’CR’

ACKNOWLEDGE BRIGHTNESS GET MIN

% 0 0 1 B R I G000000‘CR’

%001 CNTR 000000’CR’

ASCII protocol

Showing all properties for available commands

Command Description Platforms* Operations

supported Comments

POWR Power IVision 30, IVision 20,

DVision 30

Get, Set

POST Power state IVision 30, IVision 20,

DVision 30

Get See value table POST

Soure selection

IABS Set source abs values IVision 30, IVision 20,

DVision 30

Get, Set See value table IABS

IVGA Select VGA IVision 30, IVision 20,

DVision 30

Get, Set

ISVI Select S-video IVision 30, IVision 20,

DVision 30

Get, Set

IDVI Select DVI IVision 30, IVision 20,

DVision 30

Get, Set

ICVI Select Composite video IVision 30, IVision 20,

DVision 30

Get, Set

IYPP Select Component YPbPr IVision 30, IVision 20,

DVision 30

Get, Set

IRGS Select RGB video IVision 30, IVision 20,

DVision 30

Get, Set

IHDM Select HDMI IVision 30, IVision 20,

DVision 30

Get, Set

IBNC Select BNC DVision 30 Get, Set

ISTS Signal Status IVision 30, IVision 20,

DVision 30

Get 0 - searching 1 - locked to source


BRIG Brightness IVision 30, IVision 20,

DVision 30

Get, Set

CNTR Contrast IVision 30, IVision 20,

DVision 30

Get, Set

CSAT Color IVision 30, IVision 20,

DVision 30

Get, Set

VHUE Hue Video IVision 30, IVision 20,

DVision 30

Get, Set

SHRP Sharpness IVision 30, IVision 20,

DVision 30

Get, Set

PRST Picture Reset IVision 30, IVision 20,

DVision 30

Get, Set

AUTO Auto IVision 30, IVision 20,

DVision 30

Set

PMUT Picture Mute IVision 30, IVision 20,

DVision 30

Get, Set

FRZE Freeze Image IVision 30, IVision 20,

DVision 30

Get, Set

SABS Set Scaling abs value IVision 30, IVision 20,

DVision 30

Get, Set See value table SABS

S1T1 Select Scaling 1:1 IVision 30, IVision 20,

DVision 30

Get, Set

S169 Select Scaling 16:9 IVision 30, IVision 20,

DVision 30

Get, Set

SS43 Select Scaling 4:3 IVision 30, IVision 20,

DVision 30

Get, Set

SFLA Select Scaling FillAll IVision 30, IVision 20,

DVision 30

Get, Set

*Supported commands for the various product platforms are marked IVision 30, IVision 20, and DVision 30.

SFAR Select Scaling FillAspectRatio IVision 30, IVision 20,

DVision 30

Get, Set

SLET Select Scaling Letterbox to 16:9 IVision 30, IVision 20,

DVision 30

Get, Set

SLST Select Scaling Letterbox St to 16:9 IVision 30, IVision 20,

DVision 30

Get, Set

GAFI Select Gamma Film IVision 30, IVision 20,

DVision 30

Get, Set

GAVI Select Gamma Video IVision 30, IVision 20,

DVision 30

Get, Set

GACO Select Gamma Computer IVision 30, IVision 20,

DVision 30

Get, Set

GABS Set Gamma abs value IVision 30, IVision 20,

DVision 30

Get, Set

Picture->ColorMax

BCMO BrilliantColor Mode IVision 30 Get, Set See value table BCMO

BCPR BrilliantColor Preset IVision 30, IVision 20,

DVision 30

Get, Set See value table BCPR

PRES BrilliantColor Preset Settings IVision 30 Get, Set See value table PRES

WPEK BrilliantColor Boost IVision 30, IVision 20,

DVision 30

Get, Set

CMXV Color Management X-Coordinate IVision 30, IVision 20,

DVision 30

Get, Set

CMYV Color Management Y-Coordinate IVision 30, IVision 20,

DVision 30

Get, Set

CMNA Color Management Mode Not Corrected IVision 30, IVision 20,

DVision 30

Get, Set

CMTE Color Management Mode Color Temeperature IVision 30, IVision 20,

DVision 30

Get, Set

Command Description Platforms Operations

supported Comments

CCXY Color Management Mode Custom Coordinates IVision 30, IVision 20,

DVision 30

Get, Set

CMHS Color Management Mode HSG IVision 30 Get, Set

CMPR Color Management Mode presets IVision 30

RD65 Reset to D65 IVision 30, IVision 20,

DVision 30

Set

DSCR Desired Coords Mode IVision 30, IVision 20,

DVision 30

Get, Set See value table DSCR

BAGA Balance Gains Enable IVision 30, IVision 20,

DVision 30

Get, Set

DSRX Desired Red X IVision 30, IVision 20,

DVision 30

Get, Set

DSRY Desired Red Y IVision 30, IVision 20,

DVision 30

Get, Set

DSRG Desired Red Gain IVision 30, IVision 20,

DVision 30

Get, Set

DSGX Desired Green X IVision 30, IVision 20,

DVision 30

Get, Set

DSGY Desired Green Y IVision 30, IVision 20,

DVision 30

Get, Set

DSGG Desired Green Gain IVision 30, IVision 20,

DVision 30

Get, Set

DSBX Desired Blue X IVision 30, IVision 20,

DVision 30

Get, Set

DSBY Desired Blue Y IVision 30, IVision 20,

DVision 30

Get, Set

DSBG Desired Blue Gain IVision 30, IVision 20,

DVision 30

Get, Set

DSCX Desired Cyan X IVision 30, IVision 20,

DVision 30

Get, Set

DSCY Desired Cyan Y IVision 30, IVision 20,

DVision 30

Get, Set

DSCG Desired Cyan Gain IVision 30, IVision 20,

DVision 30

Get, Set

DSMX Desired Magenta X IVision 30, IVision 20,

DVision 30

Get, Set

DSMY Desired Magenta Y IVision 30, IVision 20,

DVision 30

Get, Set

DSMG Desired Magenta Gain IVision 30, IVision 20,

DVision 30

Get, Set

DSYX Desired Yellow X IVision 30, IVision 20,

DVision 30

Get, Set

DSYY Desired Yellow Y IVision 30, IVision 20,

DVision 30

Get, Set

DSYG Desired Yellow Gain IVision 30, IVision 20,

DVision 30

Get, Set

DSWG Desired White Gain IVision 30, IVision 20,

DVision 30

Get, Set

DFRX Factory Desired Red X IVision 30, IVision 20,

DVision 30

Get, Set

DFRY Factory Desired Red Y IVision 30, IVision 20,

DVision 30

Get, Set

DFRG Factory Desired Red Gain IVision 30, IVision 20,

DVision 30

Get, Set

DFGX Factory Desired Green X IVision 30, IVision 20,

DVision 30

Get, Set

DFGY Factory Desired Green Y IVision 30, IVision 20,

DVision 30

Get, Set

DFGG Factory Desired Green Gain IVision 30, IVision 20,

DVision 30

Get, Set

DFBX Factory Desired Blue X IVision 30, IVision 20,

DVision 30

Get, Set

DFBY Factory Desired Blue Y IVision 30, IVision 20,

DVision 30

Get, Set

DFBG Factory Desired Blue Gain IVision 30, IVision 20,

DVision 30

Get, Set

DFCX Factory Desired Cyan X IVision 30, IVision 20,

DVision 30

Get, Set

DFCY Factory Desired Cyan Y IVision 30, IVision 20,

DVision 30

Get, Set

DFCG Factory Desired Cyan Gain IVision 30, IVision 20,

DVision 30

Get, Set

DFMX Factory Desired Magenta X IVision 30, IVision 20,

DVision 30

Get, Set

DFMY Factory Desired Magenta Y IVision 30, IVision 20,

DVision 30

Get, Set

DFMG Factory Desired Magenta Gain IVision 30, IVision 20,

DVision 30

Get, Set

DFYX Factory Desired Yellow X IVision 30, IVision 20,

DVision 30

Get, Set

DFYY Factory Desired Yellow Y IVision 30, IVision 20,

DVision 30

Get, Set

DFYG Factory Desired Yellow Gain IVision 30, IVision 20,

DVision 30

Get, Set

Indice

Altri manuali Digital Projection Proiettore

Digital Projection

Digital Projection TITAN WUXGA Quad 3D Manuale utente

Digital Projection

Digital Projection dVision Scope 1080p Manuale utente

Digital Projection

Digital Projection THUNDER 10000sx Manuale utente

Digital Projection

Digital Projection M-Vision 1080p-260 series Manuale utente

Digital Projection

Digital Projection E-Vision 7500 Series Manuale utente

Digital Projection

Digital Projection E-Vision Laser 13000 WU Series Scheda tecnica

Digital Projection

Digital Projection E-Vision 6500 Series Manuale utente

Digital Projection

Digital Projection Titan Super Quad Manuale utente

Digital Projection

Digital Projection E-Vision Manuale operativo

Digital Projection

Digital Projection Titan 1080p-250 Manuale operativo

Digital Projection

Digital Projection LIGHTNING 30-1080p Manuale utente

Digital Projection

Digital Projection Lightning 30sx+m Manuale utente

Digital Projection

Digital Projection HIGHlite Laser 3D Series Manuale utente

Digital Projection

Digital Projection LIGHTNING 10sx Manuale utente

Digital Projection

Digital Projection TITAN XG-500 Manuale utente

Digital Projection

Digital Projection TITAN sx+-500 Manuale utente

Digital Projection

Digital Projection TITAN WUXGA 3D Manuale utente

Digital Projection

Digital Projection E-Vision WXGA 600 Manuale utente

Digital Projection

Digital Projection HIGHlite 6000 Manuale utente

Digital Projection

Digital Projection iVision Manuale utente

Digital Projection

Digital Projection Titan series Manuale utente

Digital Projection

Digital Projection M-Vision Cine LED Manuale utente

Digital Projection

Digital Projection HIGHlite 660 3D Series Manuale utente

Digital Projection

Digital Projection E-Vision Laser 7500 Series Manuale utente

Manuali Proiettore popolari di altre marche

iEmmet

iEmmet MP-312 Manuale utente

Epson

Epson VS400 Manuale utente

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuale utente

Sony

Sony VPL-HW65ES Manuale di servizio

Toshiba

Toshiba TLP-791U Manuale utente

Philips

Philips LC1341 Guida di riferimento

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuale utente

NEC

NEC NP600S EDU Manuale utente

BenQ

BenQ SH753P Manuale utente

Eiki

Eiki EK-623U series Manuale utente

Epson

Epson PowerLite Pro Cinema 6020UB Manuale utente

Epson

Epson PowerLite Home Cinema 705HD Manuale utente

Christie

Christie LHD700 Manuale utente

Navitar

Navitar FX Manuale utente

InFocus

InFocus LitePro 560 Manuale utente

Sony

Sony SRX-R815P Manuale utente

Vivitar

Vivitar DP1500 X Manuale utente

Acer

Acer C20 Series Manuale utente
