Digital Watchdog DWC-PTZ10x Manuale utente

INSTRUCTION MANUAL

DWC-PTZ10x

Mini SPEED DOME CAMERA

DWC-PTZ10x

[Mini

SPEED DOME

CAMERA

]

www.Digital-Watchdog.com

2/49

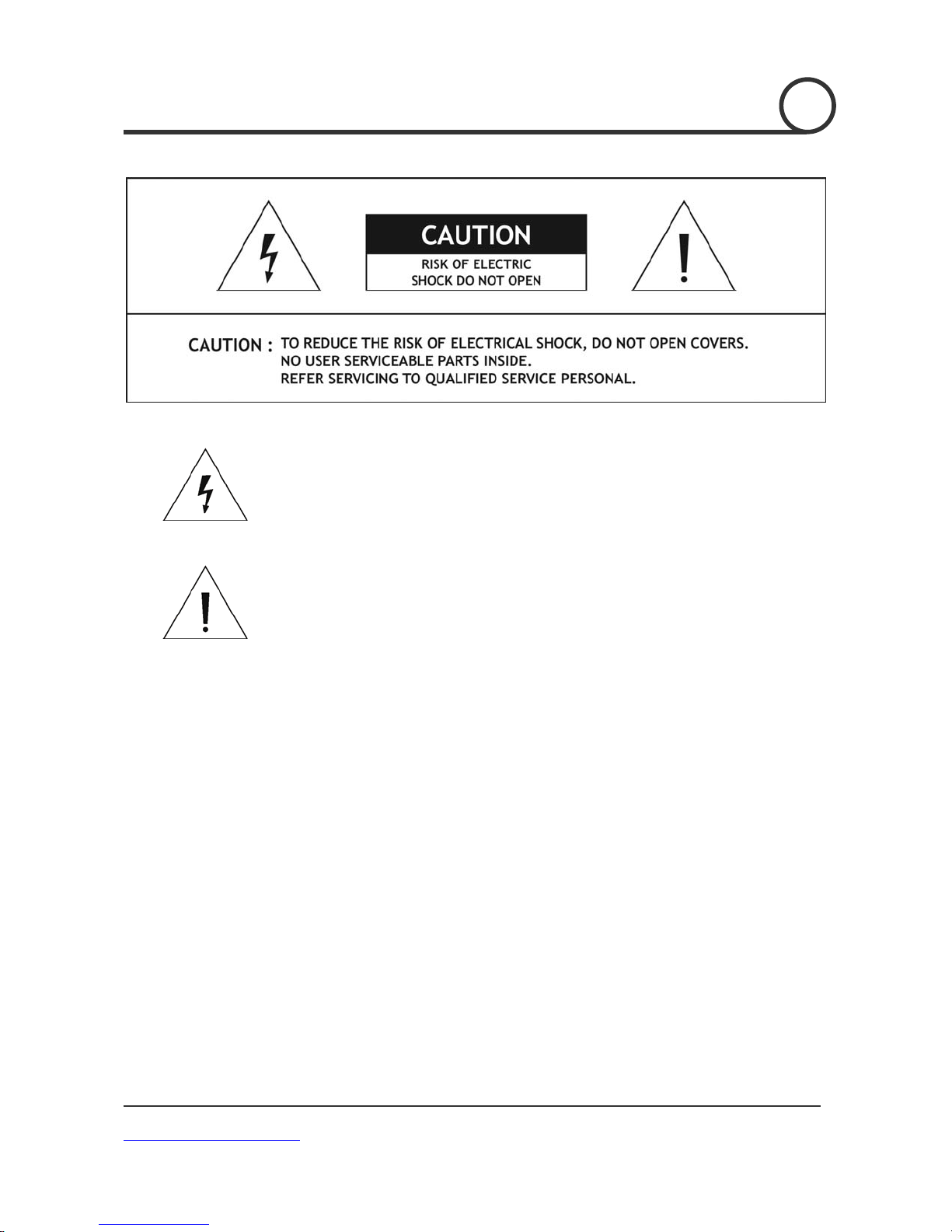

This lightning flash with arrowhead symbol is intended to alert the user to

the presence of un-insulated "dangerous voltage" within the product's

enclosure that may be of sufficient magnitude to constitute a risk of electric

shock to individuals.

This exclamation point symbol is intended to alert the user of the presence

of important operating and maintenance (servicing) instructions in the

literature accompanying the appliance.

DWC-PTZ10x

[Mini

SPEED DOME

CAMERA

]

www.Digital-Watchdog.com

3/49

Important Safeguard

1. Read Instructions

Read all of the safety and operating instructions before using the product.

2. Retain Instructions

Save these instructions for future reference.

3. Attachments/ Accessories

Do not use attachments or accessories unless recommended by the manufacturer as they may cause

hazards, damage product and void warranty.

4. Water and Moisture

Do not use this product near water or moisture. (Indoor Version)

5. Installation

Do not place or mount this product in or on an unstable or improperly supported location.

Improperly installed product may fall, causing serious injury to a child or adult, and damage to the

product. Use only with a mounting device recommended by the manufacturer, or sold with the

product. To insure proper mounting, follow the manufacturer's instructions and use only mounting

accessories recommended by manufacturer.

6. Power source

This product should be operated only from the type of power source indicated on the marking label.

Precautions

Operating

Before using, make sure power supply is properly connected.

While operating, if any abnormal condition or malfunction is observed, stop using the camera

immediately and then contact your dealer.

Handling

Do not disassemble or tamper with parts inside the camera.

Do not drop or subject the camera to shock and vibration as this can damage camera.

Care must be taken when you clean the clear dome cover. Scratches and dust will ruin your

quality of the picture.

Installation and Storage

Do not install the camera in areas that exceed the allowable temperature range. (Indoor Version)

Avoid installing in humid or dusty places (Indoor Version)

Avoid installing in places where radiation is present.

Avoid installing in places where there are strong magnetic fields and electric signals.

Avoid installing in places where the camera would be subject to strong vibrations.

Never expose the indoor version camera to rain and water.

NOTICE

DWC-PTZ10x

[Mini

SPEED DOME

CAMERA

]

www.Digital-Watchdog.com

4/49

○

1Introduction

Features 5

Product&Accessories 7

Parts&Functions 8

○

2Installation

DIPSwitchSetup 9

DirectInstallationontheCeiling 11

InstallationusingFlushMountRingBracket 12

InstallationusingCeilingMountBracket 13

InstallationusingWallMountBracket 14

Cabling 15

○

3Operation

CheckingBeforeOperation 17

PresetandPatternFunctionPre-Check 17

Start OSD Menu 18

Reserved Preset 18

Preset 19

Group 19

Pattern 20

Group 21

Schedule 22

Other Functions 23

OSD Display of Main Screen 24

○

4How to use OSD Menu

General Rules of Menu Operation 25

Main Menu 25

Display Setup 26

Privacy Zone Mask Setup 27

Motion Setup 28

Function Setup 30

Preset Setup 31

Group Setup 33

Pattern Setup 34

Group Setup 35

Schedule Setup 37

Camera Setup 38

System Setup 40

System Initialize 41

○

5Specifications

Dimension 43

CONTENTS

DWC-PTZ10x

[Mini

SPEED DOME

CAMERA

]

www.Digital-Watchdog.com

5/49

Features

Camera Specifications

Sensor: ¼“ Super-HAD II CCD

520TVL [Color] 570TVL

Lens: 10x Digital, 10x Optical Zoom (3.8 ~38mm)

360Continuous Pan Rotation

SSNR Digital Noise Reduction

Zoom Magnification: 10 Optical Zoom, 10 Digital Zoom (Max 100 Zoom) [To be Delete]

Function: True Day & Night Function (Moving IR Cut Filter)

Focus Mode: Auto / Manual / Semi-Auto

Auto Sensing, Multiprotocol Receiver

Multi-language Menu-Setup: [English / Spanish / Portuguese / French / Italian / Polish

/Dutch]

Independent or General Camera Characteristic Setup in Preset operation

24VAC/12VDC Power Input

Powerful Pan/Tilt Functions

Max. 360/sec high speed Pan/Tilt Motion

Using Vector Drive Technology, Pan/Tilt movements are accomplished using the shortest

path theory. As a result, time to target view is reduced dramatically and the video on the

monitor is very natural to watch.

For jog operation using a controller, since ultra slow speed 0.05/sec can be reached, it is

very easy to position the camera to the desired target view.

Proportional Pan/Tilt automatically reduces or increases the pan/tilt speed in proportion to

the mount of zoom. At telephoto zoom settings, the pan/tilt speeds will be slower for a given

amount of joystick deflection than at wide zoom settings. This function keeps the image

from moving too fast on the monitor when there is a large amount of zoom

Preset, Pattern, Scan, Group, Privacy Mask, Schedule and More…

127 Presets are assignable and characteristics of each preset can be set up independently,

such as White Balance, Auto Exposure, Label and so on.

8 Scans can be stored. This enables to move camera repetitively between two preset positions

at designated speeds.

4 Pattern are memorized to repeat a series of Pan/Tilt, Zoom, and Preset functions that can

be recalled with a command or automatically by a programmed function (Alarm, Schedule, or

Power-Up)

INTRODUCTION 1

DWC-PTZ10x

[Mini

SPEED DOME

CAMERA

]

www.Digital-Watchdog.com

6/49

8 Groups are memorized to repeat a series of Presets, Patterns, and Scans. Each group can be

stored 20 entities of Preset/Pattern/Group functions. This function enables the dome camera

to move in combinations of those functions repetitively.

4 Privacy Zone Masks can be programmed. The Masked Zones can be set anywhere in the

viewing area and can be any size.

7 Schedules can be assigned by day and time. Appropriate actions (such as Home, Preset,

Group, Pattern, Scan) can be defined for each rule. Also, it is possible to schedule these

customer settings by daily and weekly requirements.

PTZ (Pan/Tilt/Zoom) Control

RS-485 control, max. 256 cameras can be controlled at the same time. [To Be Delete]

Pelco-D/ Pelco-P /Samsung protocol can be selected as a control protocol in the current

version of firmware. (Using the small Dip-switch at the back of the dome camera)

DWC-PTZ10x

[Mini

SPEED DOME

CAMERA

]

www.Digital-Watchdog.com

7/49

OSD (On Screen Display) Menu

OSD menu is provided to display the status of camera and to configure the functions

interactively.

There are currently 7 Languages that are supported in the OSD Menu:

[ENGLISH/ESPAÑOL/FRANÇAIS/DEUTSCH/ITALIANO/РУССКИЙ/PORTUGUÊS]

The information such as Camera ID, Pan/Tilt/Zoom/Direction, and Alarm Input & Output,

date/time, current temperature and Preset can be displayed on screen.

Each display item can be turned On or Off independently.

Alarm I/O Functions

2 alarm sensor Inputs and 1 relay output are available.

To protect from external electric noise and shock, the alarm sensor Input is decoupled by

using photo coupler diode.



If an external sensor is activated, camera can be set to move to the corresponding Preset

position.

Relay output can be assigned to work with a certain preset.

Reserved Presets for Special Purpose

In addition to the standard 127 presets, direct calling of reserved presets allows users to set

up many of the camera functions with or without using OSD menu. For more information,

refer to “Reserved Preset” in this manual.

In addition to 127 Presets from 1 to 128 can be assigned excluding preset 95 is reserved for

Main Menu Setup

INTRODUCTION 1

DWC-PTZ10x

[Mini

SPEED DOME

CAMERA

]

www.Digital-Watchdog.com

8/49

Product & Accessories

Main Product & Accessories

MainBody Surface Mount Bracket

Accessory

Manual Terminal Block

Torque Screw Driver

INTRODUCTION 1

INTRODUCTION

DWC-PTZ10x

[Mini

SPEED DOME

CAMERA

]

www.Digital-Watchdog.com

9/49

Main Product

MainBody Sun Shield Housing

Accessory

Terminal Block Torque Screw Driver

Manual

Options

Pendant Mount Bracket Wall Mount Bracket

INTRODUCTION 1

DWC-PTZ10x

[Mini

SPEED DOME

CAMERA

]

www.Digital-Watchdog.com

10/49

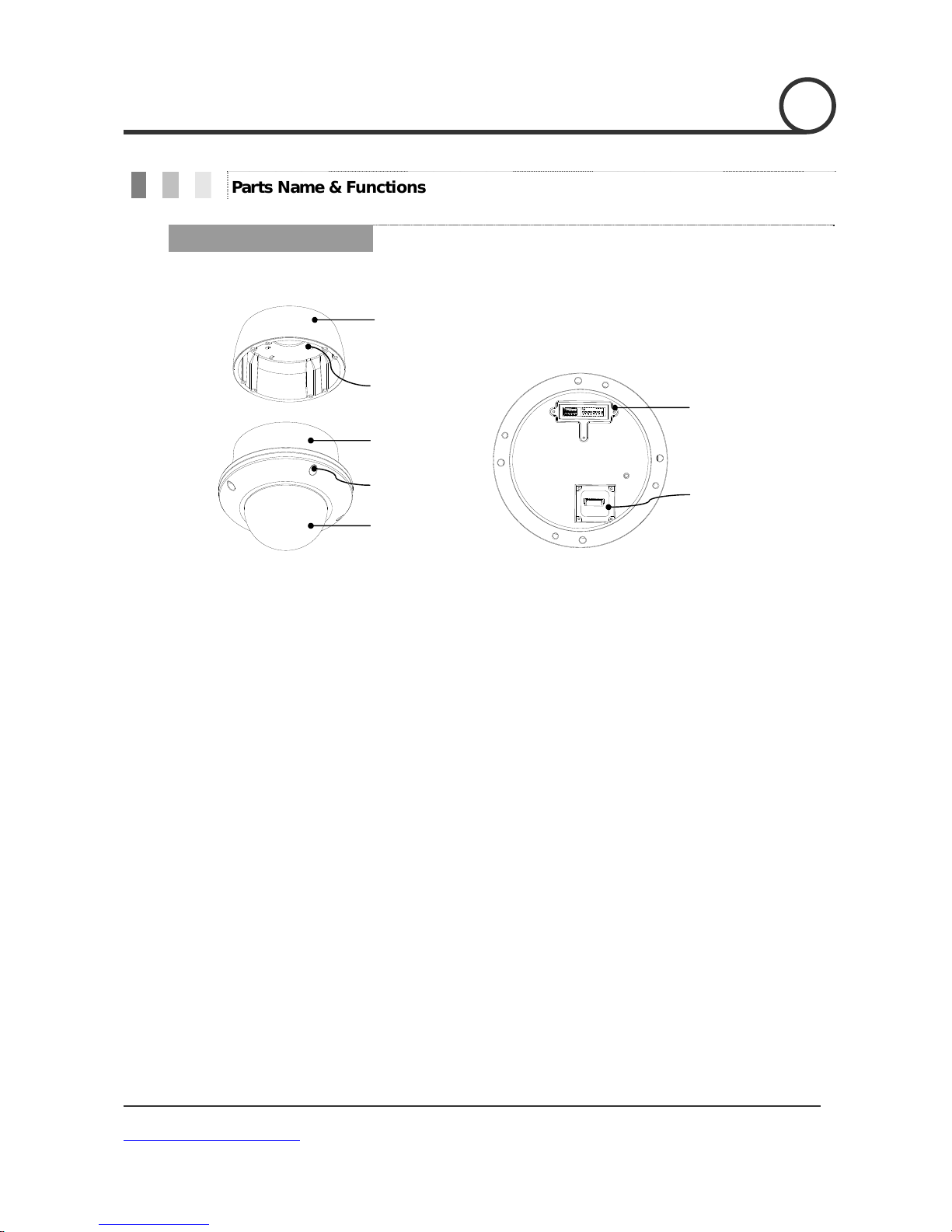

Parts Name & Functions

Main Unit / Surface Mount Bracket Back of Main Unit

Surface Mount Bracket This is used to install the camera directly on the ceiling. After

separating the cover attach this directly to ceiling. Camera must be

assembled at the last stage.

Do not use this bracket when installing camera on the wall with

wall mount bracket or on the ceiling with ceiling mount bracket.

Separating Slit Using a coin, you can separate upper part lower body of the dome.

Dome Cover Do not detach protective vinyl from dome cover before finishing

the installation process to protect dome cover from scratches or

dust.

DIP Switch Adjusts camera ID and protocols.

Cable Duct When you want to install the camera on the surface of hard ceiling,

you need to handle the cable through side of the dome. In this

case, break the side wall bit and feed the cable through the cable

duct.

INTRODUCTION 1

Surface

Mount Bracket

Mounting Hole

Main Body

Lockup Screw

Dome Cover

Cabling

Ter m ina l Bl a ck

Prototol&Braud-rate

Dip switches
