Digital Watchdog Snapit DWC-HV421D Guida

ABOUT MANUAL

Before installing and using the camera, please read this manual carefully.

Be sure to keep it handy for future reference.

HD-SDI Vandal-Proof Dome Camera

DWC-HV421D

DWC-HV421TIR

08062014

PRECAUTIONS

FCC COMPLIANCE

Do not open or modify.

Do not open the case except during maintenence and installation, for it may be dangerous and can

cause damages.

Do not put objects into the unit.

Keep metal objects and flammable substances from entering the camera.

It can cause fire, short-circuits, or other damages.

Be careful when handling the unit.

To prevent damages, do not drop the camera or subject it to shock or vibration.

Do not install near electric or magnetic fields.

Protect from humidity and dust.

Protect from high temperature.

Be careful when installing near the ceiling of kitchen or a boiler room, as the temperature may rise

to high levels.

Cleaning:

To remove dirt from the case, moisten a soft cloth with a soft detergent solution and wipe.

Mounting Surface:

The material of the mounting surface must be strong enough to support the camera.

This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against

harmful interference. when the equipment is operated in a residential environment. This equipment

generates, uses, and radiates radio frequency energy; and if it is not installed and used in accordance

with the instruction manual, it may cause harmful interference to radio communications.

WARNING: Changes or modifications are not expressly approved by the manufacturer.

Adjusting the Camera’S Lens

TABLE OF CONTENTS

Introduction

Installation

Camera OSD Menu and Glossary

Troubleshooting

Warranty Information

Specifications

Features

Parts and Descriptions

Dimensions

Included Accessories

Easy Installations

Connecting to Monitors

8- 13

18-30

32-33

34-35

Adjusting the 3-Axis Gimbal 17

Controling the Camera’s OSD Remotely

FEATURES*

IP68 Certified (Waterproof)

Sony 1/2.8” CMOS Sensor

Highest Resolution 2.1 Megapixels

720P / 1080P Mode Selectable

3.5~16mm Auto-Focus Lens

4.5X Optical Zoom

Double Shutter WDR (Wide Dynamic Range) at 15fps

70ft Range IR with Intelligent Camera Sync [HV421TIR]

Electronic Day and Night [HV421D]

True Day and Night [HV421TIR]

AGC / BLC / AWB

3D DNR (3D Digital Noise Reduction)

Digital Zoom (0~112 level)

HME/ HLMSK (Highlight Masking Exposure)

Mirror & Image Flip

Programmable Privacy Zone (30) & Motion Detection

Dead Pixel Cancellation

12VDC Support Only

Secondary Video-BNC Output

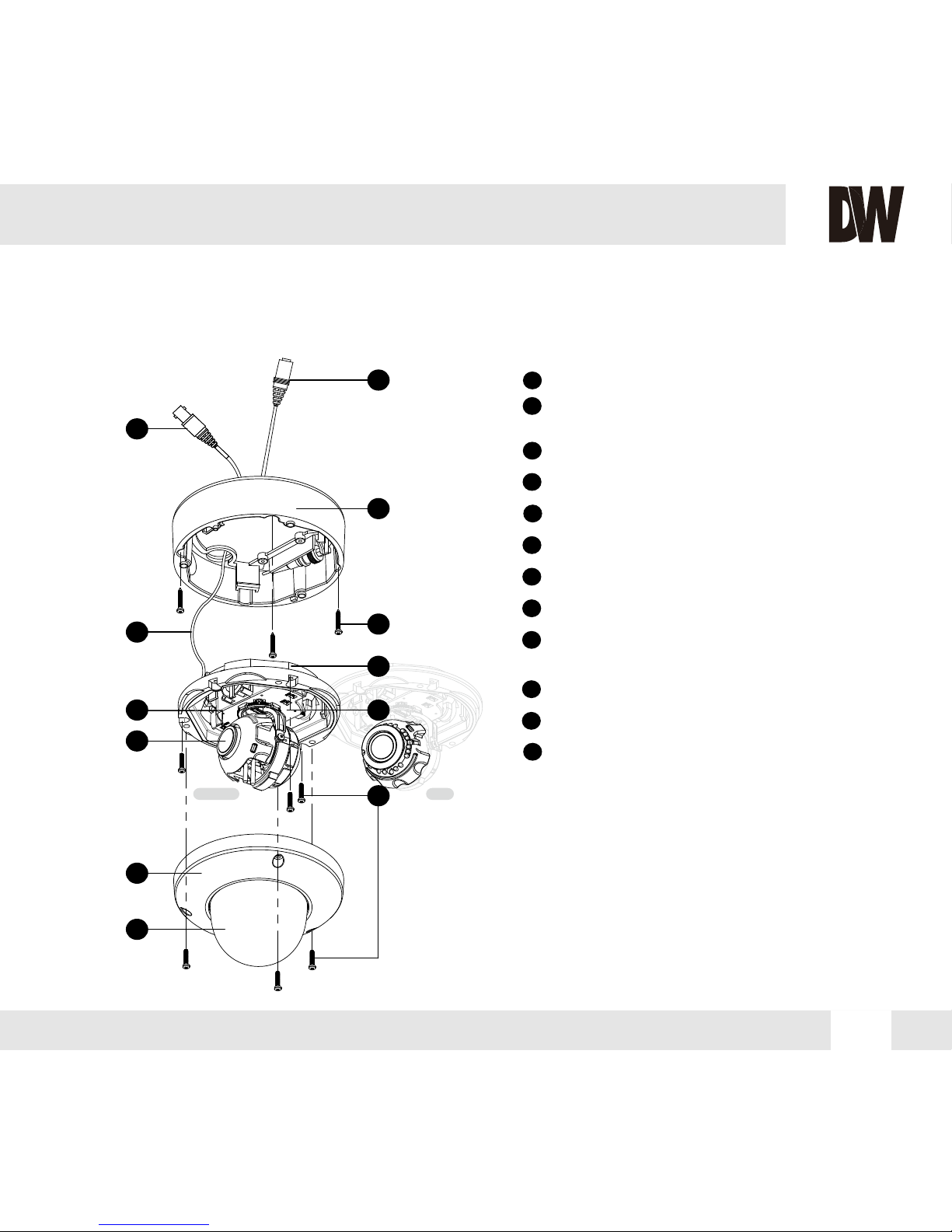

PART & DESCRIPTIONS*

Lens

Power input Connctor

12VDC Voltage

BNC (HD-SDI) + RS485

2nd Video Connector

Camera Control Board

Safety Wire

Bubble Dome

Upper Case

Flush Mount Case

Surface Mount Case

Assembly Screws

#8 - 32 x 0.75

Mounting Screws

w/o IR IR

DIMENSIONS IN MILLIMETERS (IN)*

101(3.98”)

137(5.39”)

17(0.67”)

28(1.1”)

54(2.13”)

98.8(3.89”)

121

(4.76”)

118.8

(46.8”)

139(5.47”)139(5.47”)

36(1.42”)

29(1.41”)

53.8(2.12”)

Flush Mount

Surface Mount

121

(4.76”)

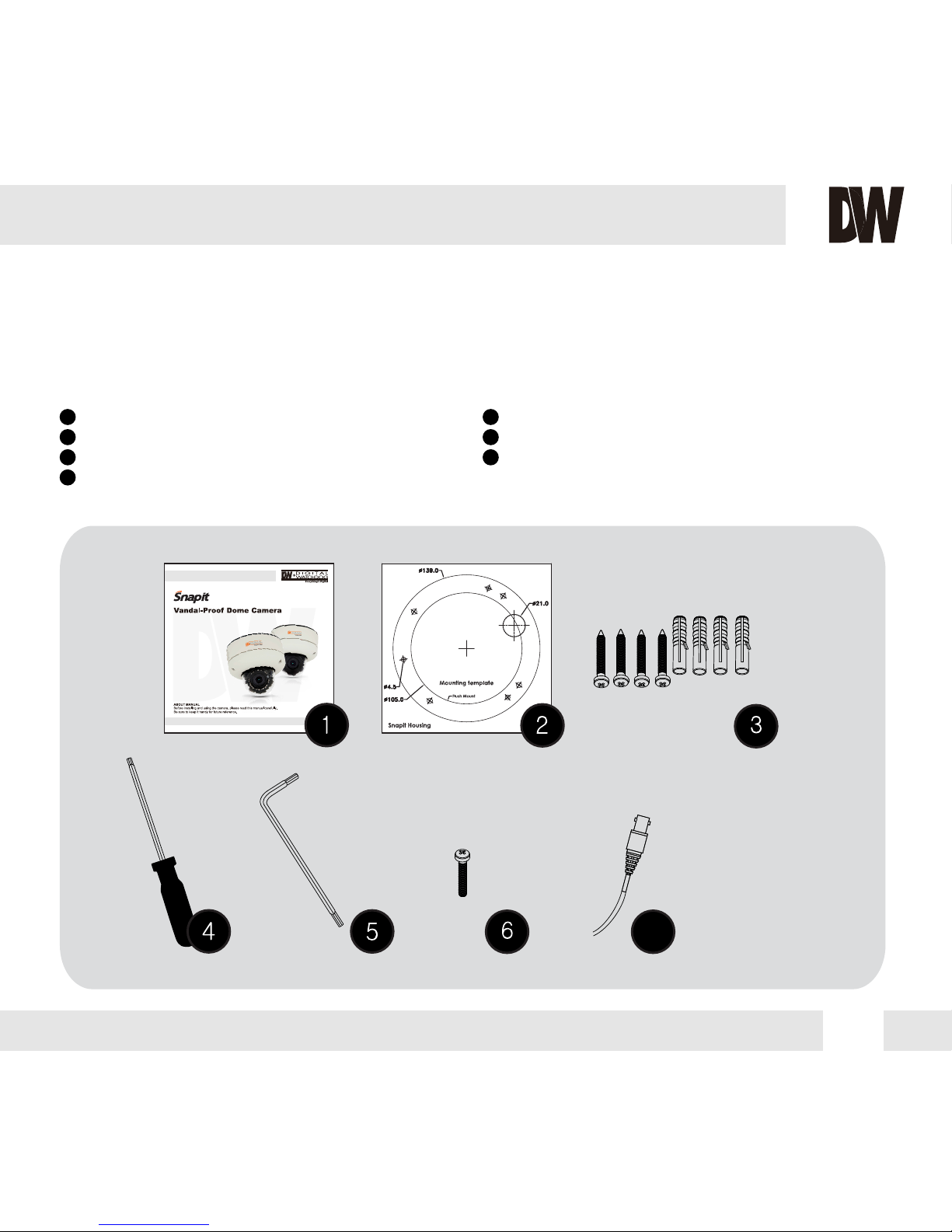

INSIDE THE BOX*

Included with Snapit Vandal Dome Camera

User Manual

Mounting Template

4 Machine Screw and 4 Dry Wall Anchors

TORX-T20 Wrench

L-Wrench

TORX-T20 Bolt

Secondary Video-BNC Cable

SURFACE MOUNT INSTALLATION INSTRUCTIONS*

Use the camera’s mounting

template or your camera to

mark the holes as required.

Drill holes into the drywall and

insert the drywall mounts into

the holes.

Pull wires through and make

connections.

If you need to keep the wiring within the

camera housing, refer to the diagram

below.

Mount the surface mount

base (junction box) to the

wall.

DC 12V

AC 24V

UTP

RS485

To use the side conduit, remove the

security screw with the supplied

3.0mm Allen key, and unscrew the

conduit plug.

Route wiring behind

the inner posts

(dark gray area).

DC 12V

AC 24V

UTP

RS485

1 2 3

Secure the three (3) assembly

screws.

Adjust the camera’s position

by using the 3-Axis Gimbal.

Tighten the three locking

screws in with the L-Wrench

to secure the cover dome

over the camera.

Snap the camera module onto

the base by aligning the red

and black markings on the

base and the camera module.

6 7 8

FLUSH MOUNT INSTALLATION INSTRUCTIONS*

For a flush mount housing, detach the surface mount base,

which is also known as the junction box, from the flush

mount base.

Use the mounting template to mark the holes for the screws

and a larger hole for the top extruded component of the

flush mount base.

The three assembly screws (ST4X35) fixed to the flush

mount base should be used to mount the camera to the

surface of the wall or ceiling.

ST4X35

Secure the three (3) assembly

screws.

Adjust the camera’s position

by using the 3-Axis Gimbal.

Tighten the three locking

screws in with the L-Wrench

to secure the cover dome

over the camera.

3 4 5
