USER MANUAL
VGA EXTENDER
DC-53101
DC-53401
DC-53501/DC-53601/DC-53701
DC-59301 (Remote) DC-59302 (Remote)
Package Contents for DC-53101
VGA Local Unit
VGA Remote Unit
1 user manual
2 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male)
Package Contents for DC-53401
VGA Local 1+1 Unit
VGA Remote Unit
1 user manual
2 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male)
Package Contents for DC-53501
VGA Local 1+2 Unit
1 user manual
1 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male)
Package Contents for DC-53601
VGA Local 1+4 Unit
1 user manual
1 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male)
Package Contents for DC-53701
VGA Local 1+8 Unit
1 user manual
1 power adapter DC 12V/600mA
1 VGA 1.2M cable (HD-15 Male to Male)
Package Contents for DC-59301/DC-59302
VGA Remote Unit
1 user manual
1 power adapter DC 12V/600mA
Any thing missed, please contact with your vendor.
Features
Through the VGAExtender, you can use one PC to display identical image and extension of
VGA signal up to 180 meter or by using DC-59302 up to 300 meter on monitors.
Equalization length is adjustable.
VGA signal gain is adjustable.
Specifications
DC-53101
Function Local Unit Remote Unit
VGA In/Out Connector HD-15 Female x 1
RJ-45 Connector 1
Max. Resolution 1280x1024 60Hz
Cable Distance 180 m (Max.)
Power Adapter (Min.) DC 12V 600mA
Housing Metal
Weight 135g 140g
Dimensions (LxWxH) mm 92x34x22
Function DC-53401 DC-53501 DC-53601 DC-53701
VGA In Connector HD-15 Female x 1
VGA Out Connector HD-15 Female x 1
RJ-45 Connector 1 2 4 8
Max. Resolution 1280x1024 60Hz
Cable Distance 180 m / 300 m (mit DC-59301 / DC-59302)
Power Adapter (Min.) DC 12V 600mA
Housing Metal Aluminum
Weight 290g 230g 247g 345g
Dimensions (LxWxH) mm 118x75x29 130x83.5x29.5 200x83.5x29.5

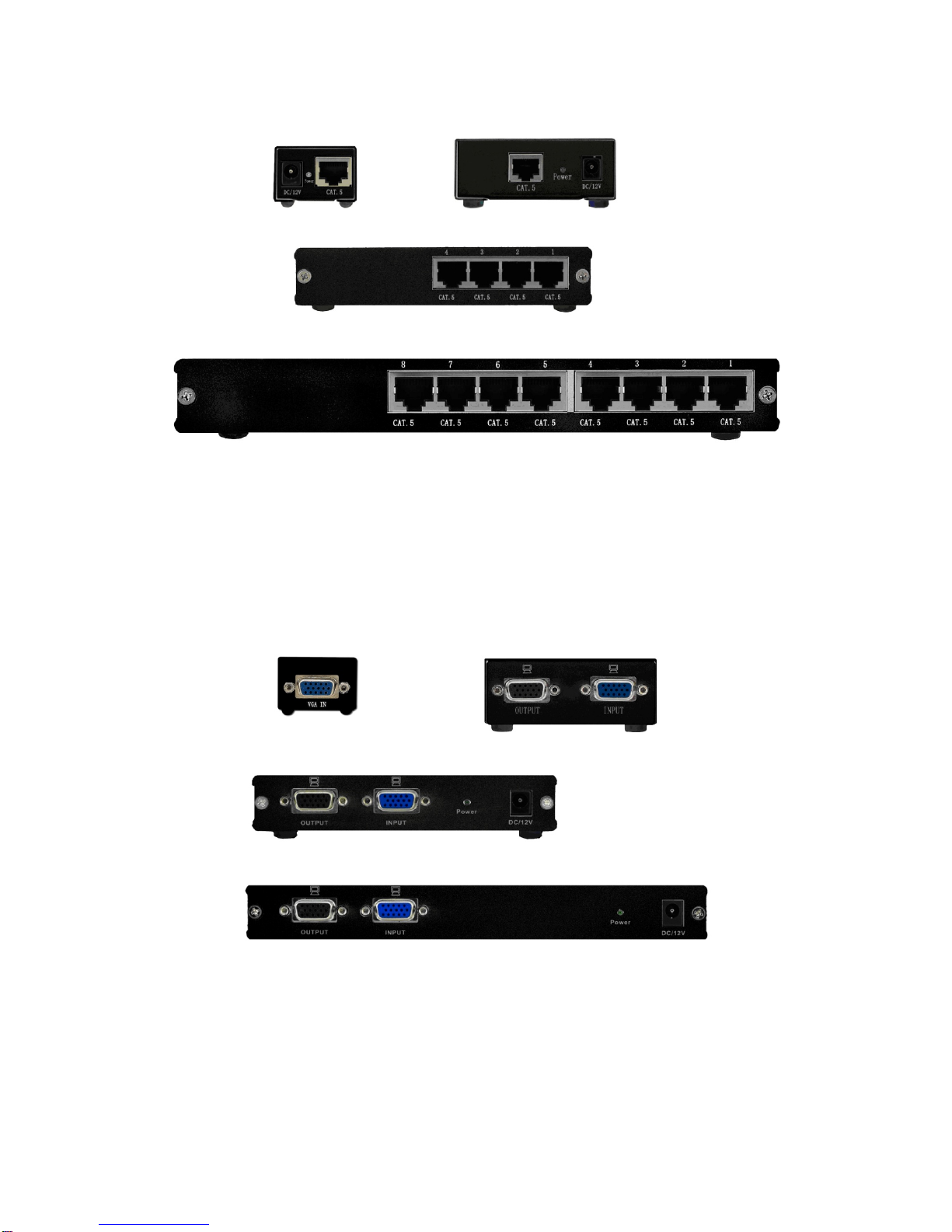

LOCAL FRONT VIEW
DC-53101 DC-53401
DC-53601
DC-53701
1. CAT.5 (RJ-45 Connector)
2. Power LED
3. Power jack
LOCAL REAR VIEW
DC-53701 DC-53401
DC-53501 / DC-53601
DC-53701
1. VGA In (HD-15 Female Connector)
2. VGA Out (HD-15 Female Connector)
3. Power LED
4. Power jack

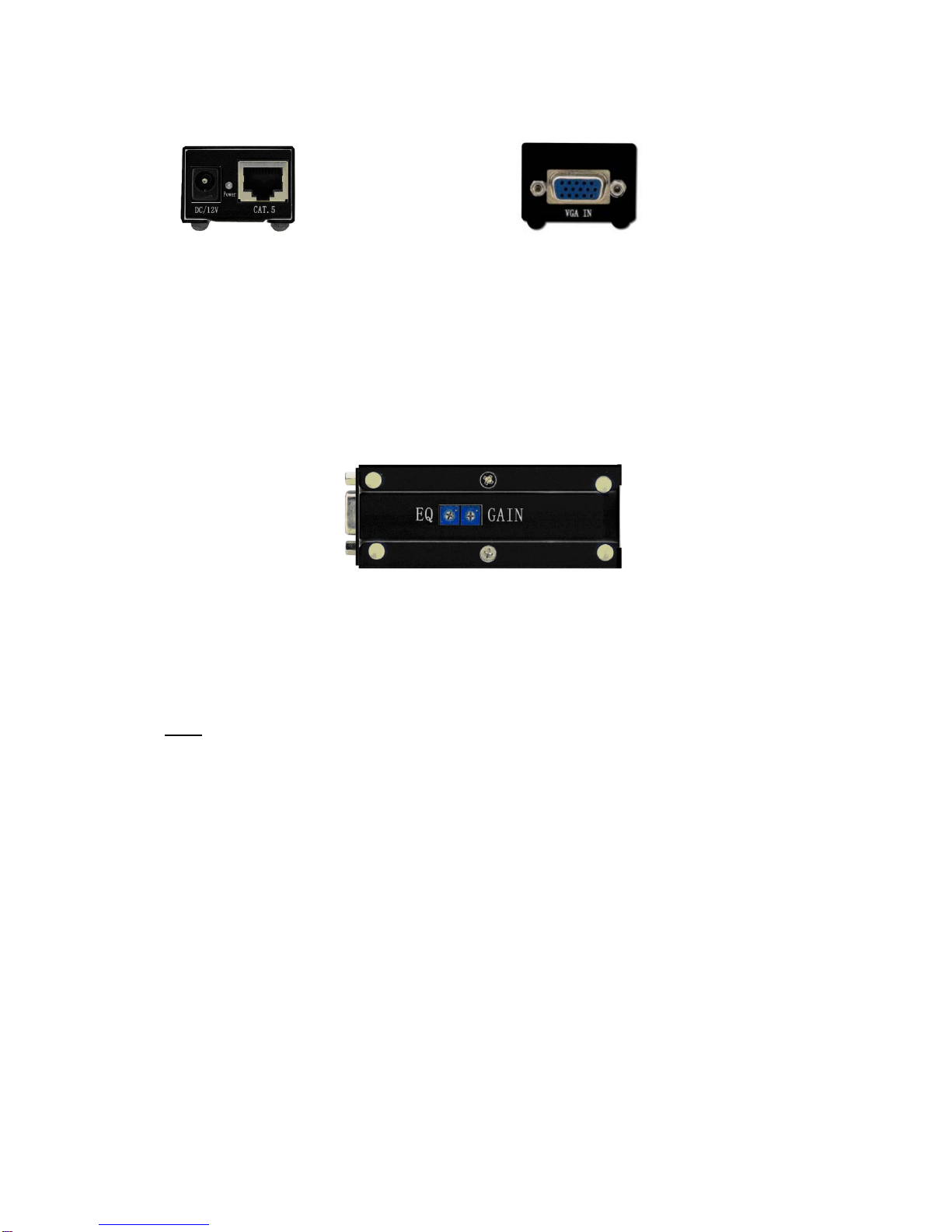

REMOTE FRONT VIEW REMOTE REAR VIEW
DC-59301/DC-59302
DC-59301/DC-59302
1.Powerjack 1.VGAOut(HD-15FemaleConnector)
2. Power LED
3. CAT.5 (RJ-45 Connector)
REMOTE BOTTOM VIEW
DC-59301/DC-59302
1. EQ – Equalization length adjust (Adjust it and weak characters be sharp)
2. GAIN – Adjust brightness
Note: The DC-59301 is part of the article DC-53101 and DC-53401!
But for the articles DC-53501, DC-53601 and DC-53701 a remote control (DC-59301 / DC-59302)
has to be bought separately.
Installation
1. Turn off the PC.
2. Connect VGA-Extender Local Unit HD-15 female input connector with HD-15 male to male
cable from PC.
3. Connect VGA-Extender Local Unit HD-15 female output connector with HD-15 male to male
cable from monitor.
4. Connect the VGA-Extender Local and Remote Unit with CAT.5 cable.
5. Connect VGA-Extender Remote Unit HD-15 female connector with HD-15 male to male cable
from monitor.
6. Connect the power cord each side.
7. Turn on the monitor and PC.
Distances and Resolutions for CAT.5/5E and CAT.6
cables
CAT 5/5e
50 m 2048 × 1536
100 m 1280 × 1024
180 m 1024 × 768
200 m 800 x 600
300 m 640 x 480
CAT 6
30 m 1920 × 1440
50 m 1280 × 1024
100 m 800 × 600
PS. We suggest to use CAT.5 cable because the performance is
better than others.
Wiring Information & Coding
Conductor Identification RJ45 Pin Assignment Color Code for Conductor
Pair 1 5 White-Blue
4 Blue
Pair 2 1 White-Orange
2 Orange
Pair 3 3 White-Green
6 Green
Pair 4 7 White-Brown
8 Brown

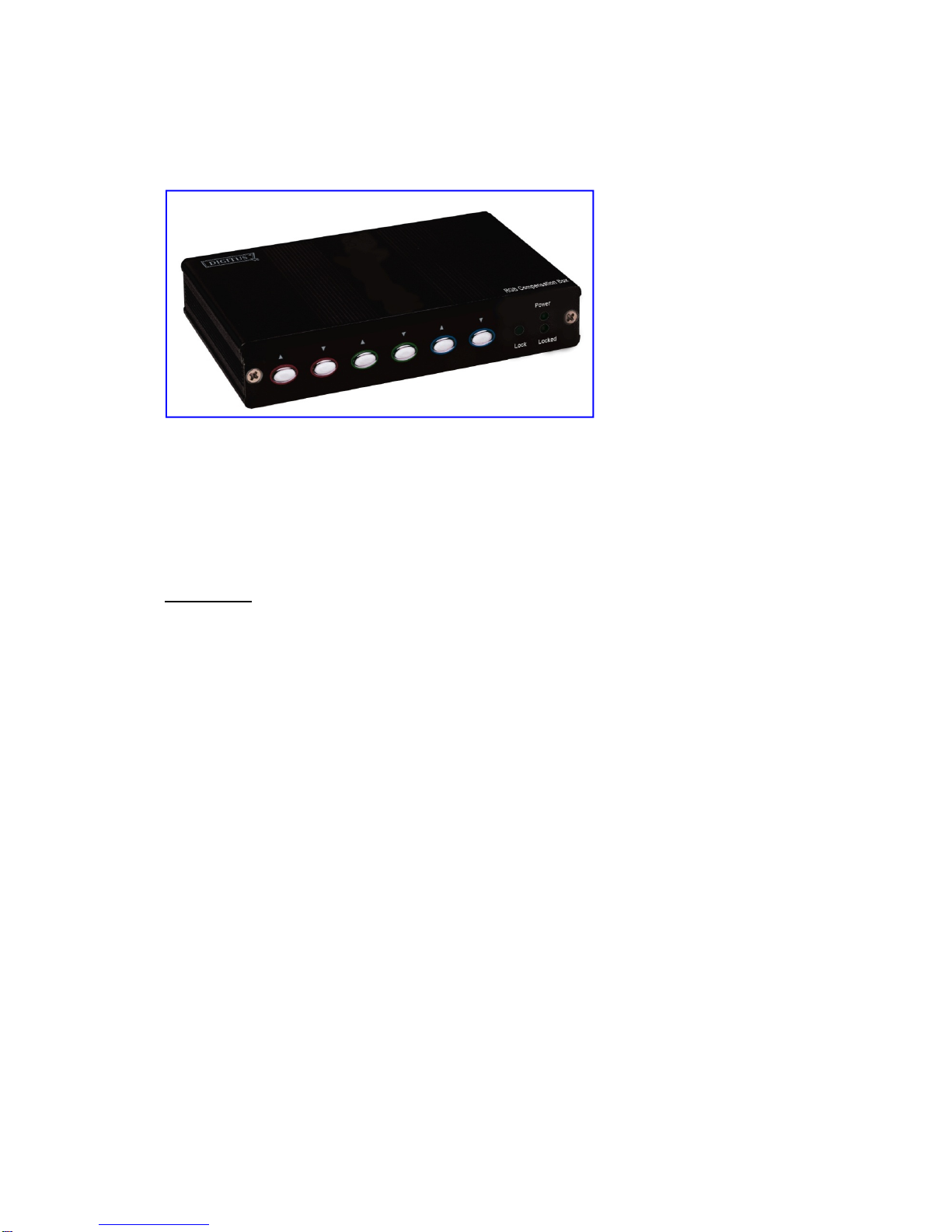

Additional Options for longer distances:
For transmitted RGB signals over Cat 5 cable with more than 150 meter the skew delay
becomessignificant and a correction is necessary. Below 150 meter the delay is negligible.
This unit DC-59100 allows a perfect skew delay correction of the video signals for a brilliant and
sharp picture.
© Assmann Electronic GmbH. All rights reserved.
Trademarks:
All the companies, brand names, and product names referred to this manual are the
trademarks or registered trademarks belonging to their respective companies.
