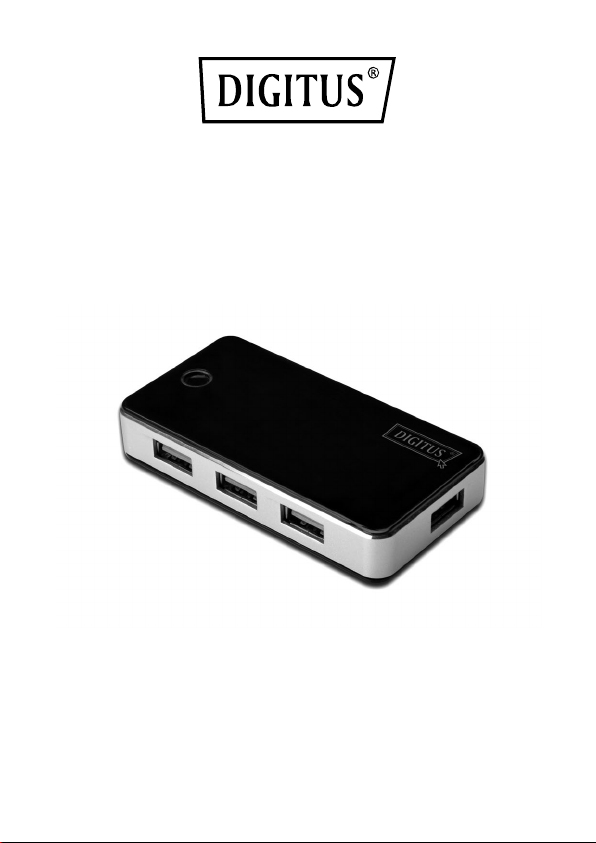

SUPER-SPEED 4-PORT

USB 3.0 HUB

User’s Manual

(Model No. DA-70231 Rev. 3)

Introduction:

Thank you for purchasing the DA-70231: USB 3.0 4-Port

Hub. This easy plug and play external device

is a full featured Universal Serial Bus Hub. It allows your

computer to connect to USB interfaces joysticks,

modems, digital speakers, printers, digital cameras,

monitors, and many other USB devices.

Features:

1. Compliant with the three USB (Universal Serial Bus)

Specifications: 3.0, 2.0 and Revision 1.1

with the Data Rates 5 Gbps, 480 Mbps, 12 Mbps and

1.5 Mbps

2. Includes 1 upstream and 4 downstream USB ports.

3. Plug and play.

4. Over-current detection and protection.

5. Connects up to 127 USB devices.

6. Supports Windows 7, Vista, XP

Specification:

Ports

Four downstream port and one upstream

port

Compliance

CE emissions and FCC regulations for

home/office use

Power

Power supply 5V DC 3.5A

Hardware Installation

1. Plug the included AC power adapter into the power

jack at the rear

of the USB 4 port hub and an electrical outlet.

2. Plug the USB 3.0 A type connector into the upstream

port

3. Plug the micro-USB into a computer or USB hub

downstream port

4. Connects USB devices or hubs to the 4 port hub’s

downstream 1 ~ 4 ports.

USB 3.0

Graphics Adapter

Power

Printer

Computer/Laptop

Digital Camera

Digital Video

PDA/Cell Phone

Scanner

MP3 Player

Flash Driver

Important Note

The Hub must be connected to a USB 3.0-compliant host in

order to function in super-speed mode

(5 Gbps data rate). If the Hub is connected to a USB 2.0 or

1.1-compliant host, it will operate only

in high-speed, full-speed or low-speed mode (480 / 12 /

1.5 Mbps).

Safety Instructions

Always read the safety instructions carefully

Keep this user’s manual for future reference

Keep this equipment away from humidity.

If any of the following situation arises, get the equipment

checked by a service technician:

• The equipment has been exposed to moisture

• The equipment has been dropped and damaged

• The equipment has obvious sign of breakage

• The equipment has not working well or you cannot

get it work according to this user’s manual.

Hereby Assmann Electronic GmbH, declares that the Declaration of Conformity is

part of the shipping content. If the Declaration of Conformity is missing, you can

request it by post under the below mentioned manufacturer address.

www.assmann.com

Assmann Electronic GmbH

Auf dem Schüffel 3

58513 Lüdenscheid

Germany
