Digitus DS-14210 Manuale utente

DIGITUS®KVM Switch Modules

■Introduction

Overview… … … … … … … … … … … … … … … … … … … … … … … … … … .… .1

Package Content… … … … … … … … … … … … … … … …… … … … … … ...… .4

Features… … … … … … … … … … … … … … … … … … … … … … … … … … … ...5

Configurations… … … … … … … … … … … … … … … … … … … … … … … … .… 7

■Installation

Cables … … … … … … … … … … … … … … … … … … … … … … … … … … … … .9

Device Connection… … … … … … … … … … … … … … … … … … … … … ..… .10

Initial Power-up… … … … … … … … … … … … … … … … … … … … … … … .… 13

■Operation

Push Buttons… … … … … … … … … … … … … … … … … … … … … … … … .… 14

OSD (On-Screen Display) Operation… … … … … … … … … … … … … … ....15

Hotkey Commands… … … … … … … … … … … … … … … … … … … … … ......21

■Cascade Configuration

Connection… … … … … … … … … … … … … … … … … … … … … … … … … ....24

Change Configuration while Running… … … … … … … … … … … … … … … 25

■Sun/Mac Keyboard Mapping

■Appendices

Specifications… … … … … … … … … … … … … … … … … … … … … … … ..… ..27

Troubleshooting… … … … … … … … … … … … … … … … … … … … … … … ....29

Please read this manual thoroughly and follow the Installation

procedures to prevent any damage to the DIGITUS® or any connecting device.

RoHS

DIGITUS®KVM Switch Module for modular based TFT consoles

Note:

When connected to the LCD Console Drawer, the console port of the KVM Switch Module is

not applicable.

DIGITUS®KVM Switch Module for modular based TFT consoles

------------------------ Introduction

Overview

The combination of DIGITUS® Console Drawer and DIGITUS® KVM Switch Module

offers the latest and the most efficient way of controlling server rooms and multiple

computers. Many DIGITUS® KVM Switch Modules are available to control from 8 to

136 servers by the DIGITUS® Console Drawer or another set of console 100ft (30m)

away; it is the ultimate tool for server management.

There are many types of DIGITUS® KVM Switch Modules with different computer

interfaces available:

lHybrid “PS/2 + USB” Modules with PS/2 keyboard, PS/2 mouse, USB

(keyboard + mouse) and monitor (HDB15), as shown in Figures below.

PS/2 and USB Connection

To computer

DIGITUS®KVM Switch Module for modular based TFT consoles

DS-11210 PS/2 and USB Connection

lSlim PS/2 Modules with special 1-to-3 connectors for PS/2 keyboard,

mouse and monitor (HDB15).

(IMM) Slim PS/2 1-to-3 Connectors and Cables

(IUM) Slim USB+PS/2, 1-to-2 / 1-to-3 Connectors and Cables

Toconsole

DIGITUS®KVM Switch Module for modular based TFT consoles

On-Screen Display (OSD) Menu

With an DIGITUS® KVM Switch Module, you can name your computers, switch to a

computer from a list, configure settings with easy-to-use menus, view the name of

the selected computer on-screen with programmable time interval. The OSD menu

displays the system status throughout operation.

High Video Quality

DIGITUS®'s LCD panel supports VGA resolution up to 1024x768 for 15”LCD panel

or 1280 x 1024 for 17”and 19”LCD panel without any degradation. The advanced

VGA circuit design guarantees smooth and flicker-free switching from one computer

to the other with VGA cable length up to 100ft (30 meters)*.

*Tested with high-quality UL2919-rated, low-loss and shielded cables.

Module Product For Computer

Interface

Hybrid DS-11210 USB + PS/2

Slim DS-13210, DS-14210 USB + PS/2

DIGITUS®KVM Switch Module for modular based TFT consoles

Package Content

KVM Switch x 1

Bracket x 2 (For 8/16-port modules only)

User’s Manual x 1

Screws x 1 pack

* Power Adapter is come with the LCD Console Drawer Packaging, NOT with this

packaging.

DIGITUS®KVM Switch Module for modular based TFT consoles

General Features

nCascade configuration expands system capability

nAuto-scan automatically selects computers sequentially

nSupports most of mice such as Microsoft IntelliMouse (Pro),

Explorer, Optical, and so on

nAssign computers with unique and meaningful names

nIdentify and select computers by the names

nProgrammable scan filters unused computers

nStore system settings and name entries to non-volatile memory

nPassword security locks computer from unauthorized access

nGain complete control with easy-to-use OSD interface

nHotkey functions allow easy computer access

nKeyboard states automatically saved and restored when switching computers

nOperating system independent, transparent to all applications

nPlug and play system configuration

nKeyboard and mouse can be hot plugged at any time

nDDC2B compatible

nSupports optional multimedia Module for microphones and stereo speakers

nCascadable to all 19”rack mountable PS/2 KVM Switches

n(Optional) The Built-In Power is available for certain modules.

nManage multiple computers from two locations

(For multi-access modules only )

DIGITUS®KVM Switch Module for modular based TFT consoles

Features for Hybrid “USB + PS/2”KVM Switch Module DS-11210

lSupports computers with either PS/2 or USB interface

lSupports Sun servers, HP servers and Mac

Features for Slim “USB + PS/2”KVM Switch Modules DS-13210,

DS-14210

lUnique loose-free, 1-to-3 / 1-to-2 cables save spaces, ideal for computers with

PS/2 or USB interfaces, such as PC, USB-Sun and USB-Mac.

DIGITUS®KVM Switch Module for modular based TFT consoles

Configurations

DIGITUS® KVM Switch Modules are available for 8, and 16 ports with various

interfaces. For the applications of requiring many computers, DIGITUS® KVM

Switch Modules can be cascaded in a master/slave configuration.

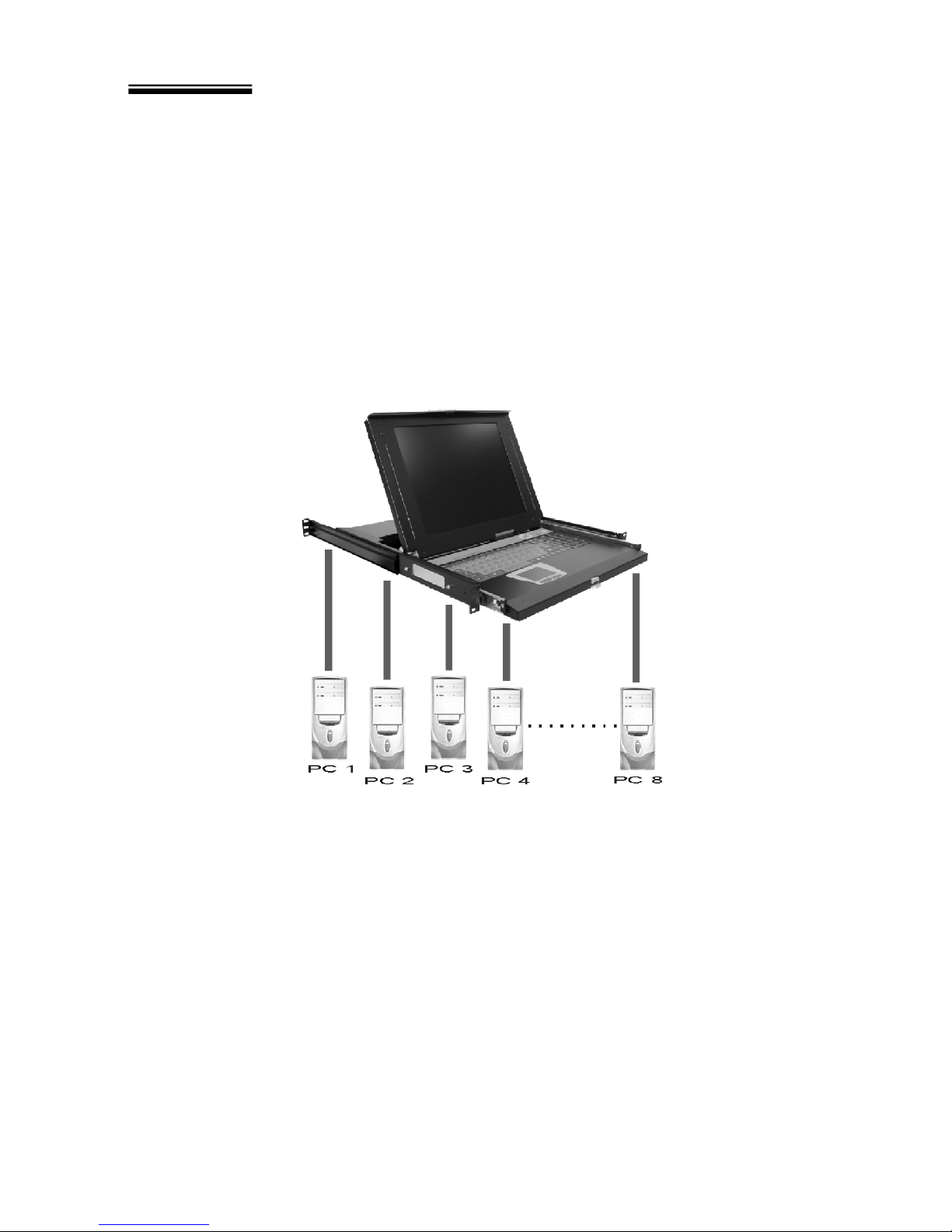

Single DIGITUS® KVM Switch Module Configuration

Combined with an DIGITUS® Console, the DIGITUS® KVM Switch Module can be

connected to multiple computers with keyboard, mouse, and monitor cables as

shown below.

A Single DIGITUS® KVM Switch Module Configuration

DIGITUS®KVM Switch Module for modular based TFT consoles

DIGITUS® KVM Switch Module in cascade (Master/Slave)

Configuration

You can connect a second level of one or more DIGITUS® KVM Switch Modules to

a Master unit. Cascade configuration expands system ability, allowing you to select

computers connected to the Master or Slaves. There is only one Master that

connects to the DIGITUS® Console directly operated by a user. Once connected,

DIGITUS® KVM Switch Modules automatically configure themselves to either

Master or Slave. Slaves of different DIGITUS® KVM Switch Modules can be mixed

in cascade configuration.

A Cascade DIGITUS® Configuration

Throughout this manual, Master is an DIGITUS® KVM Switch Module that connects

directly to the drawer. And, Slave is an DIGITUS® KVM Switch Module that has its

CONSOLE port connected to a Master's “PC x”port. Slave only exists in cascade

configuration.
