Digitus Pocket USB KVM switch Manuale utente

2-Port

Pocket USB KVM switch

Users Manual

(DS-11802-1)

Index

1. INTRODUCTION ............................................................................................................................3

1.1. FEATURES ...............................................................................................................................3

1.2. PHYSICAL DIAGRAM.................................................................................................................4

1.3. PACKAGE CONTENTS ...............................................................................................................4

2. SPECIFICATIONS..........................................................................................................................5

3. INSTALLING THE USB/DVI CABLE KVM SWITCH ....................................................................6

3.1. SYSTEM REQUIREMENTS ..........................................................................................................6

3.2. HARDWARE INSTALLATION........................................................................................................6

3.3. HOT SWAPPABLE ..................................................................................................................... 6

3.4. DRIVER INSTALLATION (WINDOWS 98/SE ONLY)........................................................................6

4. OPERATION ..................................................................................................................................9

4.1. PUSH BUTTON OPERATION.......................................................................................................9

4.1.1. PC SELECTION.................................................................................................................... 9

4.1.2. AUTO-SCAN ........................................................................................................................9

4.2. HOT KEY OPERATION.............................................................................................................10

4.2.1. PC SELECTION.................................................................................................................. 10

4.2.2. AUDIO SELECTION .............................................................................................................10

1. Introduction

Thank you for purchasing 2-port USB/DVI Cable KVM Switch with Audio!

You now have a high quality, durable system that enables you to control two

computers from one console (USB Mouse, Keyboard, and Monitor). In

addition, this device allows you to independently control and switch audio

between two computers.

1.1. Features

1. Controls 2 computers from a single console (Keyboard/Mouse) over USB

connection.

2. Support Windows (98SE and above), Mac , Linux

3. Compliant with DVI 1.1 standards,

4. Supports speaker and Microphone.

5. Emulates a keyboard on each PC to allow your computers to boot normally

without a keyboard error.

6. Supports hot-swap. All devices connected to the KVM can be added or

removed at any time, without shutting the unit down.

7. Supports USB keyboard Hot-Key Switch (for Microsoft Windows series) and

push buttons for easy operation.

8. Supports Auto-Scan function to alternate video between both computers.

9. Supports LED display for PC and audio status monitoring.

10. Supports max resolution: 1920x1080@60Hz

11. Supports Plug and Play.

12. Self powered through USB connection.

13. Supports independent audio switching.

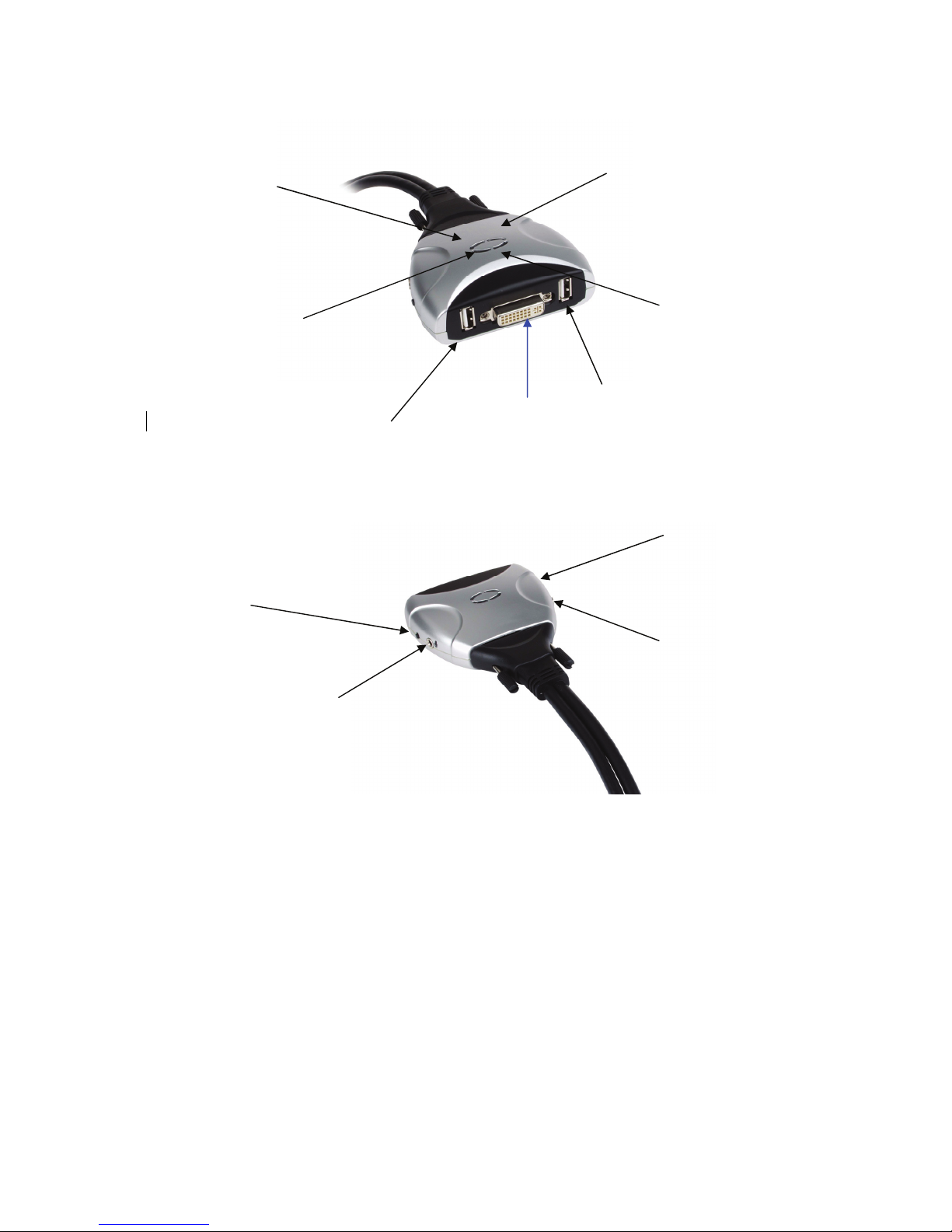

1.2. Physical Diagram

Active PC LED Indicators:

RED LED indicates that the 2-port USB/DVI Cable KVM Switch is switched to

the corresponding PC.

PC Connection LED Indicators:

GREEN LED indicates the status of PC connection..

1.3. Package Contents

1. One 2-port USB/DVI Cable KVM Switch with Audio.

2. User’s manual.

USB Keyboard

USB Mouse

DVI Output

PC 1 LED Indicators (Red)

MIC Jack

PC connection 1 LED Indicators (Green)

PC connection 2 LED Indicators (Green)

PC 2 LED Indicators (Red)

Speaker Jack

PC1 Selection Push Button

PC2 Selection Push Button

2. Specifications

Specification

Number Of Computers Controlled 2

Selection Method USB Keyboard Hot Key and Push button

USB Versions supported USB 1.1 / 2.0

LEDs

Red for PC Selection

Green for PC ON-Line Selection

Connectors

USB 2 x Type A USB Connectors

Video 2 x DVI (male)

Speaker 2 x Stereo speaker plugs

Microphone 2 x Mono microphone plugs

KVM Body 2 x Video Connector (male)

Console Ports

Keyboard / Mouse 2 x Type A USB Connectors (female)

Video 1 x DVI (female)

Speaker 1 x Stereo speaker jack

Microphone 1 x Mono microphone jack

Host 2 x Video Connector (female)

Auto-Scan Interval 10 Seconds

DDC, DDC2 monitor Yes (Max. Resolution: 1920x1080)@60Hz

Hot Swappable Yes

Operating systems supported Windows (98SE and above), Mac, Linux

Device driver No

Power By PC USB power

Cable Length 1.20 Meter

Dimensions ( L x W x H ) 65 x 85 x 25 mm

Unit Weight 450 g

3. Installing the USB/DVI Cable KVM Switch

3.1. System Requirements

1. A PC with USB port and 1 DVI port.

2. Windows 98SE or later, Mac OS 8/9/OS X, Linux Kernel 2.3 or later.

3. USB Keyboard and mouse.

4. Monitor with DVI port

3.2. Hardware Installation

1. Turn off computers.

2. Plug the USB keyboard, USB mouse, and monitor to the corresponding

connectors on KVM Switch.

3. Plug the Speaker and Microphone to the corresponding jacks on KVM

Switch.

4. Connect KVM switch cables to DVI, USB, Speaker and Microphone ports

on computers.

5. Turn on computers

Note: If the monitor can not support the maximum resolution it should

have with KVM switch, please restart the computers to work out the

problem.

3.3. Hot Swappable

The 2-port USB/DVI Cable KVM Switch supports hot-swap technology. All

the components can be added or removed at any time without shutting the

PC down.

3.4. Driver Installation (Windows 98/SE only)

After you connect the 2-port USB/DVI Cable KVM Switch to your PC, Win

98 will automatically detect the device and prompt for the driver installation.

Please install the 2-port USB/DVI Cable KVM Switch by the following

instruction from Step A-G.Please have your Windows 98 CD ready.

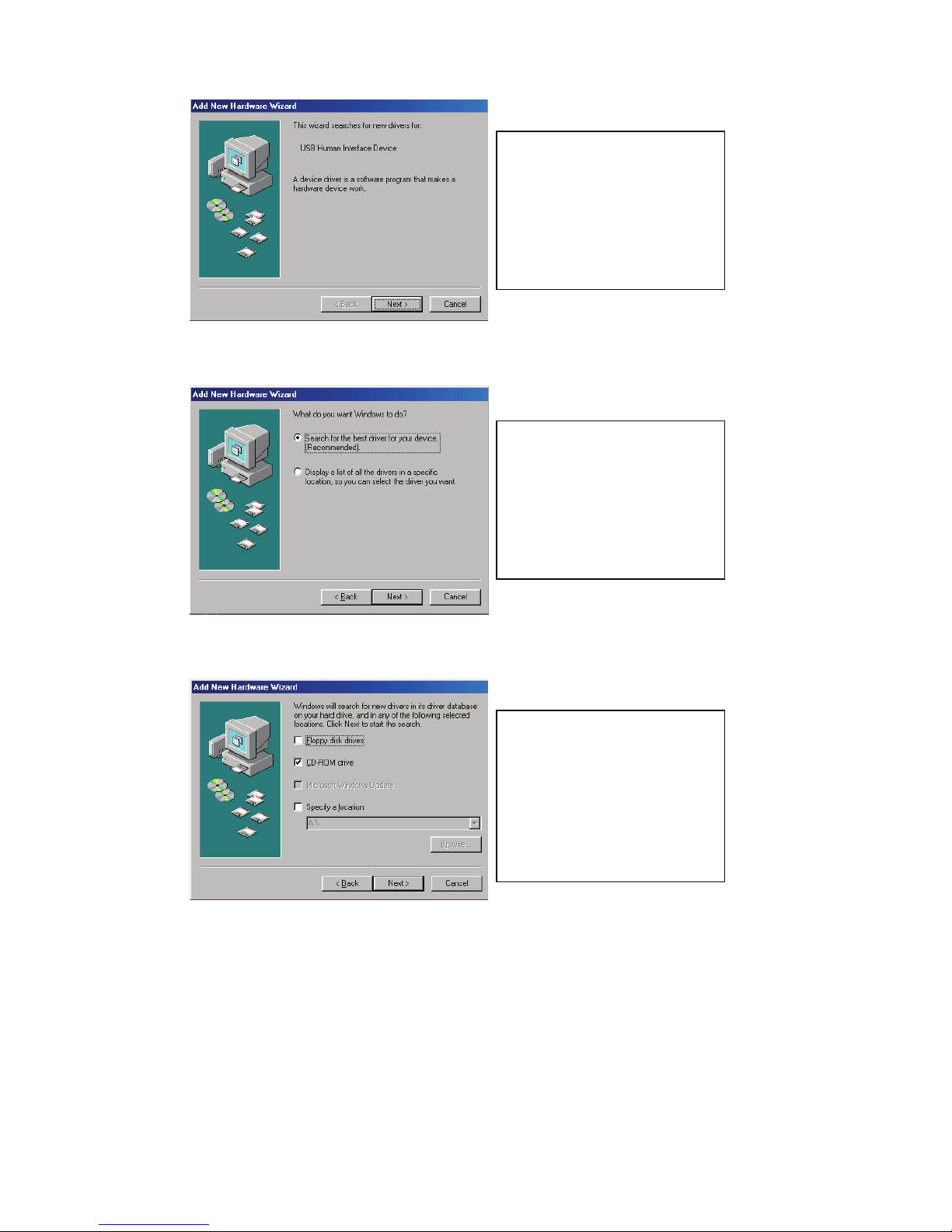

Fig.A

Fig.B

Fig.C

A. Press “Next” to Continue.

(Ref. Fig. A)

B. Select “Search for the

best driver for your device”

and press “Next” to

continue.

(Ref. Fig. B).

C. Please insert the

“Windows 98” CD into your

CD-ROM drive. Click

“CD-Rom drive” and press

“Next” to continue.

(Ref. Fig. C)

Fig.D

Fig.E

* The driver might be located in a different directory from the figure above.

Fig.F

D. Press “Next” to start the

installation process.

(Ref. Fig. D)

E. Sometimes Windows

cannot locate the necessary

driver automatically. So you

need to choose “Browse” to

specify the location of the

driver on your “Windows

98” CD manually.

(Ref. Fig. E)

F. Press “OK” to continue

(Ref. Fig. F)

Fig.G

4. Operation

The 2-port USB/DVI Cable KVM Switch can switch the keyboard, video, mouse

by pushing button and Hot Key.

The switching of Audio inputs (speaker & microphone) is independent and be

controlled by Hot Key only. The Audio inputs is not be switched with PC

selection.

4.1. Push Button Operation

4.1.1. PC Selection

User can switch Computers (Keyboard, Mouse and Video inputs) by

pressing push button directly.

4.1.2. Auto-Scan

Start Auto-Scan

Press and hold push button for longer than 3 seconds will turn the

system into auto-scan mode. The auto-scan time interval is fixed to 10

seconds.

Stop Auto-Scan

Under auto-scan mode, press any push button will stop auto-scan.

G. Press “Finish” and

Windows has finished

installing the USB Human

Interface Device driver for

PS/2 keyboard & mouse.

(Ref. Fig. G)

4.2. Hot Key Operation

When using the Hot Key sequences, the keys must be pressed within 6 seconds,

otherwise the Hot Key action will terminate.

The Hot Key Operation is only supported under Microsoft Windows series

system.

4.2.1. PC Selection

[ScrollLock] + [ScrollLock] →change the active PC port.

4.2.2. Audio Selection

[NumLock] + [NumLock] →change the active audio port.

Hot Key Action

[ScrollLock] + [ScrollLock] Switch active PC connection to the next PC

[NumLock] + [NumLock] Switch active Audio connection to the next PC
