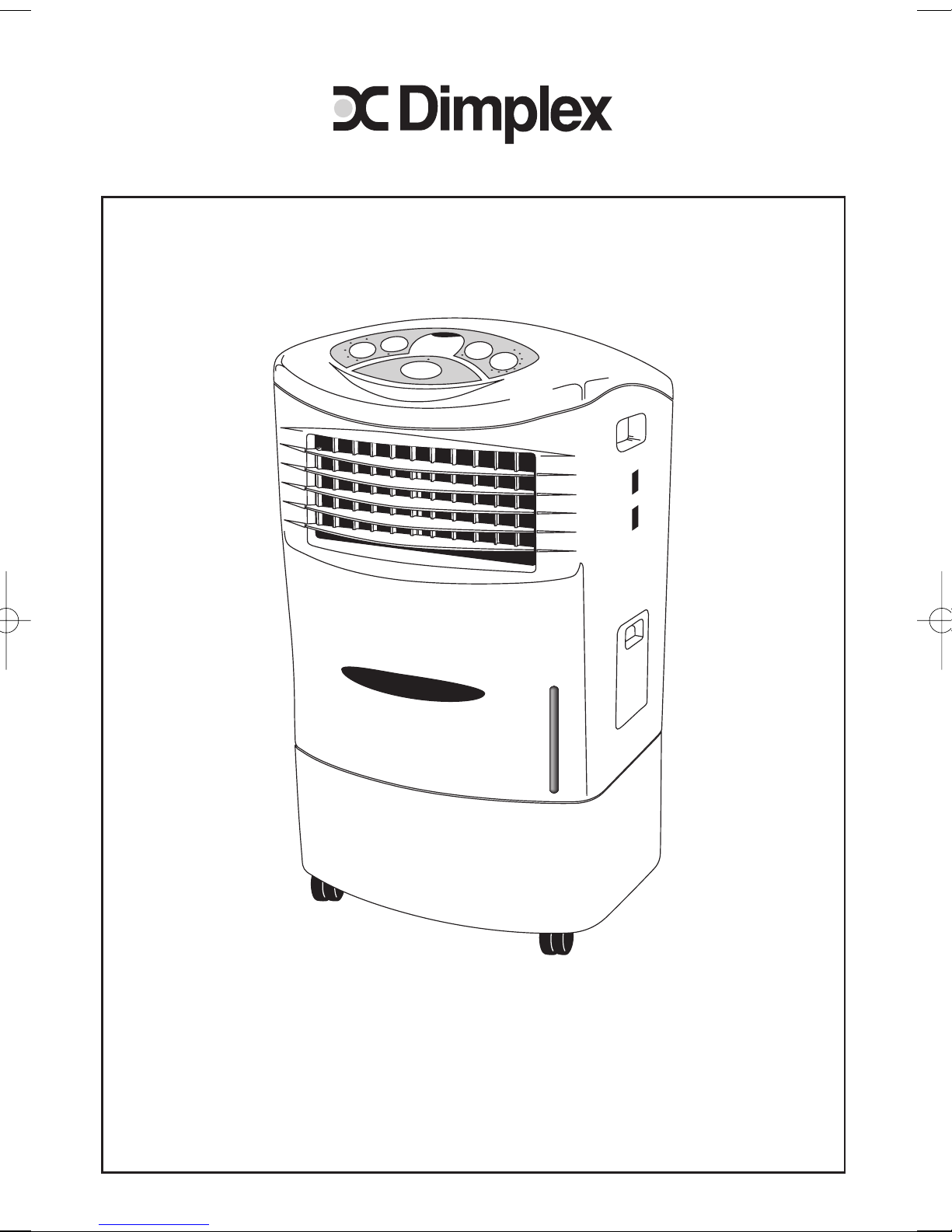

Mobile Evaporative Cooler EVA-20
Please read this instruction manual before 0perating and keep safe for future reference.
Dimplex EVA -20.qxd 7/5/05 3:48 PM Page 1
Dimplex EVA -20.qxd 7/5/05 3:48 PM Page 2
1
CONTENTS
Page
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Important Product Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Parts Description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Control Panel. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Operating Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
For Room Cooling. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Extra Humidification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Louvers Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Timer Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
INTRODUCTION
Thank you for choosing a Dimplex evaporative cooler.This manual contains information,
regulations and warnings which are of fundamental importance if the appliance is to be
installed correctly and the highest performance, in the safest possible conditions is to be
obtained.We suggest that you read the manual carefully before installing or starting up
the appliance.
These new Dimplex appliances represent the most highly developed evaporative coolers
available today.
Dimplex EVA -20.qxd 7/5/05 3:48 PM Page 1
2
SAFTEY INSTRUCTIONS
1. Read all Instructions.
2. Disconnect the power plug before dismantling, assembling or before cleaning.
3. Avoid touching mobile parts of the fan.
4. Be sure fan is on dry and even surface.
5. Never insert fingers, pencils or any other objects though the guards whenever the
power plug is connected, especially while running.
6. The appliance is not intended for use by young children or infirm persons without
supervision.
7. Young children or infirm persons should be supervised to ensure that they do not
play with the appliance.
8. Do not use the appliance for any other purpose than its intended use.
9. When the power cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid a hazard.
10. Do not use your appliance with an extension cord unless it has been checked and
tested by a qualified electrician or electrical supplier.
11. Return to Hagemeyer or authorised service agent.
IMPORTANT PRODUCT INFORMATION
Congratulations on your purchase of this versatile product, which combines a room
cooler, humidifier and air cleaner. To get the best cooling effect from your product
please read these instructions carefully.
For the best performance of your Evaporative Cooler it should be filled with water, and
ice if available, and positioned in a location that will create a 'flow through' air effect.The
greatest cooling effect will be felt if the unit is operated in a partly opened doorway or
window with the cooled air directed into the room. It is also important to have a door
or window partly opened away from the air cooler, in order to create the 'flow through'
effect. If this arrangement cannot be met the Evaporative Cooling System will be less
efficient.
Dimplex EVA -20.qxd 7/5/05 3:48 PM Page 2
3
PARTS DESCRIPTION
1 Top cover 7 Castors 12. Remote control
2 Handle 8 Top cover 13 Remote control holder
3 Horizontal louvers 9 Air vent 14 Right side
4 Left Side 10 Front cover 15 Water pouring cover
5 Dimplex logo 11 Water level gauge 16 Drainage
6 Power cord hole
CONTROL PANEL
OPERATING INSTRUCTIONS
•Choose a suitable location for your Evaporative Cooler; please refer to the
Important Product Information for details.
•Your product may be operated by the manual controls located on the unit or by
the remote control.
Dimplex EVA -20.qxd 7/5/05 3:48 PM Page 3
4
FOR ROOM COOLING
•Turn the product OFF at the MAINS SWITCH and remove the plug from the mains
socket.
•Open the top cover and pour clean water into tank.Additionally, if required, add
some ice cubes.Then connect to the power supply and turn on the MAINS
SWITCH.
•Press the POWER button and the fan will start at medium speed, after a few
seconds, it will switch to LOW speed.
•To turn the product OFF press the POWER button again. If you do not intend to
use the product for some time empty the water tank.
•Press the SPEED button to increase or decrease the speed.
•Press the MODE button to select the COOL MODE, indicated by the LED. The full
effect of this mode will begin after about 3 minutes.
•Press the Sleep Function with indicator on, it will run with a cycle 5 seconds high, 5
seconds medium and 5 seconds low and stop for 4 seconds and it will repeat the
same cycle again.
•Once all the water in the tank has been used turn the product OFF and refill the
water tank.
•To empty the water tank turn your product off at the POWER button and MAINS
SWITCH. Carefully pull the tank from the main body and dispose of the water.
Refit the tank correctly or your evaporative cooler will not work correctly.
EXTRA HUMIDIFICATION
•Humidifier located under the top cover.
•Turn the humidifier anti-clockwise for additional humidification to low and high
humidification.Turn clockwise to switch off this function.
Dimplex EVA -20.qxd 7/5/05 3:48 PM Page 4
5
LOUVERS OPERATION
•Press the SWING button to start the louvers moving from side to side. This
will improve the distribution of the cooled air within the room. To stop the
louvers press the SWING button again.
•You can change the air direction (up or down) by manually adjusting the
horizontal louvers.
TIMER OPERATION
•The Timer can be used to switch the product off after a selected number of hours.
•Select the desired operating mode.
•Press the TIMER button once and the product will switch off after 1 hour. Press the
button again for 2 hours, again for 3 hours etc. The maximum timer setting is 8
hours.
•To cancel the Timer setting press the TIMER button again until all the timer
indicators are not lit.
MAINTENANCE
•Before you clean the appliance, switch the product off, remove the plug from the
power socket and wait until the product has cooled down.
•Use a damp cloth to clean the product housing.
•Do not use water, detergents, abrasive cleaning liquids, or chemical agents (Alcohol,
Gasoline etc…), to clean the appliance.
•Store in the original packaging in a dry, dust free area during the off-season.
SPECIFICATIONS
Model No. EVA-20
Voltage 230/240
Frequency 50Hz
Wattage 200W Cooling Mode
Net Weight 12.3KG
