DAG1000-4S-V321

Quick Installation Manual

Packing List

1 X DAG1000-4S-V321 VoIP Adapter

1 X Power Adapter

1 X Telephone Line

1 X Ethernet Cable

1 X Quick Installation Guide

Product Appearance

Front

The gateway provides different LEDs:

PWR : power status

RUN : running Status

3-0 : indicate the status of FXS ports

LAN : LAN port connection status

WAN : WAN port connection status

Back

Back View and Interfaces:

DC12V :DC Jack

WAN: to connect to the IP network over DSL Modem

or Router or LANSwitch.

LAN:to connect to local network over LANSwitch or PC

0-3: FXS ports to connect to standard telephone set or

FAX Machine or a PBX.

RST: factory reset button, press 7S to restore factory

settings.

Hardware Connection

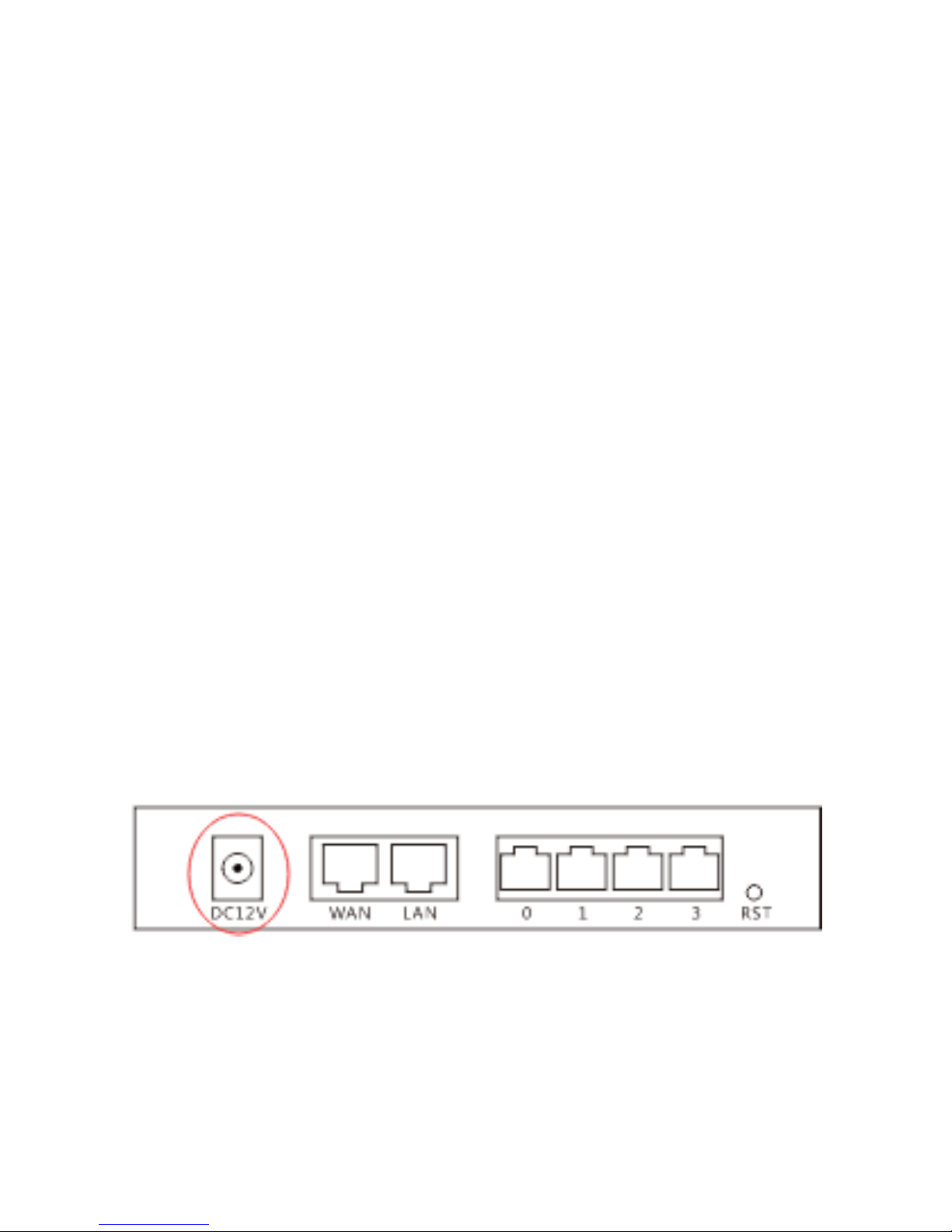

1. Connect 12VDC power adapter to the “DC 12V”jack.

2. Connect RJ-45 Ethernet cable to the WAN port and

the other end to a Router or LANSwitch.

* Router or Bridge work mode configurable on the web page

3. The device is start normally while the RUN LED

blinking slowly

Basic Operation

The gateway supports basic operation through

standard analog phone set. With an analog phone set,

the users could dial the feature codes to maintain

their gateway. The features codes lists as table 1-1:

Table 1-1: feature codes

Service Code

operation notice

*158#

Check LAN port IP address

*159#

Check WAN port IP address

*114#

Check port account

*115#

Check port group account

*160*1#

Enable Web access through WAN

port

*165*000000#

Restore to factory default values of

Web login Username/Password

and WAN/LAN port IP addresses

*166*000000#

Restore to default factory settings

*111#

Restart device

Gateway Configuration

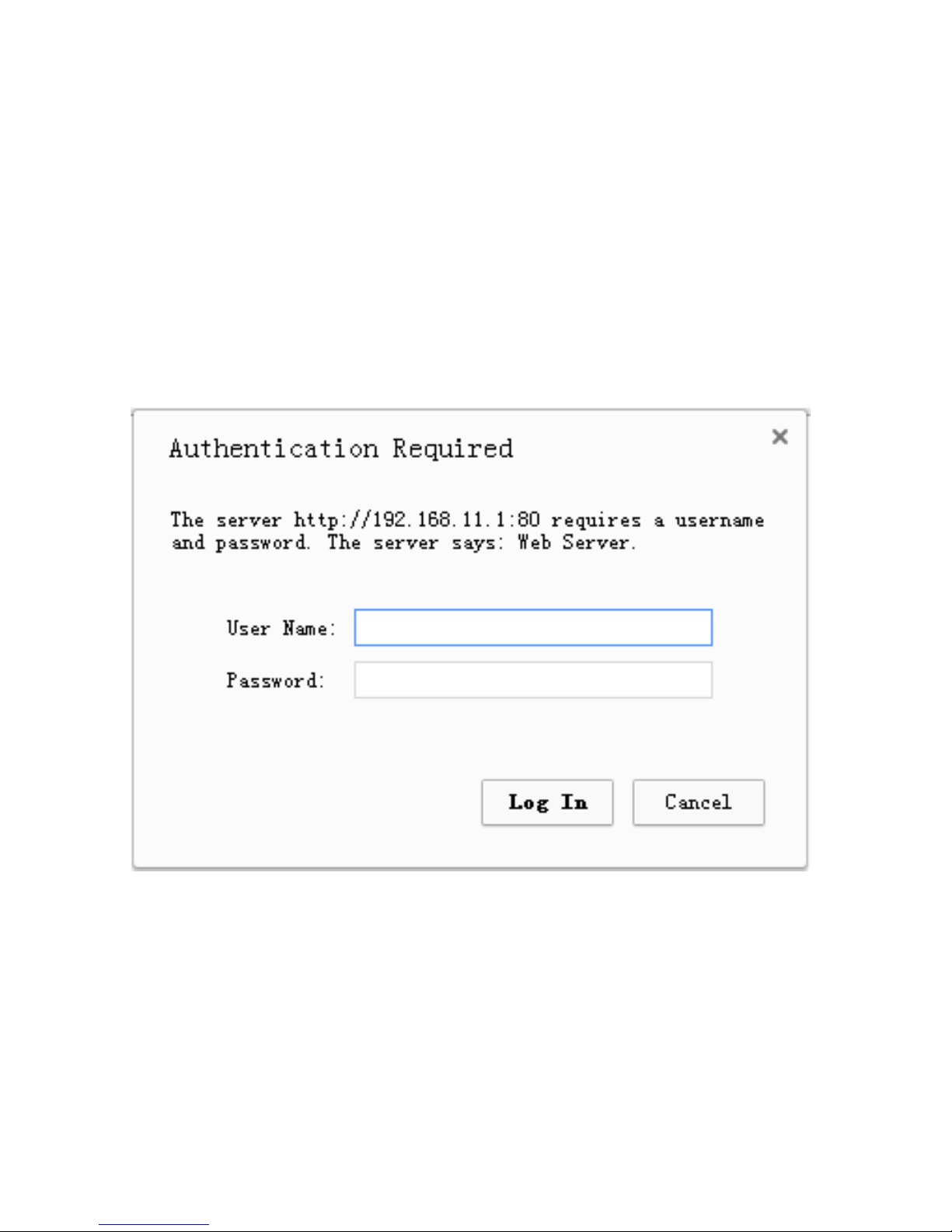

1. Login the gateway

Open the browser on the computer and enter the

default IP address of the LAN port: 192.168.11.1.

Input default Username and Password:

“admin/admin”

2. Network Settings

Click on "Network - > Local Network”, input the WAN

port IP address and DNS server address, click “Save”

button to finish the configuration.

3. Configure SIP server

Click on "SIP Server”, input SIP server IP address or

domain name, SIP port and register interval in Primary

SIP server field, then click “Save”button to finish the

configuration.

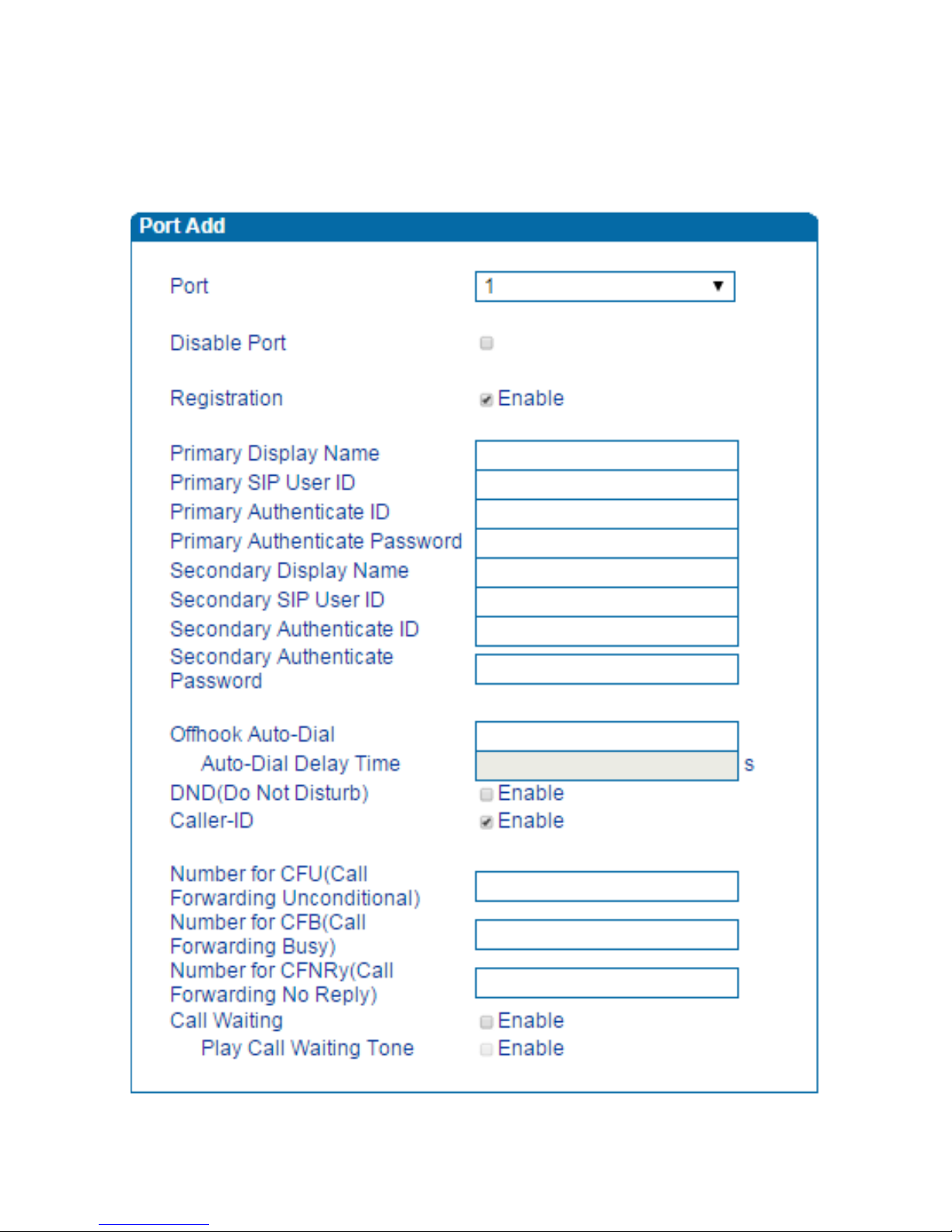

4. Port Account configuration

Click on "Port -> Add", input SIP account details such

as Primary Display Name,Primary SIP User ID,Primary

Authenticate ID and Primary Authenticate Password
