Dinstar DAG3000-32S Manuale utente

Quick Installation Guide

DAG2000-16S

DAG2000-24S/32S

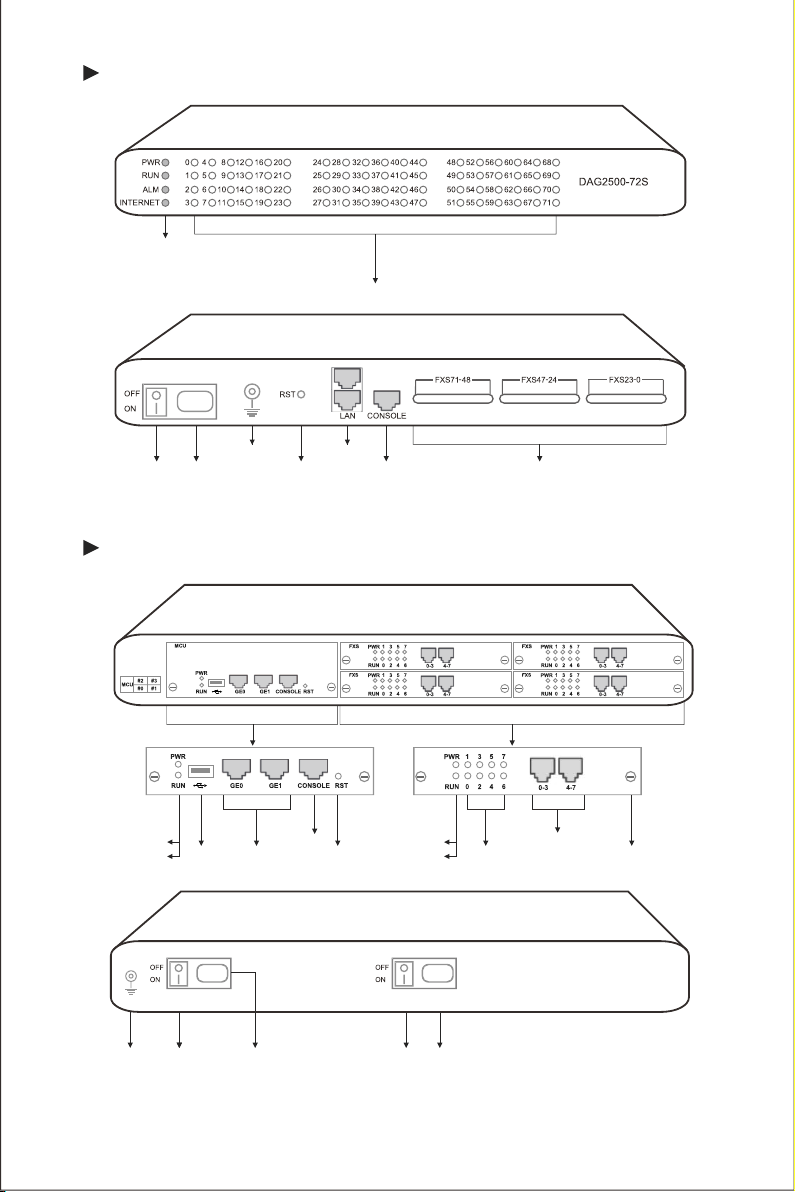

DAG2500-48S/64S/72S

DAG3000-32S

Thanks for Choosing Dinstar’s VoIP Gateway!

Please read this guide carefully before installing the gateway. If you need any technical

support, .please contact us

Tel: +86 755 61919966

Email: support@dinstar.com

Website: www.dinstar.com

DAG3000-128S

v2.0 2021

Please check the model of your gateway before installation,and then refer to corresponding

installation instructions.

Product Model & Number of Ports

Description of Indicators

Indicator Deﬁnition Status Description

Power Indicator

Running Indicator

Telephone In-use

Indicator

Off

The gateway is powered on

The gateway has no power input

or power supply is abnormal

Off

Slow Flashing

Flashing

Link (Green)

Speed

PWR

RUN

FXS

WAN/LAN

The gateway is running properly

SIP account is registered successfully

The gateway is running improperly

FXS port is currently occupied by a call

FXS port is idle or faulty

The gateway is properly connected to network

The gateway is not connected to network

or network connection is improper

Work at 100Mbps

Work at 10Mbps

Fast Flashing

Model

Port Type

DAG2000-16S

LAN RJ11 RJ21

0 0

416

DAG2000-24S

DAG2000-32S

DAG2500-48S

DAG2500-64S

DAG2500-72S

RJ45

20 0

DAG3000-32S

Dinstar’s VoIP gateways have three types of FXS ports, namely RJ11,RJ21 and RJ45. For the

number of ports of each model,please refer to the table above.

DAG3000-128S 200

GE0/GE1

Speed On

Off

Work at 1000Mbps

Work at 100Mbps

Link (Green)

Off

Flashing The gateway is properly connected to network

The gateway is not connected to network

or network connection is improper

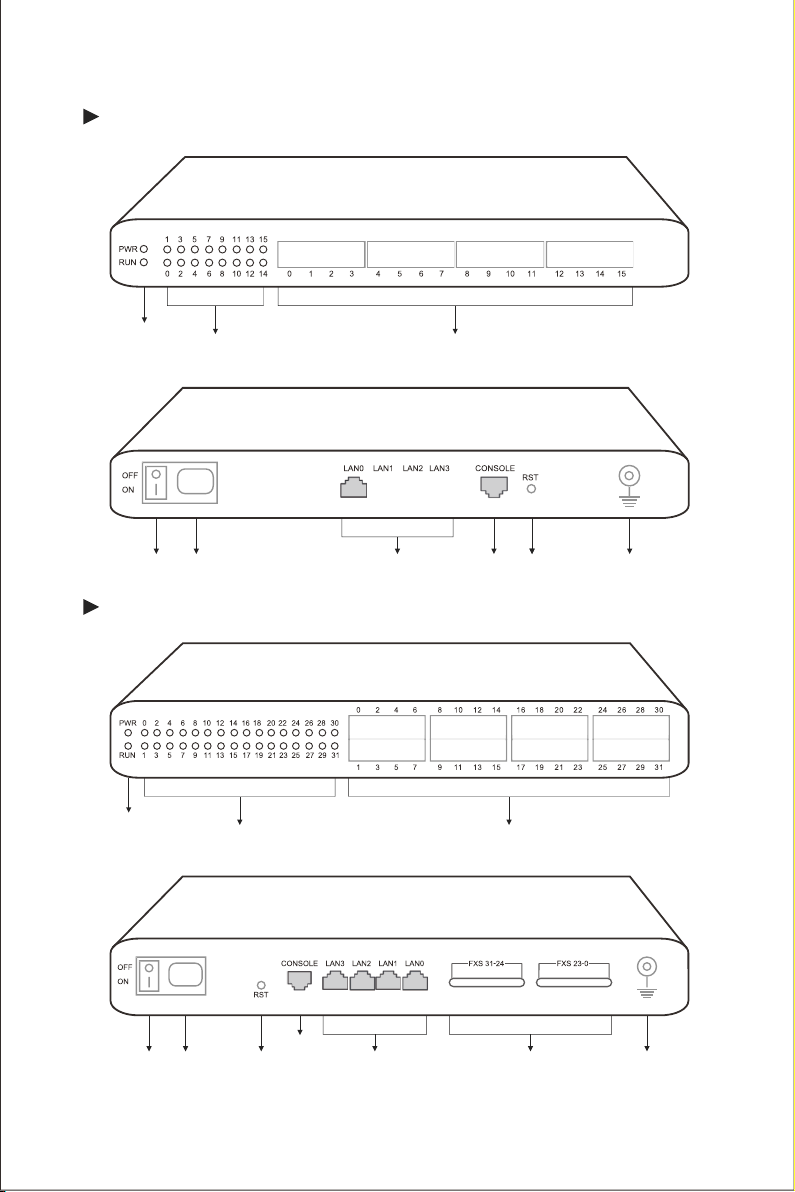

Indicators & Interfaces

DAG2000-16S

DAG2000-24S/32S

Power Indicator

Power Switch

Power Jack LAN Ports

LAN Ports

Console Port

Reset Button

Ground Point

Running Indicator

Power Indicator

Running Indicator

Telephone In-use Indicator FXS Ports 0-15

FXS Ports 0-31 (RJ11)

FXS Ports (RJ21)

Note: The position of each indicator and interface of DAG2000-24S is the same as on the

DAG2000-32S.

Reset Button

Telephone In-use Indicator

Power Jack

Console Port

100-240VAC

50/60H z

100-240VAC

50/60H z

DAG2500-48S/64S/72S

DAG3000-32S

Power Indicator

Running Indicator

Alarm Indicator

Network Link Indicator Telephone In-use Indicator

Power Switch Power Jack Console Port

Reset Button FXS Ports(RJ21)

Note: The position of each indicator and interface of DAG2500-48S and DAG2500-64S is the

same as on DAG2000-72S.

Ground Point LAN Ports

POWER A POWER B

Main Control Board

User Board

Power Indicator

Running Indicator

Console Port

Reset Button

USB Telephone In-use Indicators

FXS Ports

Power Indicator

Running Indicator Screw

Power Switch

Ground Point Power Jack Power Switch Power Jack

LAN Ports

100-240VAC 50/60Hz

100-240VAC

50/60Hz

100-240VAC

50/60Hz

POWER APOWER A

POWER POWER A POWER B

GE0 GE1 CONSOLE RST

RUN

PWR

MCU

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

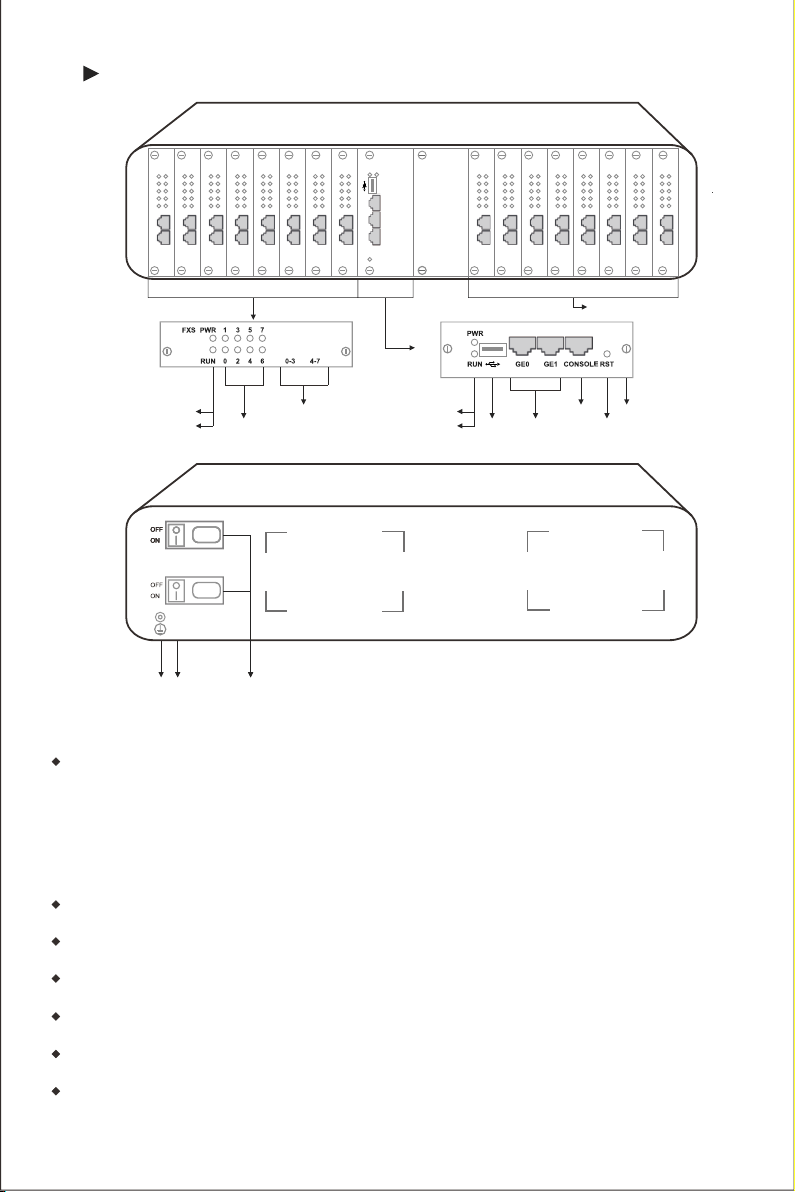

DAG3000-128S

Main Control Board

User Board User Board

Power Indicator

Running Indicator Telephone In-use Indicators

FXS Ports Screw

Console Port

Reset Button

USB

Power Indicator

Running Indicator

Power Switch

Ground Point Power Jack

Installation Attentions

Please check the FXS type of your gateway before installation:

DAG2000-16S is equipped with RJ11 ports;

DAG2000-24S/32S is equipped with both RJ11 and RJ21 ports;

DAG2500-48S/64S/72S is equipped with RJ21 ports;

DAG3000-32S is equipped with RJ45 ports;

DAG3000-128S is equipped with RJ45 ports.

For the wire sequence of RJ21 and RJ45,please refer to Section 6 Wire Sequence of this manual.

Anti-jamming: to reduce the interference with telephone calls, it’s highly recommended that telephone

lines connected to the gateway should be placed away from power cables;

Power supply: the gateway accepts AC input voltage of 100-240V. Please ensure safe and stable power

supply;

Network bandwidth:please ensure there is enough network bandwidth so as to guarantee stabilized

running of the gateway；

Ventilation: to avoid overheating, please do not pile up the gateway with other devices and make sure the

gateway has good ventilation around.

Temperature and humidity: to avoid any accident that might cause malfunction , it’s advised to install the

gateway in an equipment room where temperature and humidity are appropriate ；

Mechanical load: please make sure the gateway is placed steadily to avoid damage. It’ s highly advised to

LAN Ports

100-240VAC

50/60Hz

100-240VAC

50/60Hz

Installation Instructions

Connection Diagram for DAG2000-16S

Connect gateway with network via a switch

Network Cable

Switch

RJ11 telephone line

Telephone

Connect FXS ports with analog phones

Connect gateway with power input and ground point

100-240V AC

Grounding Cable

Ground Point

Network Cable

100-240VAC

50/60Hz

Connection Diagram forDAG2000-24S/32S

Connect gateway with network via a switch

Type 2: Connect FXS ports with analog phones

Type 1: Connect FXS ports with analog phones

Connect gateway with power input and ground point

Network Cable

Switch

Telephpne

RJ21 Cable

100-240V AC

Grounding Cable

Ground Point

Telephone

RJ11 Cable(Telephone Line)

100-240VAC

50/60H z

100-240VAC

50/60H z

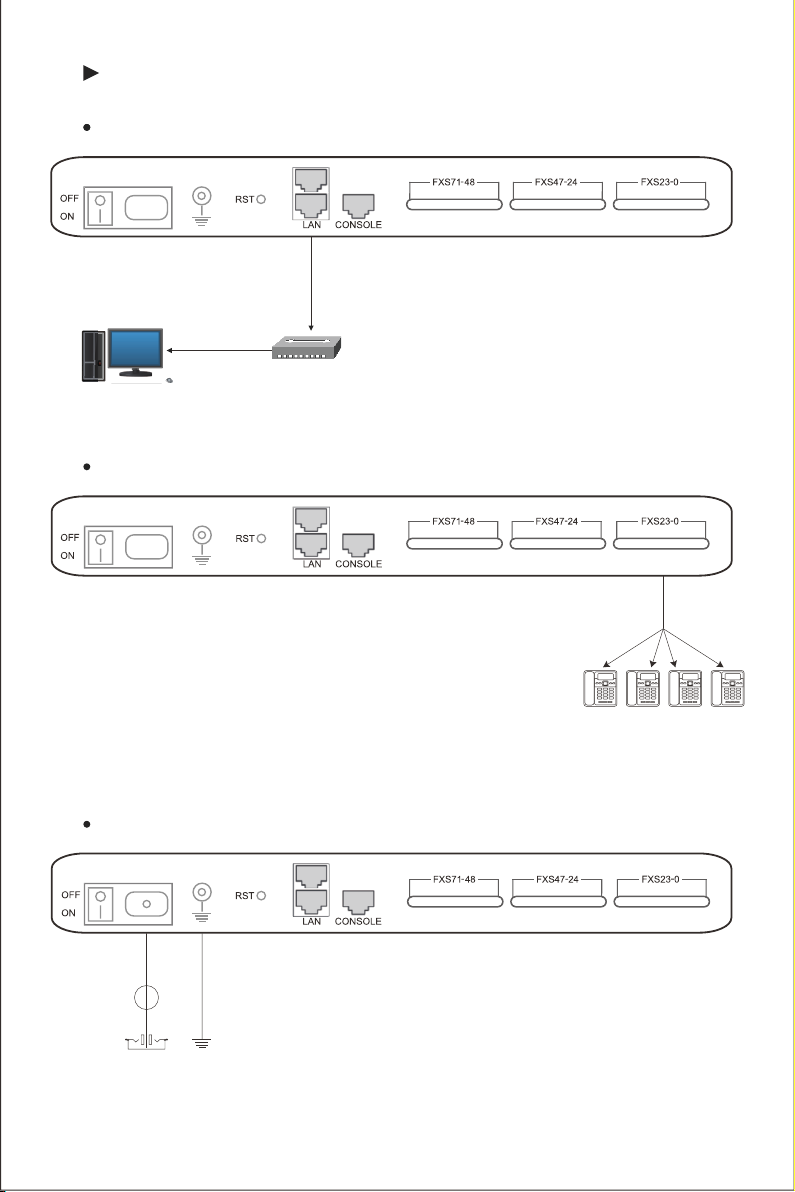

Connection Diagram for DAG2500-48S/64S/72S

Connect gateway with network via a switch

Network Cable

Switch

Connect FXS ports with analog phones

Telephone

RJ21 Cable

Connect gateway with power input and ground point

100-240V AC

Grounding Cable

Gound Point

100-240VAC 50/60Hz

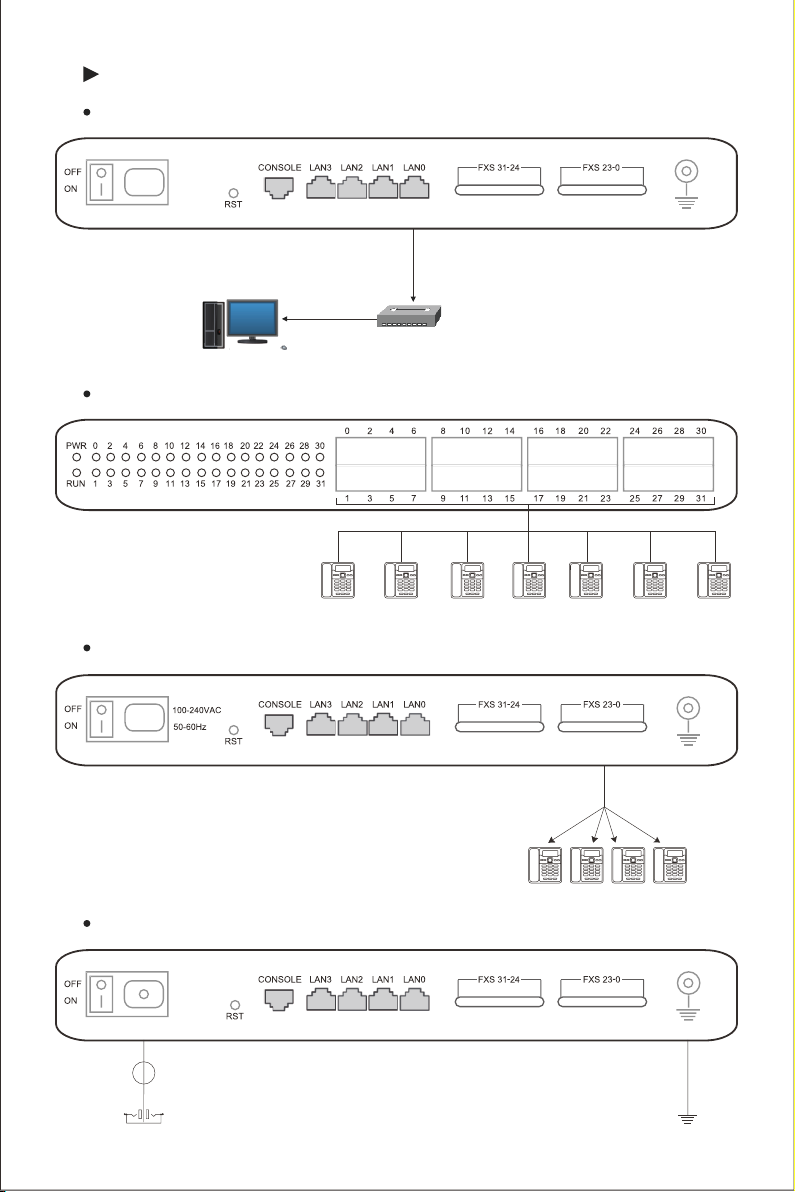

Connection Diagram for DAG3000-32S

Connect gateway with network via a switch

Network Cable

Switch

Connect FXS ports with analog phones

Telephone

RJ45 Cable

Connect gateway with power input and ground point

100-240V AC

Grounding Cable

Gound Point

POWER A POWER B

100-240V AC

100-240VAC

50/60Hz

100-240VAC

50/60Hz

POWER APOWER A

POWER POWER A POWER B

GE0 GE1 CONSOLE RST

RUN

PWR

MCU

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

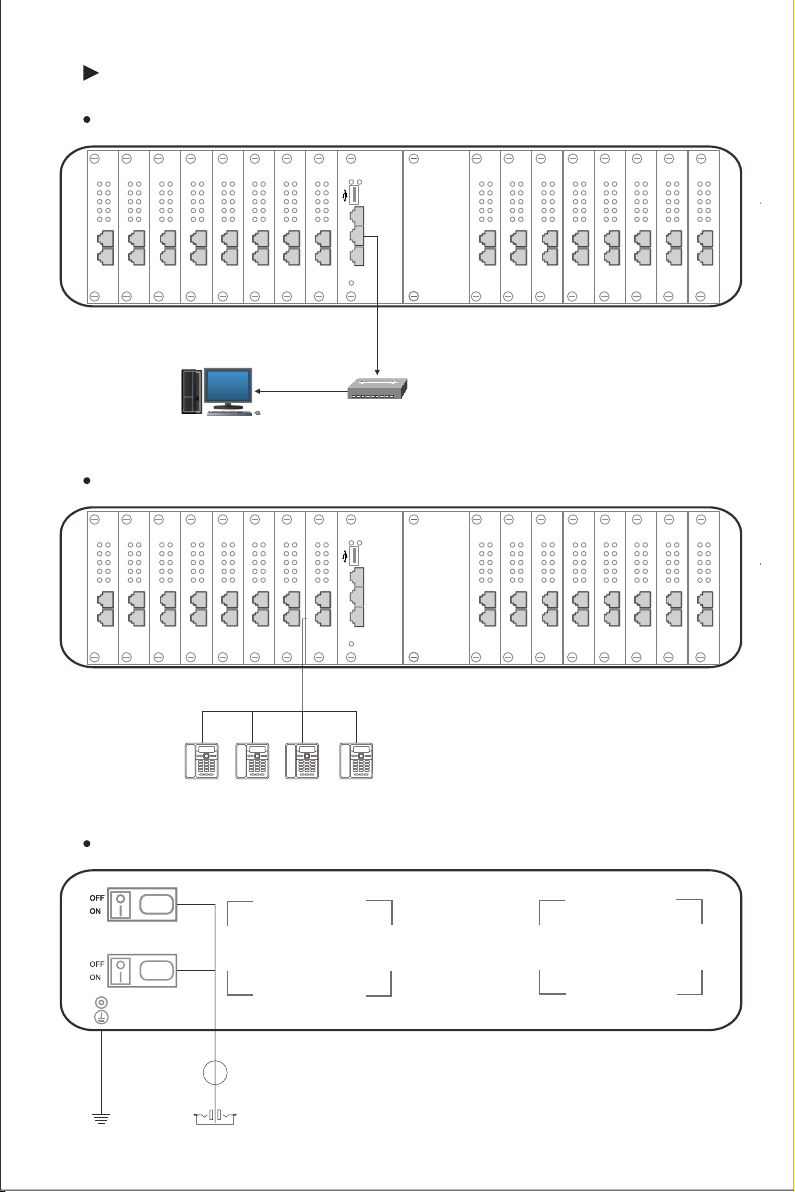

Connection Diagram for DAG3000-128S

Connect gateway with network via a switch

Network Cable

Switch

Connect FXS ports with analog phones

Telephone

RJ45 Cable

Power Connection & Grounding

Network Cable

GE0 GE1 CONSOLE RST

RUN

PWR

MCU

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

RUN

PWR

FXS

0-3 4-7

100-240V AC

Grounding Cable

Gound Point

100-240VAC

50/60Hz

100-240VAC

50/60Hz
