Directed Electronics 425 Series Manuale utente

G425A

Model 425

Owner’s Guide

Downloaded from: http://www.guardianalarms.net

Limited Lifetime

Consumer Warranty

Directed Electronics, Inc. ("DEI®") promises to the original purchaser to repair or re-

place with a comparable reconditioned model any DEI unit (hereafter the "unit"), excluding

without limitation the siren, the remote transmitters, the associated sensors and ac-

cessories, which proves to be defective in workmanship or material under reasonable

use during the lifetime of the vehicle provided the following conditions are met: the

unit was professionally installed and serviced by an authorized DEI dealer; the unit will

be professionally reinstalled in the vehicle in which it was originally installed by an

authorized DEI dealer; and the unit is returned to DEI, shipping prepaid with a legi-

ble copy of the bill of sale or other dated proof of purchase bearing the following

information: consumer's name, telephone number and address; the authorized dealers

name, telephone number and address; complete product description, including acces-

sories; the year, make and model of the vehicle; vehicle license number and vehicle

identification number. All components other than the unit, including without limita-

tion the siren, the remote transmitters and the associated sensors and accessories, carry

a one-year warranty from the date of purchase of the same. This warranty is non-trans-

ferable and is automatically void if: the original purchaser has not completed the warranty

card and mailed it within ten (10) days of the date of purchase to the address listed

on the card; the unit's date code or serial number is defaced, missing or altered; the

unit has been modified or used in a manner contrary to its intended purpose; the unit

has been damaged by accident, unreasonable use, neglect, improper service, installa-

tion or other causes not arising out of defects in materials or construction. The

warranty does not cover damage to the unit caused by installation or removal of the

unit. DEI, in its sole discretion, will determine what constitutes excessive damage and

may refuse the return of any unit with excessive damage. TO THE MAXIMUM EXTENT

ALLOWED BY LAW, ALL WARRANTIES, INCLUDING BUT NOT LIMITED TO EXPRESS WAR-

RANTY, IMPLIED WARRANTY, WARRANTY OF MERCHANTABILITY, FITNESS FOR

PARTICULAR PURPOSE AND WARRANTY OF NON-INFRINGEMENT OF INTELLECTUAL

PROPERTY, ARE EXPRESSLY EXCLUDED; AND DEI NEITHER ASSUMES NOR AUTHORIZES

ANY PERSON OR ENTITY TO ASSUME FOR IT ANY DUTY, OBLIGATION OR LIABILITY

IN CONNECTION WITH ITS PRODUCTS. DEI DISCLAIMS AND HAS ABSOLUTELY NO LI-

ABILITY FOR ANY AND ALL ACTS OF THIRD PARTIES INCLUDING ITS AUTHORIZED

DEALERS OR INSTALLERS. DEI SECURITY SYSTEMS, INCLUDING THIS UNIT, ARE DE-

TERRENTS AGAINST POSSIBLE THEFT. DEI IS NOT OFFERING A GUARANTEE OR

INSURANCE AGAINST VANDALISM, DAMAGE OR THEFT OF THE AUTOMOBILE, ITS PARTS

OR CONTENTS; AND HEREBY EXPRESSLY DISCLAIMS ANY LIABILITY WHATSOEVER,

INCLUDING WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR VANDALISM.

THIS WARRANTY DOES NOT COVER LABOR COSTS FOR MAINTENANCE, REMOVAL OR

REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF ANY KIND. IN

THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DEI OR ITS SUBSIDIARY, THE PROPER

VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA. CALIFORNIA

STATE LAWS AND APPLICABLE FEDERAL LAWS SHALL APPLY AND GOVERN THE DIS-

PUTE. THE MAXIMUM RECOVERY UNDER ANY CLAIM AGAINST DEI SHALL BE STRICTLY

LIMITED TO THE AUTHORIZED DEI DEALER'S PURCHASE PRICE OF THE UNIT. DEI SHALL

NOT BE RESPONSIBLE FOR ANY DAMAGES WHATSOEVER, INCLUDING BUT NOT LIM-

ITED TO, ANY CONSEQUENTIAL DAMAGES, INCIDENTAL DAMAGES, DAMAGES FOR THE

LOSS OF TIME, LOSS OF EARNINGS, COMMERCIAL LOSS, LOSS OF ECONOMIC OPPORTUNITY

AND THE LIKE. NOTWITHSTANDING THE ABOVE, THE MANUFACTURER DOES OFFER

A LIMITED WARRANTY TO REPLACE OR REPAIR THE CONTROL MODULE AS DESCRIBED

ABOVE. Some states do not allow limitations on how long an implied warranty will last

or the exclusion or limitation of incidental or consequential damages. This warranty

gives you specific legal rights and you may also have other rights that vary from State

to State.

This product may be covered by a Guaranteed Protection Plan ("GPP"). See your au-

thorized DEI dealer for details of the plan or call DEI Customer Service at 1-800-876-0800.

DEI security systems, including this unit, are deterrents against possible theft. DEI is

not offering a guarantee or insurance against vandalism, damage or theft of the auto-

mobile, its parts or contents; and hereby expressly disclaims any liability whatsoever, including

without limitation, liability for theft, damage and/or vandalism. DEI does not and has

not authorized any person or entity to create for it any other obligation, promise, duty

or obligation in connection with this security system.

Make sure you have all of the following information from your dealer:

A clear copy of the sales receipt, showing the following:

■Date of purchase

■Your full name and address

■Authorized dealer's company name and address

■Type of alarm installed

■Year, make, model and color of the automobile

■Automobile license number

■Vehicle identification number

■All security options installed on automobile

■Installation receipts

Table of Contents

Limited Lifetime Consumer Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

What Is Included . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Important Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

System Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

Your Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

FCC/ID Notice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Transmitter Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Standard Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Using Your System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Arming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Disarming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Disarming Without a Transmitter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Silent Mode™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Panic Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Valet Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Remote Valet®. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Nuisance Prevention®Circuitry (NPC). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Arming Diagnostics. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Disarming Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Table of Zones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Code Hopping™. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

Owner Recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Rapid Resume Logic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Multi-Vehicle Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Installation Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Programming Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Security & Convenience Expansions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Glossary Of Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Quick Reference Guide (Removable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Standard Configuration

What is Included

■A control module

■Two four-button remote transmitters

■A Stinger®DoubleGuard®dual-stage shock sensor (on-board the

control module)

■A Revenger®Soft Chirp®six-tone programmable siren

■A red status LED indicator light

■A push-button Valet®switch

Important Information

By carefully reading this guide prior to using your system, you will

maximize the use of this system and its features. This system has

been designed to provide years of trouble-free operation. Due to its

complexity, it must be installed by an authorized dealer only. In-

stallation of this product by anyone other than an authorized dealer

voids the warranty. All dealers are provided with preprinted dealer

certificates to verify that they are authorized.

This system does not require any specific maintenance. Each remote

is powered by a miniature 3-volt battery, type 2032, that lasts ap-

proximately one year under normal use. When the battery weakens,

the LED on the remote will dim and flash quickly whenever it is used.

System Maintenance

Your warranty card must be returned and the barcode serial number

must not be removed. If the warranty card is not returned, you do

not have a warranty. It is also necessary to keep your proof of pur-

chase, which reflects that the product was installed by an authorized

dealer. Make sure you receive the warranty card from your dealer.

This device complies with part 15 of FCC rules. Operation is subject

to the following two conditions: (1) This device may not cause harm-

ful interference, and (2) This device must accept any interference

received, including interference that may cause undesired operation.

Caution: Changes or modifications not expressly approved by the

party responsible for compliance could void the user’s authority

to operate this device.

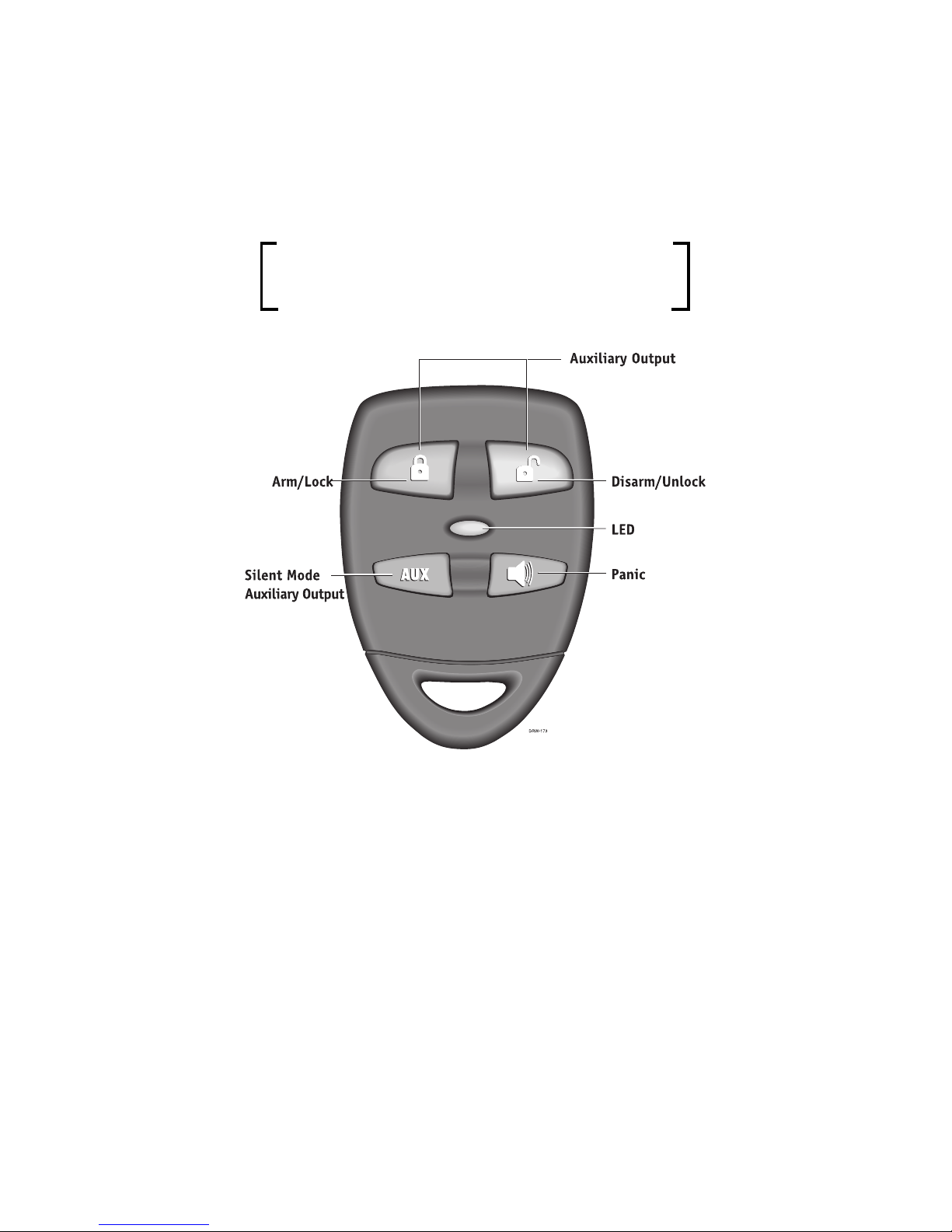

Transmitter Functions

Your vehicle security system is programmable, making it possible to

assign any button on the remote to any specific receiver function.

The transmitter initially comes programmed with the Standard Con-

figuration, but may also be customized by an authorized dealer. Unless

otherwise specified, all instructions in this manual assume opera-

tion using the Standard Configuration.

FCC/ID Notice

Your Warranty

Your vehicle security system is programmable, making it possible

to assign any button on the remote transmitter to any specific

receiver function. The remote transmitter initially comes pro-

grammed with the Standard Configuration, but may also be

customized by an authorized dealer. Unless otherwise specified,

all instructions in this owner’s guide assume operation using the

Standard Configuration.

Button

The arming and locking functions are controlled by pressing this but-

ton for one second.

Button

The disarming and unlocking functions are controlled by pressing

this button for one second.

Button

Silent Mode™and an optional auxiliary function are controlled by press-

ing this button. Silent Mode™works by pressing for less than

one second. An optional auxiliary function, such as trunk release,

is controlled by pressing and holding for 1.5 seconds.

The auxiliary output controls _____________________________.

Button

Panic Mode is activated by pressing and holding for one

second.

Standard Configuration

and Buttons

An optional auxiliary convenience or expansion function that you

have added to your system can be activated by pressing these but-

tons simultaneously.

The auxiliary output controls _____________________________.

Using Your System

The buttons described in all instructions in this manual correspond

to the standard configuration, unless otherwise specified.

You can arm the security system and lock your vehicle’s doors (if

connected) by pressing for one second. When the system arms,

you will hear a short siren sound (chirp) and the parking lights will

flash once. Once armed, the status LED will flash twice per second

to indicate that the system is actively protecting your vehicle. If

you hear a second chirp after arming and notice that the status LED

is flashing in a grouped pattern, this signals Bypass Notification,

which is described in the Diagnostics section of this manual.

The system can also be programmed to arm itself automatically 30

seconds after the ignition is turned off and the last vehicle door has

been closed (called Passive Arming). Once the 30-second countdown

period initiates, the status LED will flash twice as fast as it does

when the system is armed. After 20 seconds, the siren will chirp once

Arming

Altri manuali per 425 Series

Indice

Altri manuali Directed Electronics Allarme auto

Directed Electronics

Directed Electronics 7900 Manuale utente

Directed Electronics

Directed Electronics Python 990 Manuale utente

Directed Electronics

Directed Electronics SmartStart 5000-series Manuale utente

Directed Electronics

Directed Electronics 200 Manuale utente

Directed Electronics

Directed Electronics Python 880XP Manuale utente

Directed Electronics

Directed Electronics 650 ESP Manuale utente

Directed Electronics

Directed Electronics 100 ESP Manuale utente

Directed Electronics

Directed Electronics 736T Manuale utente

Directed Electronics

Directed Electronics 550ESP Manuale utente

Directed Electronics

Directed Electronics Viper 140 HF Manuale utente

Directed Electronics

Directed Electronics Python 500 Manuale utente

Directed Electronics

Directed Electronics 4400 Manuale utente

Directed Electronics

Directed Electronics 700J Manuale utente

Directed Electronics

Directed Electronics AutoCommand 20095 Manuale utente

Directed Electronics

Directed Electronics 3000 Manuale utente

Directed Electronics

Directed Electronics 544T Manuale utente

Directed Electronics

Directed Electronics PS-7870TWE-FM Manuale utente

Directed Electronics

Directed Electronics Security System and Convenience 125xv Manuale utente

Directed Electronics

Directed Electronics AVITAL 3001L Manuale utente

Directed Electronics

Directed Electronics Responder 460 Manuale utente

Directed Electronics

Directed Electronics Viper 4704 Manuale utente

Directed Electronics

Directed Electronics Viper 5904 Manuale utente

Directed Electronics

Directed Electronics PYTHON 333 Manuale utente

Directed Electronics

Directed Electronics 425 Series Manuale utente

Manuali Allarme auto popolari di altre marche

Clifford

Clifford 3606X Manuale utente

Ultra Start

Ultra Start 2500M SERIES Manuale utente

Ultra Start

Ultra Start 650 Series Manuale utente

Audiovox

Audiovox Prestige Platinum+ APS-511C Manuale utente

Sparkrite

Sparkrite SRA8 Manuale utente

Viper

Viper 4708V Manuale utente

Federal Signal Corporation

Federal Signal Corporation Pathfinder Siren Series Manuale

Falcon

Falcon Predator XL3 Guida utente

Audiovox

Audiovox Auto Security XR91 Istruzioni operative

Clifford

Clifford Sabre II Manuale utente

CrimeStopper

CrimeStopper CS-8717 Guida rapida

Ultra Start

Ultra Start 450 SERIES Manuale utente

Scytek electronic

Scytek electronic Vectra X3 Manuale utente

Excalibur

Excalibur AL-1860-EDPB Manuale utente

Clifford

Clifford CYBER 2 Manuale utente

Gemini

Gemini 7057 Manuale utente

FlashLogic

FlashLogic FLRSBA PRESTIGE Manuale utente

Magicar

Magicar FAI-440 Manuale utente
