Displays2go SM3TWDR Manuale utente

SKU: SM3TWDRSKU: SM3TWDR

Amy nrutionsAmy nrutions

3-Tier Wooden display rack shelves3-Tier Wooden display rack shelves

2

PARTS LIST

Scan QR code

to visit product

page

PART QUANTITY

A: Frame .................................................2

B: Support Rods .....................................4

C: Mini-Shelf Frame Piece.....................2

D: Casters ...............................................2

E: Tabletop..............................................1

F: Middle Shelf.......................................2

G: Bottom Shelf......................................2

H: Mini-Shelf Top ...................................1

I: M6*45 Screw ....................................4

J: M8*40 Screw....................................8

K: M8*30 Screw...................................4

NOTE: Allen wrench is required for

assembly, but is not included.

If you have any questions regarding our products, please visit us at www.displays2go.com or

contact D2G customer service at 844-221-3388.

A

B

C

D

E

F

G

H

I

J

K

3

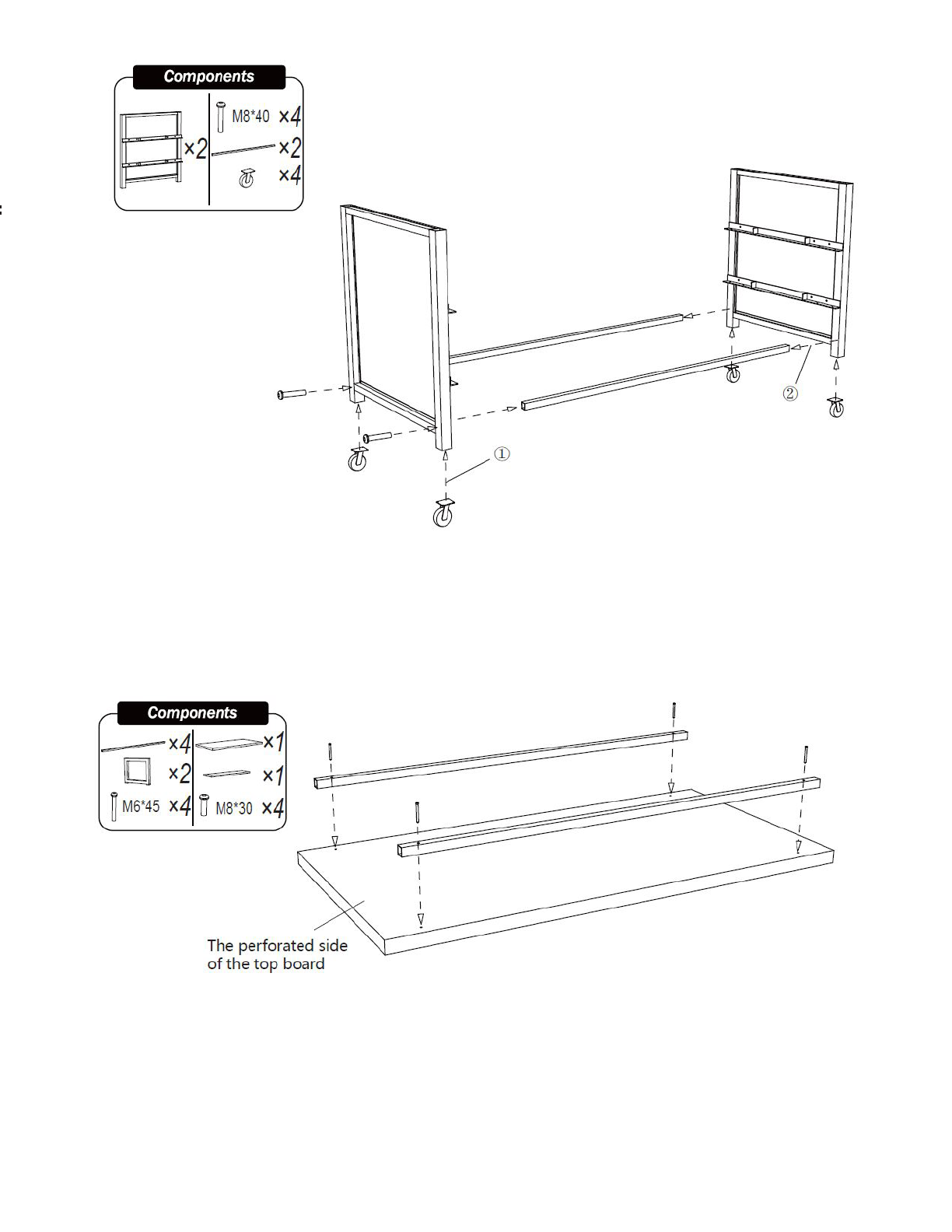

1. Screw casters to the bottom of each of the frame pieces.

2. Line up support rods to pre-drilled holes in the frame. Using M8*40 screws, secure support rods

to the frame. Be sure screws are tight to ensure frame integrity.

3a. Flip tabletop over, then secure support rods to its underside using M6*30 screws. (Underside is

perforated with pre-drilled holes.)

NOTE: Components will be

used for steps 3a and 3b.

J

J

D

D

D

D

A

A

B

B

B

B

E

K

K

K

K

4

3b. Using M8*45 screws, tighten mini-shelf frame pieces to the shelf top.

NOTE: This pieces does NOT attach to the display table. It will rest on top of the unit.

4. Slot tabletop onto top of the frame. Using M8*40 screws, secure tabletop to the frame.

5. Slot shelves into the brackets on each frame piece. Slide shelf until it clicks into place.

I

I

H

C

C

F

F

G

G

J

J

J

J

5

Eny r w slng dlay!Eny r w slng dlay!

CONTACT INFORMATION:

WEB: www.displays2go.com

PHONE: 844-221-3388.
