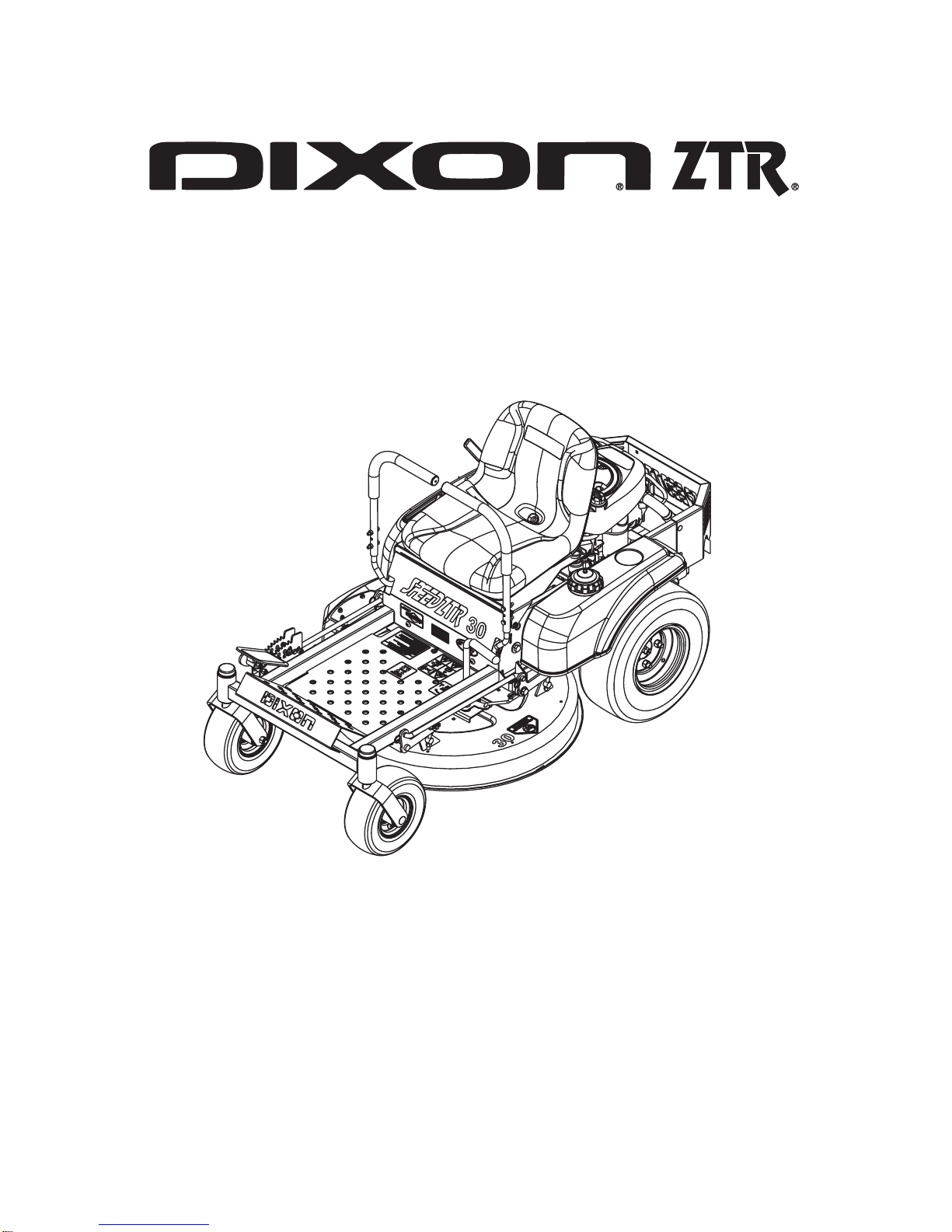

Dixon SPEEDZTR 30 Guida
Safety Instructions
and
Operator’s Manual
968999545
SPEEDZTR
™
30
ZTR
®
2
IMPORTANT - READ CAREFULLY
The Dixon ZTR mower is both easy and fun to operate.
However, any power mower must be operated properly
to be safe. It is not a toy or a recreational vehicle.
Before you use the mower, read this Operator’s Manual
carefully. It contains valuable information that is
necessary for the safe operation of the machine.
Observe all safety rules and become completely
familiar with the controls.
The information contained in this manual applies to all
Dixon ZTR SpeedZTR™30 mowers.
See your authorized Dixon dealer for warranty service,
parts and repairs or to answer questions you have
about your new Dixon ZTR.
3
TABLE OF CONTENTS
Page
SAFETY & WARNING............................................. 4-15
WARRANTY ............................................................... 16
SPECIFICATIONS...................................................... 17
CONTROLS........................................................... 18-20
OPERATION INSTRUCTIONS..............................21-31
CARE & MAINTENANCE ...................................... 32-43
TROUBLESHOOTING ..........................................44-45
STANDARD SERVICE PARTS LIST ......................... 46
SpeedZTR™ 30
Part Number 118736
SAFETY
4
Blade Contact
Tip Over
Run Over
Back Over
Pictured below are the most common causes of injury
to the operator or bystander. Please read and
understand this manual to prevent injuries.
WARNING
!Riding lawn movers, if improperly operated,
can cause serious injury or death.
SAFETY
5
Safety Alert Symbol
When you see this symbol, BE ALERT
to the potential for injury.
Follow the recommended safety precautions and
safe operating practices.
DANGER
(highlighted in red)
indicates an imminently hazardous
situation which, if not avoided, will result
in death or serious injury.
WARNING
(highlighted in orange)
indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
CAUTION
(highlighted in yellow)
indicates a potentially
hazardous situation which,
if not avoided, may result in minor
or moderate injury. It may also
be used to alert against
unsafe practices.
!
WARNING
6
GENERAL OPERATION:
Read, understand, and follow all instructions in this
manual and on the mower before starting.
In this operator’s manual, left and right, backward and
forward are used in relation to the machine’s normal
driving direction.
Only allow responsible adults, who are familiar with the
instructions, to operate the mower.
Clear the area of objects such as rocks, toys, wire, etc.,
which could be picked up and thrown by the blade.
Be sure the area is clear of bystanders before mowing.
Stop mower if anyone enters the area.
Never direct discharged material toward anyone. Avoid
discharging against a wall or obstruction. Material may
ricochet back toward the operator. Stop the blade(s)
when crossing gravel surfaces.
Do not operate the mower without either the entire
grass catcher or the deflector in place. This will
decrease the possibility of injury from objects being
thrown by the mower blades.
Never carry passengers.
Do not mow in reverse unless absolutely necessary.
Always look down and behind before and while
backing.
WARNING
!Failure to observe the following instructions
could result in serious injury or death.
WARNING
7
GENERAL OPERATION (continued):
Never leave a running mower unattended. Always turn
off blades, set Park Brake, stop engine and remove key
before dismounting.
Do not put hands or feet near rotating parts or under
the machine. Keep clear of the discharge opening at all
times.
Disengage blade(s) when not mowing. Shut off engine
and wait for all parts to come to a complete stop before
cleaning the machine, removing the grass catcher, or
unclogging the discharge guard.
Mow only in daylight or good artificial light.
Do not operate the mower while under the influence of
alcohol or drugs.
Slow down before turning to reduce the risk of tip-over.
Watch for traffic when operating near or crossing
roadways.
Use extra care when loading or unloading the mower
into a trailer or truck.
WARNING
!Failure to observe the following instructions
could result in serious injury or death.
WARNING
8
GENERAL OPERATION (continued):
Always wear eye protection when operating machine.
Data indicates that operators, age 60 years and above,
are involved in a large percentage of riding mower-
related injuries. These operators should evaluate their
ability to operate the riding mower safely enough to
protect themselves and others from serious injury.
Follow the manufacturer’s recommendation for wheel
weights and counterweights.
The engine exhaust from this product contains chemicals
known to the State of California to cause cancer, birth de-
fects or other reproductive harm.
WARNING
!Failure to observe the following instructions
could result in serious injury or death.
WARNING
9
SLOPE OPERATION:
Slopes are a major factor related to loss-of-con-
trol and tip-over accidents, which can result in
severe injury or death.
All slopes require extra caution. If you feel unsure
on any slope, do not mow it!
DO
Mow across the slope with your Dixon ZTR -- never up
or down. This will decrease the risk of tip-over.
Remove obstacles such as rocks, tree limbs, wires and
other foreign objects that can be thrown by mower
blades.
Watch for holes, ruts, roots and bumps and uneven
terrain that could overturn the mower. Tall grass can
hide such obstacles.
Use slow speed. Tires may lose traction on slopes even
though the brakes are functioning properly.
Avoid starting or stopping on a slope. If tires lose
traction, disengage the blades and proceed slowly
down the slope.
WARNING
!Failure to observe the following instructions
could result in serious injury or death.
WARNING
10
SLOPE OPERATION (continued):
DO
Keep all movement on the slopes slow and gradual. Do
not make sudden changes in speed or direction.
Use extreme caution when operating the mower with
attachments to prevent tip-over or roll-over.
If front wheels lift off the ground, pull levers back to
stabilize the mower. Discontinue mowing the slope!
WARNING
!Failure to observe the following instructions
could result in serious injury or death.
