INSTALLATION AND PROGRAMMING GUIDE

7300 Series Thinline™

Icon Keypad

TABLE OF CONTENTS

About the Keypad ...................................... 1

Features.............................................................................. 1

Card Reader ...................................................................... 1

Keypad Layout ............................................2

Card Reader ..................................................................... 3

Two-Button Panic Keys................................................ 3

Install the Keypad.......................................4

Remove the Cover ......................................................... 4

Wire the Keypad............................................................. 5

When Using an Auxiliary Power Supply .................... 5

Mount the Keypad ......................................................... 7

Program the Keypad ..................................8

Reading the Display...................................................... 8

User Options.................................................................... 8

Installer Options ............................................................10

Access Installer Options ................................................ 10

Conﬁgure Panics and User Code Digits ....................11

Run Keypad Diagnostics ................................................12

LCD Segment Test ............................................................12

Test Individual Keys and Card Reads.........................12

Exit Installer Options ....................................................... 12

Reference................................................... 13

End User Training .........................................................13

Shortcut Keys .................................................................13

Programming Menus Items .......................................14

Panic Keys........................................................................14

Icons...................................................................................15

Display Codes.................................................................16

Compliance Requirements...................... 17

Wiring Speciﬁcations ..................................................17

Compatibility ............................................ 18

Panel Models...................................................................18

Credentials.......................................................................18

Product Speciﬁcations ............................ 19

Certiﬁcations............................................ 20

Intertek (ETL) Listed...................................................20

FCC Information ....................................... 21

Industry Canada Information..................22

7300 Series Installation and Programming Guide | Digital Monitoring Products, Inc. 1

ABOUT THE KEYPAD

The DMP 7300 Series Thinline™ Icon Keypads provide an easy to understand icon display

to assist users when arming and disarming an All/Perimeter or Home/Sleep/Away system

or using any of the standard system features. The icons provide immediate recognition of

any system alarm as well as system status.

7300 Series keypads are compatible with XT Series control panels.

Features

All 7300 Series models provide three 2-button Panic keys, a backlit keyboard with easy-

to-read lettering, and an internal speaker. Additionally, the model 7363 keypad provides a

built-in proximity reader designed to read standard HID proximity credentials.

Card Reader

When a proximity credential is presented to the internal reader, a beep tone is heard to

provide an audible acknowledgment of the credential read.

Digital Monitoring Products, Inc | 7300 Series Installation and Programming Guide2

KEYPAD LAYOUT

ALL RESET HOME

CHIME

ZONE

PERIM SLEEP EXIT

INSTTESTOUTPUT

CODE

1 2 3 4

5 6 7 8

9 0 CMD

Proximity

Credential Reader

and Backlit Logo

Keypad Display

Select Keys

Panic Keys

Command

(CMD) Key

Back Arrow Key

143

Figure 1: 7300 Series Thinline Keypad

7300 Series Installation and Programming Guide | Digital Monitoring Products, Inc. 3

Card Reader

When a proximity credential is presented to the keypad’s backlit logo, a beep tone is

emitted to provide an audible acknowledgment of the credential read.

Two-Button Panic Keys

All keypads oer a panic key function that allows users to send panic, emergency, or

ﬁre reports to the central station in an emergency. Panic keys are enabled in the Installer

Options. Place the icon stickers below the top row select keys as shown in Figure 1.

Note: By default, all 7300 keypads send address 8 to the central station for panic

alarms.

Digital Monitoring Products, Inc | 7300 Series Installation and Programming Guide4

INSTALL THE KEYPAD

Remove the Cover

The keypad housing is made up of two parts: the cover,

which contains the circuit board and components, and

the base.

To separate the keypad cover from the base, insert a

ﬂathead screwdriver into one of the slots on the bottom

of the keypad and gently lift the screwdriver upward.

Repeat with the other slot. Gently separate the cover

from the base and set the cover containing the keypad

components aside. See Figure 2.

Figure 2: Separate the

Keypad Housing

Cover

Base

7300 Series Installation and Programming Guide | Digital Monitoring Products, Inc. 5

Wire the Keypad

The 7360 and 7363 keypads are supplied with a 4-wire harness for panel keypad bus

connection. Refer to the following table for wire colors and connections:

WIRE COLOR CONNECT TO PANEL PURPOSE

Red Terminal 7 DC Power

Yellow Terminal 8 Send Data

Green Terminal 9 Receive Data

Black Terminal 10 Ground

When Using an Auxiliary Power Supply

If the current draw for all keypads exceeds the panel output, provide additional

current by adding a Model 505-12 auxiliary power supply:

1. Connect all keypad Black ground wires to the power supply negative terminal.

2. Run a jumper wire from the power supply negative terminal to the panel

common ground terminal.

3. Connect all keypad power (+12 VDC) wires to the power supply positive

terminal.

4. Do not connect the power supply positive terminal to any panel terminal.

For more information, refer to the 505-12 Power Supply Installation Guide (LT-0453).

Digital Monitoring Products, Inc | 7300 Series Installation and Programming Guide6

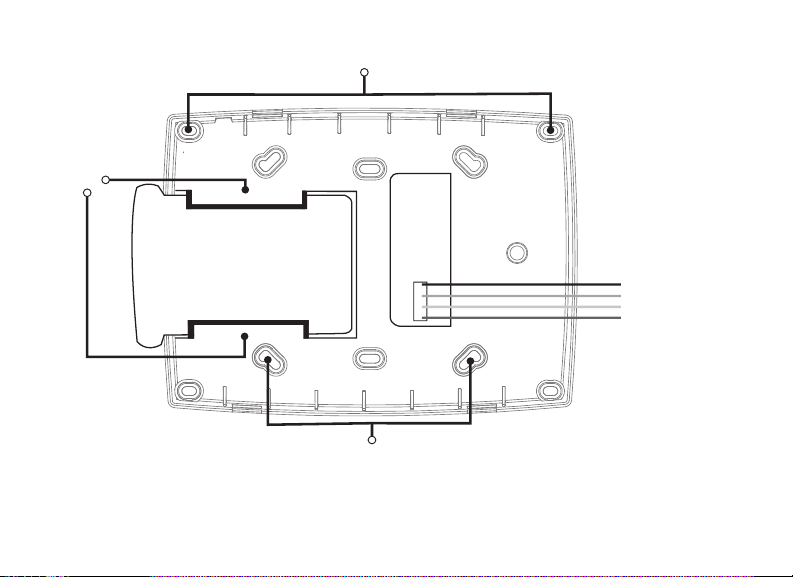

Black – Ground

Green – Receive Data

Yellow – Send Data

Red – Keypad Power

Reference Card

Guide Tabs

Surface and Backbox Mounting Holes

Combined 4-square and 3-gang Switch Box Mounting Holes

Keypad Back

Figure 3: Mounting Holes and Wiring Harness
