Dometic CCF-T Manuale utente

STEP 1: Prepare for setup by testing refrigerator

• Start by removing all items from center console including the original

trim tray and console ﬂoor liner

• Place the CCF-T upright on a stable surface next to the console

• Locate the fan power plug below the USB port

• Insert the unit’s 12 V DC power cord into the vehicles 12 V DC receptacle

• Turn the engine on, at that time you should see the unit’s blue LED light

illuminated. If you do not, press the hold button for 1 second and release.

You will hear the condenser fan start*.

• Turn the vehicle engine oﬀ. Then turn the refrigerator oﬀ by pressing

the blue button.

• Unplug the CCFT and set away from the console

STEP 2: Prepare the installation area

• Tape the provided front fan template to the interior front wall

of the console (image on 6.3 in user guide)

• Trace the center point opening from the console onto the taped

console bin wall with a pen

• With a 3.5 inch (89 mm) hole saw drill bit, drill an opening for

the front fan in line with the template

• Remove template & any debris in the console and console bin area

STEP 3: Install the console**

Install Fan

• Hold the front fan vertically from the exterior (do not stick ﬁngers in fan)

• Insert fan into newly drilled hole in front of console – you will hear

it snap into place

• Tape the black fan wire to top front lid of console to protect it

from damage

DOMETIC CCF-T INSTALLATION MANUAL

;Equipment Included: 1 Refrigerator Unit, 1 Rubber Mat,

1 Top Closeout Tray,

1 Front-Fan with Housing, 1 Front Fan Template,

1 Right & 1 Le Foam Console Wall Spacer

6Time required: 35 Minutes

?Recommended Tools: Drill with 3.5 inch Hole Saw Bit,

Phillips Screwdriver, Multimeter, Pen,

Car Vacuum, and Removable Tape

KRecommended number of people: 1

PRODUCT SUITABLE FOR:Ford®F-150, 2015–2020 Ford®Super Duty (F-250/350/450/550), 2017 and newer Ford®Expedition, 2018 and newer

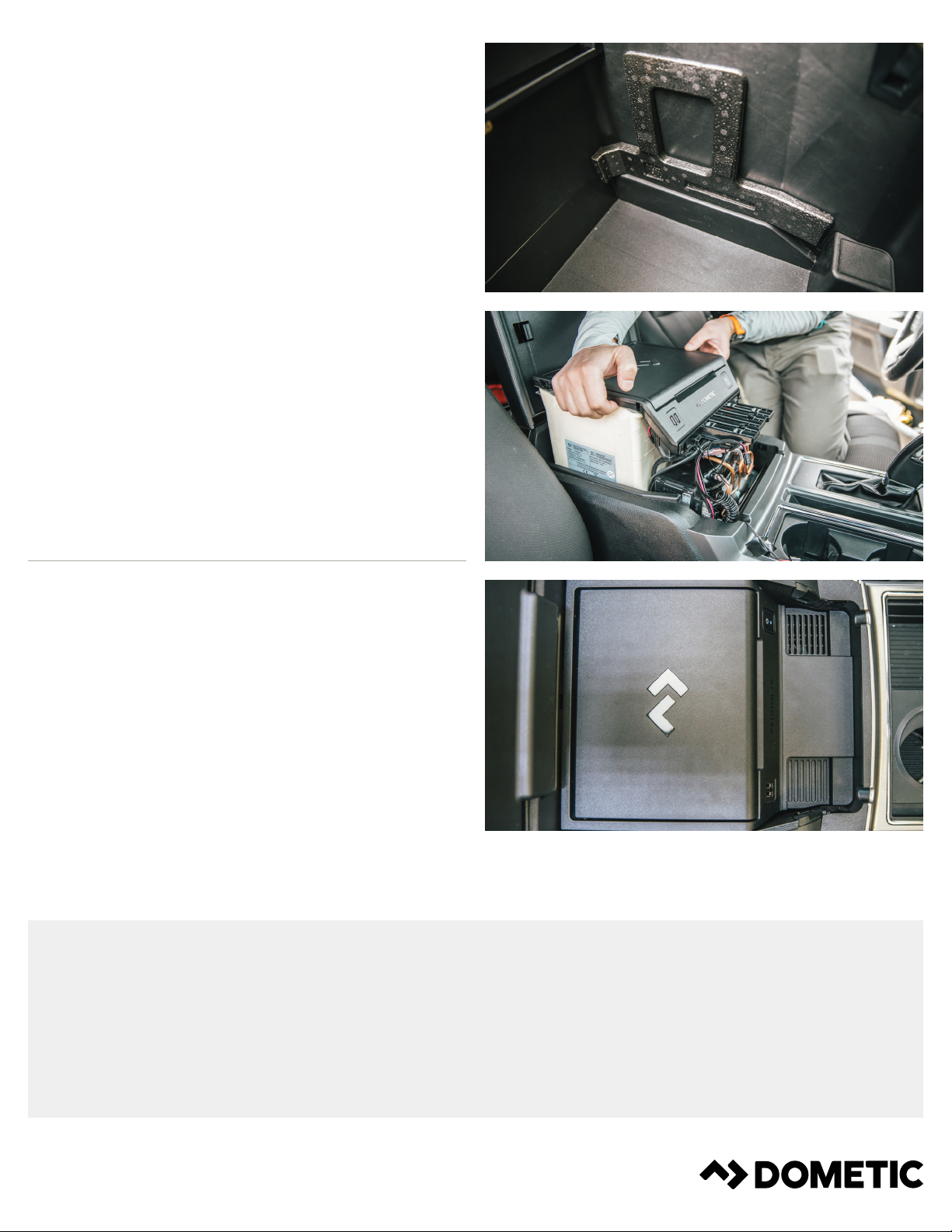

STEP 3: Install the console** (continued)

Apply the foam spacers

• Peel oﬀ tape from right-hand foam spacer

• To aﬃx, orient the right-hand spacer inside the right-hand

console bin wall with the 45˚ corner pointed to the rear console.

Rest foam spacer on console bin ledge. Press the 45˚ angled

corner into the rear corner. Once aligned, proceed to press

rest of spacer into place.

• Repeat with le hand side

Install the refrigerator

• With the refrigerator unit set upright near the console bin,

plug the 12 VDC cord into the power supply

• Gently rock the unit from le to right while lowering the unit

into the console until locked. You will know it is fully seated

when the receptacle locks engage and the top edges of the

refrigerator unit and the console are level

STEP 4: Power connection & ﬁnishing touches

• Remove the temporary tape holding the black fan wire.

Route the fan wire away from the fan blades and connect it

to the fan power plug.

• Gently push the connected fan wires back into the opening

to protect them from the fan blades

• Start the vehicle engine. Press the ON/OFF button for one second

to turn the refrigerator unit on. Listen for the condenser fan*.

• Turn the refrigerator oﬀ by holding the ON/OFF button for

one second again

• Turn the vehicle engine oﬀ

• Ensure the twist lock horizontal tabs ﬁt under the front lip

of the console bin

• Turn each twist lock clockwise with a Phillips screwdriver

until the horizontal tabs are snug against console bin

• Align the vented closeout tray over the fan housing and snap it

into place

Notes:

* Review troubleshooting guide if you do not hear condenser fan, the light doesn’t turn on, or the condenser fan doesn’t start.

** Avoid liing the weight of the refrigerator unit by the plastic edges, otherwise damage to the edges could occur.

Do not leave the refrigerator unit in an inverted position or run the compressor soon aer having the refrigerator in an inverted position,

otherwise damage to the compressor could occur.

Avoid pinching, crushing, or breaking the wires or power cord, otherwise damage to the refrigerator unit could occur.

For more detailed instructions, please see the owners manual.

dometic.com
