Dometic 9 SERIES Manuale utente

RML9330, RML9331, RML9335

Absorber refrigerator

Operating manual

REFRIGERATION

9 SERIES

RML93xx-O-AUS.book Seite 1 Montag, 24. Juli 2017 11:30 11

RML93xx-O-AUS.book Seite 2 Montag, 24. Juli 2017 11:30 11

RML93xx

Please read this instruction manual carefully before first use, and store it in

a safe place. If you pass on the product to another person, hand over this

instruction manual along with it.

Table of contents

1 Explanation of symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

7 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

9 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

10 Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

11 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

12 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

13 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

RML93xx-O-AUS.book Seite 3 Montag, 24. Juli 2017 11:30 11

Explanation of symbols RML93xx

1 Explanation of symbols

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

•Damage to the product resulting from mechanical influences and excess voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

2.1 General safety

!WARNING!

•Never open the absorber unit. It is under high pressure and can cause

injury if it is opened.

•Do not operate the refrigerator if it is visibly damaged.

•If the power cable for this refrigerator is damaged, it must be replaced

by the manufacturer, customer service or a similarly qualified person in

order to prevent safety hazards.

•This refrigerator may only be repaired by qualified personnel. Inade-

quate repairs may cause serious hazards.

WARNING!

Safety instruction: Failure to observe this instruction can cause fatal or

serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

RML93xx-O-AUS.book Seite 4 Montag, 24. Juli 2017 11:30 11

RML93xx Safety instructions

•This refrigerator can be used by children aged 8 years or over, as well

as by persons with diminished physical, sensory or mental capacities

or a lack of experience and knowledge, providing they are supervised

or have been instructed how to use the refrigerator safely and are

aware of the resulting risks.

•Cleaning and user maintenance must not be carried out by unsuper-

vised children.

•Children must be supervised to ensure that they do not play with the

refrigerator.

•Do not store any explosive substances, such as spray cans with propel-

lants, in the refrigerator.

!CAUTION!

•Danger of crushing! Do not put your fingers into the hinge.

•Food may only be stored in its original packaging or in suitable con-

tainers.

ANOTICE!

•Do not open the refrigerant circuit under any circumstances.

•The refrigerant in the refrigerator circuit is highly flammable.

In the event of any damage to the refrigerator circuit (smell of ammo-

nia):

– Switch off the refrigerator if applicable.

– Avoid naked flames and sparks.

– Air the room well.

•Check that the voltage specification on the type plate is the same as

that of the power supply.

•The refrigerator is not suitable for storing substances which are caustic

or contain solvents.

•Keep the drainage outlet clean at all times.

•Do not use a high-pressure cleaner near the ventilation grille when

cleaning the vehicle.

•Never pull the plug out of the socket by the connection cable.

•The refrigerator lighting may only be replaced by customer service.

•The refrigerator may not be exposed to rain.

RML93xx-O-AUS.book Seite 5 Montag, 24. Juli 2017 11:30 11

Safety instructions RML93xx

2.2 Safe operation

!CAUTION!

•Close the refrigerator door before beginning a journey.

•The refrigerator unit at the back of the refrigerator gets very hot during

operation. Protect yourself from coming into contact with hot parts

when removing ventilation grilles.

•Only store heavy objects such as bottles or cans in the refrigerator

door, in the vegetable drawer or on the bottom shelf.

ANOTICE!

•Do not use electrical devices inside the refrigerator unless they are rec-

ommended by the manufacturer for that purpose.

•Danger of overheating!

Always ensure sufficient ventilation so that the heat generated during

operation can dissipate. Make sure that the refrigerator is sufficiently

far away from walls and other objects so that the air can circulate.

•Ensure that the ventilation openings are not covered.

•Do not fill the inner container with ice or fluid.

•Protect the refrigerator and the cable against heat and moisture.

•Make sure that foodstuffs do not touch the walls of the cooling area.

2.3 Safety when operating with DC power

ANOTICE!

•Only select DC operation (battery mode) if you are using a battery

monitor or if the alternator in your vehicle provides sufficient voltage.

2.4 Safety when operating with AC power

ANOTICE!

•Check that the voltage specification on the type plate is the same as

that of the power supply.

•Only use the cable supplied to connect the refrigerator to the

AC mains.

•Never pull the plug out of the socket by the connection cable.

RML93xx-O-AUS.book Seite 6 Montag, 24. Juli 2017 11:30 11

RML93xx Scope of delivery

2.5 Safety when operating with gas

!WARNING!

•Only operate the refrigerator at the pressure shown on the type

plate. Only use pressure controllers with a fixed setting which comply

with the national regulations (in Europe EN 12864).

•Never store liquid gas cylinders in unventilated areas or below

ground level (funnel shaped holes in the ground).

•Keep liquid gas cylinders away from direct sunlight. The temperature

may not exceed 50 °C.

•Never operate the refrigerator with gas

– at petrol stations

– while driving

– while transporting the caravan or mobile home with a transport

vehicle or tow truck

•Never use a naked flame to check the refrigerator for leaks.

•If you smell gas:

– Close the gas supply cock and the valve on the cylinder.

– Open all windows and leave the room.

– Do not press an electric switch.

– Put out any naked flames.

– Have the gas system checked by a specialist.

ANOTICE!

•Only use propane or butane gas (not natural gas).

3Scopeofdelivery

•Refrigerator

•Ice-cube tray

•Operating manual

•Installation manual

RML93xx-O-AUS.book Seite 7 Montag, 24. Juli 2017 11:30 11

Accessories RML93xx

4Accessories

Available as accessories (not included in the scope of delivery):

All the accessories are available from specialist dealers. If you have any questions,

please contact the dealer or your service partner directly.

Description

Fan kit for boosting the cooling capacity at high ambient temperatures

Winter cover for the ventilation grille

Door shelf locking

Bottle holder for door shelf locking

Shelf locking

RML93xx-O-AUS.book Seite 8 Montag, 24. Juli 2017 11:30 11

RML93xx Intended use

5 Intended use

The refrigerator is designed for installation in caravans or motorhomes. It is only suit-

able for cooling, freezing and storing foodstuffs. The refrigerator is not intended for

the proper storage of medicine.

The refrigerator is designed to be operated on a DC power supply and an AC socket

and can be independently powered by liquid gas (propane or butane). The refriger-

ator may not be run on natural gas or city gas.

6 Technical description

6.1 Description

The refrigerator is an absorption refrigerator. The refrigerator is designed to operate

with different types of power and can be run on an AC power supply, a DC power

supply or with butane/propane gas. For DC operation, the vehicle battery or a solar

system built on the vehicle can be used. For with AC and gas operation, the thermo-

static control ensures that the refrigerator temperature is kept constant and as little

power as possible is consumed.

The refrigerator has a locking mechanism to protect it during transport.

The refrigerator has a defrost water drain. The drain opening is located on the rear

panel of the refrigerator.

The refrigerator is equipped with an automatic pilot light which automatically inter-

rupts the gas supply after approx. 30 seconds if the flame goes out.

The RML9335 refrigerator has an automatic operating mode which selects the most

economical power mode connected.

CAUTION! Health hazard!

Please check if the cooling capacity of the refrigerator is suitable for

storing the food you wish to cool.

RML93xx-O-AUS.book Seite 9 Montag, 24. Juli 2017 11:30 11

Technical description RML93xx

6.2 Components

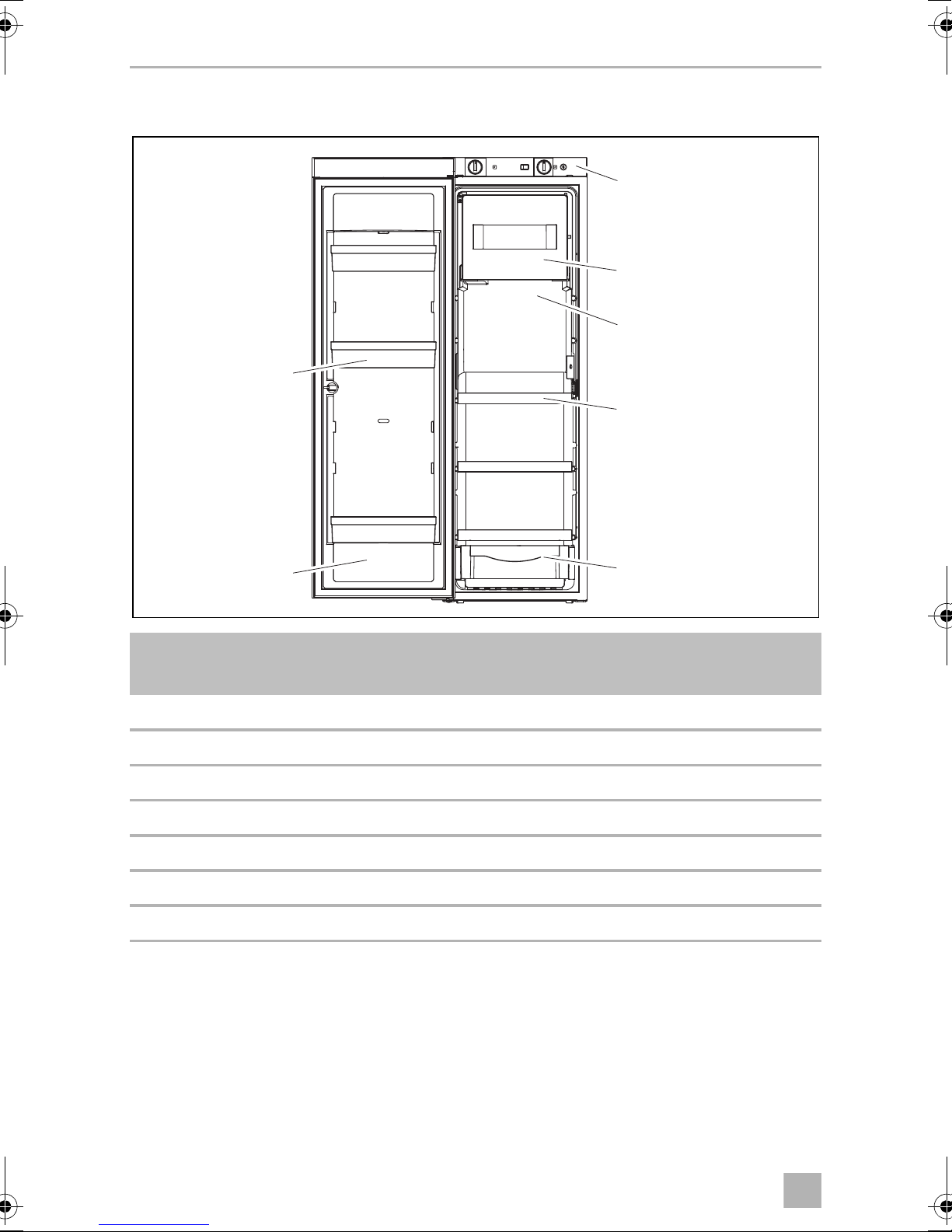

No. in

fig. 1Description

1 Control elements

2 Freezer compartment

3 Secondary evaporator for refrigerator

4Shelves

5 Vegetable compartment

6 Bottom section with bottle holder

7 Top section
