RUC5208X, RUC6408X, RUC8408X

Please read this instruction manual carefully before installation and first

use, and store it in a safe place. If you pass on the product to another

person, hand over this instruction manual along with it.

Table of contents

1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

4 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

5 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

6 Technical description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

7 Installing the refrigerator. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

8 Connecting the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

9 Using the refrigerator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

10 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

11 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

12 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

13 Disposal. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

14 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

RUC8408X--IO-AU.book Seite 3 Donnerstag, 27. Dezember 2018 1:52 13

Explanation of symbols RUC5208X, RUC6408X, RUC8408X

1 Explanation of symbols

2 Safety instructions

The manufacturer accepts no liability for damage in the following cases:

•Faulty assembly or connection

•Damage to the product resulting from mechanical influences and incorrect

connection voltage

•Alterations to the product without express permission from the manufacturer

•Use for purposes other than those described in the operating manual

2.1 General safety

DDANGER!

•On boats: If the device is powered by the mains, ensure that the

power supply has a residual current circuit breaker.

DANGER!

Safety instruction: Failure to observe this instruction will cause death

or serious injury.

WARNING!

Safety instruction: Failure to observe this instruction can cause death

or serious injury.

CAUTION!

Safety instruction: Failure to observe this instruction can lead to injury.

NOTICE!

Failure to observe this instruction can cause material damage and impair

the function of the product.

NOTE

Supplementary information for operating the product.

RUC8408X--IO-AU.book Seite 4 Donnerstag, 27. Dezember 2018 1:52 13

RUC5208X, RUC6408X, RUC8408X Safety instructions

!WARNING!

•Have a qualified technician perform the installation in wet rooms.

•Do not operate the device if it is visibly damaged.

•If this device's power cable is damaged, it must be replaced by the

manufacturer, customer service or a similarly qualified person in order

to prevent safety hazards.

•This device may only be repaired by qualified personnel. Inadequate

repairs may cause serious hazards.

•This device can be used by children aged 8 years or over, as well as by

persons with diminished physical, sensory or mental capacities or a

lack of experience and knowledge, providing they are supervised, or

have been taught how to use the device safely and are aware of the

resulting risks.

•Cleaning and user maintenance must not be carried out by children

without supervision.

•Children must be supervised to ensure that they do not play with the

device.

•Always keep and use the device out of the reach of children under

8 years of age.

•Do not store any explosive substances, such as spray cans with

propellants, in the device.

!CAUTION!

•Danger of crushing! Do not put your fingers into the hinge.

•Foodstuff may only be stored in its original packaging or in suitable

containers.

ANOTICE!

•Check that the voltage specification on the type plate is the same as

that of the power supply.

•Never pull the plug out of the socket by the connection cable.

•The refrigerator is not suitable for storing substances which are caustic

or contain solvents.

•Keep the drainage outlet clean at all times.

•Do not open the refrigerant circuit under any circumstances.

•Never transport the device in a horizontal position, so that lubricating

oil does not drain from the compressor into the pipes.

RUC8408X--IO-AU.book Seite 5 Donnerstag, 27. Dezember 2018 1:52 13

Safety instructions RUC5208X, RUC6408X, RUC8408X

•Make sure that the refrigerator circuit is not damaged during transpor-

tation. The refrigerant in the refrigerator circuit has a low potential to

become flammable.

In the event of any damage to the refrigerator circuit:

– Avoid naked flames and sparks.

– Air the room well.

•Set up the device in a dry location where it is protected against splash-

ing water.

2.2 Operating the device safely

DDANGER!

•Do not touch exposed cables with your bare hands. This applies

especially when operating the device from the AC mains.

!CAUTION!

•Before starting the device, ensure that the power supply line and the

plug are dry.

•If you connect the device to a battery, make sure that no food comes

into contact with the battery acid.

ANOTICE!

•Do not use electrical devices inside the cooling device unless they are

recommended by the manufacturer for that purpose.

•Do not place it near naked flames or other heat sources (heaters, direct

sunlight, gas ovens etc.)

•Danger of overheating!

Always ensure sufficient ventilation so that the heat generated during

operation can dissipate. Make sure that the device is sufficiently far

away from walls and other objects so that the air can circulate.

•Ensure that the ventilation vents are not covered.

•Do not fill the device with ice or fluid.

•Never immerse the appliance in water.

•Protect the appliance and the cable against heat and moisture.

•Make sure that foodstuffs do not touch the walls of the cooling area.

RUC8408X--IO-AU.book Seite 6 Donnerstag, 27. Dezember 2018 1:52 13

RUC5208X, RUC6408X, RUC8408X Scope of delivery

3Scopeofdelivery

4Accessories

Available as accessories (not included in the scope of delivery):

Accessories are available from specialist dealers. If you have any questions, please

contact the dealer or your service partner directly.

5 Intended use

The refrigerator is suitable for refrigerating foodstuffs and storing frozen foodstuffs.

The device is suitable for installation into caravans, motorhomes or boats. The device

is designed to be operated from a 12 V DC or 24 V DC on-board supply as well as

from a 100 – 240 V AC mains.

The refrigerator is only suitable for installation in a fitted cavity. Once it is installed,

only the front of the appliance may be accessible.

Quantity Description

1 Refrigerator

1Drainhose

1 Bottom trim piece

1 Sealing strip (fitted underneath during installation)

1 Installation and Operating Manual

Description

LS300 ventilation grille (W x H: 490 x 249 mm, open ventilation area 667 cm2)

RUC5208X only: Door reversing kit

CAUTION! Health hazard!

Please check if the cooling capacity of the refrigerator is suitable for

storing the food you wish to cool.

RUC8408X--IO-AU.book Seite 7 Donnerstag, 27. Dezember 2018 1:52 13

Technical description RUC5208X, RUC6408X, RUC8408X

6 Technical description

6.1 Description

The device can refrigerate goods to +8 °C to 0 °C and keep them cool. Products can

be frozen to –10 °C to –20 °C in the freezer compartment. You can use the control

display to set the desired temperature.

The refrigerator is suitable for use with 12 V or 24 V DC voltage and can therefore be

used e.g. for mobile homes, caravans or on boats. It can also be connected to a

100 – 240 V mains supply.

The refrigerator can withstand a short term inclination of 30°, for example on boats.

All materials used in the refrigerator are compatible for use with foodstuffs. The

refrigerant circuit is hermetically sealed and CFC-free.

RUC8408X--IO-AU.book Seite 8 Donnerstag, 27. Dezember 2018 1:52 13

RUC5208X, RUC6408X, RUC8408X Technical description

6.2 Components

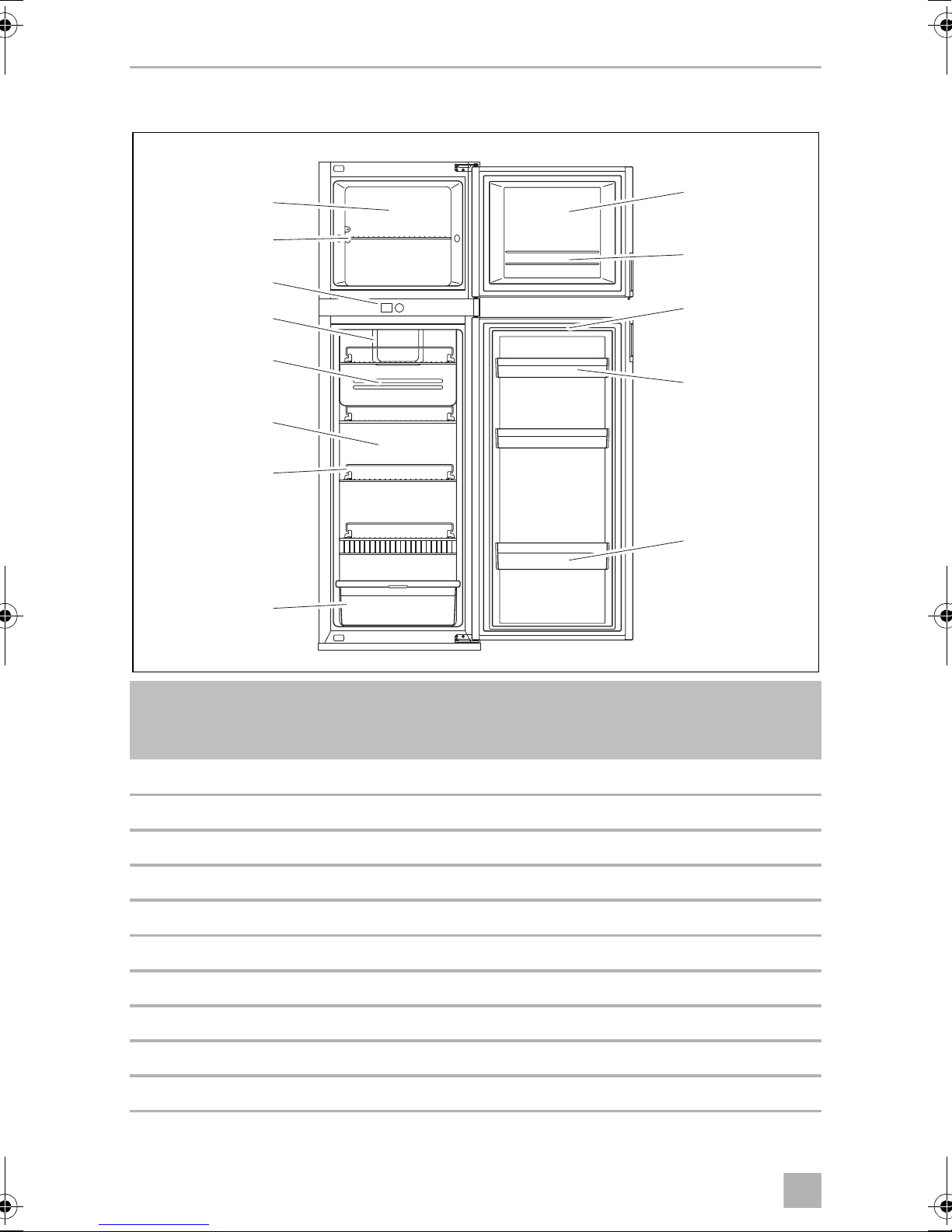

RUC5208X

No. in fig. 1Description

Quantity

RUC5208X

3 Refrigerator door

4 Top door bin 2

5 Bottom door bin with bottle holder

6 Fruit and vegetable section

7 Refrigerator shelf 3

8 Refrigerator compartment

9 Internal light

10 Freezer compartment

11 Control and display elements

RUC8408X--IO-AU.book Seite 9 Donnerstag, 27. Dezember 2018 1:52 13

Technical description RUC5208X, RUC6408X, RUC8408X

RUC6408X, RUC8408X

No. in fig. 2Description

Quantity

RUC6408X RUC8408X

1 Freezer compartment door

2 Freezer door rack 1 1

3 Refrigerator door

4 Top door bin 2 2

5 Bottom door bin with bottle holder

6 Fruit and vegetable section

7 Refrigerator shelf 3 4

8 Refrigerator compartment

9 Air duct cover plate

10 Internal light
