Dometic 8100 Series MasterFlush Toilet

B C

2.1 Warnings – marine applications

The following statements must be read and understood before installing, servicing and/or

operating this product on a boat. Modiﬁcation of this product may result in property damage.

Dometic recommends that a qualied marine technician or electrician install or service this product.

Equipment damage, injury to personnel or death could result from improper installation. DOMETIC

ACCEPTS NO RESPONSIBILITY OR LIABILITY FOR DAMAGE TO EQUIPMENT, OR INJURY OR DEATH

TO PERSONNEL THAT MAY RESULT FROM IMPROPER INSTALLATION, SERVICE OR OPERATION

OF THIS PRODUCT.

1 Notes on using the manual .................................................3

2 General safety instructions ..............................................3 - 4

3 Intended use ............................................................4

4 Components ............................................................5

5 Specications ........................................................5 - 6

6 Operation............................................................6 - 7

7 Maintenance and winterizing.............................................8 - 9

8 Troubleshooting.........................................................10

9 Warranty ..........................................................11 - 12

10 Customer service........................................................12

1 Notes on using the manual

Note

Supplementary information for operating the device.

ﬁg. 1A, page 2 : This refers to an element in an illustration. In this example, item A in

gure 1 on page 2.

Caution!

Safety Instruction: Failure to observe this instruction can cause material damage and

impair the function of the device.

Table of contents

2 General safety instructions

The manufacturer will not be held liable for claims for damage resulting from the following:

• Faulty assembly or connection

• Damage to the unit from mechanical inuences, misuse or abuse

• Alterations to the unit without express written permission from the manufacturer

• Use for purposes other than those described in the operating manual

Dometic 8100 Series MasterFlush Toilet Notes on using the manual

Caution! Hazard of Flooding

If toilet is connected to ANY through-the-hull ttings, ALWAYS close seacocks when

toilet is not in use (even if boat is unattended for a brief period). All passengers MUST be

instructed on how to close valves when the toilet is not in use. Failure to do so can result in

ooding which can cause loss of property and life.

Caution! Hazard of Flooding

If the toilet uses fresh water for ushing and is connected directly or indirectly to a shore-

side municipal water system at ANY time, shoreside water connections MUST be discon-

nected if the boat is unattended (even if boat is unattended for a brief period). Failure to do

so can result in ooding which can cause loss of property and life.

Caution! Hazard of Flooding

Before beginning any work on this product, be sure that all electrical power to the unit has

been turned off and that seacocks are in the CLOSED or OFF position. Failure to do so can

result in ooding which can cause loss of property and life.

Caution!

Overlling the holding tank can create serious damage to the sanitation system, such as

rupturing the holding tank and releasing tank contents into the bilge. To prevent this pos-

sibility, Dometic recommends using the “full” tank shut-down relay in the toilet’s electronic

control module. The “full” signal from the holding tank can be generated by an optional

Dometic DTM01C tank monitor or DTM04 four-level tank monitor system.

3 Intended use

The Dometic 8100 series MasterFlush toilet provides an electric-ush toilet that macerates waste

and pumps it to a holding tank or other efuent storage/disposal system. Operated by a wall-

mounted ush switch, the toilet allows the user to add water to the bowl (before or after ushing)

and to ush the toilet by pushing a button.

3.1 Beneﬁts

Convenient electronic ﬂush. Add water or ush with the touch of a button.

Choice of two water consumption settings. “Normal” ush adds water to bowl while button is pushed;

“Dry Bowl” does not use water during a ush – it only operates the macerator pump.

Versatile installation. Powerful macerator pump allows toilet to be located up to 98 ft. (30 m) away or

9.8 ft. (3 m) below holding tank or other discharge line destination.

Automatic “full tank” shut-down (Optional installation - tank level monitor and shut-down relay

required. Available separately). When connected to a holding tank level indication system, the 8100

series toilet system will shut off electrical power to the toilet when the holding tank is full. This safety

feature prevents overlling the holding tank, which may cause damage to the boat.

General safety instructions Dometic 8100 Series MasterFlush Toilet

Dometic 8100 Series MasterFlush Toilet Intended use

4 Components

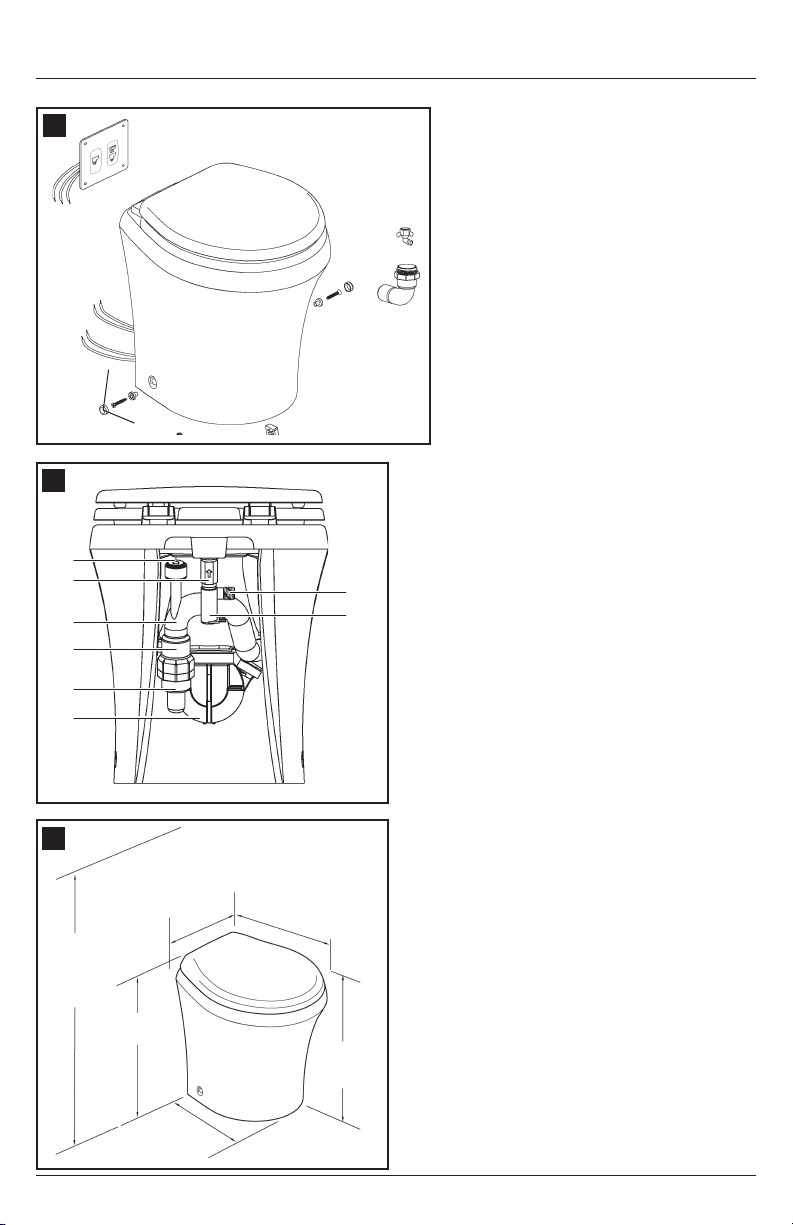

(g. 1, page 2) (g. 2, page 2)

5.2 Minimum System Requirements

5 Speciﬁcations

5.1 Materials

Toilet: vitreous ceramic

Macerator pump body: glass-lled polypropylene

Dometic ﬂush switch panel: powder-coated aluminum

Electrical Circuit breaker 20 amps/12 V DC; 15 amps/24 V DC

Wiring 12 ga. (up to 20 ft./6.1 m from breaker)

Water

Supply

Fitting 0.5 in. NPT

Flow rate 2.0 gpm/7.6 lpm minimum

Discharge

Inside diameter 1.5 in./38 mm or 1 in./25 mm

Horizontal run 98 ft./30 m maximum

Vertical run 9.8 ft./3 m maximum

Specications are subject to change without notice.

Ref. Description

A Macerator toilet

B Dometic ush switch

C Electrical input wire

D Output wires (2) to toilet

E Input wires (2) from ush switch

F Output wires (2) to

ground connection

G Floor mounting hardware kit

H Floor mounting template

I Flush switch wall template

J Water valve adapter

K Discharge elbow tting

Ref. Description

1 Anti-siphon valve

2 Check valve

3 Discharge loop outlet

4 Discharge adapter tting

5 Discharge hose tting

6 Macerator pump

7 Water valve

8 Water valve tting - 0.5 in. NPT

Refer to complete parts list (packed separately)

for additional information.

Specifications Dometic 8100 Series MasterFlush Toilet

5.3 Dimensions (g. 3, page 2)

Ref. Dimension

A 18.375 in. / 467 mm

B 14.75 in. / 375 mm

C18.375 in. / 467 mm

D 17 in. / 432 mm - seat height

E 14.875 in. / 378 mm

F 32 in. / 813 mm - seat lid up

Ref. Dimension

A 15 in. / 381 mm

B 14.75 in. / 375 mm

C18.375 in. / 467 mm

D 13.75 in. / 349 mm - seat height

E 14 in. / 356 mm

F 28 in. / 711 mm - seat lid up

Standard-height models Low-proﬁle models

6.1 Toilet system start-up

1. Turn on water supply to toilet.

2. Press “Flush” switch (2) and hold for at least ve seconds.

3. Toss several sheets of toilet paper into bowl and repeat

cycle. The bowl should completely clear.

6.2 Normal toilet operation

ADDING WATER TO TOILET BOWL

Press “Add Water” switch (1) and hold until desired water level

is achieved. (Do not press “Add Water” switch too long or

overow may occur.) More water is usually added only when

ushing solids.

FLUSHING TOILET

Press “Flush” switch (2) down and hold for a few seconds after waste drains from toilet bowl (about

ve seconds). This switch activates a powerful macerator pump that siphons water and waste from the

bowl, macerates, and propels the efuent through the discharge line/holding tank. To use less water for

liquid-only ushes, press “Flush” switch for shorter period of time.

“DRY BOWL” OPERATION

During periods of rough travel, water in a toilet bowl can splash out and into the bathroom area. To

avoid this situation, press “Dry Bowl” switch (3) to drain water completely from toilet bowl. Water is not

added to bowl during or after pressing the “Dry Bowl” switch.

6 Operation

Caution – Do Not Flush Waste with “Dry Bowl” Switch!

To maintain proper cleanliness and operation of the toilet and macerator pump, water

should be used with every ush.

Dometic 8100 Series MasterFlush Toilet Operation

6.3 Toilet operation when connected to “full tank” shut-down relay and

tank monitor system

When a Dometic 8100 series macerator toilet system uses a “full tank” shut-down relay, electrical

power to the toilet is shut off when the holding tank level reaches “full”. To restore electrical power to

the toilet for ushing, holding tank contents must be emptied or discharged until the “full” tank indica-

tor is not activated.

Caution – Do Not Flush Foreign Objects!

Flush only water, bodily wastes and rapid-dissolving toilet

tissue. Do not ush wet wipes, sanitary napkins, condoms,

diapers, paper cups, cotton swabs, food, hair or liquids

such as oils or solvents as clogging or damage to the toilet

or toilet system may occur.

Note

Make sure all guests understand toilet operation before use.

7.1 Cleaning the toilet

To maintain the toilet’s original, lustrous appearance, use Dometic Toilet Bowl Cleaner or other non-

abrasive bathroom and toilet bowl cleaners. Please follow label directions.

7.2 Routine maintenance

MONTHLY

1. Inspect toilet, plumbing, and plumbing connections, wires, and wire connections.

2. Open and close all plumbing valves, including seacocks.

3. Check in-line water lters and vented loops for blockage.

YEARLY

Check water valve lter. Also check water valve lter if water ow into toilet becomes insufcient.

7.3 During extended periods of non-use

The macerator toilet and sanitation hoses should be protected if toilet will not be needed for an

extended period of time (more than two weeks, especially in hot weather).

1. Flush toilet in “Normal” mode and add 4 oz. (118 ml) of liquid biodegradable laundry detergent

(should NOT contain bleach or environmentally harmful substances). Note: If using sea water for

ushing, shut off power to sea water pump and add fresh water by pouring directly into the bowl

during the ush cycle.

2. Flush toilet at least ve times.

3. Turn off water supply to toilet.

4. Flush the toilet without water. Repeat three times. (This procedure will minimize any remaining

water in the macerator pump.)

5. Turn off power to the toilet.

If system will be subjected to freezing temperatures, please follow above procedure, and then

winterize system as described below.

7 Maintenance and winterizing

Caution

To avoid damaging internal seals, do not clean toilet with abrasive cleaners, caustic

chemicals, or lubricants and cleaners that contain alcohols or petroleum distillates.

7.4 Winterizing

At the end of each season, the Dometic macerator toilet should be winterized for storage by using

potable water-safe antifreeze (if boat or vehicle will be exposed to freezing temperatures).

Caution

Never use automotive-type antifreeze in freshwater systems.

Note

Use nontoxic antifreeze designated for potable water systems. (See boat or vehicle

owner’s manual.)

Maintenance, Winterizing Dometic 8100 Series MasterFlush Toilet

PRESSURIZED FRESH WATER SYSTEM

1. Drain potable water tank and empty holding tank.

2. Add freshwater antifreeze to potable water tank.

3. Flush potable water antifreeze and water mixture through toilet(s) and into entire system,

including the waste holding tank, diverter valve connections, discharge pumps, etc. Turn off

power to toilet.

Each installation is different, so amounts may vary. User discretion is required to assure

adequate protection.

RAW WATER SYSTEM

Parts required: • Hose that ts raw water pump, about 3 ft. (1 m) long

• one container

1. Close intake and discharge seacocks. See Hazard of Flooding risks in this manual.

2. Turn off power to toilet.

3. Disconnect and drain intake hose and in-line lters.

4. Connect hose to raw water pump intake.

5. Place hose connected to pump intake into bucket with antifreeze in it.

6. Turn on power to toilet and ush until antifreeze is removed from toilet.

7. Disconnect power to toilet and reconnect all intake and drain hoses.

Dometic 8100 Series MasterFlush Toilet Maintenance, Winterizing

8 Troubleshooting

Problem Possible Cause Service Instruction

1. Flush function works, but water

in bowl empties slowly or not

at all.

a. Discharge piping is pinched or

kinked.

b. Discharge piping is too high.

(Remember, all upward vertical

loops and should not exceed a

total of 9.8 feet (3 m) in height.)

c. The macerator pump or

discharge piping is blocked.

a. Check discharge piping.

b. Reroute discharge piping.

c. Close seacocks and clear

blockage.

2. Macerator pump makes

unusually loud noise or

continually trips breaker.

a. Foreign material in pump

chamber. a. Close seacocks and clear foreign

material.

3. Flush cycle is not activated after

pushing on ush switch. a. Holding tank is full and signal

from tank has shut down

electrical power to toilet.

b. Electrical power to toilet is shut

off or disrupted.

c. Flush switch is malfunctioning.

a. Empty holding tank.

b. Check wiring and circuit

breakers (or fuses).

c. Replace ush switch.

4. Insufcient or no water enters

the bowl. a. Water supply line is pinched or

kinked.

b. Screen in water valve is blocked.

c. Intake water lters are blocked

(in raw water system).

d. Water valve is malfunctioning.

a. Check water supply line.

b. Clear blockage at water valve.

c. Clear water lters.

d. Replace water valve.

Troubleshooting Dometic 8100 Series MasterFlush Toilet

Questo manuale è adatto per i seguenti modelli

Indice

Lingue:

Altri manuali Dometic Toilette

Dometic

Dometic CT 4110 Manuale utente

Dometic

Dometic Saneo B Manuale utente

Dometic

Dometic Saneo B Manuale utente

Dometic

Dometic 300 Series Manuale utente

Dometic

Dometic 8000 Series Manuale utente

Dometic

Dometic 310 RV Manuale utente

Dometic

Dometic CT 4110 Manuale utente

Dometic

Dometic SANIPOTTIE 960 Series Manuale utente

Dometic

Dometic 300 Series Manuale utente

Dometic

Dometic SeaLand MasterFlush 8900 Series Manuale utente

Dometic

Dometic 970 SERIES Manuale utente

Dometic

Dometic 510H Manuale utente

Dometic

Dometic M65-700 Manuale

Dometic

Dometic CT 3050 Manuale utente

Dometic

Dometic MasterFlush 8740 Manuale utente

Dometic

Dometic MasterFlush 8100 Series Manuale utente

Dometic

Dometic MasterFlush 8100 Series Manuale utente

Dometic

Dometic SeaLand 4300 Series Manuale utente

Dometic

Dometic CT*4 series Manuale utente

Dometic

Dometic CTLP4110 Manuale utente

Dometic

Dometic CT*4 series Manuale utente

Dometic

Dometic 9107100630 Manuale utente

Dometic

Dometic 300 Series Manuale utente

Dometic

Dometic M65-700 Manuale

Manuali Toilette popolari di altre marche

Toto

Toto Washlet TCF4911 Series Manuale utente

Kohler

Kohler K-6419 Manuale utente

Grohe

Grohe Sensia ARENA Manuale utente

Kohler

Kohler K-5171K Istruzioni per il montaggio

Geberit

Geberit AQUACLEAN MERA CLASSIC Manuale utente

Kohler

Kohler K-24097X Istruzioni per il montaggio

Better Bathrooms

Better Bathrooms BUN/BeBa 27555/78725 Manuale utente

American Standard

American Standard CONCEPT Cube TF-2704 Manuale utente

BIOLAN

BIOLAN ECO Manuale elenco delle parti

Thetford

Thetford C260 Series Manuale utente

KELISS

KELISS T162A Series Manuale utente

Kohler

Kohler K-22241K Istruzioni per il montaggio

Kohler

Kohler ESCALE K-32771T-NS Manuale utente

BIOLAN

BIOLAN GARDEN TOILET Manuale elenco delle parti

washloo

washloo Prestige Manuale utente

JABSCO

JABSCO 37010 Series Manuale utente

Drive

Drive TSE 150 Manuale utente

Olympia

Olympia EPOQUE 69209 Manuale di istruzioni
