Draytek Vigor2300 Guida all'installazione

Chapter 0. Preface

Chapter 1. Getting Started

Chapter 2. Installation & Setup

......................................................................

.............................................................

.............................................................................

............................................

....................................................................

.................................................................................

............................................

........................................................

.............................................................................

...........................................................

....................................

.....................................................................

..................................................

...................................................

...............................................................

..............................................

...................................................................................

0.1 About This Guide

0.2 Copyright Declarations

0.3 Trademarks

0.4 How To Become A Registered Owner

0.5 Safety Instructions

0.6 Warranty

0.7 European Community Declarations

1.1 Introduction

1.2 Unpacking Your Package

1.3 Front Panels , Back Panels & Side Panels.

1.4 Detailed Features

2.1 Typical Connection to Network

2.2 Configure Your Router

2.3 Configure Your Broadband Access

Further Help

. PPPoE Setup

. PPTP Setup

. Static IP User and Dynamic IP(DHCP Client)

.........................................................................

...........................................................................

............................

Table of Contents

Preface

0.1 About This Guide

0.2 Copyright Declarations

0.3 Trademarks

0.4 How To Become A Registered Owner

0.5 Safety Instructions

0.6 Warranty

0.7 European Community Declarations

This manual is designed to assist users in using the router. Information

in this document has been carefully checked for accuracy; however, no

guarantee is given as to the correctness of the contents. The information

contained in this document is subject to change without notice. Should

you have any inquiries, please feel free to contact our support via E-mail,

Fax or phone. For latest product info and features, please visit our

website at .

publication contains information that is protected by copyright.

No part may be reproduced, transmitted, transcribed, stored in

a retrieval system, or translated into any language without written

permission from the copyright holders.

0.1 About This Guide

0.2 Copyright Declarations

www.draytek.com.tw

Microsoft is a registered trademark of Microsoft Corp. Windows,

Windows 95, 98, 98SE, Me, NT, XP and 2000 are trademarks of

Microsoft Corp. Other trademarks and registered trademarks of

products referred to in this manual are the properties of their

respective owners.

Web registration is preferred. Please visit our website. Alternatively, fill in

the registration card and mail it to the address found on the reverse side

of the card. Registered owners will receive future product and update

information.

Please read the installation guide thoroughly before you set up the

router.

The router is a complicated electronic unit that may be repaired only

be authorized and qualified personnel. Do not try to open or repair

the router yourself.

Do not place the router in a damp or humid place, e.g. a bathroom.

The router should be used in a sheltered area, within a temperature

range of +5 to +40 Celsius.

Do not expose the router to direct sunlight or other heat sources.

The housing and electronic components may be damaged by direct

sunlight or heat sources.

Keep the package out of reach of children.

When you would like to dispose of the router, please follow the local

regulations on conservation of the environment.

We warrant to the original end user (purchaser) that the routers will

be free from any defects in workmanship or materials for a period of

three (3) years from the date of purchase from the dealer. Please keep

your purchase receipt in a safe place as it serves as proof of date of

purchase.

During the warranty period, and upon proof of purchase, should the

product have indications of failure due to faulty workmanship and/or

0.3 Trademarks

0.4 How To Become A Registered Owner

0.5 Safety Instructions

0.6 Warranty



Hereby, DrayTek Corporation declares that the router is in compliance

with the essential requirements and other relevant provisions of R&TTE

Directive 99/5/EC.

0.7 European Community Declarations

materials, we will, at our discretion, repair or replace the defective

products or components, without charge for either parts or labor, to

whatever extent we deem necessary to restore the product to proper

operating condition. Any replacement will consist of a new or re-

manufactured functionally equivalent product of equal value, and will

be offered solely at our discretion. This warranty will not apply if the

product is modified, misused, tampered with, damaged by an act of

God, or subjected to abnormal working conditions.

The warranty does not cover the bundled or licensed software of other

vendors. Defects which do not significantly affect the usability of the

product will not be covered by the warranty.

We reserve the right to revise the manual and online documentation

and to make changes from time to time in the contents hereof without

obligation to notify any person of such revision or changes.

Getting Started

The Vigor2300 router provides multiple users with efficient and reliable

access over a DSL line, or Cable Modem service to the Internet and

corporate LAN for using E-mail, sharing documents, Web surfing, file

transfers, etc.

The broadband access protocol supports PPPoE, PPTP, Dynamic IP(DHCP)

and Static IP. These protocols comply with worldwide

Ethernet-based DSL/Cable Modem standards.

More than that, it also provides firewall and Virtual Private Networking

(VPN) features to protect your local area network when connecting to

the Internet.

1.1 Introduction

1.2 Unpacking Your Package

1.3 LED Indicators & Back Panels

1.4 Detailed Features

1.1 Introduction

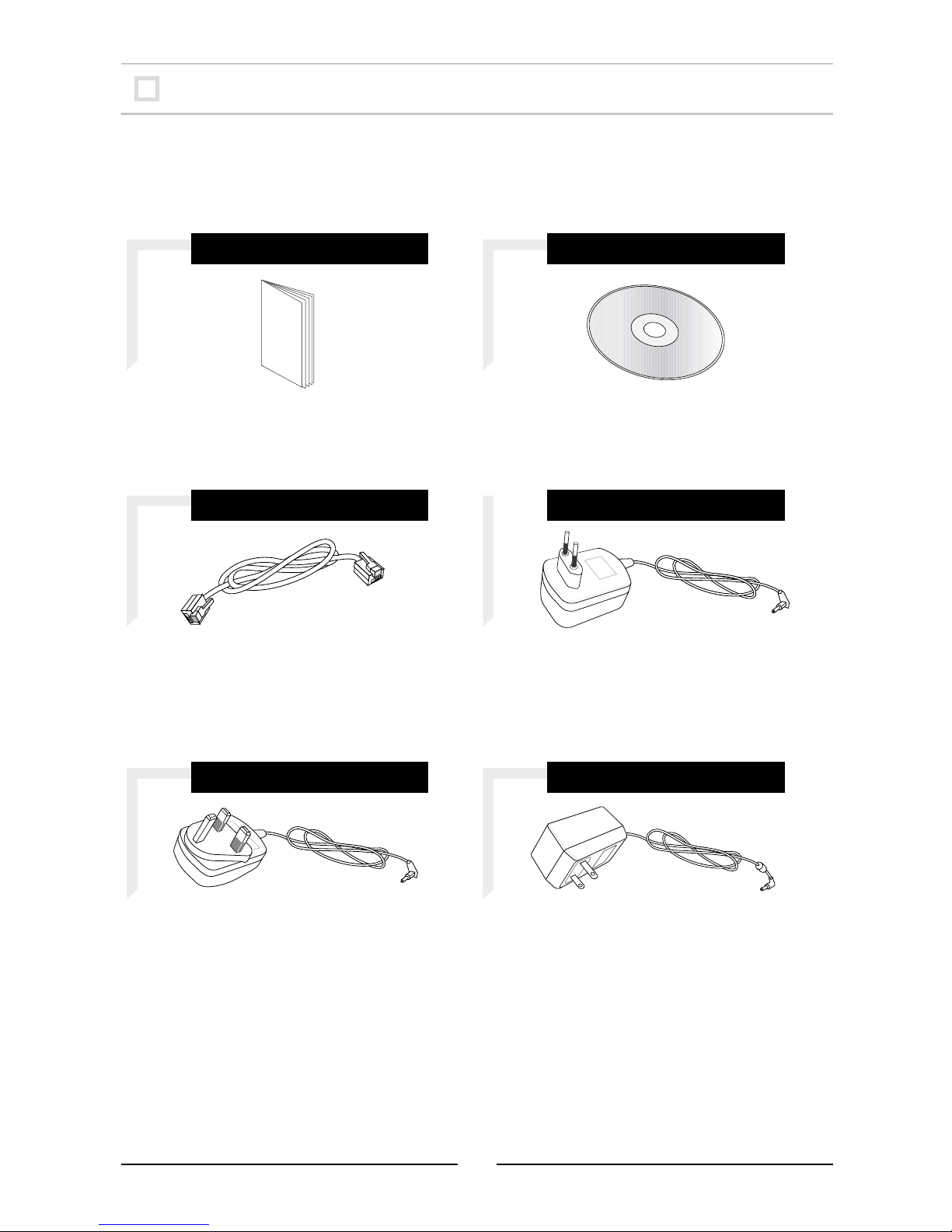

Your Vigor2300 router package should contain the items listed below.

If any item is missing or damaged, contact your dealer or DrayTek

Customer Service Department immediately.

1.2 Unpacking Your Package

For Euro / China Users

One Quick Start Guide with warranty

/registration card

One CD-ROM; includes User Manual

in electronic form, released firmware,

and utilities

Quick Start Users Guide

One Ethernet LAN cable (blue) for

connection to a computer or hub

Ethernet LAN Cable (RJ-45 Cable)

One AC/DC power adapter (black),

AC100-240V, input DC5V/2.8A output

for the router be used in EU and China

One AC/DC power adapter (black),

AC100-240V, input DC5V/2.4A output

for the router be used in Ireland and the

One AC/DC power adapter (black),

AC100-240V, input DC5V/2.8A

output for the router be used in the

America and Taiwan

For American / Taiwan Users

For UK Users

CD (Driver)

1.3 Front Panels, Back Panels & Side Panels

The front panel provides LED for device status. Refer to the following

table for the meaning of each feature.

Link/Act

Wide Area Network port status. When connected

to the broadband device, the ADSL/Cable

modem, this LED should be on.

Local Area Network port status. A steady LED

indicates a connection between computers on your

LAN. A flickering LED indicates data transmission.

100Mbps

Speed status of the WAN connection.

A steady LED indicates 100Mbps speed.

If the Link light is on and the 100 light is off,

the speed is 10Mbps.

100Mbps

Speed status of the Ethernet connection.

A steady LED indicates 100Mbps speed.

If the Link light is on and the 100 light is off,

the speed is 10Mbps.

VPN connection status. A steady LED indicates

VPN connection is up.

VPN

Printer Printer port status. A steady LED indicates the

printer is connected.

WAN

Ethernet

1-4

Online Online status of the Vigor2300. A steady LED

indicates the Internet access is available

Operation status of the Vigor2300. After start

up, the LED will blink once every two seconds

to indicate proper operation.

System

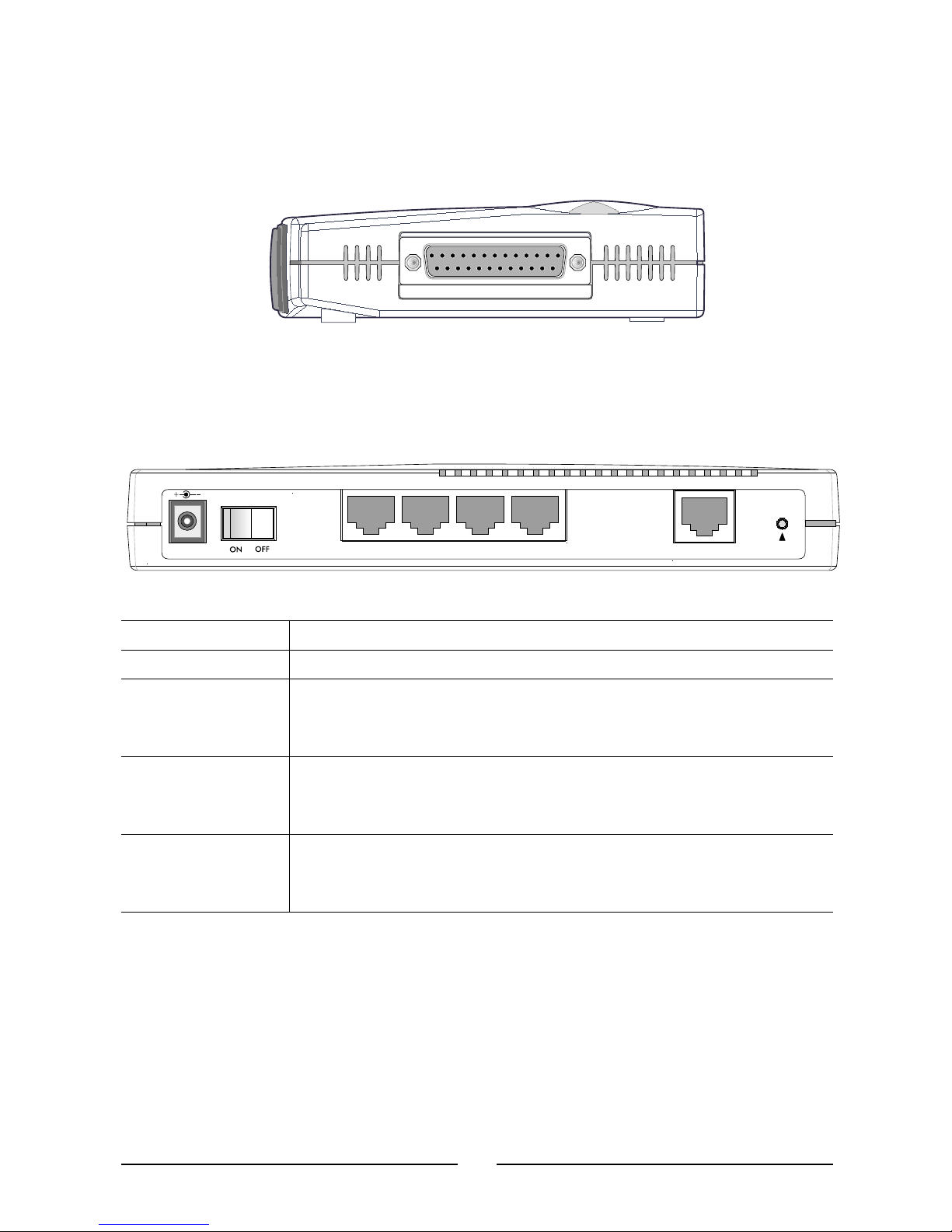

Printer Port

The printer port is located on the right side of the Vigor2300. Use a

printer cable to connect to your printer.

Side Panel

Back Panel

For connection the Vigor2300 to an electrial outlet.

WAN

Power Use this switch to provide power to your Vigor2300.

The RJ-45 Ethernet ports labeled WAN is used to

connect your Vigor2300 to your DSL or cable

modem.

Factory

Reset

DC 5V

Resets the configuration to default settings. Refer

to the Appendix for instructions on how to perform

a factory reset.

The RJ-45 Ethernet ports labeled 1-4 are used to

connect your computers using Ethernet cables to

your Vigor2300.

LAN ports

1-4

4X WAN

2X1X

DC5V Factory

Reset

Power

The Vigor2300 router provides many built-in server and

software features to provide a convenient comprehensive solution

for your SOHO network.

For DSL

users, the router has a built-in PPPoE client for establishing a

connection with the ISP. There is no need to install a further PPPoE

driver on your computers.

Some DSL

modems (e.g. Alcatel modems) only provide a PPTP local connection

for an end user computer. The router has a built-in PPTP client for

establishing a connection for your local network. There is no need to

install a PPTP client driver on your computers.

In most

cable modem environments, the router supports a DHCP client on the

WAN port. They can automatically get IP network settings from a cable

head-end access server.

For most dynamic IP users, the client

can update the WAN IP address to the registered DDNS provider when

the WAN IP has been changed.

For the router, the

client can get network time information from the specfied time server

and provide a time base for call scheduling usage.

WAN Features

Point-to-Point Protocol over Ethernet (PPPoE) Client:

Point-to-Point Tunnelling Protocol (PPTP) Client:

Dynamic Host Configuration Protocol (DHCP) Client:

Dynamic DNS (DDNS) Client:

Simple Network Time Protocol (SNTP) Client:

1.4 Detailed Features

Network Features

The server

provides an easy-to-configure function for your local IP network. It can

automatically assign IP network configurations for local PCs, such as IP

address, IP netmask, gateway IP address, and Domain Name server etc.

The DNS proxy maintains a

DNS cache, including a mapping table of domain names and IP

addresses. The proxy also remembers DNS query packets sent through

the router and saves them into its own DNS cache. For enhanced speed,

when a DNS query packet enters the router, the proxy searches its local

DNS cache. If matched, the router sends an answer to the host that sent

the DNS query packet. Only unmatched DNS queries require querying a

WAN Domain Name Server.

Multi-NAT

allows multiple SOHO users to concurrently connect to an Internet

Service Provider (ISP) via a single Internet access account or multiple

statically-assigned IP addresses.

Used in most

LAN-to-LAN applications. The RIP protocol exchanges routing

information between routers.

Dynamic Host Configuration Protocol (DHCP) Server:

Domain Name Server (DNS) Proxy:

Mutiple Network Address Translation (Multi-NAT):

Routing Information Protocol (RIP) Support:

Indice

Altri manuali Draytek Router di rete

Draytek

Draytek Vigor2500 series Manuale utente

Draytek

Draytek Vigor2927 Series Manuale utente

Draytek

Draytek Vigor3300 Series Manuale utente

Draytek

Draytek Vigor 3200 Series Manuale utente

Draytek

Draytek Vigor2920n Manuale utente

Draytek

Draytek VigorSwitch P1080 Manuale utente

Draytek

Draytek Vigor 2710 Manuale utente

Draytek

Draytek Vigor 2800 Manuale utente

Draytek

Draytek Vigor2710 Series Manuale utente

Draytek

Draytek Vigor3910 Series Manuale utente

Draytek

Draytek Vigor2130 Series Manuale utente

Draytek

Draytek Vigor2110 Series Manuale utente

Draytek

Draytek Vigor 2110 Manuale utente

Draytek

Draytek VigorPro 5300 Manuale utente

Draytek

Draytek VigorFly 210 Manuale utente

Draytek

Draytek Vigor 2763 Series Manuale utente

Draytek

Draytek Vigor2600 plus Series Manuale utente

Draytek

Draytek Vigor3100 Manuale utente

Draytek

Draytek Vigor2132 Series Manuale utente

Draytek

Draytek Vigor2760 Manuale utente

Draytek

Draytek Vigor 2700 Series Manuale utente

Draytek

Draytek Vigor2760Vn Manuale utente

Draytek

Draytek Vigor2866 Series Manuale utente

Draytek

Draytek Vigor2765 Series Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
