Drive Nitro RTL10266 Manuale utente

Rev4.10.23.14

parts list

Item # RTL10266

WeIghT CapaCITy: 300 LBs (136 Kg)

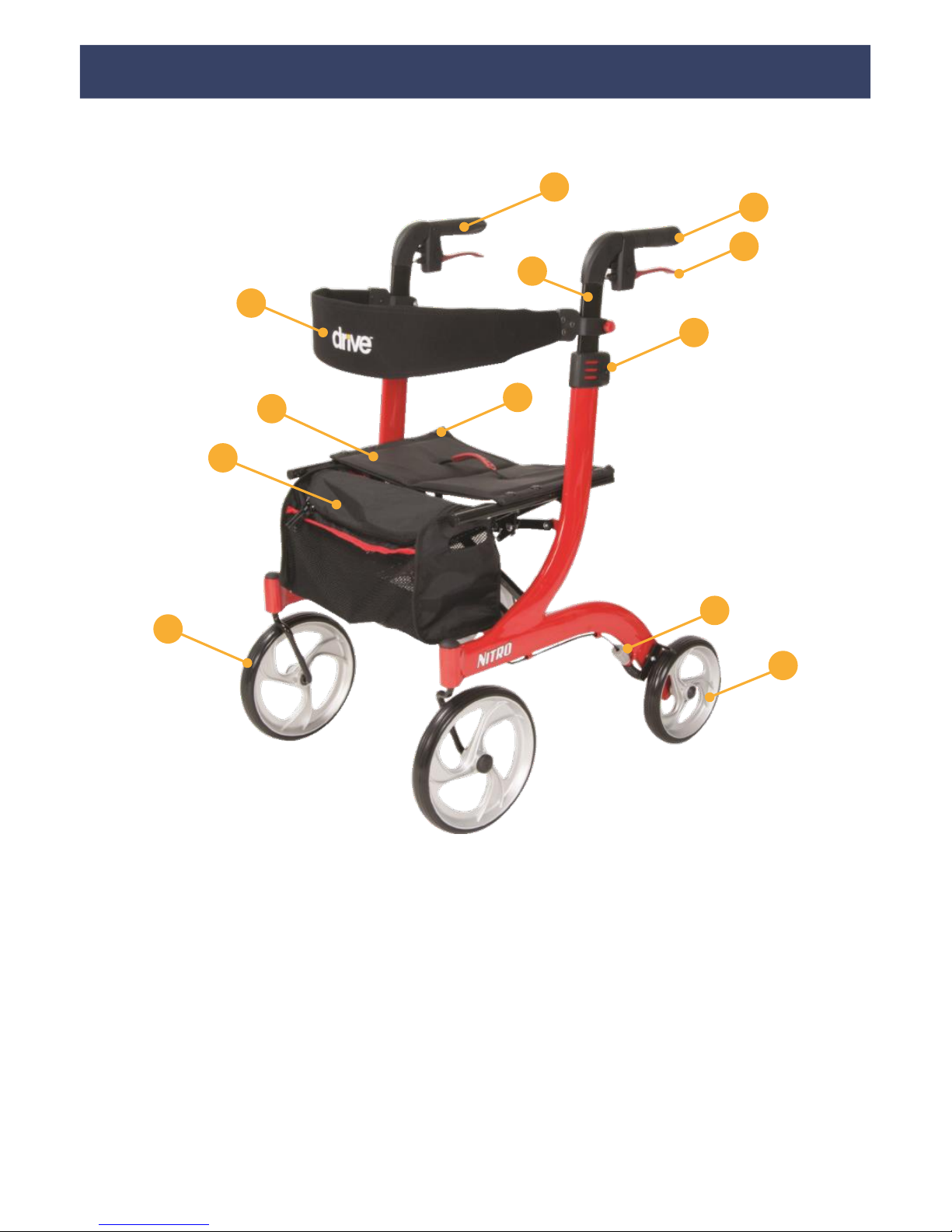

1. Handgrip

2. Adjustable tubing handgrip

3. Rear reflector on handgrip

4. Brake lever

5. Interlock button for handgrips

6. Back Rest

7. Seat

8. Bag

9. Front wheel

10. Brake adjust screw

11. Rear wheel 12. Safety bow

introduction

The Walking aid is suitable for a single user with limited mobility. The nitro is ideal for

indoor and outdoor use.

nitro includes:

1. Bag

2. Back Rest

3. Operating Instructions

unfolding the nitro

Position the Nitro on its

wheels. Open the red

safety bow and lift up

(figure 1). Press both

pipes from the seat

downwards until they

interlock (figure 2).

Rev4.10.23.14

height adjustment

Press the red release buttons for handgrips below, as

shown in figure 3, and pull the handgrip upwards at

the same time. As the handle moves, release the

button. This automatically locks in the next possible

height. Repeat this process until the desired height is

reached.

removing / attaching the

carry bag

To remove bag, twist knobs located on the front end of the seat frame outward

(Figure 4 & 5). Pull out knobs and slide bag out of receptacle. To replace bag,

fold the Nitro slightly and reverse above steps.

braking / locking

Pull both brake levers upwards to apply the brakes

while the Nitro is moving (see figure 6). Always brake

slowly and steady.

Press both brake levers down to apply the locks while

the Nitro is stationary (see figure 7). Pull up the brake

levers and release to release the locks.

The effect of the brakes can be affected by abrasion of

the wheels.

Regularly test the brakes.

adjustment of

brakes

To adjust the braking

strength, adjust the

downwards (figure 8)

Rev4.10.23.14

sitting

Position the Nitro on an even and solid surface. Lock the

brakes (parking position). The Nitro must stand and

must not slip. Sit straight up and do not lean backwards.

(See figure 10).

DO NOT MOVE ROLLATOR WHILE SEATED.

folding / transport / storage

safety instructions

•Use only as a walking aid!

•Use only on even and solid surfaces.

•Maximum user weight: 300 lbs.

•Regularly check the screws and fasteners on the Nitro and retighten if necessary.

•Use bag only for transport of objects and do not overload. Maximum load: 11 lbs.

•Do not expose the product to temperatures above 104°F for an extended period of

time, as this can cause the Nitro parts to overheat and burn the user.

•Please make sure the Rollator is fully opened, seat is down and the folding bar

under seat is locked in the down position.

•Be sure that both knobs are fully tightened and are at equal heights. Test Rollator

for stability before applying full weight to hand grips.

•Test the brake lever before operating the Rollator. When wheels are locked, lock

bar on rear wheels should prevent wheels from turning. When locks are released,

the wheels should turn freely.

•Always lock the brake lever before sitting and do not use seat when unit is on an

incline or uneven ground.

•Replace tires when significantly worn or damaged.

•DO NOT MOVE ROLLATOR WHILE SEATED. This is a

walking aid only and is not to be used as a transportation device.

cleaning / maintenance

Clean regularly by hand with a damp cloth. Do not use aggressive detergents.

lifetime limited warranty

The frame of your Drive Medical product is warranted to be free of defects in material

and workmanship for the lifetime of the original consumer purchaser. The brake

handle and housing are covered for a period of 5 years of the original consumer

purchaser.

This device was built to exacting standards and carefully inspected prior to shipment.

This Lifetime Limited Warranty is an expression of our confidence in the materials and

workmanship of our products and our assurance to the consumer of years of

dependable service.

This warranty does not cover device failure due to owner misuse or negligence, or

normal wear and tear. The warranty does not extend to

non-durable components, such as rubber accessories, casters, and grips, which are

subject to normal wear and need periodic replacement.

If you have a question about your Drive device or this warranty, please contact an

authorized Drive dealer.

Warning: The items and packaging in this shipment contain chemicals known to the

state of California to cause cancer, birth defects or other reproductive harm.

*This product meets or exceeds all federal safety and environmental regulations.

Drive is a trademark of Medical Depot, Inc.

Port Washington N.Y. 11050 USA Made in China

lista de partes

Item # RTL10266

CapaCIdad: 300 LBs (136 Kg) de peso

1. Mango

2. Tubo ajustable del mango

3. Reflector trasero sobre el

mango

Rev4.10.23.14

4. Palanca del freno

5. Botón de enclavamiento para los mangos

6. Respaldo

7. Asiento

8. Bolsa

9. Rueda frontal

10. Tornillo de ajuste del freno

11. Rueda posterior

12. Arco de seguridad

introducción

Este dispositivo auxiliar para caminar es adecuado solamente para un usuario con

capacidad limitada de movilidad. El Nitro es ideal para usarse en interiores o exteriores.

el nitro incluye:

1. Bolsa

2. Respaldo

3. Instrucciones de operación

para desdoblar el nitro

Coloque el Nitro sobre sus

ruedas. Abra el arco de

seguridad y empuje hacia

abajo ambos tubos del

asiento hacia arriba (figura

1) hasta que se traben

(figura 2).
