Drive Q-011000 Manuale utente
Dynamic Rollator
item #s:
Q-011000
Q-012000
Q-154000
Q-172000
Q-848000
www.drivemedical.com
Rev.1.07.21.14

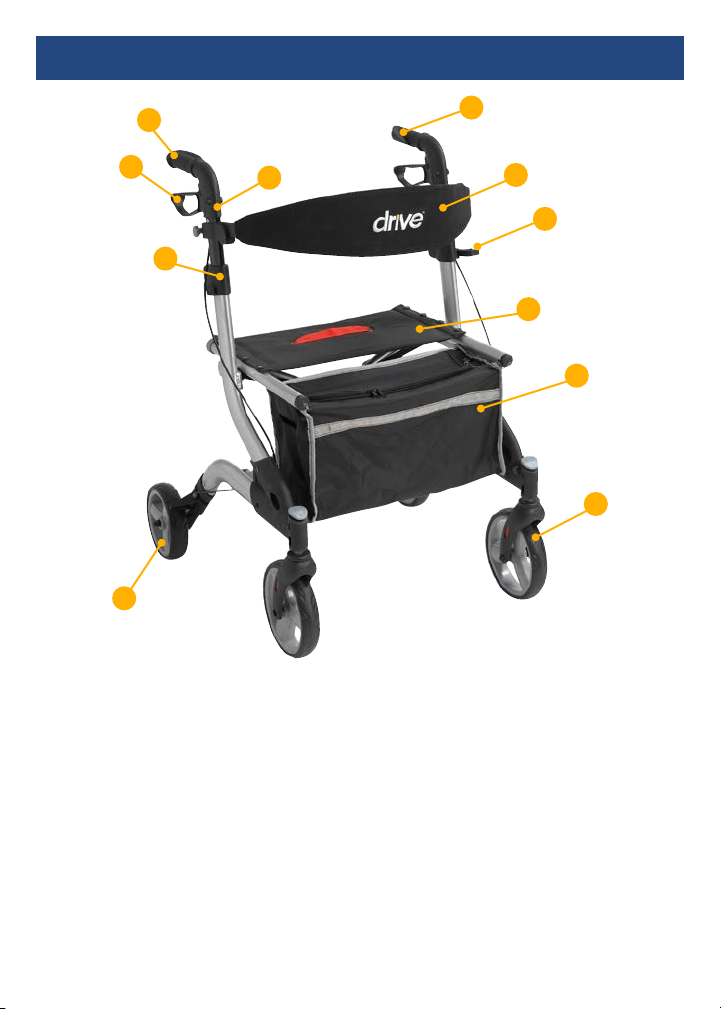

parts list
1. Handgrip
2. Adjustable tubing handgrip
3. Rear reflector on handgrip
4. Brake lever
5. Interlock button for handgrips
6. Backrest
7. Seat
8. Bag
9. Front wheel
10. Rear wheel
11. Cane Holder
Rev.1.07.21.14
Item # Q-848000
WEIGHTCAPACITYLBSKG
1
5
6
7
8
9
2
4
10
3
11
The Walking aid is suitable for a single user with limited mobility. The Dynamic
Rollator is ideal for indoor and outdoor use.
1. Wheels 3. Carry Bag 5. Cane Holder
2. Handles 4. Backrest 6. Operating Instructions
introduction
includes:
1. Remove contents from carton. (Figure 1)
assembly instructions
2. Insert front wheel (A) into receptacle
located on the front of the frame. A click
can be heard when the wheel is securely
in place. Repeat for the second front
wheel (Figure 2).
Figure 2
A
Figure 1
E
C
A B
D
3. Insert back wheel (B) into back of frame
by depressing push pin and sliding into
the back receptacle, making sure the
wheels face outwards from the frame.
The push pin will snap into place when
secure. Repeat for the second back
wheel. (Figure 3)
4. Unfold the Dynamic Rollator by
pressing down on both sides of the
seat frame. (Figure 4)
5. Insert the handles (C) into the handle
receptacles. Press in the red buttons
located on the back of the Dynamic
Rollator and slide the handles into the
frame to secure the handles in place.
(Figure 5)
Rev.1.07.21.14
Figure 5
C
Figure 3
B
Figure 4
6. Attach the bag (D) to the seat frame by
sliding the bag into the grooves located on
the inside of the frame. Secure the bag
in place by sliding the knobs into the end
of the frame and rotating. Attach knobs
to the frame by hooking the clasp into the
receptacle on the outside of
the frame. (Figure 6)
NOTE Fold the Dynamic
Rollator slightly to make it
easier to install the bag.
Figure 6
D
7. Attach the backrest (E) by sliding the
backrest hooks down into the receptacles
located on the front of the frame.
(Figure 7)
8. Attach the cane holder (F) to the side
of frame by sliding it down over the
receptacle located on the side of the
handle height adjustment buttons.
(Figure 8)
Figure 7
E
Figure 8
F
Rev.1.07.21.14
height adjustment
9. Press the red release buttons (G)
for handgrips, as shown in Figure
9, and pull the handgrip upwards
at the same time. As the handle
moves, release the button. This
automatically locks in the next
possible height. Repeat this
process until the desired height is
reached.
braking / locking
10. Pull both brake levers upwards to apply the
brakes while the Dynamic Rollator is moving.
(Figure 10) Always brake slowly and steady.
Press both brake levers down to apply the
locks while the Dynamic Rollator is stationary.
(Figure 11) Pull up the brake levers and
release to release the locks.
The effect of the brakes can be affected by
abrasion of the wheels.
Regularly test the brakes.
Figure 10
Figure 11
Figure 9
G
sitting
11. Position the Dynamic Rollator on an even and solid surface. Lock the brakes
(parking position). The Dynamic Rollator must stand and must not slip. Sit
straight up and do not lean backwards.
DO NOT MOVE ROLLATOR WHILE SEATED.
folding / transport / storage
12. To fold, pull seat upwards by the red handle on the seat plate as shown in
Figure 12. The Dynamic Rollator can now be folded completely and secured by
using the safety clasp (G) as shown in Figure 13.
Figure 13
G
Figure 12
safety instructions
•Use only as a walking aid!
•Use only on even and solid surfaces.
•Maximum user weight: 300 lbs.
•Regularly check the screws and fasteners on the Dynamic Rollator and retighten
if necessary.
•Use bag only for transport of objects and do not overload. Maximum load: 11 lbs.
•Do not expose the product to temperatures above 104°F for an extended period
of time, as this can cause the Dynamic Rollator parts to overheat and burn the
user.
•Please make sure the Rollator is fully opened, seat is down and the folding bar
under seat is locked in the down position.
•Be sure that both knobs are fully tightened and are at equal heights. Test
Rollator for stability before applying full weight to hand grips.
•Test the brake lever before operating the Rollator. When wheels are locked, lock
bar on rear wheels should prevent wheels from turning. When locks are released,
the wheels should turn freely.
•Always lock the brake lever before sitting and do not use seat when unit is on an
incline or uneven ground.
•Replace tires when significantly worn or damaged.
•DO NOT MOVE ROLLATOR WHILE SEATED. This is a walking aid only
and is not to be used as a transportation device.
cleaning / maintenance
Clean regularly by hand with a damp cloth. Do not use aggressive detergents.
Rev.1.07.21.14
The frame of your Drive Medical product is warrantied to be free of defects
in material and workmanship for the lifetime of the product for the original
consumer purchaser. The brake handle and housing are covered for a period
of 5 years from the date of purchase for the original consumer purchaser.
This device was built to exacting standards and carefully inspected prior to
shipment. This Lifetime Limited Warranty is an expression of our confidence
in the materials and workmanship of our products and our assurance to the
consumer of years of dependable service.
This warranty does not cover device failure due to owner misuse or
negligence, or normal wear and tear. The warranty does not extend to
non-durable components, such as rubber accessories, casters, and grips,
which are subject to normal wear and need periodic replacement.
If you have a question about your Drive device or this warranty, please
contact Drive Medical toll-free at 877-224-0946.
© 2014 Medical Depot, Inc. All rights reserved.
Drive is a trademark of Medical Depot, Inc.
Port Washington N.Y. 11050 USA Made in China
lifetime limited
warranty
Rev.1.07.21.14
