DT Research DT300Q11 Istruzioni per il montaggio

Rugged Tablet

BASIC OPERATION GUIDE

DT300Q11

INTRODUCTION

Thank you for acquiring the DT311Q, part of DT Research’s line of Rugged Tablets. Featuring a slim yet robust

enclosure, the DT300Q11 with 11.6” TFT display is powered by the Qualcomm octa-core processor, offering

optimal combinations of performance and power savings. The DT311Q is available with Android operating

system. The software operating system features web browser, client/ server computing software, media

player, accessories, and applications support.

PACKAGE CONTENTS

•One DT300Q11 with Battery Pack and Handstrap

•AC-DC Power Adapter with Power Cord

•Basic Operation Guide

* If your DT311Q contains camera or barcode scanner, please refer to the Tablet Modules Basic Operation Guide for detailed

operation.

DT311Q:

Input/ Output Ports Button Functions

A Headphone Jack BUTTON ACTION

B LAN Port 1 power button

C USB 3.0 Port 2 programmable buttons

USB Type-C Port (power input)

Battery Latch

•Push the switch to unlock the latch, than slide the

latch to left to remove the battery.

E USB 2.0 Port

PRECAUTIONS

•Always exercise care when operating and handling the DT300Q11.

•Do NOT apply excessive pressure to the display screen.

•We recommend using the Digital Pen (optional) to keep the screen clean.

•Avoid prolonged exposure of the display panel to any strong heat source. Wherever possible, the

DT300Q11 should face away from direct light to reduce glare.

•If the AC-DC power adapter is used to recharge or power the tablet, do NOT use any AC-DC adapter other

than the one provided or acquired from the manufacturer or its partners.

•In the unlikely event that smoke, abnormal noise, or strange odor is present, immediately power off the

DT300Q11 and disconnect all power sources. Report the problem to your device provider immediately.

•Never attempt to disassemble the DT300Q11, as this will void the warranty.

NOTE:

To obtain protection consistent with any IP rating for the device, the I/O (audio, power, USB, card reader,

etc.) port doors must be closed. If the IP protection is compromised by mishandling or misuse, such as by

leaving port doors open or improperly closed, any resulting product damage will not be covered under any

DT Research warranty.

BASIC FEATURES

The DT300Q11 rugged tablet integrates a bright display, USB ports, and embedded networking elements

such as wireless LAN and Bluetooth. A DT300Q11 typically integrates an 802.11ac wireless LAN (WLAN)

adapter that may connect to other wireless devices or access points. If your DT300Q11 does not come with

such a network adapter, please consult your device provider to establish the desired network connectivity.

OPERATION

Powering ON and OFF

To activate the DT300Q11, push and quickly release the Power Button. The display will come on in a few

seconds. To put the DT300Q11 in Standby mode, push and quickly release the Power Button. To turn the

DT300Q11 off for extended storage, power off safely using any software function that “shuts down

computer” provided in the software operating system.

NOTE:

The battery pack shipped with your tablet may be low in power—please use the AC-DC adapter with

the DT300Q11 when setting up for the first time to fully charge the battery pack, or use the optional

battery charger kit.

NOTE:

When the battery pack is charging, the blue-colored Battery LED should blink slowly. If plugging in the

AC-DC adapter does not trigger this blinking activity and the LED stays dark, the battery pack(s) may

have been drained substantially. Try unplugging/ replugging the AC-DC adapter to the DT300Q11 a

few times to activate the charging process.

NOTE:

To conserve power, use (push and quick release) the Power Button to put the tablet in “Standby”

mode while not in use. Pushing briefly on the same button will wake up the system within seconds.

Start Up

If the power up (from Standby mode or otherwise) is successful, the appropriate interface will be displayed

after a launch sequence of several seconds. The wireless LAN connection may take 10-15 seconds to be

established.

Configuring the Mobile Tablet

The DT300Q11 may be configured using the utilities and methods dictated by the software operating system.

The DT300Q11 should be configurable for various properties such as user profiles, network features, and

several system elements.

Wireless Networking

Wireless LAN

The DT300Q11 is often delivered with an embedded (user-inaccessible) 802.11ac WLAN adapter equipped

with a hidden custom antenna.

• Through the support of typical WLAN adapters, the DT300Q11 should be able to detect all 802.11 access

points in the vicinity for you to select the access point of your choice for connection.

• The SSID and WEP/WPA/WPA2 (if enabled) parameters on the DT300Q11 and the access points have to

match. The SSID is case-sensitive and it is recommended that you enable WEP/WPA/WPA2 encryption (or

advanced alternatives) for secure access.

• When WEP/WPA/WPA2 is enabled, you may need to consult your network administrator or your

networking equipment literature to properly configure associated settings such as Authentication mode,

etc.

• Refer to the access point operating manuals for setting up the 802.11 access points.

Bluetooth

The Bluetooth configuration application is enabled from the Android Settings APP. Follow the instructions

and options provided within the application to configure and invoke Bluetooth connectivity with the

corresponding peripherals.

USING THE MOBILE TABLET

Peripherals Support

Through its USB ports, the DT300Q11 supports a wide range of USB-based peripherals. These peripherals are

applicable for software installation, applications storage, data storage, and system software recovery and

updates.

Peripherals Support

1. Slide the battery latch to the unlocked position.

2. Lift the battery pack off the compartment.

3. Fit another battery pack into place.

4. Slide the latch to the locked position.

5. If you want to purchase extra battery packs, please contact

your dealers, or visit our Support page:

https://www.dtresearch.com/en/Support/contact.html

CAUTION:

There is danger of explosion if the battery is incorrectly replaced. Replace the battery only with the

Tablet manufacturer’s battery. Discard used batteries according to the dealer’s instructions.

CAUTION:

Do not attempt to disassemble the battery pack.

For More Support

Users can download the Tablet Modules Basic Operation Guides from the DT Research website.

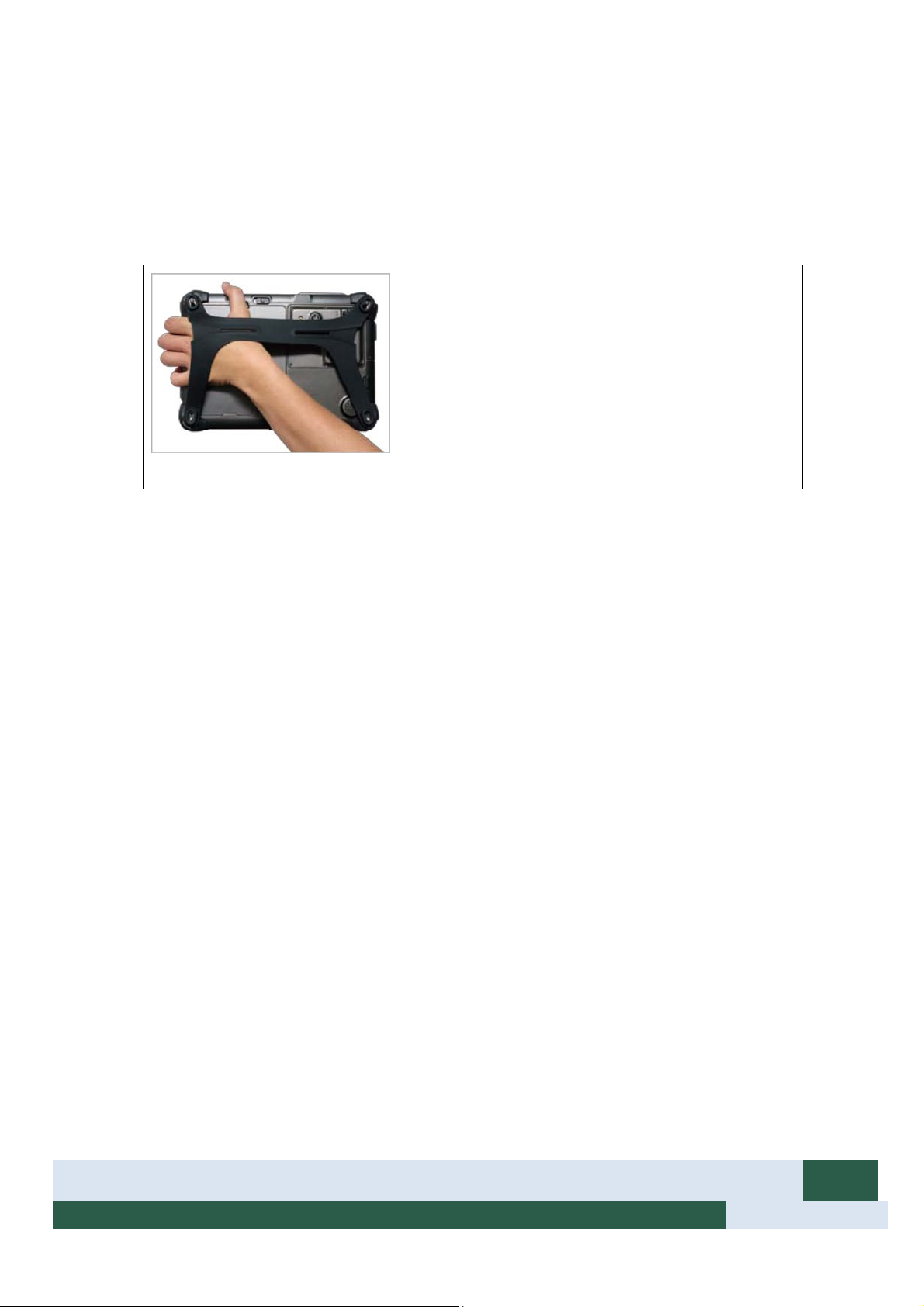

To Hold the Tablet

Left hand: grip the left back side of the tablet with your left hand

four index fingers, with thumb resting on the top of the back side

of the tablet and palm securely against the back.

Right hand: grip the right back side of the tablet with your right

hand four index fingers, with thumb resting on the top of the back

side of the tablet and palm securely against the back.

Specifications:

Item

DT300Q11

System

CPU Qualcomm Octa-Core, 2.0GHz

RAM 4GB

Storage 64GB

Operating System Android 9.0 and 10

Display 11.6” LED-backlight, high-brightness (1000 nits) screen with capacitive touch, outdoor viewable

Display Resolution 1920 x 1200

Network Interface Wi-Fi 802.11ac, 2.4GHz/ 5GHz dual band; Bluetooth 4.2 LE

Control Switch and

Buttons

1 power button, 2 brightness control buttons, 5 programmable buttons

Indicator 1 power/ battery status LED

Speaker Built-in speaker

I/O Ports

USB port USB 2.0 x 1, USB 3.0 x 1, USB Type C x 1 (data transmitting and charging)

Headset Jack 1 (3.5mm)

SD Slot 1 micro SD card slot

Ethernet Ethernet 10/ 100/ 1000MB Base-T LAN

Mechanical and Environmental

AC/DC Adapter Input: 100 – 240V AC; Output: 20V DC, 3.25A

Battery Pack Hot swappable battery, 7.6V, 6000mAh

Enclosure ABS + PC plastics and magnesium-aluminum alloy

Dimensions (H x W x D) 8.3 x 12.4 x 0.86 in/ 212 x 316 x 21.9 mm

Weight 3.5 lbs/ 1.6 kg

Regulatory FCC Class B, CE, RoHS compliant

Operating Temperature

Operation: -10°C to 50°C (-14°F to 122°F)

Storage: -55°C to 70°C (-67°F to 158°F)

Humidity 0% – 90% non-condensing

FCC Regulatory Compliance

Warning: changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy

and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is

encouraged to try to correct the interference by one or more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-- Consult the dealer or an experienced radio/TV technician for help.

RF Exposure Compliance

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.

The device has been tested for use against the body with 0mm separation in Specific Absorption Rate (SAR) testing.

User must follow the specific operating instructions for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with

any other antenna or transmitter.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not

cause harmful interference, and (2) this device must accept any interference received, including interference that may cause

undesired operation.

Supplier's Declaration of Conformity

47 CFR § 2.1077 Compliance Information

Unique Identifier

Trade Name: , Model No.: DT300Q11

Responsible Party

– U.S. Contact Information

DT Research, Inc.

2000 Concourse Drive, San Jose, C

A 95131

http://www.dtr

esearch.com

FCC Com

pliance Statement

This device complies with Part 15 of the FCC Rules. Operation is s

ubject to the following two conditions: (1) This device

may not cause har

mful interference, and (2) this device must accept any interference received, including interferen

ce that

may cause

undesired operation.

FCC ID Label is in

battery compartment, it could be easily found by removing the battery cover.

RF Exposure Information(RED)

This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum

separation distance of 0cm must be maintained between the user’s body and the handset, including the antenna.

The band 5150-5350 MHz for this device are restricted to indoor use only within all European Union countries.

Hereby, [DT Research, Inc.] declares that the radio equipment type [DT300QY01] is in compliance with Directive

2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address:

http://www.dtresearch.com.

DT Research, Inc.

2000 Concourse Drive, San Jose, CA 95131 http://www.dtresearch.com
