Dual XDM17BT Manuale utente
INSTALLATION/OWNER'S MANUAL
AM/FM Receiver with Bluetooth and Fixed Face
XDM17BT
2
XDM17BT INSTALLATION

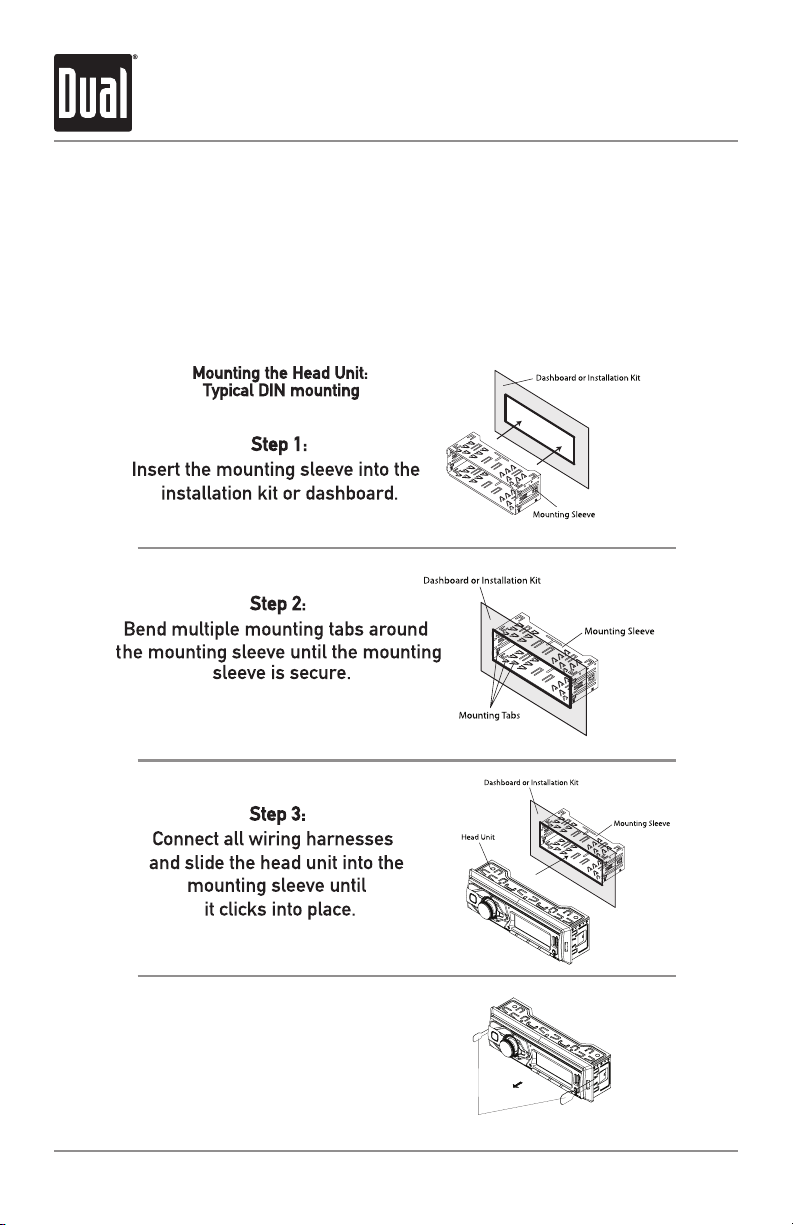

Preparation
Please read entire manual before installation.
Before You Start
• Disconnect negative battery terminal. Consult a qualified technician for instructions.
• Avoid installing the unit where it would be subject to high temperatures, such as from
direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
Step 4:
Remove the plastic caps
and use the removal keys
to remove the unit.
Removal Keys
3
XDM17BT INSTALLATION

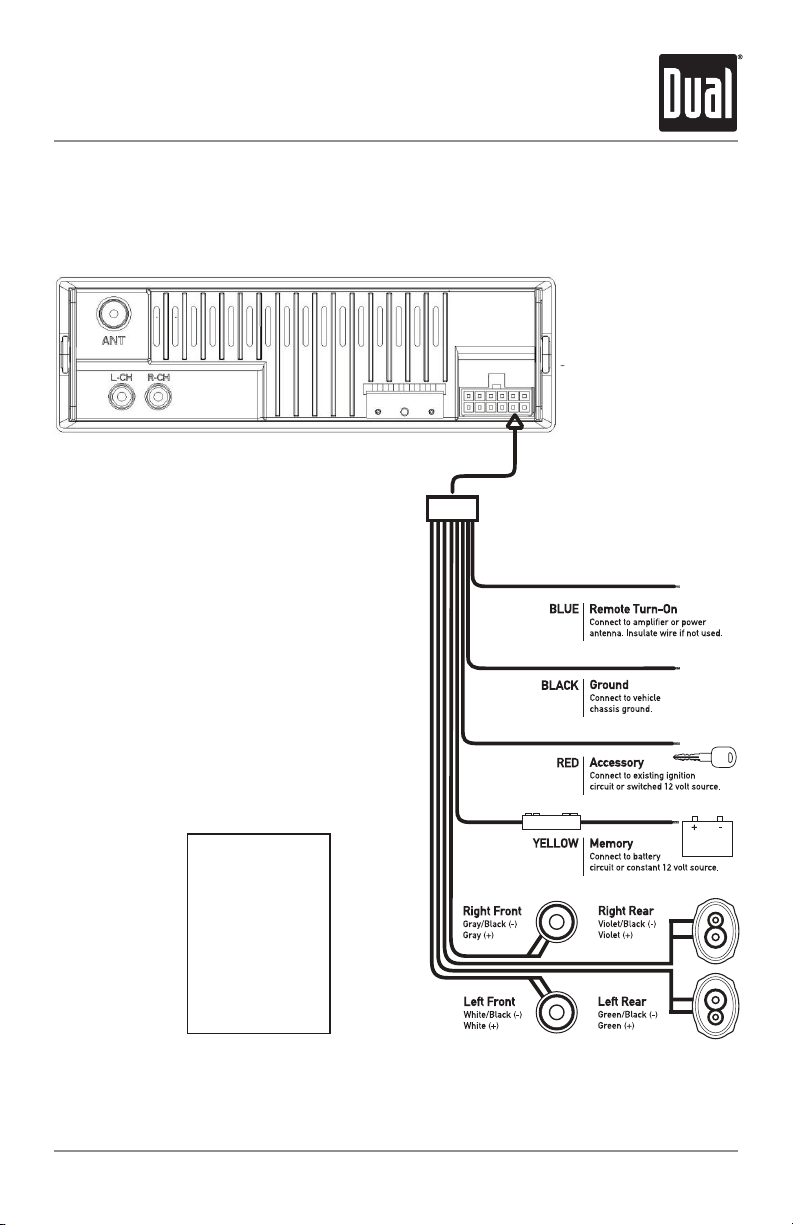

Wiring Diagram
FUSE
When replacing the
fuse, make sure new
fuse is the correct type
and amperage. Using
an incorrect fuse could
damage the radio.
The unit uses
one 10 amp AGC fuse
located beside
the Heat Sink
10 AMP
AGC Fuse
4
XDM17BT OPERATION

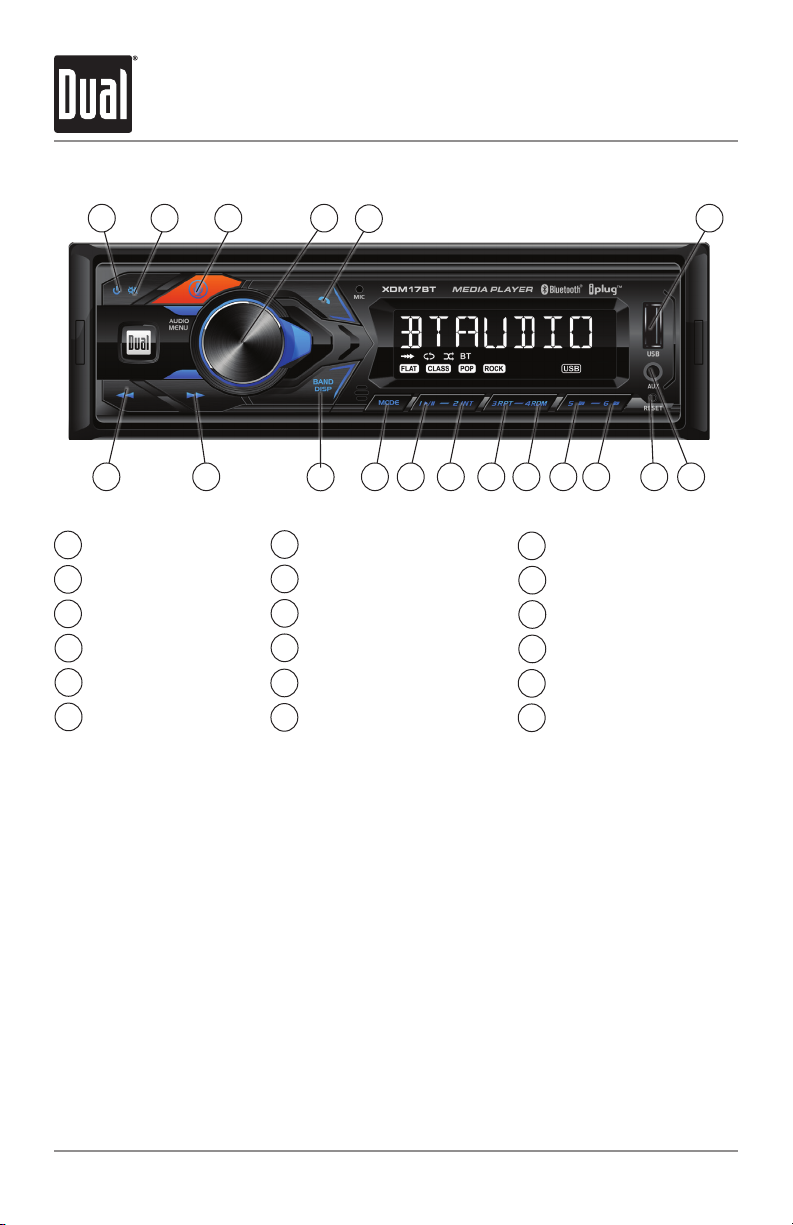

Control Locations
Preset 2 / Intro
Preset 1 / Play/Pause
Mode
Band/Display
Tune Up
Tune Down
Power
Mute
Voice Control
Volume Knob
Bluetooth Talk
USB Port
1 2 3 4 5
1
11
2
12
3
13
4
14
5
15
6
16
7
17
8
18
9
10
7
6
15 14 13 12 11 10 9
1718 16
Auxiliary Input
Reset
Preset 6 / Folder Up
Preset 5 / Folder Down
Preset 4 / Random
Preset 3 / Repeat
8
5
XDM17BT OPERATION
General Operation
Press the button to turn the unit on. Press again to turn
the unit off.
Press MODE to select between Radio, USB, Bluetooth, AUX.
Modes of operation are shown in the display.
Adjust volume using the volume knob (00-40).
Insert a 3.5mm cable in the unit's front AUX port.
Press the RESET button to reset the unit back to the factory
settings if abnormal operation occurs. The reset button is
located on the front panel.
With the unit on, long press DISP to display clock time.
Press and hold DISP until the hours or minutes begin to
flash, then release. Rotate the volume knob to adjust the
time. Long press DISP to finish the clock setting.
Press DISP to toggle display between various displayed
information.
Press the volume knob momentarily to select between audio
functions.
Press and hold the volume knob for more than two seconds
to select between the menu functions.
Rotate the volume knob left/right to adjust or activate the
desired function/audio.
Power On/Off
Changing Modes
Volume
Mute
Auxiliary Inputs
Reset
Setting the Clock
Display
Audio / Menu
6
XDM17BT OPERATION
AM/FM Tuner Operation
Seek Tuning
Manual Tuning
Band
Storing Presets
Recalling Presets
Automatically Store
Preset Scan Stations
Press TUNE or TUNE to seek to the previous or
next strong station.
Press and hold TUNE or TUNE to enter
manual tuning mode, then press TUNE or TUNE
momentarily to change radio frequency up or down one
step at a time. Press and hold TUNE or TUNE to
advance quickly.
Press BAND to select between FM1, FM2, FM3, AM1 and
AM2 bands. Up to six presets can be programmed
for each band, enabling up to 18 FM stations and 12 AM
stations to be stored in memory.
Up to 18 FM and 12 AM stations can be stored. To store
a station, select the desired band and station. Press and
hold the desired preset button (1-6) for more than two
seconds. When stored, the preset number will appear in
the display.
Preset stations can be recalled any time by pressing the
corresponding preset button.
Press and hold MENU for more than 2seconds, then
press DISP to store 18 FM stations and 12 AM stations
automatically.
Touch PS to recall each preset station that has been stored
in memory for each band.
(Available with the Dual Smart Remote App only)
7
XDM17BT OPERATION
USB Operation
Playing MP3 Files
Track Select
Fast Forward
and Reverse
Pause
Folder Access
Repeat
Random
Intro
To play MP3 files, insert a USB device containing MP3 files.
Press TUNE to skip to the beginning of the next track.
Press TUNE to skip to the beginning of the previous
track.
Press and hold TUNE or TUNE to fast forward or
reverse a track.
Press
/
II
to temporarily stop USB playback.
Press
/
II
again to resume playback.
Folders can be found by pressing Folder Up or Folder Down.
About one second after the folder name is displayed, the
first file under the selected folder will be displayed and
playback will begin.
Press RPT to toggle between RPT ALL and RPT ONE.
• RPT ALL - Plays all tracks on USB device.
• RPT ONE - Continuously repeats selected track.
Press RDM to play tracks in random order; press again to
cancel the RDM function.
Press INT to play the first 10 seconds of each track; press
again to cancel the INT function.
8
XDM17BT OPERATION
Bluetooth Operation
Preparation
Pairing a New
Device
Streaming Audio
Troubleshooting
Before using a Bluetooth device, it must be paired and
connected. Ensure that Bluetooth is activated on your
device before beginning the pairing process.
The head unit broadcasts the pairing signal constantly when
no devices are connected. Complete the pairing sequence
from your Bluetooth device. Refer to the owner’s manual for
your device for more details.
The device name is “Dual Media Player”.
The Bluetooth passcode is "1234”.
Note: The head unit can be in any mode of operation when
pairing is performed.
The head unit supports A2DP wireless streaming audio
from a Bluetooth mobile device directly to your head unit.
The following functions can be used to control the music:
• Press to skip to the next available audio track.
• Press to skip to the previous audio track.
• Press /
II
to toggle between play and pause during
playback.
9
XDM17BT OPERATION

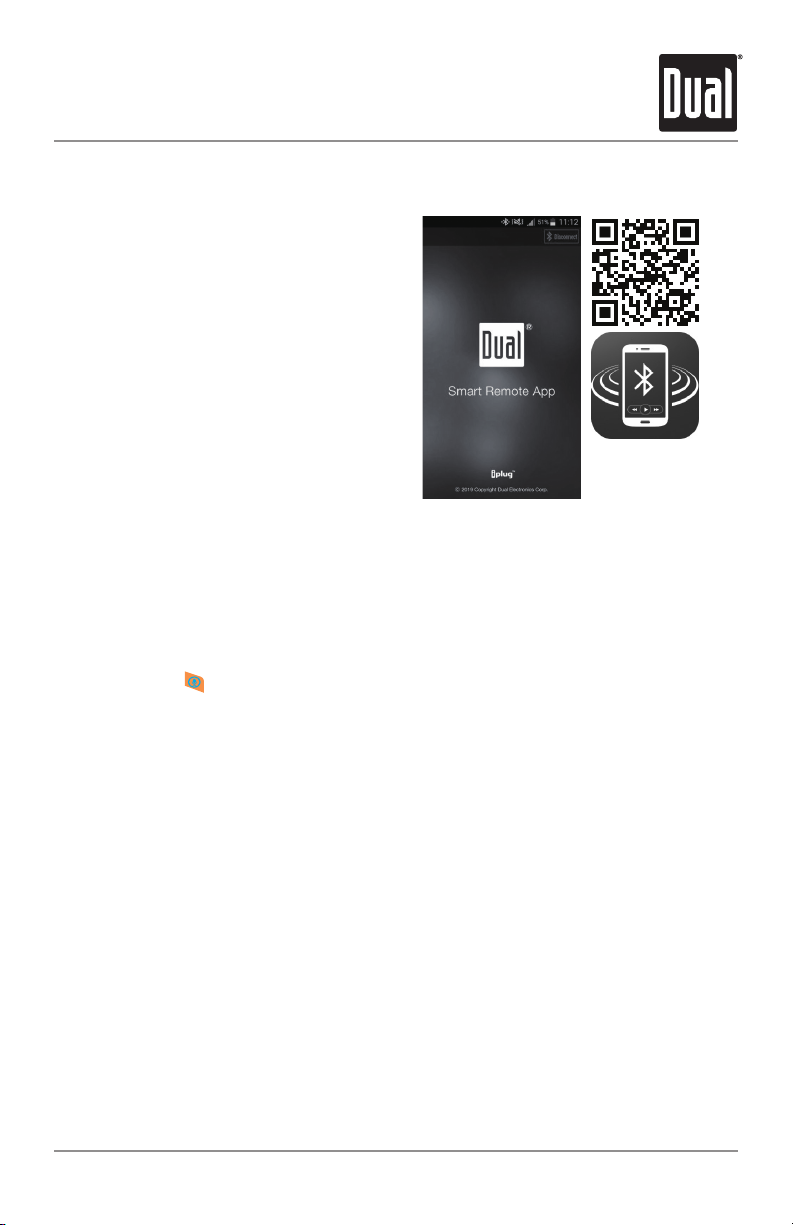

Dual iPlug P2 Smart App Remote Control
Front 3.5mm Aux Input
Connect an optional audio source into the 3.5mm (front panel) input. Select auxiliary input
from the Main Menu to listen to audio. Adjust volume on the external audio source as
needed (if connected to the headphone output of the device).
Voice Activation
Your receiver is designed with an easy access voice activation button to use Siri® or the
Google Assistant™ via your car's Bluetooth. Interact with your smartphone assistant while
you drive with only the push of a button!
Bluetooth should be paired between your smartphone and the receiver. Press the voice
activation button , and the receiver will switch into Bluetooth mode, This will activate
Siri® or Google AssistantTM on your smartphone. You will need to manually switch back to
the previous or desired mode once this operation is terminated.
Use the Dual iPlug P2 Smart App Remote
Control on an Apple or Android smartphone
to control the receiver via Bluetooth.
Change the mode, station, song, volume,
and settings directly from your smartphone
without being in the receiver's line-of-sight.
Download the Dual iPlug P2 Smart App
Remote Control from Apple App Store or
Google Play Store and install it on your
smartphone or tablet (QR code download
link on the right).
10
XDM17BT OPERATION
Specifications
Tuning range: 87.5MHz-107.9MHz
Usable sensitivity: 8.5dBf
50dB quieting sensitivity: 10dBf
Stereo separation @ 1kHz: >30dB
Frequency response: 30Hz-13kHz
Tuning range: 530kHz-1710kHz
Usable sensitivity: <42dBu
Frequency response: 30Hz-2.2kHz
Speaker output impedance: 4~8 ohms
Line output voltage: 2 Volts RMS
Dimensions: 7" x 2" x 2" (178 x 50 x 50 mm)
Design and specifications subject to change without notice.
FM Tuner
AM Tuner
General
CEA-2006 Power Standard Specifications
(reference: 14.4VDC +/- 0.2V, 20Hz~20kHz)
Power Output: 14 Watts RMS x 4 channels at 4 ohms and <1% THD+N
Signal to Noise Ratio: 75dBA (reference: 1 watt into 4 ohms)
