Parts List and Sewing Equipment

零件样本和缝纫附件

251-140042

Contents Page / 页目录

Arm bed components 1 机壳部件

Main shaft & thead take-up components 3 上轴、挑线部件

Needle bar & thread tension components 5 针杆、夹线部件

Presser components 7 压料部件

Hook driving shaft components 9 勾线部件

Feed mechanism components 11 送料部件

Feed regulating components 13 送料调节部件

Thread trimmer components 15 剪线分部件

Wiper components 17 拨线分部件

Lubrication components 19 润滑部件

Oil reservoir & kneelifter components 21 油盘、膝抬压脚部件

Machine head accessories 23 机头附件

Motor control components 25 电机控制部件

Model 251-140040A (For light weight materials) 27 251-140040A型(薄料用)

Model 251-140040H (For heavy weight materials) 29 251-140040H型(厚料用)

Presser foot lifter asm. 31 抬压脚部件

Numerical index of parts 33 索引

All

s reserve

roper

y o

Dü

opp

Adl

er an

copyr

epro

on or pu

bli

on o

e con

n any manner,

even

n ex

rac

s, w

ith

or wr

itt

en perm

on o

Dü

opp

Adl

er,

s pro

hibit

Dürkopp Adler reserves the right to amend at any time the technical specifications.

，

不许

翻

印

版权

和

产权归杜克普爱华有

限公司

所有

。

未经杜克普爱华有

限公司

书面许

可，

禁

止以

任何方式

翻

印或复印本内容

，

包括摘

要。

杜克普爱华有限公司保留任何时候对技术规范进行更改的权利

251-140042

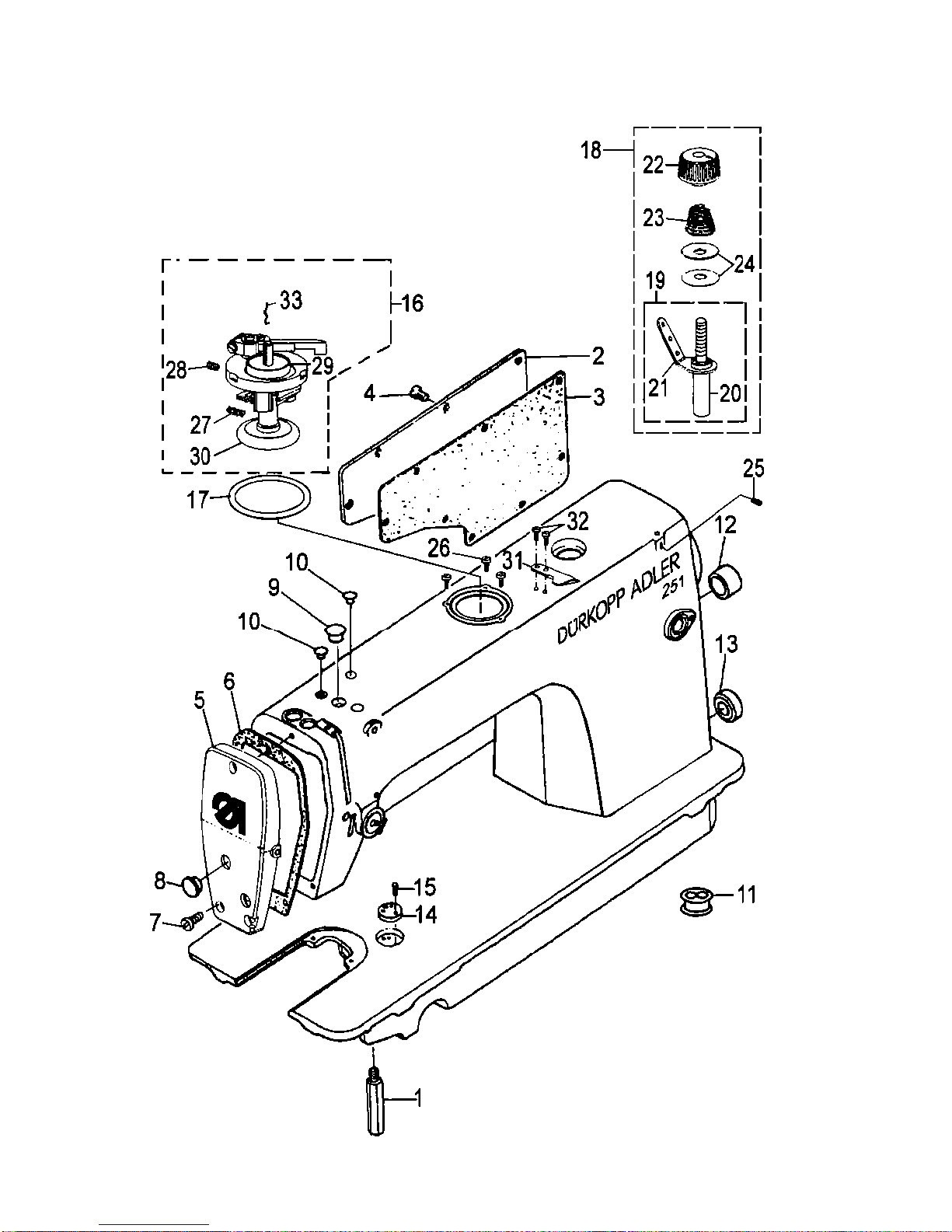

1.Arm bed components 1.机壳部件

－1－Edition/版本：06/2008

251-140042

1.Arm bed components 1.机壳部件

序号件号 Description 名称 Qty

1 0251 GS0548 Bed screw stud 底座支柱 4

2 0251 GK239 Side plate 后窗板 1

3 0251 GR3340 Gasket 后窗板垫 1

4 0251 GS053 Screw 3/16-28 L=9 后窗板螺钉3/16-28 L=9 8

5 0251 GR6245 Face plate 面板 1

6 0251 GR6162 Gasket 面板垫 1

7 0251 GS5198 Screw 3/16-28 L=12 面板螺钉3/16-28 L=12 3

8 0251 GR6163 Rubber plug 面板调节螺孔塞 2

9 0251 GR6164 Rubber plug 针杆曲柄螺孔塞 1

10 0251 GR6165 Rubber plug 挑线连杆销螺孔塞 2

11 0251 GR2045 Rubber bushing 电线过线圈 1

12 0251 GR6166 Rubber plug 送料调节螺孔塞 1

13 0251 GR6167 Rubber plug 下轴盲孔塞 1

14 0251 GR5791 Scale base plate 标尺座 1

15 0251 GS5054 Scew 11/64-40 L=5 标尺座螺钉11/64-40 L=5 2

16 0251 GR6250V17 Bobbin winder asm. 绕线器（部件） 1

17 0251 GRD1172 Bobbin winder cushion washer 绕线器密封垫 1

18 0251 GR6204V5 Thread tension comp 绕线张力部件 1

19 0251 GR6205V2 Thread tension shaft comp 绕线张力轴部件 1

20 0251 GZ1152 Thread tension shaft 绕线张力轴 1

21 0251 GR5013 Threading plate 绕线张力过线板 1

22 0251 GL1040 Nut 绕线张力旋钮螺母 1

23 0251 GW1107 Spring 绕线张力弹簧 1

24 0251 GR6284 Thread tension disk 绕线器张力夹线盘 2

25 0251 GS04 Screw 15/64-28 L=10.5 绕线张力器紧固螺钉15/64-28 L=10.5 1

26 0251 GS5187 Screw 11/64-40 L=6 绕线器安装螺钉 11/64-40 L=6 3

27 0251 GW1106 Spring 绕线轴座弹簧 1

28 0251 GW1104 Spring 动作板复位弹簧 1

29 0251 GR6257 Bobbin Support 梭心座 1

30 0251 GR6261 O-ring 绕线轮橡胶圈 1

31 0251 GR6201 Thread trimmer 割线刀 1

32 0251 GS5188 Screw 9/64-40 L=4 割线刀螺钉 9/64-40 L=4 2

33 0251 GW1105 Spring 绕线轴弹簧 1

－2－Edition/版本：06/2008

251-140042

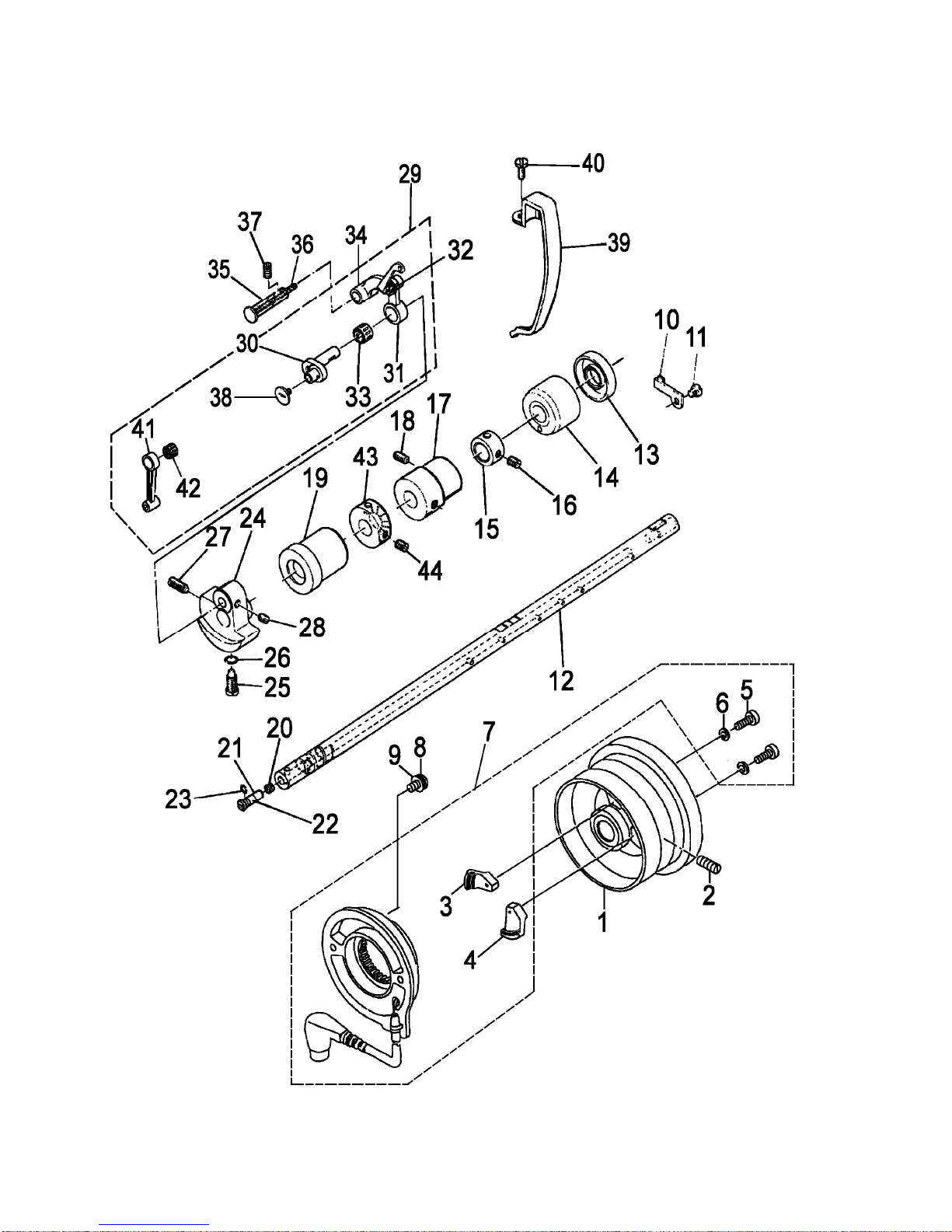

2.Main shaft & thread take-up components

2.上轴、挑线部件

－3－Edition/版本：06/2008

251-140042

2.Main shaft & thread take-up components

2.上轴、挑线部件

序号件号 Description 名称 Qty

1 0251 GP1030 Hand wheel 上轮 1

2 0251 GS03 Screw 15/64-28 L=15 上轮螺钉15/64-28 L=15 2

3 9800 12MPS02021 Magnet fitting base A asm. 磁钢组件A 1

4 9800 12MPS02022 Magnet fitting base B asm. 磁钢组件B 1

5 0251 GS0219 Screw 11/64-40 L=12 支承架螺钉 11/64-40 L=12 2

6 0251 GR2407 Washer 螺钉垫圈 2

7 9800 367102 Synchronizer 800-2H 上轴传感器部件 1

8 0251 GS0220 Screw 上轴传感器安装螺钉 2

9 0251 GR2409 Washer 安装螺钉垫圈 2

10 0251 GR2410 Cable holder 电线安装导架 1

11 0251 GS0551 Screw 3/16-28 L=6 电线安装导架螺钉3/16-28 L=6 1

12 0251 GZ431 Main shaft 上轴 1

13 0251 GR6005 Oil seal 上轴油封 1

14 0251 GO1137 Main shaft bushing, rear 上轴后轴套 1

15 0251 GR1469 Thrust collar 上轴挡圈 1

16 0251 GS39 Screw 1/4-40 L=6 上轴挡圈螺钉1/4-40 L=6 2

17 0251 GO1138 Bushing, intermediats 上轴中轴套 1

18 0251 GS0549 Screw 15/64-28 L=9 上轴中轴套螺钉15/64-28 L=9 1

19 0251 GO1139 Main shaft bushing, front 上轴前轴套 1

20 0251 GR1470 Oil seal 曲柄油量限制毡 1

21 0251 GX334 Oil felt 曲柄油量调节销 1

22 0251 GO269 Rubber bushing 曲柄油量调节销套 1

23 0251 GR1471 O-ring 曲柄油量调节销O形圈 1

24 0251 GH1123 Counterweight 针杆曲柄 1

25 0251 GS06 Screw 9/32-28 L=16 针杆曲柄定位螺钉 9/32-28 L=16 1

26 0251 GR1472 O-ring 定位螺钉O形圈 1

27 0251 GS0550 Screw 9/32-28 L=16 针杆曲柄紧固螺钉9/32-28 L=16 1

28 0251 GS39 Screw 1/4-40 L=6 挑线曲柄定位螺钉 1/4-40 L=6 2

29 0251 GH1131V8 Thread take-up asm. 挑线杆部件 1

30 0251 GH563 Needle bar crank asm. 挑线曲柄部件 1

31 0251 GH564V4 Thread take-up lever asm. 挑线杆分部件 1

32 0251 GR3349 Rubber bushing 挑线杆防油套 1

33 0251 GO270 Needle bearing 挑线杆滚针轴承 1

34 0251 GH566 Thread take-up crank 挑线连杆 1

35 0251 GX1129 Thread take-up crank shaft 挑线连杆销 1

36 0251 GR3350 Oil wick 挑线连杆销油线 1

37 0251 GS04 Screw 15/64 L=10.5 挑线连杆销螺钉15/64 L=10.5 1

38 0251 GS09 Screw (left twist) 9/64-40 L=4.8 挑线曲柄左旋螺钉9/64-40 L=4.8 1

39 0251 GK1050 Thread take-up lever cover 挑线杆护罩 1

40 0251 GS5186 Screw 3/16-28 L=6 挑线杆护罩螺钉3/16-28 L=6 1

41 0251 GH334 Needle bar crank rod 针杆连杆 1

42 0251 GO270 Needle bearing 针杆连杆滚针轴承 1

43 0251 GP1024 Bobbin winder driving wheel 绕线驱动轮 1

44 0251 GS0155 Screw 15/64-28 L=9 绕线驱动轮螺钉 15/64-28 L=9 2

－4－Edition/版本：06/2008

251-140042

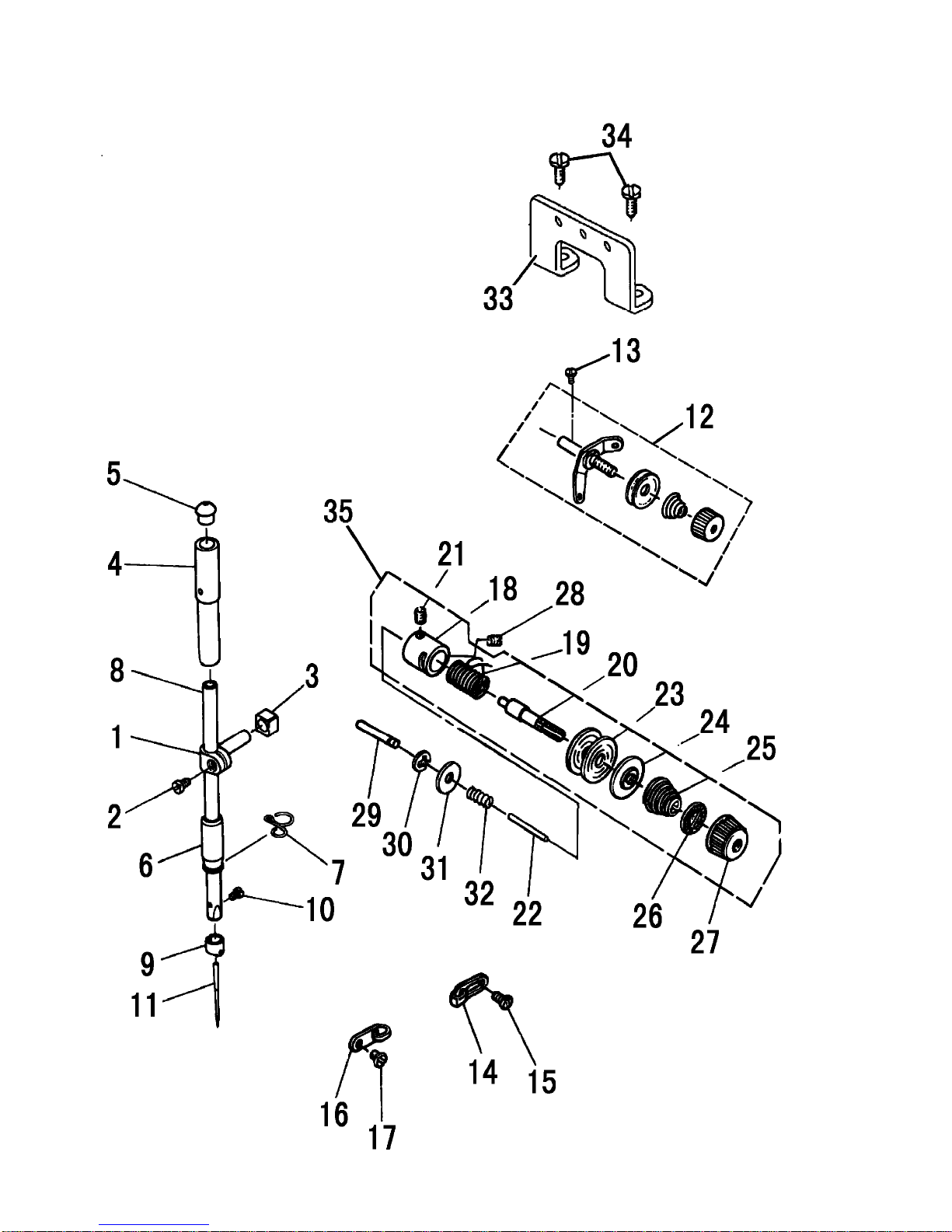

3.Needle bar & thread tension components 3.针杆、夹线部件

－5－Edition/版本：06/2008

251-140042

3.Needle bar & thread tension components 3.针杆、夹线部件

序号件号 Description 名称 Qty

1 0251 GR1478 Needle bar connection asm. 针杆连接柱 1

2 0251 GS042 Screw 9/64-40 L=7.5 针杆连接柱螺钉 9/64-40 L=7.5 1

3 0251 GU168 Slide block 针杆连接柱滑块 1

4 0251 GO1092 Needle bar bushing, upper 针杆上轴套 1

5 0251 GR6174 Cap 针杆上轴套孔塞 1

6 0251 GO1093 Needle bar bushing, lower 针杆下轴套 1

7 0251 GR3351 Needle bar thread guide 针杆下轴套线钩 1

8* 0251 GZ1150 Needle bar (DBX1) 针杆

(

DBX1

)

8** 0251 GZ1174 Needle bar (134) 针杆

(

134

)

9 0251 GR3352 Needle bar thread guide 针杆线钩 1

10 0251 GS071 Screw 1/8-44 L=4.5 支针螺钉1/8-44 L=4.5 1

11* 0251 GV15 Needle (DBX1# 14) 机针

(

DBX1# 14

)

11** 9092 013400 090 Needle (134 Nm90) 机针

(

134 Nm90

)

12 0251 GR6269V5 First thread tension asm. 上夹线器部件 1

13 0251 GS5186 Screw 3/16-28 L=6 上夹线器螺钉3/16-28 L=6 1

14 0251 GR3354 Frame thread guide, right 右线钩 1

15 0251 GS0552 Screw 11/64-40 L=6 右线钩螺钉 11/64-40 L=6 1

16 0251 GR3355 Frame thread guide, left 左线钩 1

17 0251 GS0552 Screw 11/64-40 L=6 左线钩螺钉 11/64-40 L=6 1

18 0251 GR1635 Tension post socket 挑线簧调节座 1

19 0251 GW1109 Take-up spring 挑线簧 1

20 0251 GS015 Screw 夹线螺钉 1

21 0251 GS016 Set screw 9/64-40 L=5.5 夹线螺钉紧固螺钉9/64-40 L=5.5 1

22 0251 GX567 Thread release pin 松线钉 1

23 0251 GR1488 Tension disc 夹线板 2

24 0251 GR1489 Tension disc holder 松线板 1

25 0251 GW1110 Tension spring 夹线簧 1

26 0251 GR1490 Tension disc stopper 夹线制动板 1

27 0251 GL1037 Tension nut 夹线螺母 1

28 0251 GS48 Screw 15/64-28 L=7 夹线器螺钉15/64-28 L=7 1

29 0251 GX568 Tension release supporting pin 松线辅钉 1

30 0251 GR1717 Snap ring 松线辅钉挡圈 1

31 0251 GR3357 Washer plate 松线辅钉垫片 1

32 0251 GW432 Tension release supporting spring 松线辅钉弹簧 1

33 0251 GR6179 Thread guide 导线板 1

34 0251 GS5186 Screw 3/16-28 L=6 导线板螺钉 3/16-28 L=6 2

35 0251 GR6298V10 Thread tension asm. 夹线器部件 1

* FOR ASIA 销往亚洲

** FOR EUROPE 销往欧洲

－6－Edition/版本：06/2008

0251-140042

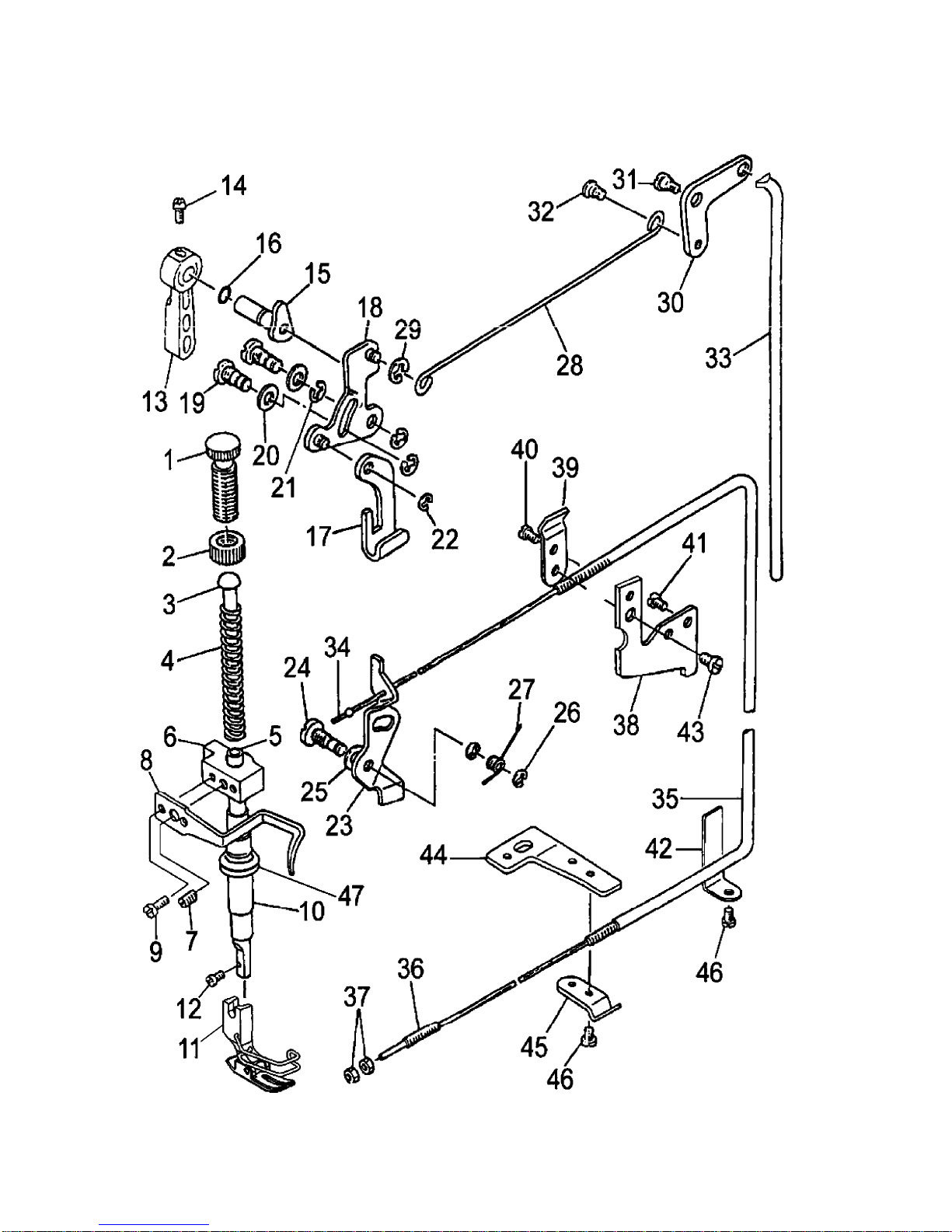

4.Presser bar components 4.压料部件

－7－Edition/版本：06/2008

0251-140042

4.Presser bar components 4.压料部件

序号件号 Description 名称 Qty

1 0251 GS0553 Presser spring regulator 调压螺钉 1

2 0251 GL0114 Nut 1/2-28 调压螺母 1/2-28 1

3 0251 GR1494 Presser guide bar 调压导杆 1

4 0251 GW253 Presser spring 调压簧 1

5 0251 GZ275 Presser bar 压杆 1

6 0251 GR3358 Needle bar guide bracket 压杆导架 1

7 0251 GS033 Screw 1/4-40 L=8 压杆导架螺钉1/4-40 L=8 1

8 0251 GR3359 Presser bar thread guide 缓线调节勾 1

9 0251 GS0100 Screw9/64-40 L=8.5 缓线调节勾螺钉9/64-40 L=8.5 2

10 0251 GO1135 Presser bar bushing, lower 压杆衬套 1

11 0251 GM1080V5 Presser foot asm. 活压脚部件 1

12 0251 GS020 Screw 9/64-40 L=10.5 活压脚螺钉 9/64-40 L=10.5 1

13 0251 GR3360 Hand lifter 压脚扳手 1

14 0251 GS0554 Screw 9/64-40 L=9.5 压脚扳手螺钉 9/64-40 L=9.5 1

15 0251 GR3361V2 Hand lifter cam asm. 压脚扳手凸轮部件 1

16 0251 GR1503 O-ring 压脚扳手轴O形圈 1

17 0251 GR3363 Lifting lever 压脚升降板 1

18 0251 GR3364V3 Hand lifter link asm. 抬压脚前杠杆部件 1

19 0251 GS0161 Link shaft 前杠杆螺纹销 2

20 0251 GR2035 Gasket 螺纹销垫圈 2

21 0251 GR1510 Snap ring 螺纹销开口垫圈 3

22 0251 GR3366 Snap ring 升降板连接特制开口挡圈 1

23 0251 GR3367 Tension release plate 松线顶板 1

24 0251 GS0162 Tension release shaft 松线顶板螺纹销 1

25 0251 GR2035 Washer 螺纹销垫圈 1

26 0251 GR1510 Snap ring 螺纹销开口挡圈 2

27 0251 GW433 Tension release return spring 松线顶板复位簧 1

28 0251 GR3368 Lifting lever connecting rod 抬压脚拉杆 1

29 0251 GR1510 Snap ring 拉杆开口挡圈 1

30 0251 GR3369 Lifting lever link 抬压脚后杠杆 1

31 0251 GS0557 Hinge screw 后杠杆轴位螺钉 1

32 0251 GS0558 Hinge screw 抬压脚拉杆螺钉 1

33 0251 GR3370 Connecting rod vertical 抬压脚顶杆 1

34 0251 GR2416 Wire cable 松线拉丝 1

35 0251 GR2418 Wire tube 松线拉丝软管 1

36 0251 GS078 Set screw 松线拉丝调节螺钉 1

37 0251 GL19 Nut 松线拉丝调节螺母 2

38 0251 GR6246 Wire holder bracket (upper) 软管支承板 1

39 0251 GR2420 Wire holder 支承外压板 1

40 0251 GS080 Screw 11/64-40 L=7 支承外压板螺钉11/64-40 L=7 1

41 0251 GS0551 Screw 3/16-28 L=6 软管支承板螺钉 3/16-28 L=6 1

42 0251 GR2421 Wire cable holder 软管侧面定位板 1

43 0251 GS0551 Screw 3/16-28 L=6 定位板螺钉3/16-28 L=6 1

44 0251 GR2422 Wire holder bracket (lower) 软管下支承板 1

45 0251 GR2420 Wire holder 下支承外压板 1

46 0251 GS010 Screw 11/64-40 L=5 下支承外压板螺钉11/64-40 L=5 2

47 0251 GK1051 Oil protecting bushing 压杆防油套 1

－8－Edition/版本：06/2008

Altri manuali per 251-140042

Indice

Altri manuali Duerkopp Adler Macchina da cucire

Duerkopp Adler

Duerkopp Adler 550-867 s Manuale utente

Duerkopp Adler

Duerkopp Adler 550-767 Manuale utente

Duerkopp Adler

Duerkopp Adler 4280-6 Guida alla risoluzione dei problemi

Duerkopp Adler

Duerkopp Adler 4181-3 Guida alla risoluzione dei problemi

Duerkopp Adler

Duerkopp Adler 745-24 Guida

Duerkopp Adler

Duerkopp Adler 175 Manuale utente

Duerkopp Adler

Duerkopp Adler 52Xi Istruzioni operative

Duerkopp Adler

Duerkopp Adler 550-19-2 Guida

Duerkopp Adler

Duerkopp Adler 743-105 s Istruzioni per l'installazione

Duerkopp Adler

Duerkopp Adler 510 Manuale utente

Duerkopp Adler

Duerkopp Adler 1230i-6 Guida alla risoluzione dei problemi

Duerkopp Adler

Duerkopp Adler 511 Manuale utente

Duerkopp Adler

Duerkopp Adler 550-16-26 Manuale utente

Duerkopp Adler

Duerkopp Adler 251-140040 Manuale utente

Duerkopp Adler

Duerkopp Adler 550-12-23 Guida

Duerkopp Adler

Duerkopp Adler 4220-6 Guida alla risoluzione dei problemi

Duerkopp Adler

Duerkopp Adler N291 Guida

Duerkopp Adler

Duerkopp Adler 550-20-1 Guida

Duerkopp Adler

Duerkopp Adler 524 Manuale utente

Duerkopp Adler

Duerkopp Adler 1280i-6 Guida alla risoluzione dei problemi

Duerkopp Adler

Duerkopp Adler 511 Manuale utente

Duerkopp Adler

Duerkopp Adler 550-10-1 Guida

Duerkopp Adler

Duerkopp Adler 510 Manuale utente

Duerkopp Adler

Duerkopp Adler 743-115 Guida

Manuali Macchina da cucire popolari di altre marche

Riccar

Riccar RL634DE Manuale utente

Singer

Singer 2517 Manuale utente

Pfaff

Pfaff 3307-1 SERIES Manuale utente

Janome

Janome Quilt Maker Pro 18 VERSA Manuale utente

Siruba

Siruba C007JP Manuale utente

Husqvarna Viking

Husqvarna Viking Designer SE Manuale utente

Singer

Singer 148-5 Manuale utente

IKEA

IKEA SY Manuale utente

Pfaff

Pfaff 571 Manuale utente

Singer

Singer 15-91 Manuale utente

Brother

Brother BB370 Manuale utente

Pegasus

Pegasus WT100 Series Manuale utente

Reliable

Reliable 7100DB Manuale utente

Pfaff

Pfaff 937 Manuale utente

Singer

Singer 6038 Manuale utente

Singer

Singer 413K Manuale utente

Pfaff

Pfaff 1471 E1 Manuale utente

Kenmore

Kenmore 16677 - Serger Sewing Machine Manuale utente
