Mobile Presentation System User’s Manual
for Camera, 101, 202, & 220
1) Remove cart from carton.
2) Roll the media center into position and lock the
two wheels.
3) Unlock the right rear door with the keys provid-
ed and swing open door.
4) Reach behind the left rear door and unlatch the
catch by pulling up on the lever, as indicated
on the instruction label on the door.
5) The side folding shelves can be raised and the
supports moved into position for placement of
laptop computer etc. (Maximum 14 lbs.)
6) Unlock the projector-tilting shelf, loosen knobs
on the side of cart and swing down into posi-
tion, tighten knobs.
7) Remove power cord with trip protector from the
inside of the cart. Bring out under the projector
shelf and plug into a 3 prong grounded power
outlet.
8) If camera is not already installed it will be in a
carton with power and output cable attached.
Camera
Laptop or Desktop
Computer
Folding Shelf
Maximum 14 lbs.
Projector on
Tilting Shelf
Trip Protector
Power Cord
White Board Top
for Camera
Folding Shelf in
Open Position
Open Rear Door
Large Locking
Wheels
www.dukcorp.com/av
Remove Camera from its carton and insert cam-
era head up through the grommet hole in the
top of the cart. Place camera base on the plate
or foam block on top of the DVD/VCR. The
camera can be removed for viewing at other
locations within the range of its cables. (Camera
202 must be placed on the top of the cart)
9) Connect your computer to the VGA cable and
audio cable with mini plug that is coming out
of the top of the cart.
10) Power up the Mobile Presentation System by
turning on the switch that is located on the
power strip. Then turn on the DVD/VCR,
Camera and the projector.
11) Refer to the owners manuals for the detailed
projector, DVD/VCR, and Camera operation.
12) The remote controls for the projector,
DVD/VCR, and camera if included, are
located in the storage drawer.
continued on back page . . .
401-MPS10/MPS20-01
2
13) Camera 101
The projector remote control will switch the pro-
jected image between the "computer", "video",
and "s-video". These correspond to the "com-
puter", "DVD/VCR", and the "Camera 101"
images, see Figure 1.
Camera 202, 220
The projector remote control will switch the pro-
jected image between the "computer", "cam-
era", "video" and "s-video" inputs. For
advanced model projectors the "computer" and
"camera" images will appear for the RGB1
(PC1) or RGB2 (PC2) selections, see Figure 2.
If only one computer signal input is present on
the projector, the camera will be used to switch
between the "computer" and the "camera"
image. To accomplish this operation, the
camera remote control "Source" button will
switch between the "PC" and the "camera" out-
puts, see Figure 3.
14) Audio Switching
Most projectors have an internal switch for the
audio that follows the "PC" or "DVD/VCR"
input selection. Such a switch provides the
“Audio Out” from the projector. If an internal
switch is not available a mechanical button
selector switch is located just inside the cart,
see Figure 1.
15) Volume
The volume can be adjusted with the projectors
on screen control or by the speaker unit knobs.
16) The projected image can be keystone corrected
by using the projector controls.
Image on Screen
Folding Shelf on
both Sides
Maximum 14 lbs.
Storage Drawer
Audio Switch for
PC or DVD/VCR
(If required)
Rear of Unit with Tower PC
Maximum tower size
17” H x 17” D
(Tower PC NOT Included)
Open Rear Doors
with Locks
Hooks on Doors for
Cable Storage
DVD/VCR Combo
Power Outlet Strip
. . . continued from front page
Stereo Speakers
3
Computer
Audio VGA
Out
Camera 101
Video
Projector
VGA
Computer S-Video Composite
Video
Adapter
100-52
RCA, Composite to S-Video
DVD/VCR
Audio Video
200-1347
RCA to Mini Plug
Adapter
RCA x 6
Audio Switch for
"PC" or "DVD/VCR"
200-1347
RCA to Mini Plug Adapter
Powered Speaker
Speaker
Composite Video, RCA
Mobile Presentation System Diagram. Figure 1
Computer
Audio VGA
Out
Projector
VGA
PC 2
PC 1
Composite
Video Audio
Out
DVD/VCR Powered
Speaker
Speaker
VGA VGA
Camera
Camera 202/220
Composite Video, RCA
S-Video (DVD only)
Audio, RCA X 2 to RCA X 2
Audio, 3.5mm stereo to 3.5mm Stereo S-Video
Audio
Mobile Presentation System Diagram. Figure 2
4

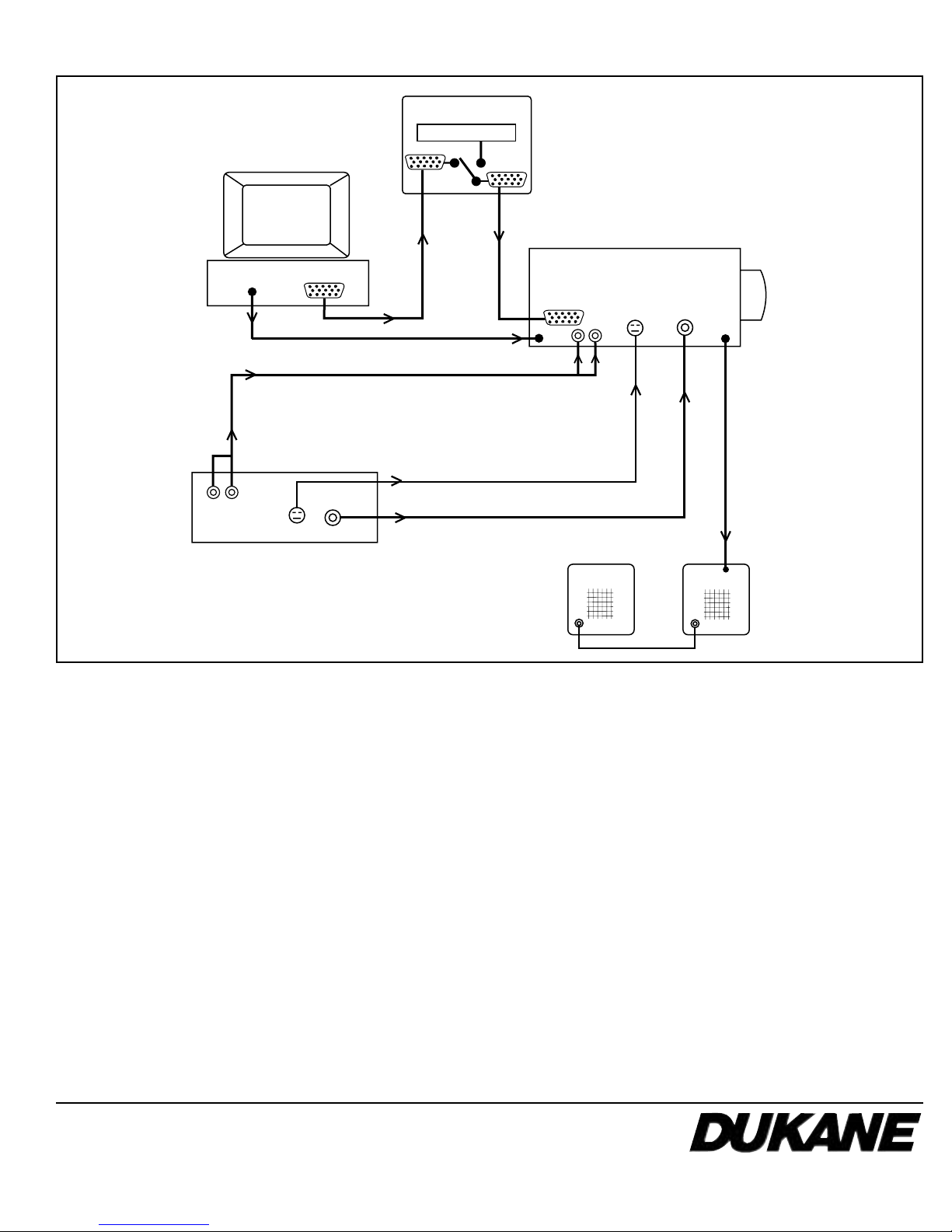

Mobile Presentation System Diagram. Figure 3
Computer
Audio VGA
Out
Projector
VGA
PC Composite
Video Audio
Out
DVD/VCR Powered
Speaker
Speaker
Camera Source
Camera
Composite Video, RCA
S-Video (DVD only)
Audio, RCA X 2 to RCA X 2
Audio, 3.5mm stereo to 3.5mm Stereo S-Video
PC
Audio
