User's Manual - Network

Quick Setup Guide

Thank you for purchasing this product.

This manual is intended to explain only how to setup this product. For proper use

of this product, please refer to this manual and the other manuals for this product.

9005/9006W/9007WU

Connecting the projector and the computer via the network, remote control and

status monitoring of the projector can be performed by Web browser.

Two types of interface, ”Projector Web Control” and “Crestron e-Control”, are

available for this projector.

1.1 Web Control

Projector Web Control Crestron e-Control

1. Features

See the corresponding pages for quick setup.

・Connection Setup (&7)

・System Requirements for Applications (&13)

430-9005/9006W/9007WU-QSG-Net-00

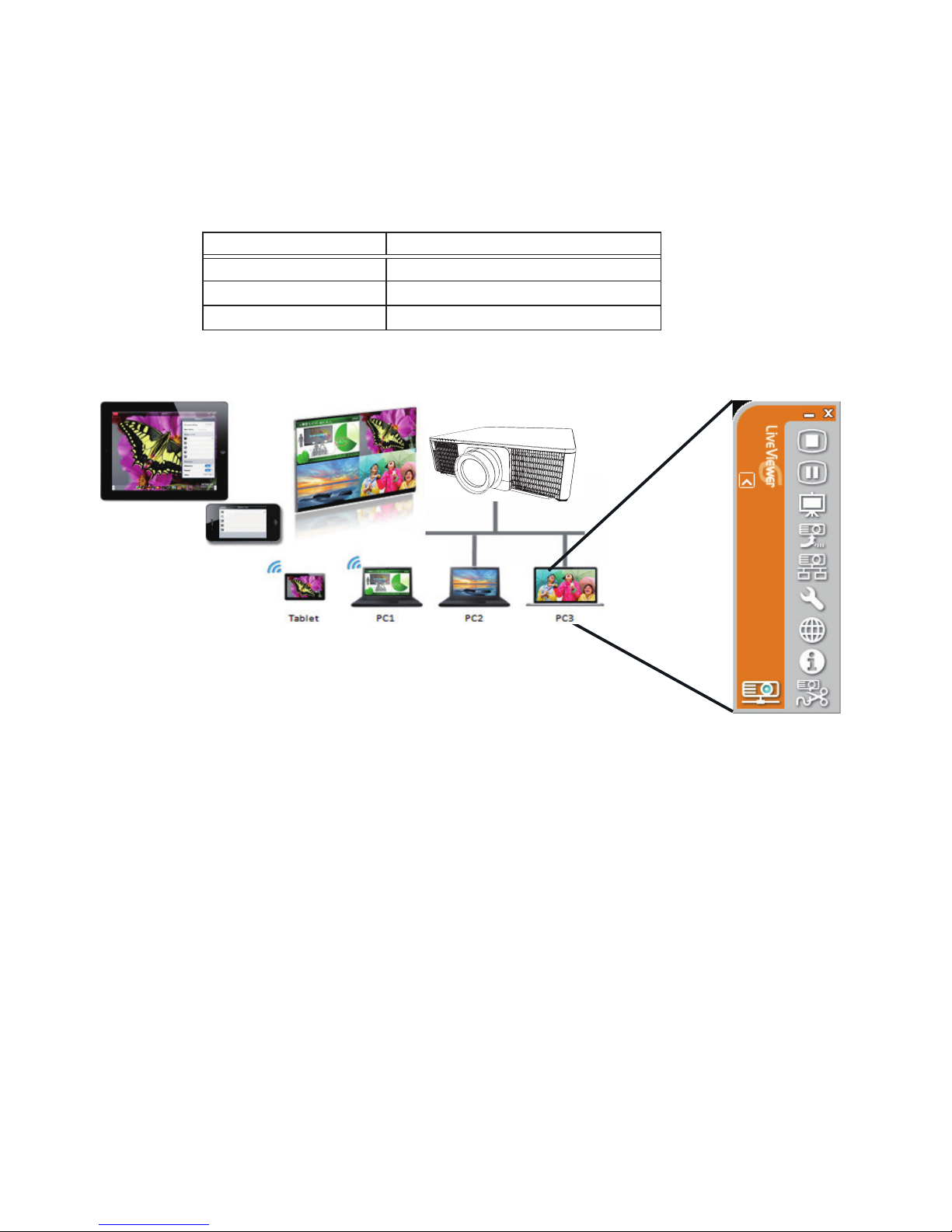

1.2 Network Presentation

The projector can display the computer screen images transmitted through the

network.

To use Network Presentation, an exclusive application, "LiveViewer" is required.

The following application is required to use Network Presentation.

OS Application

Windows LiveViewer

Mac OSX LiveViewer

iOS(iPhone/iPad) Projector Quick Connection

1.3 My Image Function

The projector can display still images transferred via the network.

It is possible to allocate up to 4 image les.

MY IMAGE transmission requires an exclusive application for your computer.

Use the application to transfer the image data.

Transfer image data

Display image data (ex. )

1.4 Messenger Function

The projector can display text data transferred via the network on the screen.

It is possible to store up to 12 text data.

Transfer text data

Display text data (ex. )

1.5 Network Bridge Function

This projector is equipped with the NETWORK BRIDGE function to perform

mutual conversion of a network protocol and a serial interface.

By making use of the NETWORK BRIDGE function, a computer connected to the

projector via wireless or wired LAN is able to control an external device via

RS-232C communication using the projector as a network terminal.

1.6 Other Functions

The projector can automatically send an alert message to the specied

e-mail addresses when the projector detects a certain condition that requires

maintenance or detects an error.

1.6.1 E-mail Alerts

The SNMP (Simple Network Management Protocol) enables to manage the

projector information, which is a failure or warning status, from the computer on

the network. The SNMP management software will be required on the computer

to use this function.

1.6.2 Projector Management using SNMP

RS-232C

RS-232C cable

CONTROL port

LAN port

External device

Wired LAN

LAN cable

Computer

Protocol change

TCP/IP data Serial data

WIRELESS port

(USB wireless adapter)

Wireless

LAN

The scheduling function enables to setup scheduled events including

power on / power off. It enables to be “self-management” projector.

The schedule can be set in web display or SETUP-SCHEDULE menu in the

projector.

1.6.3 Event Scheduling

You can congure and control the projector via the network using RS-232C

commands.

1.6.4 Command Control via the Network

1) Press the MENU button on the remote control or the control panel of the projector.

2) From EASY MENU, select LANGUAGE.

Then, select your desired language.

2. Changing the Display Language

Please follow the on-screen display (OSD) for proper operation.

button MENU button

3.1 Connection via Wired LAN

1) Connect the projector to the computer via a hub

with a LAN cable (CAT-5e or higher).

2) Press the MENU button on the remote control or the

control panel of the projector.

The MENU you last used will appear.

Use the cursor button to select the following.

EASY MENU > ADVANCED MENU > NETWORK > WIRED SETUP

3) Set the following items in WIRED SETUP.

・󲹭DHCP

・IP ADDRESS

・SUBNET MASK

・DEFAULT GATEWAY

・DNS SERVER

As for setting an IP address, refer to “About IP address”. (&8)

Select APPLY, then press the ENTER button to reect the settings.

The connection via wired LAN is available. Set wired LAN for the projector by

following the instructions of your network administrator when connecting to the

existing network.

3. Connection Setup

For Mac users: Mac OS does not support some applications. Refer to System

Requirements for Applications (&13) rst before setting up the connection.

3.2 Connection setup of Wired LAN

hub

• Although HDBaseT and LAN port can be used for wired LAN, they cannot be

used simultaneously. Connect LAN cable to the port set in WIRED NETWORK

on NETWORK menu.

•

The same network address cannot be used for both wireless LAN and wired LAN.

• I

f the projector and the computer exist in the same network (i.e., same network

address), you can leave the default gateway eld blank.

• When the projector and the computer exist in different networks, the default

gateway must be set. Consult with the network administrator in detail.

NOTE

[About IP address]

■ Setting manually

The Network address portion of the IP address setting on your computer must

be the same as the setting on the projector. Also, the entire IP address on the

computer must not overlap with that of the other devices on the same network,

including the projector.

The projector’s settings are as follows.

IP address: 192.168.1.254

Subnet mask: 255.255.255.0

(Network address: 192.168.1 in this case)

Therefore, specify the computer’s IP address as follows.

IP address: 192.168.1.xxx (xxx shows decimal number.)

Subnet mask: 255.255.255.0

(Network address: 192.168.1 in this case)

For example

Select from 1 to 254 for “xxx” not duplicating with any other equipments.

In this case, since the IP address of the projector is “192.168.1.254”, specify

a setting between 1 to 253 for the computer.

■ Setting automatically

When a DHCP server exists in the connected network, it assigns an IP address

to the projector and the computer automatically. If DHCP server is not available,

set IP ADDRESS, SUBNET MASK and DEFAULT GATEWAY.

3.3 Connection via Wireless LAN

Connection via wireless LAN is available with option parts, USB wireless adapter

(USB-WL-11N).

Wireless LAN has two types of connection, Ad Hoc and Infrastructure.

* Ad Hoc is one of the wireless LAN communication methods without having an

access point to communicate.

* Infrastructure is one of the wireless LAN communication methods with having

an access point to communicate. If communicating with existing network, consult

with your network administrator.

Fig. 3.3.a Without an access point communication (Ad Hoc)

Fig. 3.3.b With an access point communication (Infrastructure)

•

Network settings can also be changed in Network Settings of Projector Web

Control.

•

Wireless LAN initial settings for the projector is as follows.

Mode: Ad Hoc

DHCP: Off

IP address: 192.168.10.254

Subnet Mask: 255.255.255.0

Default Gateway: 0.0.0.0

SSID: wireless

Encryption: Off

Channel: 1

• The same network address cannot be used for both wireless LAN and wired LAN.

NOTE

3.3.1 Connection in Ad Hoc Mode

Set the following when connecting the projector and the computer in Ad Hoc mode.

Projector setting

[Restriction on plugging and unplugging the USB wireless adapter]

Before you insert or pull out the USB wireless adapter from the projector, turn off

the power of the projector and pull out the power cord’s plug from the outlet.

Do not touch the USB wireless adapter that is connected to the projector while the

projector is receiving AC power.

Do not use any extension cable or device when connecting the adapter to the projector.

1) Attach the USB wireless adapter to the WIRELESS port of the projector.

2) Turn on the projector.

3) Press the MENU button on the remote control or the

control panel of the projector.

The MENU you last used will appear.

Use the cursor button to select the following.

EASY MENU > ADVANCED MENU > NETWORK > WIRELESS SETUP

4) Set the following items in WIRELESS SETUP.

・MODE: ADHOC

・󲹭DHCP

・IP ADDRESS

・SUBNET MASK

・SSID

・ENCRYPTION

・CH

As for setting an IP address, refer to “About IP address”. (&8)

Select APPLY, then press the ENTER button to reect the settings.

•

As for the procedure of setting network and wireless connection for the computer,

refer to the manual of computer or wireless LAN device.

NOTE

Computer setting

1) Set IP ADDRESS and SUBNET MASK for the computer according to IP

ADDRESS and SUBNET MASK set for the projector. Set the projector and the

computer so that they can have the same network address.

2) Select SSID set for the projector by following the procedure of wireless

connection of the computer. Enter encryption key by following the computer’s

instruction if it is encrypted.
