DURAVIT Happy D.2 Plus HP 4936 Manuale utente
Z
8080
X
Y
142
47 47
74
74
820
512 512
1600
1500
100 580
50 100 204
900
16
234
Z
4x 4x15
8x S8
2x 100
1x 260
8x 5,5x50
Instructions for use
The bathroom furniture range complies with the standards and guidelines applicable at the time of delivery and is designed for use in bathrooms.
Direct contact with water should be avoided, for example, when showering.
We reserve the right to make technical improvements and design modifications to the products illustrated.

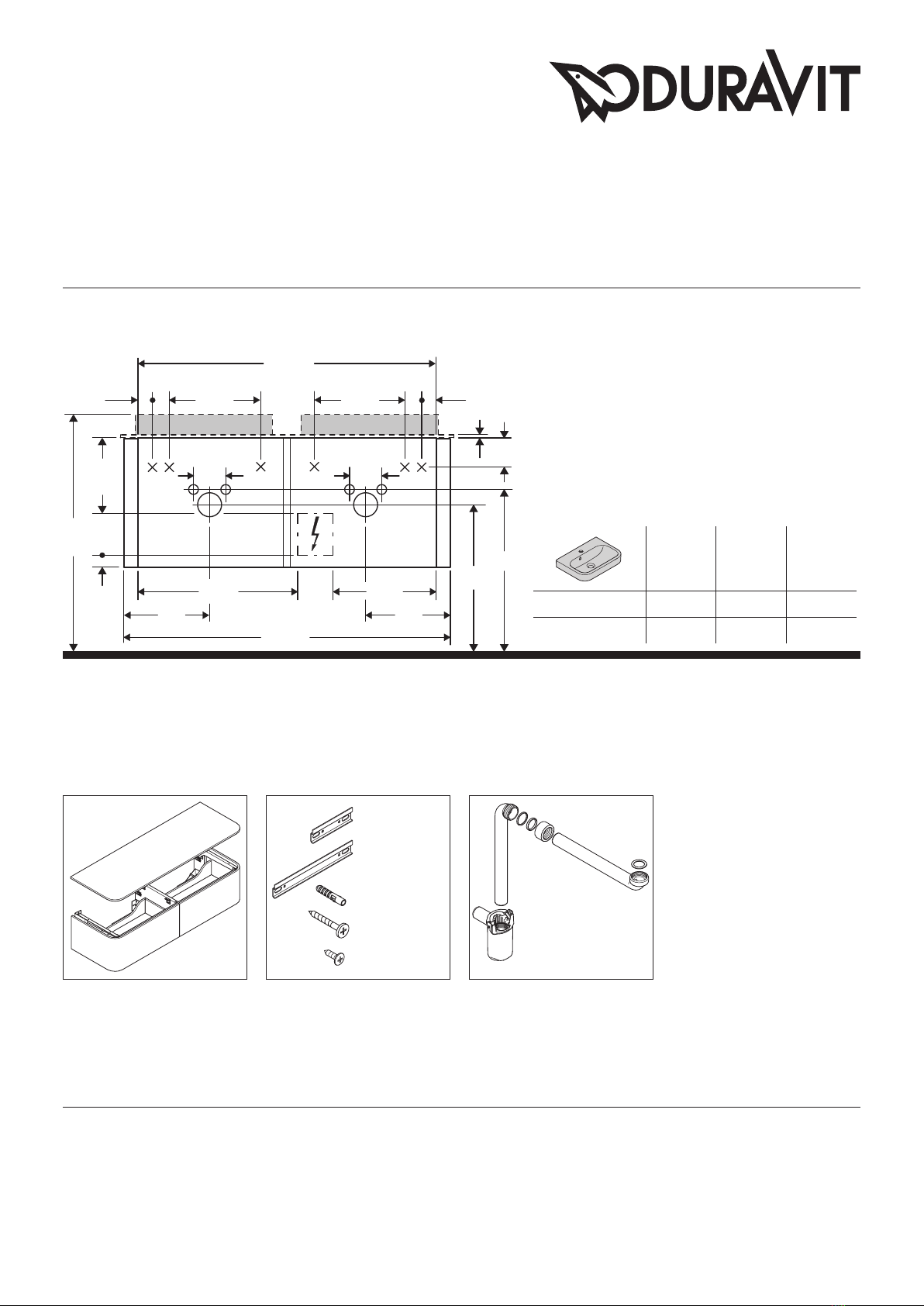

Mounting instructions
Z
mm
X
mm
Y
mm
#231860 400 690 640
#231865 400 690 640
MAL_Happy D.2 Plus_HP4936/19.02.1
# 0050760000
Happy D.2 Plus # HP 4936
2
1
2x S82x 5,5x50
click
Ø 8 mm
6x S8 6x 5,5x50
Ø 8 mm
2x S8
4x 4x15
Order no. HP4936/19.02.1
MAL_Happy D.2 Plus_HP4936/19.02.1
Duravit AG, Werderstr. 36, 78132 Hornberg, Germany, Phone +49 78 33 700, Fax +49 78 33 70 289, inf[email protected], www.duravit.de

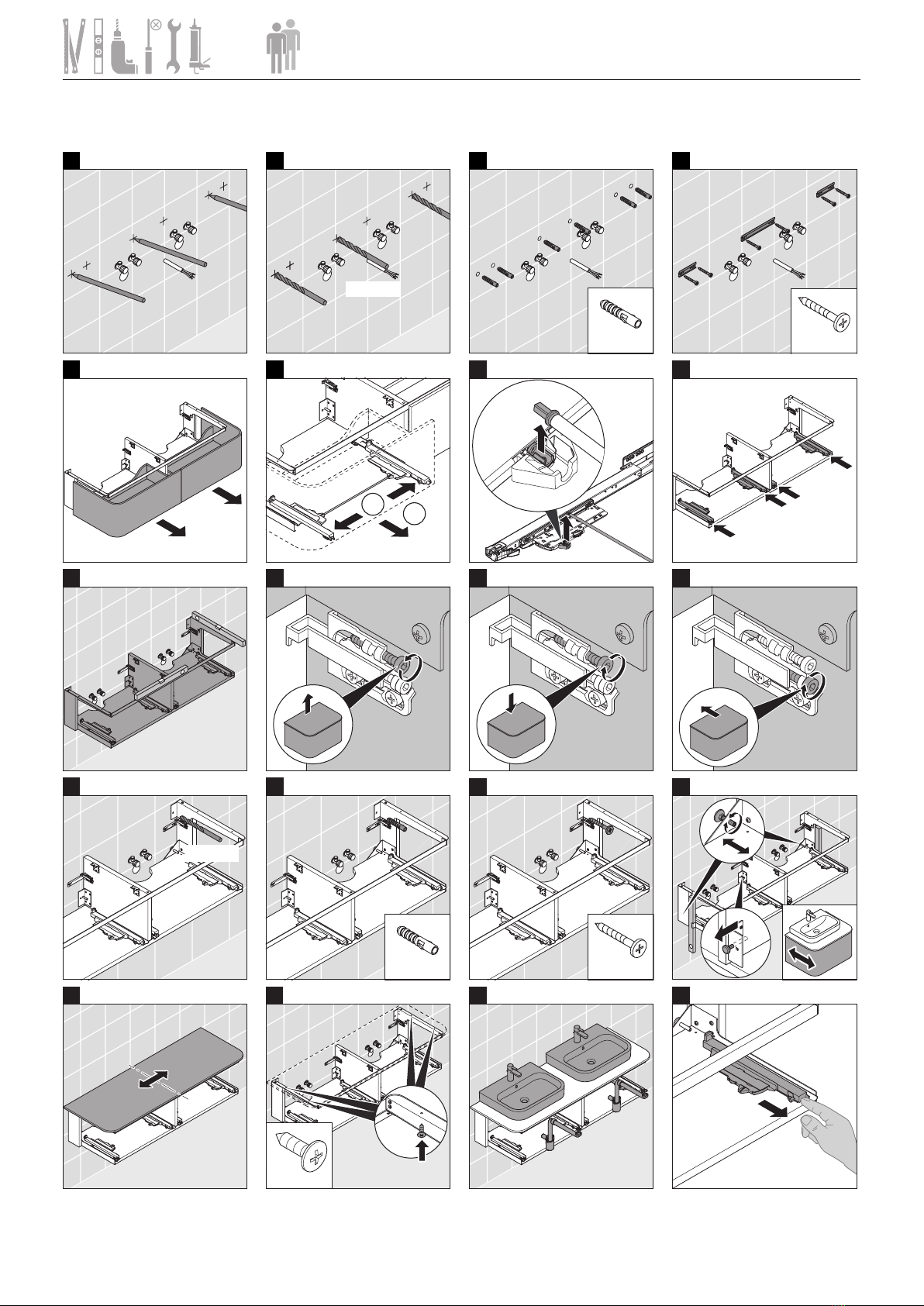

1 2 3 4
5 6 7 8
9 10 12
13 14 15 16
17 18 19 20
11
click 2x click
4
8
4
4
Order no. HP4936/19.02.1
MAL_Happy D.2 Plus_HP4936/19.02.1
Duravit AG, Werderstr. 36, 78132 Hornberg, Germany, Phone +49 78 33 700, Fax +49 78 33 70 289, inf[email protected], www.duravit.de

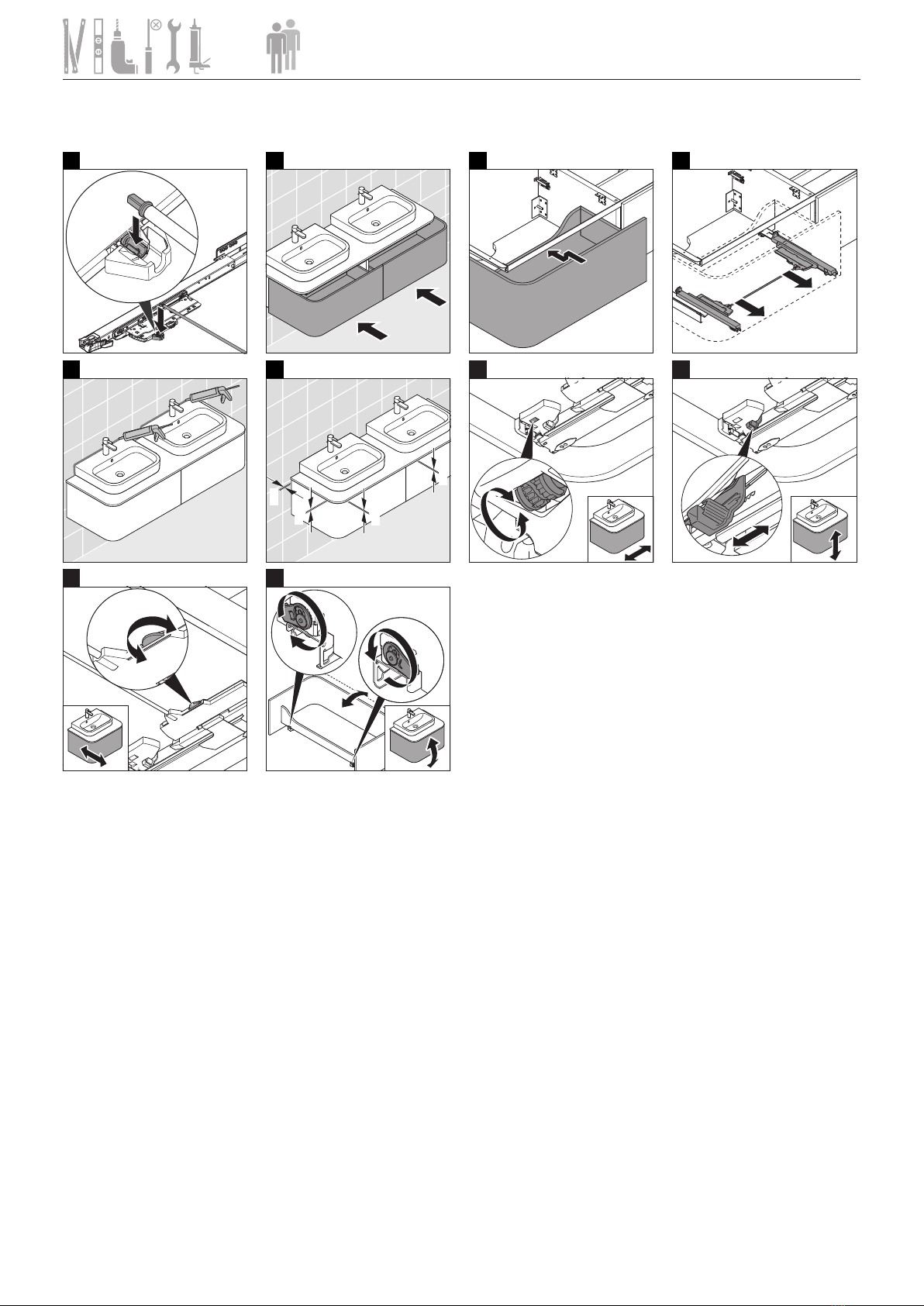

21 22 23 24
25 26 27 28
29 30
35 36
3433
3231
37 39 40
3635
33
3131 32
36
Order no. HP4936/19.02.1
Duravit AG
P.O. Box 240
Werderstr. 36
78132 Hornberg
Germany
Phone +49 78 33 70 0
Fax +49 78 33 70 289
info@duravit.com
www.duravit.com
Mounting instructions for bathroom furniture with a power supply
Safety 2
Electrical installation 3
Intended use
The mounting instructions come as part of the Duravit
product and are aimed at people who carry out the
electrical installation for the product. You must read
through the mounting instructions carefully and they must
be available at all times.
Target readership and qualifications
The electrical installation may only be carried out by
qualified electricians.
Protection rating of Duravit products
The protection rating of Duravit products with a power
supply complies with the IP 44 standard as a minimum.
Protection class of wall lights
Protection class Connecting cable
I H05VV-F, 3x 1.5 mm2
II H03VV-F, 2x 0.75 mm2
Standards and directives
Duravit products comply with the CE marking
directives:
Icons and symbols
Symbol Meaning
> Action required
Safety instructions
Danger to life
Contact with electricity may lead to an electric shock.
>Carry out the electrical installation in accordance with
the national, European and international directives and
standards.
>Observe protection zones for wet rooms in accordance
with country-specific standards, local regulations and
low voltage guidelines.
>Connect the electrics using a ground fault circuit
interrupter (GFCI) in wet rooms or other specially
equipped rooms.
>Disconnect electrical components from the power supply
before the installation.
>Check that all components are de-energised.
>Prevent the power supply from being switched on
accidentally.
Penetration of foreign bodies and water
Foreign bodies or water in equipment lead to a short circuit
that may cause damage to the product.
>Observe the protection zones for Duravit products.

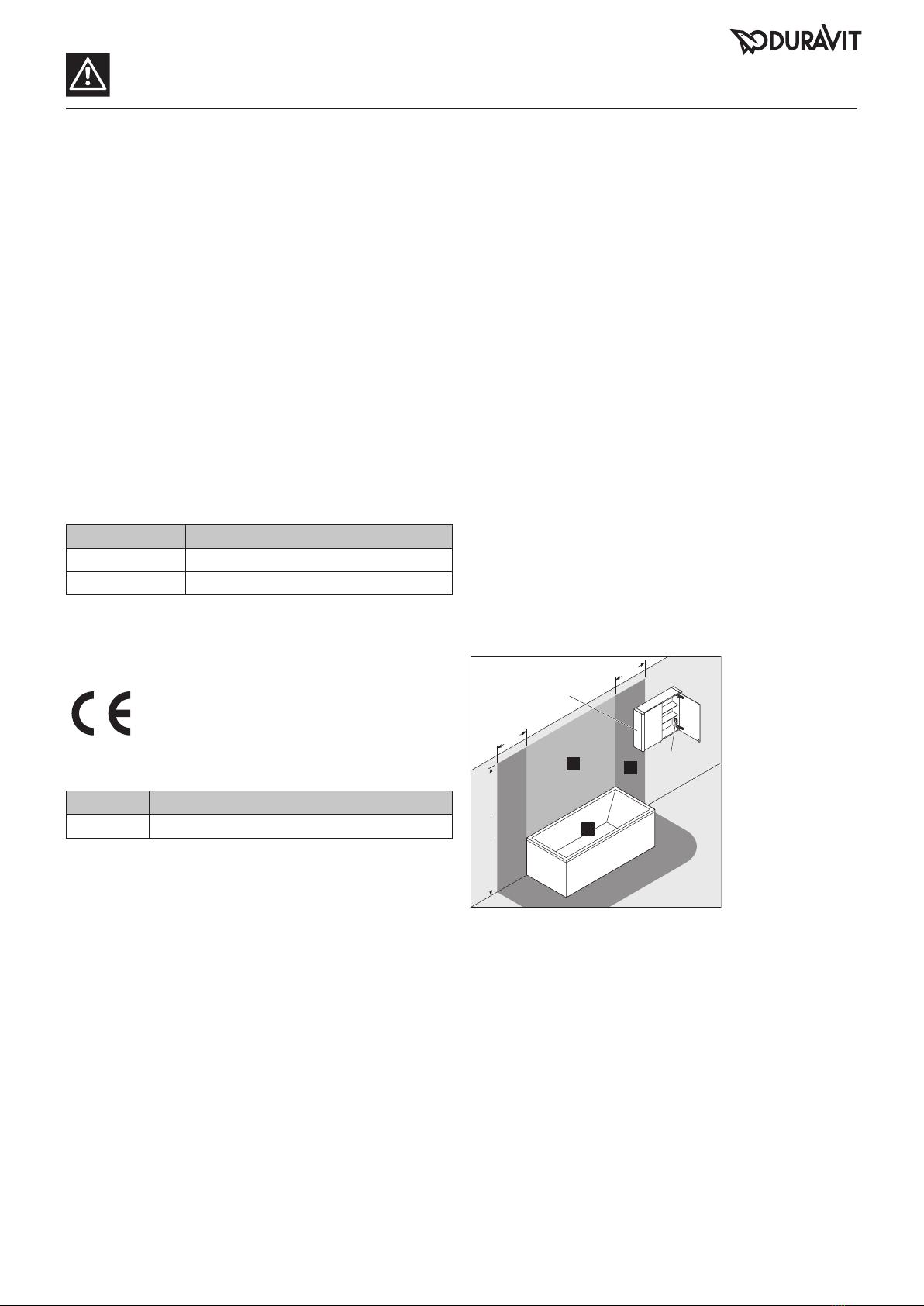

Protection zones
600 600
2250
0
12
A
B
AA mirror cabinet with an IP 44 rating may protrude into zone 2.
BA socket in a mirror cabinet must be mounted outside the zones.
2MAL_51240/18.10.4
Safety

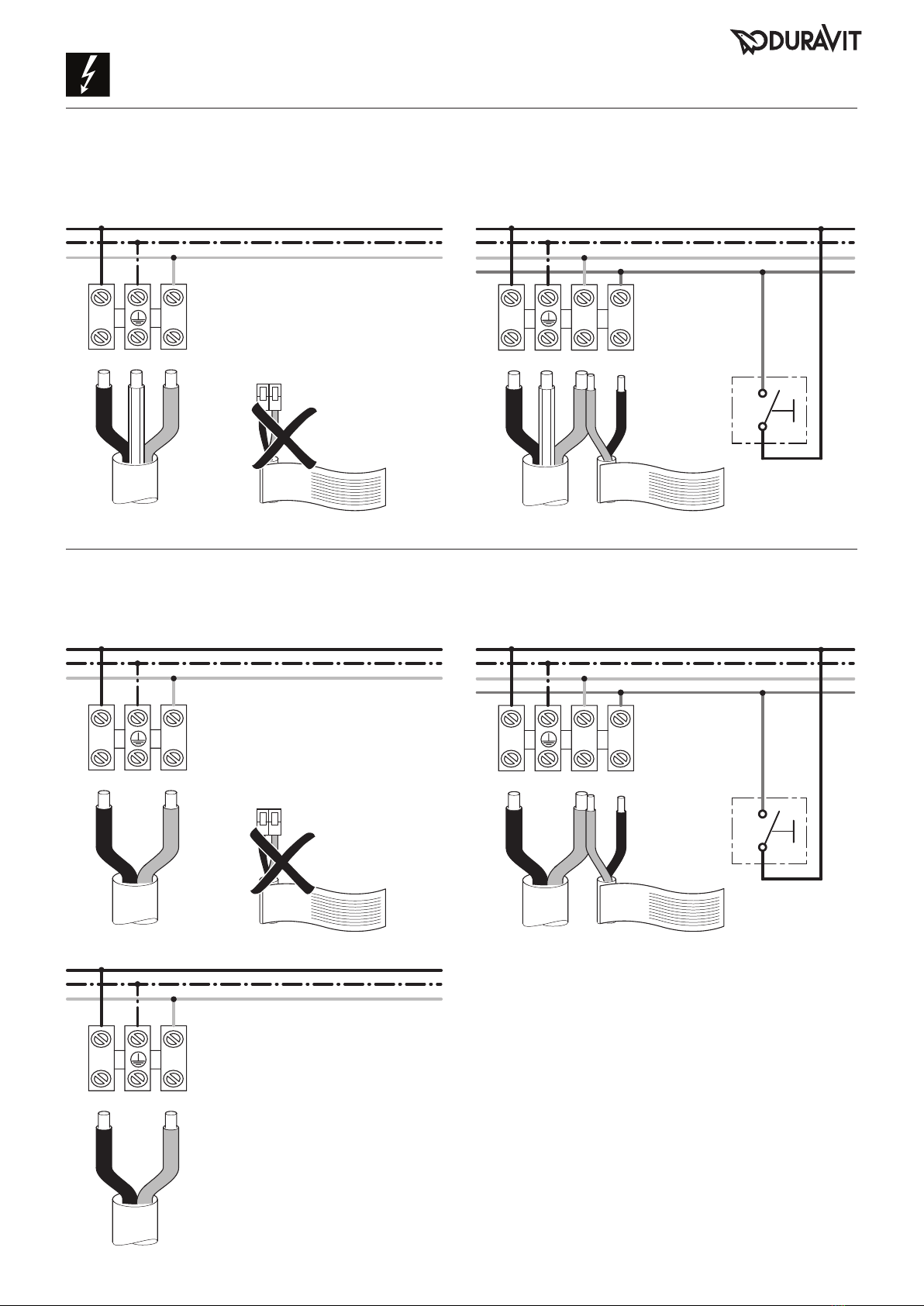

Electrical installation for protection class I
Electrical connection Optional connection of an external button
LNLNL'
Electrical installation for protection class II
Electrical connection Optional connection of an external button
LNLNL'
LN
MAL_51240/18.10.4 3
Electrical installation
Order no. 51240/18.10.4 We reserve the right to make technical improvments and design modifications to the products illustrated.
DURAVIT AG
P.O. Box 240
Werderstr. 36
78132 Hornberg
Germany
Phone +49 7833 70 0
Fax +49 7833 70 289
info@duravit.com
www.duravit.com
