1. General notes
The service instructions on hand describe the adjustment of the button
sewing automat 530.
ATTENTION !
The operations described in the service instructions may only be
carried out by qualified staff or other appropriately trained persons!
Caution: Danger of injury !
In case of repair, alteration and maintenance work switch off
main switch.
Carry out adjusting operations and functional tests of the running
machine only under observation of all safety measures and with
utmost caution.
These service instructions describe the adjustment of the button
sewing automat in a logical order. Please observe in this connection
that various setting positions are interdependent. The adjustment
process must therefore be carried out int the order given.
For all setting operations of parts involved in the stitch formation a new
needle without any damage has to be inserted.
3
2. Arm shaft
2.1 Preparatory work

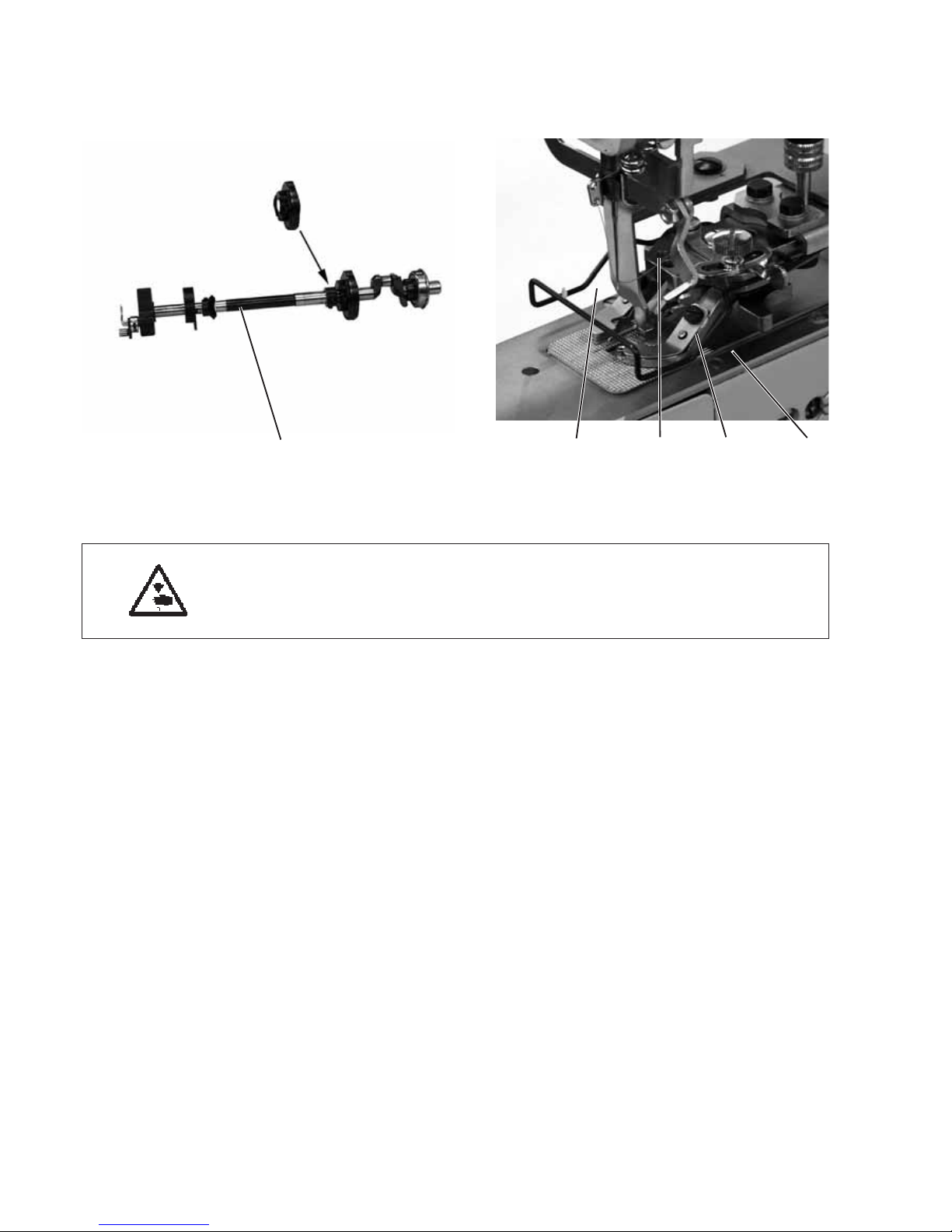

Some of the adjustments at the arm shaft 1 can be carried out easier if
the thread trimming mechanism 3 is removed before.
Caution: Danger of injury !
Switch off main switch.
Remove and mount thread trimming mechanism only when the button
sewing automat is switched off.
Remove mechanism
–Unscrew arm cover.
–Loosen screw 4 at the thread trimmer magnet.
–Unscrew screws 2 and 5 and take off thread trimming
mechanism 3.
Mount mechanism
–Push thread trimming mechanism 3 on the magnet and place it on
the machine head.
–Insert screws 2 and 5 and screw tight.
–Tighten screw 4 at the thread trimmer magnet.
–Adjust thread trimmer (see chapter 5).
4
5432
1
2.2 Assembly of the crank
Caution: Danger of injury !
Switch off main switch.
Remove and mount crank only when the button sewing automat is
switched off.
Standard

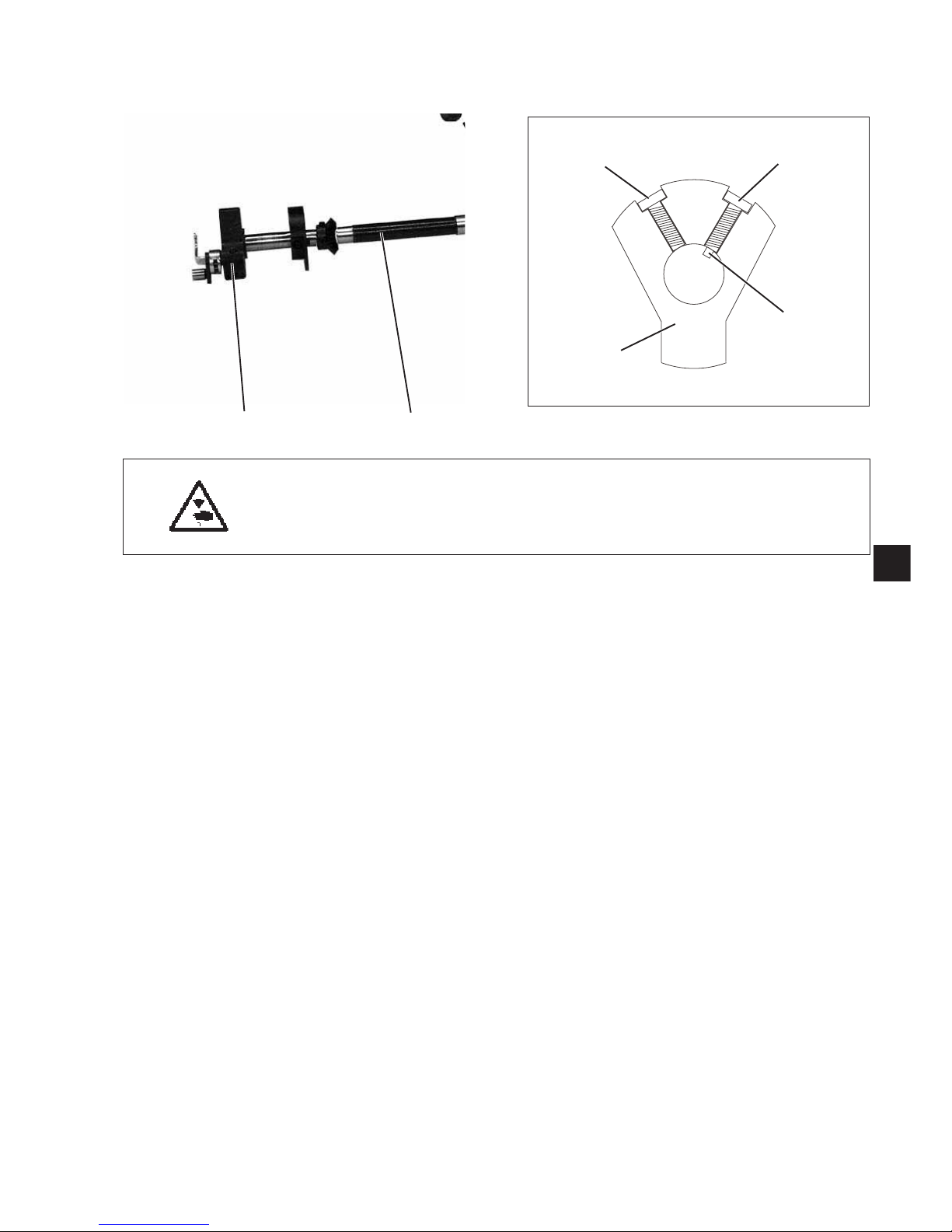

The crank 4 has to be mounted on the arm shaft 1 in such a way that
the pivot 3 of the screw 2 reaches into the drill-hole on the arm shaft.
The screw 2 is the first screw in the direction of rotation.
Assembly
–Push crank 4 on arm shaft 1.
–Twist crank 4 in such a way that its first drill-hole in the direction of
rotation lies above the drill-hole in the arm shaft 1. Insert screw 2
with pivot 3 and screw tight.
–Insert screw 5 and tighten.
5
3
41
4
2
3
5
2.3 Arm shaft position
Caution: Danger of injury !
Switch off main switch.
Check and adjust position of the arm shaft only when the button
sewing automat is switched off.
Standard checking

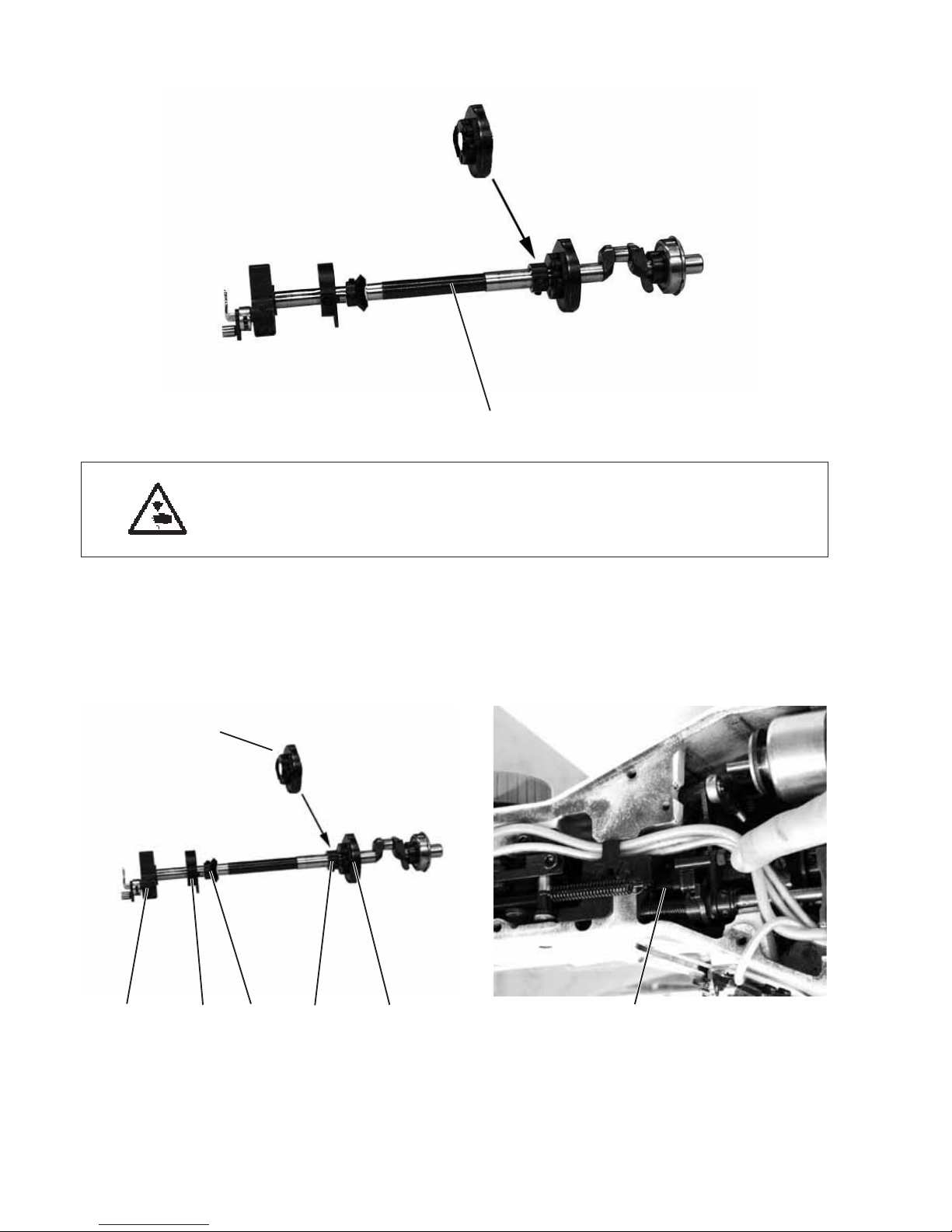

The arm shaft 1 should have no axial backlash, but it must not move
too heavy.
–Check the arm shaft with regard to axial backlash and rough
running.
Correction
–Loosen screws at the thread trimmer cam 2.
–Loosen screws at the adjusting ring 3.
–Loosen screws at the bevel gear 4.
–Loosen screws at the bobbin winder wheel 5.
6
1
6 543 2 3
