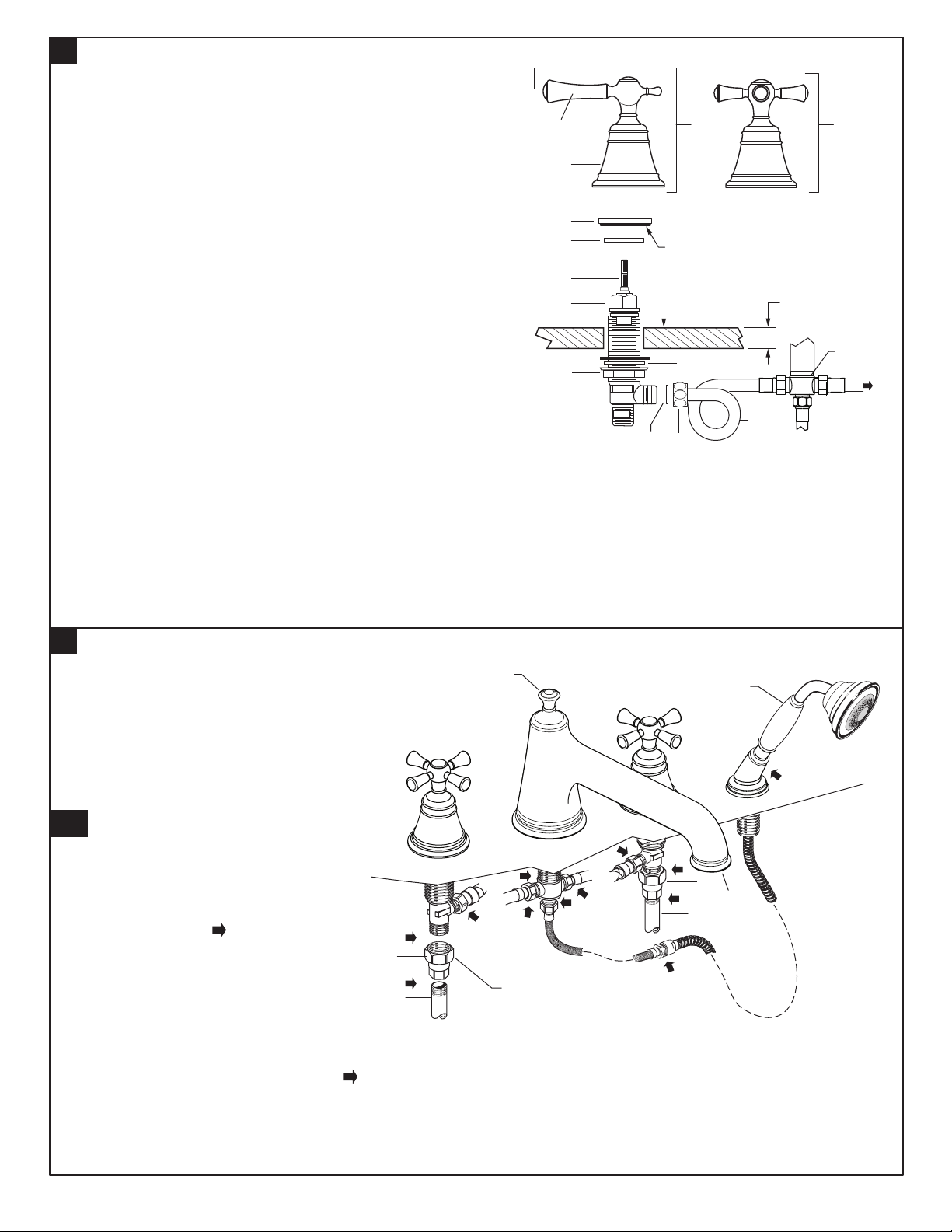

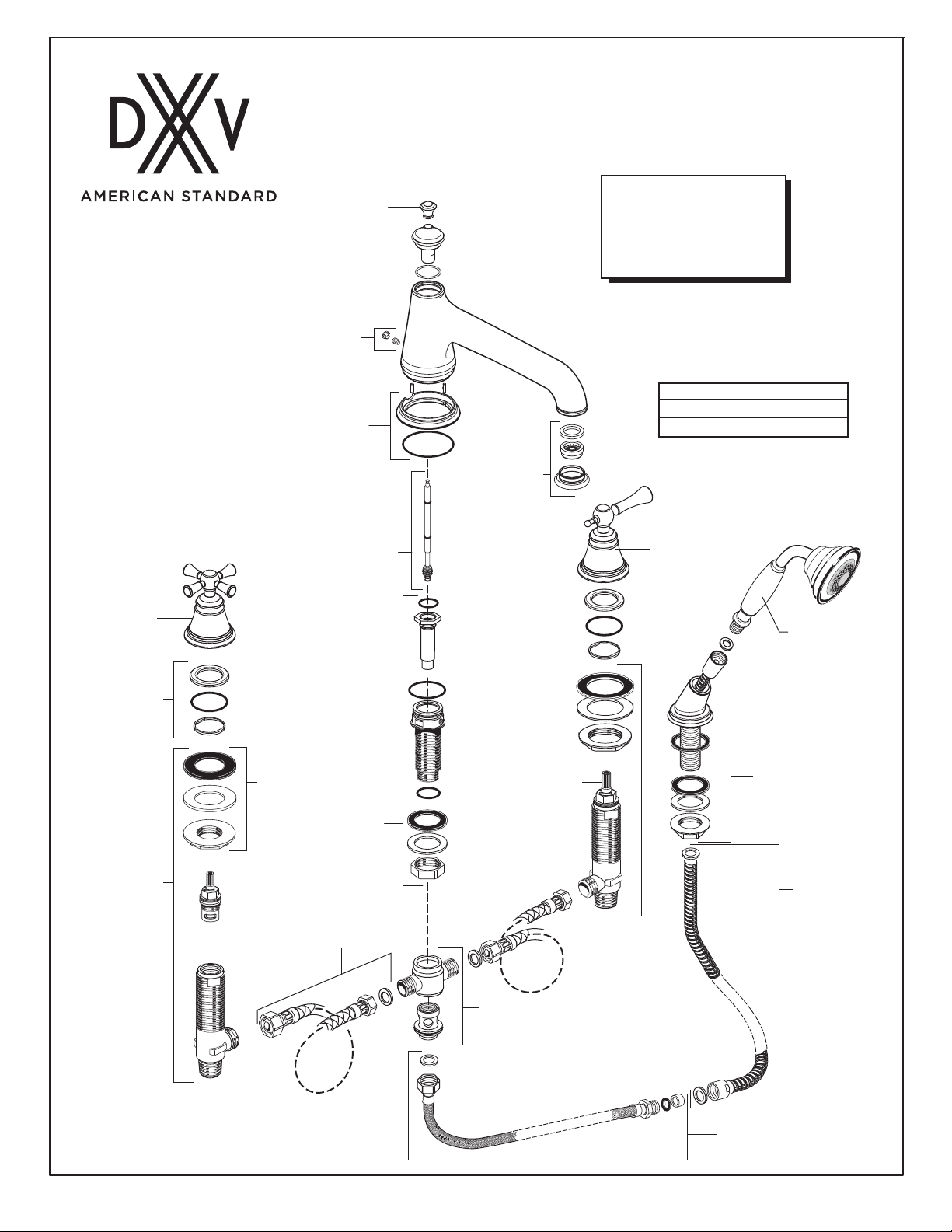

INSTALL VALVE BODIES
• INSTALL HANDLES (LEVER and CROSS)
1-1/2''(38mm) MAX.
• Thread LOCKNUT (8) to bottom of VALVE BODY (2). Make sure
FIBER WASHER (9) and RUBBER WASHER (10) are installed.
Insert VALVE BODY (2) through mounting hole from underside
of tub deck or mounting surface.
Note: VALVE BODY marked Hot is installed in the left Mtg.
hole, VALVE BODY marked Cold in the right when facing front
of fitting. Maximum mounting surface thickness is 1-1/2" (38mm).
• HANDLE ASSEMBLIES (1, 1A) are installed on VALVE BODIES (2)
and must be removed to install VALVE BODIES (2) from under
tub deck or mounting surface.
• To remove HANDLE ASSEMBLY (1), unthread HANDLE BASE (3)
with LEVER (4) from VALVE BODY (2). Pull HANDLE ASSEMBLY (1)
off VALVE STEM (5).
• Unthread and remove MOUNTING RING (6) and SPACER (7).
• From top install SPACER (7) onto VALVE BODY (2). Thread
MOUNTING RING (6) on VALVE BODY (2) until seated tightly against
SPACER (7). Set VALVE BODIES (2) so that their outlets are facing
toward SPOUT TEE (11) and then tighten LOCKNUT (8) using 35mm
or adjustable wrench.
• Insert FIBER WASHERS (12) into COUPLING NUTS (13) of SUPPLY HOSES (14) and tighten making water tight connection.
Important: Loop SUPPLY HOSES (14) as illustrated so they do not kink.
6
1
3
4
8
12
HOT
13
14
911
10
7
5
2
"O" RING
TUB DECK OR
MOUNTING SURFACE
Turn VALVE BODIES (2) to off position. Align HANDLES as shown or as desired and install HANDLE ASSEMBLY (1, 1A) onto
VALVE STEM (5). Thread HANDLE BASE (3) onto VALVE BODY (2) until seated tightly against mounting surface.
1A
HOT COLD
3/4" (19mm) D.
3
• Lift HAND SHOWER from HOLDER,
direct spray into tub. Lift TRANSFER KNOB to
check HAND SHOWER and HOSES for leaks.

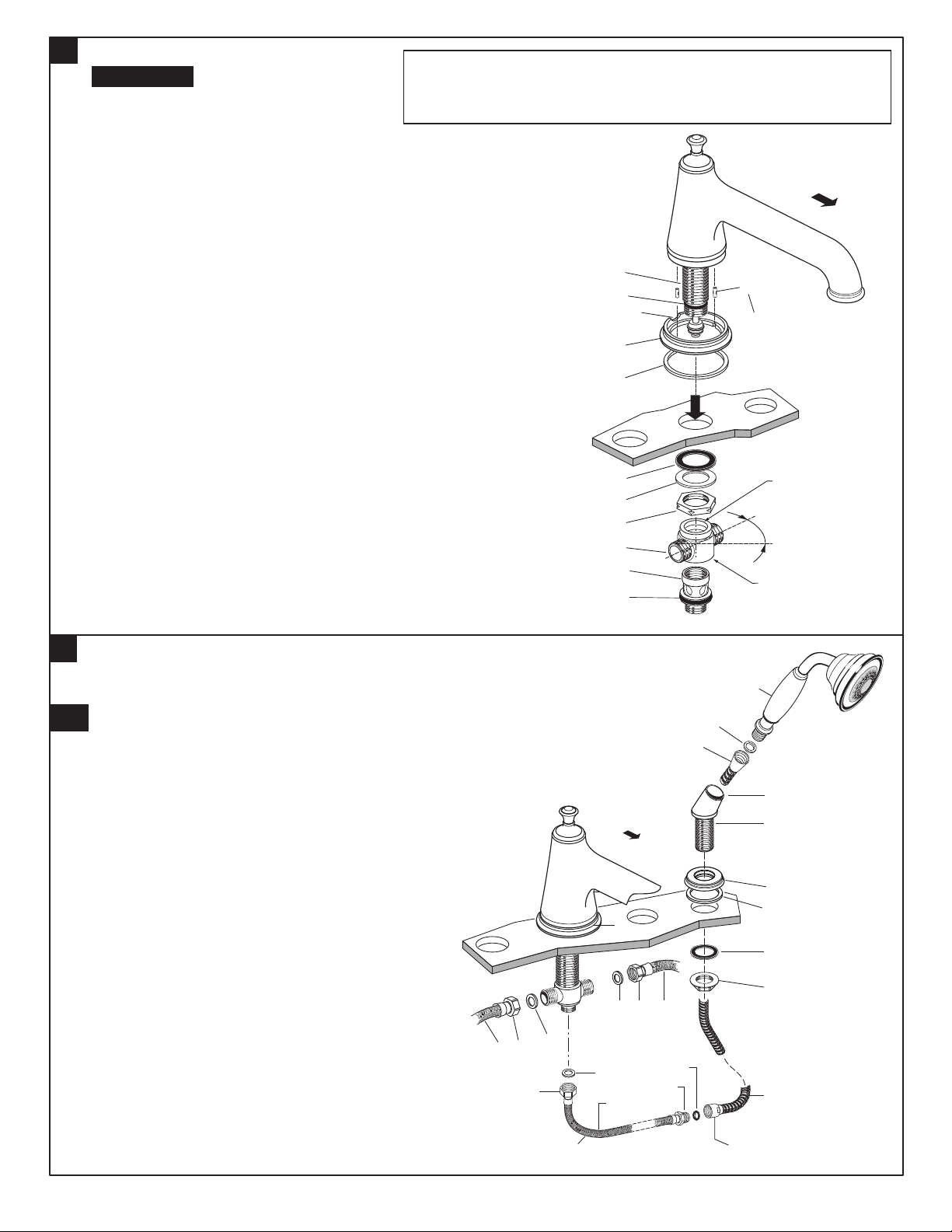

MAKE WATER SUPPLY CONNECTIONS
• Remove AERATOR from FAUCET.
• With HANDLES in OFF position,
turn on WATER SUPPLIES and check
all connections for leaks.
• Operate both HANDLES to ush
water lines thoroughly.
• Replace AERATOR.
• Connect HOT water supply to LEFT INLET UNION (1)
and COLD water supply to RIGHT INLET UNION (2).
Pipe connections are 3/4" (19mm) NPT. Use sealant or
Teon tape on pipe connections.
Do not solder directly to valve body.
TEST INSTALLED FAUCET
3/4" X 3/4" NPT UNION
(NOT SUPPLIED) (19mm X 19mm)
HOT COLD
3/4" NPT
(19mm)
AERATOR
TRANSFER
KNOB
3/4" (19mm) NPT
(19mm)
2
1
• Turn handles "off" and replace HAND SHOWER.
IMPORTANT: It is strongly recommended
that access be provided for all enclosed
mechanical parts to this system.
3
8
HAND SHOWER
4
4a
