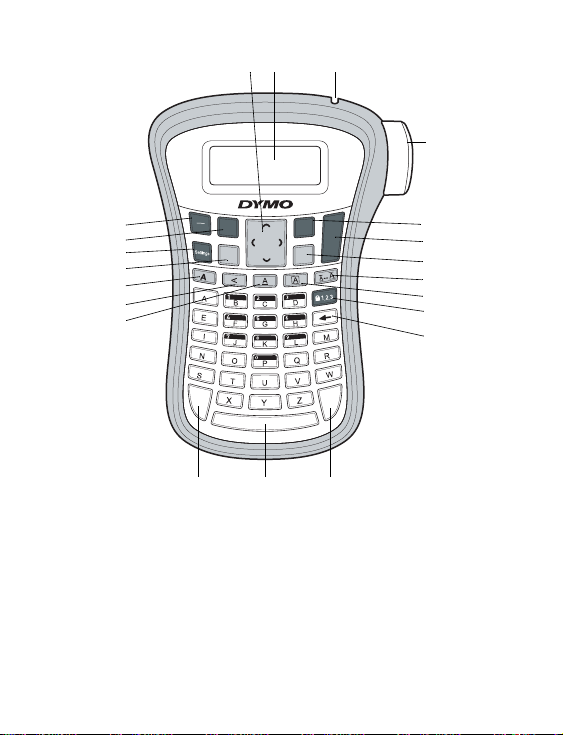

Figure 1 DYMO® LabelManager® 120P Electronic Label Maker

1Tape cutter 8Back space 15 Cancel

2Preview 9Accented character 16 Settings

3Print 10 Space bar 17 Symbols

4OK 11 Caps 18 On/Off

5Size 12 Underline 19 Navigation

6Border 13 Vertical 20 LCD Display

7Number lock 14 Bold 21 Tape exit

Off

Symbols

Preview

Space

Cancel

91011

19 20

About Your New Label Maker

With the DYMO® LabelManager® 120P electronic label maker,you can create a

wide variety of high-quality, self-adhesive labels. You can choose to print your

labels in many different font sizes and styles. The label maker uses DYMO D1

tape cassettes in widths of 3/8” (9 mm) or 1/2” (12 mm). These tape cassettes

are available in a wide range of colors.Visit www.dymo.comfor information

on obtaining labels and accessories for your label maker.

Product Registration

Visit www.dymo.com/registration to register your label maker online.

Getting Started

Follow the instructions in this section to print your first label.

Connecting the Power

The label maker is powered by six high-capacity AA alkaline batteries. To save

power, the label maker automatically turns off after two minutes of inactivity.

To insert the batteries

1. Slide the battery compartment

cover away from the label maker.

See Figure 2.

2. Insert the batteries following the

polarity markings (+ and –).

3. Replace the cover.

ÇRemove the batteries if the label maker will not be used for a long period

of time.

Figure 2

Inserting the Tape Cassette

Your label maker comes with one tape cassette.

Visit www.dymo.com for information about

purchasing additional tape cassettes.

To insert the tape cassette

1. Lift the tape cassette cover to open the tape

compartment. See Figure 3.

ÇBefore using the label maker for

the first time, remove the protective

cardboard insert from the tape exit

slot. See Figure 4.

2. Insert the cassette with the label

facing up and positioned between the

guideposts.

3. Press firmly until cassette clicks into

place. See Figure 5.

4. Close the tape cassette cover.

Using the Label Maker for the

First Time

The first time you turn on the power, you are

asked to select the language. This selection will

remain set until you change it, or until the label

maker is reset. You can change this selection

using the key.

Figure 3

Figure 4

Remove

cardboard insert

Guideposts

Figure 5

Click!

To set up the label maker

1. Press to turn on the power.

2. Select the language and press }.

By default, the language is set to English. The language option you choose

determines the character set that is available.

3. Select the width of the tape cassette currently in the label maker and press

You are now ready to print your first label.

To print a label

1. Enter text to create a simple label.

2. Press .

3. Press the cutter button to cut the label.

Congratulations! You printed your first label. Continue reading to learn

more about the options available for creating labels.

Getting to Know the Label Maker

Become familiar with the location of the feature and function keys on your

label maker. Refer to Figure 1. The following sections describe each feature in

detail.

Power

The button turns the power on and off. After two minutes of no activity,

the power is switched off automatically. The last label created is remembered

and displayed when the power is turned back on. The previously selected

style settings are also restored.

O

LCD Display

You can enter up to 99 characters and spaces. The display shows about 13

characters at a time. The number of characters displayed will vary due to

proportional spacing.

With DYMO’s exclusive graphical display, most of the formatting you add is

visible instantly. For example, the border added to the text below is clearly

displayed.

Feature indicators along the top of the LCD display appear black to let you

know when a feature is selected.

Settings

The key displays the Language, Label Width, and Contrast submenus.

These features are described later in this User Guide.

CAPS Mode

The key toggles capitalization on or off. When Caps mode is on, the Caps

mode indicator is shown on the display and all letters that you enter will be

capitalized. The default setting is Caps mode on. When Caps mode is off, all

letters appear in lower case.

Num Lock

The key provides access to the numbers located on some of the

alphabetic keys. When Num Lock mode is turned on, the Num Lock indicator is

shown on the display and the numbers 0 through 9 appear when you press

the corresponding letter keys. Num Lock is turned off by default.

Backspace

The key removes the character to the left of the cursor.

Navigation Keys

You can review and edit your label using the left and right arrow keys. You can

also navigate through menu selections using the up and down arrow keys,

and then press }to make a selection.

Cancel

The key allows you to exit from a menu without making a selection or

to cancel an action.

Formatting Your Label

You can choose several format options to enhance the appearance of your

labels.

Changing the Font Size

Two font sizes are available for your labels: Normal and Large. The font size

applies to all characters on a label. The font size key toggles the font from one

size to the other.

Cancel

To set the font size

♦Press .

The font size indicator on the display changes as you select font sizes.

Adding Font Styles

You can choose different font styles:

The style you select applies to all characters. Styles can be used with

alphanumeric characters and some symbols. The font style keys toggle the

style on and off.

To add bold text

♦Press .

To print vertical text

♦Press .

Adding a Border or Underline

You can highlight your text by choosing a border or underline style.

A label can be underlined or enclosed in a border, but not both together.

To add a border

♦Press .

To add an underline

♦Press .

Normal

Bold

Vertical

Square Underline

Using Symbols and Special Characters

Symbols and other special characters

can be added to your labels.

Adding Symbols

The label maker supports the symbol

set shown here .

To insert a symbol

1. Press .

2. Use the left and right arrow keys to

move to your desired symbol.

The left and right arrows move

horizontally along a row of

symbols. The up and down arrow

keys scroll vertically through the

rows of symbols.

3. When you locate the symbol, press }to add the symbol to your label.

Adding International Characters

The label maker supports the extended Latin character set using RACE

technology. After pressing the Accent key, repeatedly pressing a letter scrolls

through the available variations of that letter.

For example, if French is selected as the language and you press the letter a,

you will see a à â æ and so on through all the variations available. The

character variations and the order in which the variations appear depend on

the language you use.

Position in Row

Symbols

To add accented characters

1. Press .

The accented character indicator is shown on the display.

2. Press an alpha character.

The accent variations are displayed.

3. When the desired accented character appears, wait a few seconds for the

cursor to move beyond the character to continue entering text.

Printing Options

You can preview your label and adjust the printing contrast.

Previewing Your Label

You can preview your label prior to printing.

To preview your label

♦Press .

The label length is displayed, then the text scrolls across the display.

Adjusting the Print Contrast

You can adjust the print contrast to fine tune the print quality of your label.

To set the contrast

1. Press .

2. Select Contrast and press }.

3. Use the arrow keys to select a contrast setting between 1(less contrast)

and 5(more contrast), and press }.

PreviewPreview
