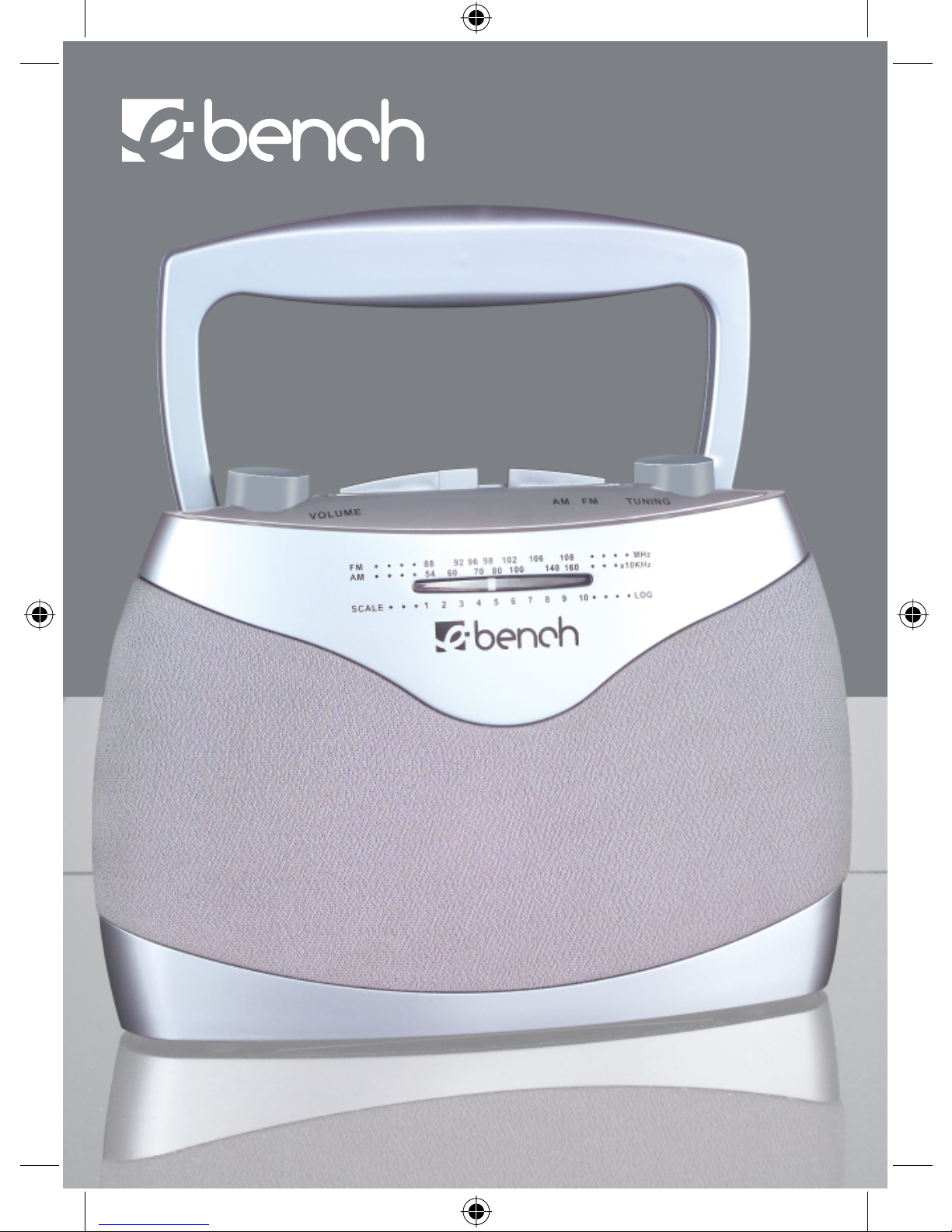

E-Bench KH 2247 Manuale utente
Radio
Instructions for use
KH 2247
Kompernaß GmbH
Burgstrasse
D– Bochum
Deutschland/Germany
—
www.kompernass.com
-
v..KH
UK
English
Index
1. Safety instructions.....................................................4
2. Scope of delivery........................................................6
3. Usage..........................................................................6
4. Technical data............................................................6
5. Operating controls.....................................................7
6. Preparing the radio for use........................................8
7. Radio operation.......................................................11
8. Turning the radio o ...............................................12
9. Connecting headphones..........................................13
10. Cleaning the radio .................................................13
11. Troubleshooting ....................................................14
12. Disposing of the radio ...........................................16
English
. Safety instructions
†Danger!
Do not place the radio …
Úin areas exposed to direct sunlight! Otherwise the
radio could overheat and be damaged beyond repair.
is could cause a re!
Úin the immediate vicinity of heat sources such as
ovens, heaters and similar devices or vent openings
of other electrical devices! Otherwise the radio could
be damaged beyond repair. is could cause a re!
Úin damp areas or near water. Otherwise moisture
could enter the radio. is could cause danger of
electrical shock and re!
†Danger!
e radio can be operated using AC power from a wall
outlet with a power cable sold separately. Operating the
radio using the wrong power cable could cause risk of
electrical shock! e radio could also be damaged beyond
repair!
English
|Warning!
e radio contains no user-serviceable parts. e warran-
ty is void if the casing of the radio is opened!
For repairs,
please contact our service partner nearest you. You will nd
the addresses of our service partners on the warranty card.
e warranty card is included in delivery of the radio.
ôNote:
No liability will be taken and no guarantee will be made
for damages …
Údue to opening the case of the radio
Úresulting from repair attempts not made by qualied
experts
Úuse of the radio for purposes other than intended!
ôNote:
Battery acid could leak out, especially if the batteries are
old. erefore you should remove all batteries if you do
not plan to use the radio for long periods of time. is
protects the radio from battery acid leakage.
English
. Scope of delivery
'Radio
'ese instructions for use
'Warranty card
. Usage
e radio is exclusively intended …
Úas an entertainment device
Ú
as a receiver for medium wave (AM) and
frequency modulation (FM) radio stations
Úfor private non-commercial use.
. Technical data
Direct Current (DC): V ( × AA/Mignon batteries)
Power supply (Adaptor):
Input: V ~ / Hz
Output: V DC , min. mA
FM frequency range: .– MHz
AM frequency range: – kHz
English
. Operating controls
qFrequency range selection switch
wTuning knob
eFrequency range scale
rPower input connection for direct current (on the
side of the radio)
tBattery compartment (on the bottom of the radio)
y. mm headphone jack (on the side of the radio)
uLoudspeaker
iVolume control knob / On/O switch
oCarrying handle
aExtendable antenna for FM frequency range
w
a
i
o q
e
ry
u
t
English
. Preparing the radio for use
Carefully remove the radio from the packaging. Do not
drop the radio! Otherwise it could be damaged beyond
repair.
Only place the radio on a level, at, scratchproof, non-slip
surface.
†Danger!
Do not place the radio …
Úin areas exposed to direct sunlight! Otherwise the
radio could overheat and be damaged beyond repair.
is could cause a re!
Úin the immediate vicinity of heat sources such as
ovens, heaters and similar devices or vent openings
of other electrical devices! Otherwise the radio could
be damaged beyond repair. is could cause a re!
Úin damp areas or near water. Otherwise moisture
could enter the radio. is could cause danger of
electrical shock and re!
English
|Warning!
Do not place radio in areas exposed to extreme physi-
cal shock or constant vibrations. Physical shock and
constant vibrations could lead to malfunctions and
long-term damage.
.. Battery-powered operation
To operate the radio using batteries:
1
If the radio is turned on: Turn the volume knob
counterclockwise to the O position.
2If the radio is connected to a power outlet with a
power cable: Unplug the power plug from the
electrical outlet.
3Open the battery compartment on the bottom
of the radio.
4Insert four AA/LR/Mignon type batteries in the
battery compartment. Please insert the batteries in
the battery compartment as shown in the picture.
5Close the battery compartment again. Now the
radio is ready for operation.
English
ôNote:
e batteries should be replaced if …
Úplayback volume decreases without having adjusted
the volume control knob
Úthe sound is distorted during playback or
Úradio reception is interrupted abruptly.
In order to obtain maximum performance from
the radio:
always replace all four batteries.
.. Operating the radio using an AC power
supply
e radio can be operated using AC power from a wall
outlet with a power cable sold separately. You can obtain
the required cable at any specialist shop. Pay attention to
polarity of the power supply. is is printed on the radio
casing beside the power input connection for DC power.
†Danger!
Operating the radio using the wrong power cable could
cause risk of electrical shock! e radio could also be
damaged beyond repair!
