Earth Way 2050TP Manuale utente
80lb Estate Tow
Broadcast Spreader
MODEL # 2050TP ASSEMBLY INSTRUCTIONS
Earthway_2050TP Manual_ (002) PAGE 1
SIDE SPREAD CONTROL
The Side Spread Control is an innovation that eliminates the need to use a side deflector, which can adversely affect
your application rate, to prevent material from being spread into flowerbeds, on sidewalks, or driveways. The Side
Spread Control maintains the correct application rate while it is activated, giving you excellent results in seeding or
spreading while controlling the spread pattern on the left side of the spreader. The Side Spread Control is an
EarthWay®exclusive.
Thank you for selecting
EarthWay for your
spreader needs. Our
production team in
Northern Indiana takes
pride in building this
spreader. Our customer support team is
standing ready to ensure your success. Please
contact us at www.EarthWay.com to see our
full line of commercial, lawn & garden tools.
Note: Your EarthWay spreader includes a
feature called side spread control. This
feature shuts off the left side of your spreader,
allowing only the right side to continue
spreading evenly. To activate this feature, slide
the lever below the hopper to the right (if
standing behind the spreader) and walk along
a sidewalk or flowerbed that is 12”-14” on
your left side. Fertilizer will not spread to the
left. This feature is better than a deflector as
no material is wasted by the deflector.
For spreading, please utilize the following
spreader settings:
OPERATING INSTRUCTIONS
Before filling hopper, become familiar with the operation
of this spreader.
▪Obtain proper setting for material to be used
from the SETTING MATRIX included with this
spreader.
▪Move stop bolt on rate gauge assembly to the
proper setting and tighten to secure.
▪While pulling spreader forward, push control
lever toward the spreader to the stop bolt. To
stop, pull lever forward to close flow holes
before you stop moving.
▪When finished, empty any remaining material
from hopper.
▪To prevent corrosion, spray a light oil or Fluid
Film inside the tubing of the chassis and on all
metal parts.
Assembly and Operation Instructions
Earthway_2050TP Manual_ (002) PAGE 2

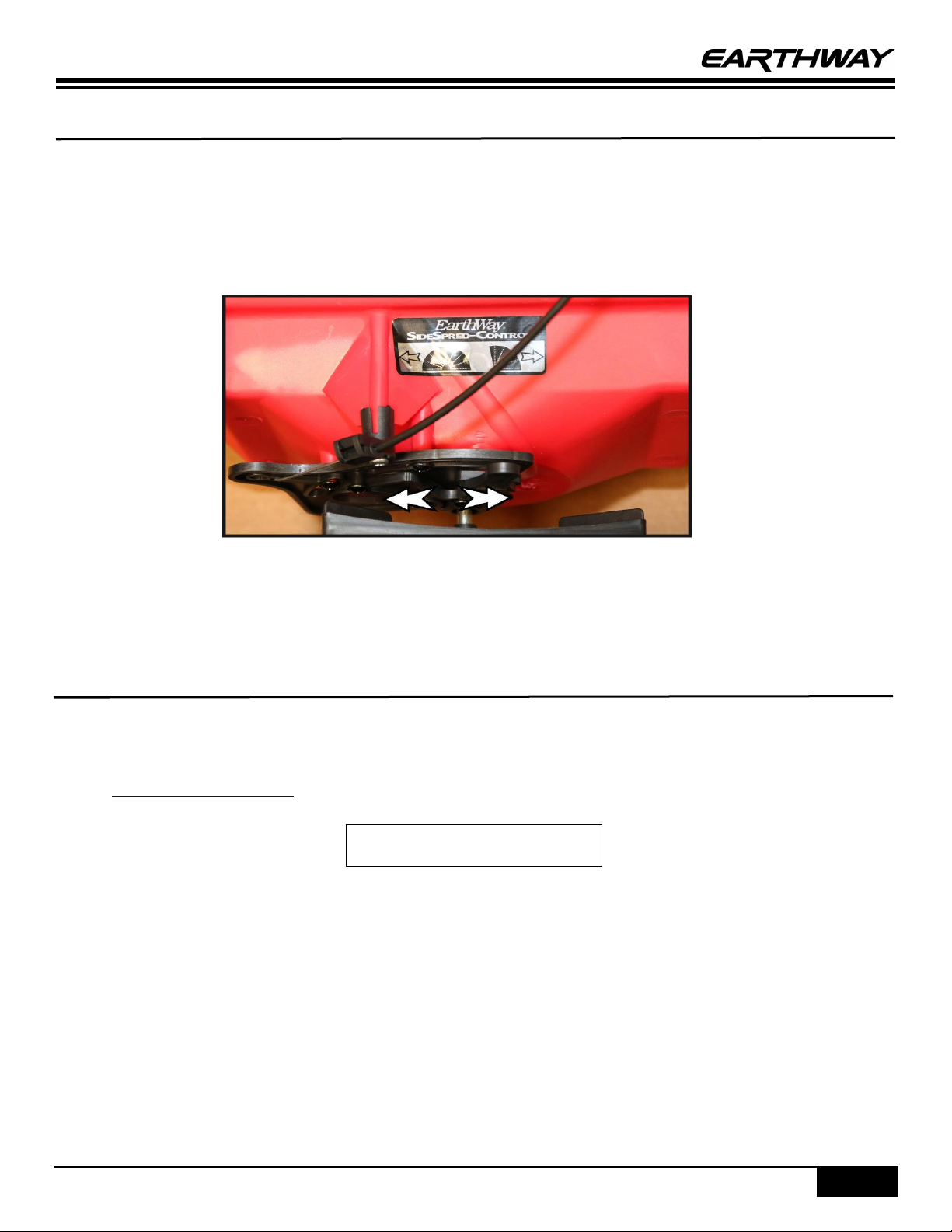

SIDE SPREAD CONTROL OPERATION
The Side Spread Control lever is located on the back of the hopper at the bottom. To operate the Side Spread Control,
slide the control lever from the left, to the right. This will activate the Side Spread Control for a PARTIAL spread pattern
and prevent material from being spread to the left side of the spreader. Position the left wheel of your spreader 12”-
16” from the sidewalk, flowerbed, or driveway and spread as normal. When you have completed this spreading pass,
open the Side Spread Control by sliding the control lever from right to left, for a FULL spread pattern.
ASSEMBLY INSTRUCTIONS
▪Make sure #28 Wire Brace is under #15 CONTROL SUPPORT prior to attaching #15 CONTROL SUPPORT.
▪Attach #15 CONTROL SUPPORT to #11 using #7 Bolts and #16 Nuts—DO NOT TIGHTEN.
▪Using #13 Brace Clip and #7 Bolt and #16 Nut attach #28 Wire Brace to lower side of #15 CONTROL SUPPORT.
▪Tighten all hardware now.
3MPH Maximum towing speed
Assembly and Operation Instructions
Earthway_2050TP Manual_ (002) PAGE 3
HOW TO ORDER SPARE PARTS
All spare parts listed herein may be ordered direct from the manufacturer. Be sure to give the following information
when ordering.
1. Model Number
2. Part Number
3. Part Description
Assembly and Operation Instructions
Earthway_2050TP Manual_ (002) PAGE 4
You can contact us by calling (574) 848-7491 to place an order with a credit card, or purchase online at
www.Earthway.com. Questions? Email us at [email protected]
2050T/TP Parts List
Key #
Part #
Description
Key #
Part #
Description
Key #
Part #
Description
1
60514
CONTROL ASSEMBLY
(includes parts 2, 5)
14
32100
¼-20 HEX NUT ZINC
24
44215
HITCH PLATE
3
37108
1/4-20 X 1 3/4" CARRIAGE
BOLT
15
25227
CONTROL SUPPORT
27
70106
10” PNEUMATIC WHEEL
4
19132
7/8" TUBE PLUG
16
32103
1/4-20 NYLON INS LOCKNUT ZINC
28
43059
WIRE BRACE
6
60363
HOPPER ASSEMBLY
(includes parts 9, 18, 19)
17
12318
LOWER HOUSING CLIP
29
33106
1/8” X ¾” COTTER PIN
8
33117
AGITATOR
18
12221
SHUT OFF PLATE
30
33107
1/8” X 1-3/4” COTTER PIN
S.S
9
12209
HOPPER BUSHING
19
31138
#8 X 3/8” PMT HD COARSE BLACK
31
34103
1” OD X 17/32”ID X 1/32”
WASHER
10
31100
1/4-20 X 1 1/2 HHMS
20
12248
IMPELLER
32
P14634
AXLE COLLARS
11
25226
CROSS BRACE
21
23511
AXLE
OPTIONAL
77003
HEAVY DUTY RAINCOVER
13” X 18”
12
25225
FRAME LOWER
22
60404
GEAR BOX ASSEMBLY
OPTIONAL
40003
SQUARE SCREEN
13
12267
BRACE CLIP
23
12197
SPACER BEARING
OPTIONAL
77122
SALT DEFLECTOR KIT
HOW TO DETERMINE THE SETTING RATE
The settings furnished on the Rate Setting Matrix are intended as a guide only. Variations in physical characteristics of
material applied, walking speed, and roughness of ground surface may require slightly different spreader settings.
Due to the above conditions, EARTHWAY PRODUCTS, Inc. makes no warranty as to the uniformity of coverage actually
obtained from the settings listed.
GRASS SEED
GRAMS/SQ METER
LBS/1,000 SQ FT
SPREADER SETTING
10 Grams
2 LBS.
13
15 Grams
3 LBS.
14
20 Grams
4 LBS.
16
25 Grams
5 LBS.
17
Assembly and Operation Instructions
Earthway_2050TP Manual_ (002) PAGE 5
CUSTOMER SERVICE
SUPPORT@EARTHWAY.COM | 1009 Maple Street, Bristol, IN 46507
ONE YEAR WARRANTY
EarthWay Products, Inc. warrants this product free of defects in original workmanship and materials for a period of one year to the
end user with the original purchase receipt. If a manufacturing non-conformance is found, EarthWay Products, Inc. at its discretion
will repair or replace the part(s)/product at no charge provided the failure is not the result of incorrect installation, mishandling,
misuse, tampering, or normal wear and tear as determined by EarthWay.
EarthWay at its discretion may require that the part(s) or product be returned along with the original purchase receipt for
examination and compliance with the terms of this warranty. Do not return any product without first receiving authorization from
EarthWay Products, Inc.
To seek remedy under this warranty, contact EarthWay Products, Inc. at support@earthway.com or write to EarthWay
Products, Inc. 1009 Maple Street, Bristol, IN 46507 and describe the nature of the manufacturing defect. SPECIFIC
LIMITATIONS: This warranty covers only the part(s) or product; any labor charges associated with repair or replacement of
non-conformances are specifically excluded. Due to the corrosive nature of most fertilizers and ice melt products, EarthWay
Products, Inc. makes no warranty against and specifically excludes part(s) or product degradation or failure due to corrosion or
its effects.
