EasyFold PRO 2.0 Manuale utente
USER
MANUAL
EASYFOLD
PRO 2.0
FOLDING POWERCHAIR
T A B L E O F
C O N T E N T S
01
INTRODUCTION
02
COMPONENTS
03
SPECIFICATIONS
04
DIMENSIONS
05
GENERAL SAFETY
06
OPERATIONAL SAFETY
07
CARE & MAINTENANCE
08
INITIAL SETUP
09
UNFOLDING
10
CONTROLLER
11
BASIC FUNCTIONALITY
12
RECLINING
13
CHARGING
14
BATTERIES
15
FREEWHEEL MODE
16
TRANSPORTING
17
TROUBLESHOOTING
18
DIAGNOSTICS
19
EASYFOLD WARRANTY
EasyFold, its affiliates and partners, shall not be liable for personal injury or property
damage resulting from unsafe and improper use or maintenance of the EasyFold
portable device, nor for property damage resulting from unsafe and improper use or
maintenance of the EasyFold power wheelchair.
DO NOT ATTEMPT TO OPERATE THIS VEHICLE UNTIL YOU HAVE
SUFFICIENT KNOWLEDGE OF ITS FEATURES AND CONTROLS*.
*FAILURE TO USE THE UNIT SAFELY MAY RESULT IN SERIOUS INJURY OR DEATH AND/OR DAMAGE TO THE
VEHICLE AND/OR DENIAL OF WARRANTY COVERAGE.
CONGRATULATIONS!
You are officially part of the EasyFold family. The EasyFold PRO 2.0
will provide you with years of reliable service, if you use and maintain
it with proper care. This manual is intended to help you operate and
maintain your EasyFold PRO. Please read and understand all sections
of this manual completely before using your EasyFold PRO. After
reading the manual, if you have any questions or concerns, please do
not hesitate to contact us.
INTRODUCTION
01
DISCLAIMER
EASYFOLD CANADA BELIEVES IN CONSTANTLY IMPROVING THE PRODUCT AND ITS
ACCESSORIES TO ACHIEVE BETTER RESULTS.
As part of this continuous product improvement program, EasyFold reserves the right to
change specifications without notice. This may result in minor differences between the
EasyFold, its accessories and the photos, illustrations and instructions in your user
manual.
Your EasyFold PRO may incorporate updated components and/or features that are not
specifically covered in this User Guide. If you are unsure of how to operate or use a
component or feature, contact EasyFold Canada. Product design, features and
specifications are subject to change without notice.
EASYFOLD CANADA
FRONT CASTERS
COMPONENTS

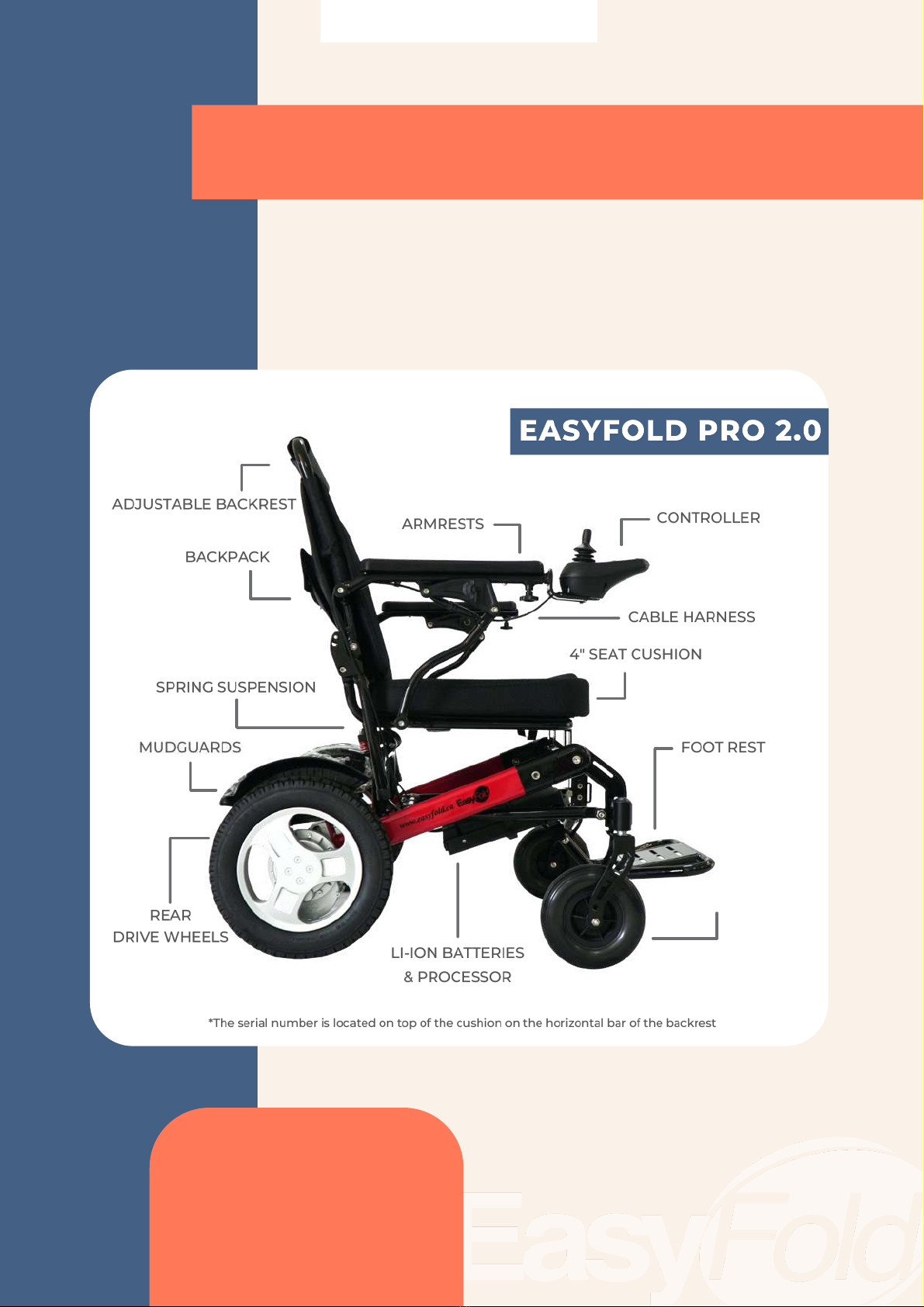

You'll be amazed at how much effort goes into folding this chair
quickly to a compact size. Unfolding is just as easy! The EasyFold
PRO chair comes with two removable LifePO4 Lithium-ion
batteries, 24V 6aH and a maximum speed of 8 km/h.
A redesigned frame gives the
EasyFold PRO 2.0 model a high
maximum load capacity (369lb.). It
is made of lightweight aluminum
alloy with 7.5-inch front wheels,
12″ rear wheels and two 250-watt
brushless hub motors to keep
power consistent.
02
FRAME MATERIAL
Aluminum Alloy

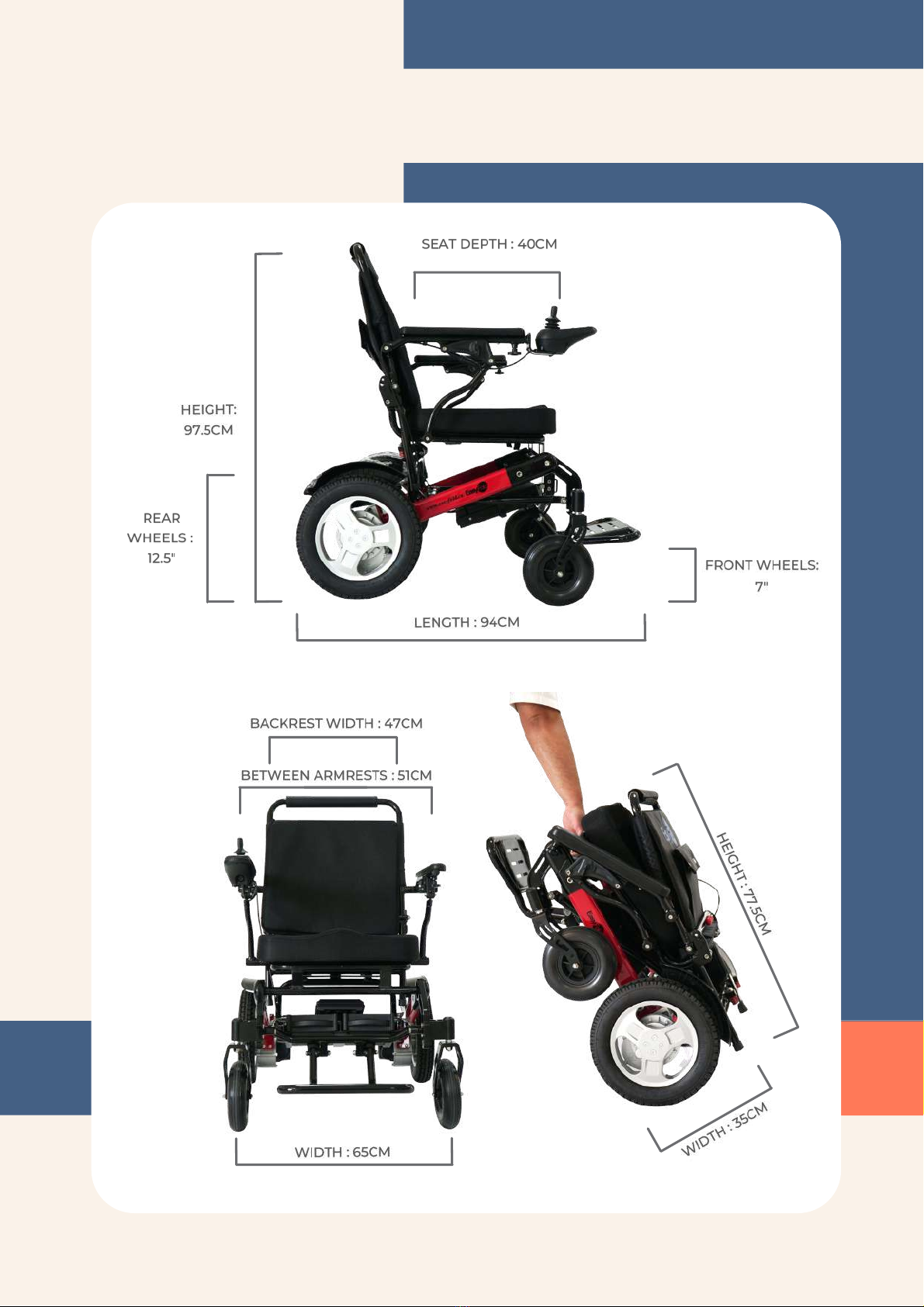

DIMENSIONS
UNFOLDED : 940*650*975MM | FOLDED : 650*350*775MM
WEIGHT CAPACITY
150kg | 369lbs.
MOTORS
2 BRUSHLESS 250W HUB MOTORS
BATTERIES
Batterie 24V 6AH*2 batteries au lithium
TOP SPEED
6 km/hour
RANGE
22km with 2 batteries
WHEELS
Front: 8" x 1.25" solids
Rear: 12.5" x 2.125" solids
MAX SLOPE
MAXIMUM 8°
RECHARGE TIME
6-8hrs (0%-100%)
ARMREST LENGTH
510 mm
SEAT
Height: 490 mm | Width: 470 mm | Depth: 400 mm
TURNING RADIUS
850 mm
UNIT WEIGHT
Empty : 25,2 kg
With batteries : 27.8kg
DRIVETRAIN
REAR-WHEEL DRIVE
BRAKE SYSTEM
ELECTROMAGNETIC BRAKING SYSTEM
03
DIMENSIONS
04
The safety of our customers
is very important to us, so
please read the safety
instructions carefully.
Always operate the
EasyFold PRO safely and
according to instructions.
If you have any questions,
please email
[email protected] or call us at
1-855-444-8488.
WARNINGS
05
GENERAL
SAFETY
NOTICE
"NOTE" INDICATES INFORMATION THAT IS PARTICULARLY USEFUL BUT HAS NO SECURITY IMPLICATIONS
"WARNING!"
"CAUTION!"
OPERATIONAL
SAFETY
!
06
for your comfort
GENERAL SAFETY
Make sure that components such as the joystick, battery charger and other electronic components are not exposed to
excessive moisture. If any components come into contact with moisture, dry them before use.
The EasyFold PRO Seat is designed for comfort, not specifically for pressure relief; if you have any problems, please consult a
physician.
Adjust the EasyFold PRO Wheelchair to your personal comfort level as much as
possible.
Take time to learn how the EasyFold PRO works in a private space before using
it outdoors.
Practice bending, reaching and transferring in and out of the EasyFold PRO.
Always be aware of your surroundings when working.
If you are unsure if the EasyFold PRO can clear an obstacle, find another path.
The EasyFold PRO is designed for one user only; more than one user may result
in injury.
It is important to maintain the
EasyFold PRO. Lack of
maintenance can increase the
risk of injury.
Before sitting down, make sure
the EasyFold PRO is turned off.
This will ensure that the EasyFold
PRO
EasyFold PRO will not move when
transferring on and off the unit.
Make sure the footrest is down.
Make sure the feet are resting on
the footrest.
Check for unusual noises,
vibrations, or changes in usability.
If a problem is detected, use the
tool kit to perform maintenance
or contact us directly by phone or
e-mail.
before driving
PRE-OPERATION
Stay alert and aware of motorized vehicles
on the road or in parking lots.
At night, or when it is difficult to see, it is
suggested to use a reflective tape on the
chair.
EasyFold PRO is designed to be used on
firm, even surfaces such as concrete,
asphalt or indoor floors.
Do not use EasyFold PRO on sand or loose
soil.
while driving
OPERATION
Make sure the EasyFold PRO comes to a
complete stop before exiting.
Turn off the unit to prevent the wheelchair
from moving during the transfer.
Carefully raise the armrest and transfer
from the seat.
after driving
Certified repair shops with trained professionals specializing
in electric wheelchairs and scooters will be qualified to service
and maintain your EasyFold PRO 2.0.
07
Regular maintenance of your EasyFold PRO
2.0 is important to ensure its longevity and
warranty eligibility. Even a little cleaning
from time to time will keep your device
looking like new!
Use the batteries provided
by EasyFold; our batteries
are lithium batteries
specifically designed for use
in the EasyFold PRO 2.0.
Read all battery instructions
before attempting to
change or charge the
batteries.
If you have not driven the
wheelchair for an extended
period of time, make sure
the battery is charged once
a month to avoid
shortening its life.
BATTERIES
A. Use fasteners that have
been supplied by EasyFold.
B. Using the tools provided
with your EasyFold PRO 2.0,
tighten any fasteners that
have come loose as soon as
possible.
Many of the screws, bolts and
nuts on the PRO 2.0 are special,
high-strength fasteners.
Replacing these fasteners with
unapproved parts may result in
malfunction and may injure you
or others:
FASTENERS
CARE &
MAINTENANCE
Frame: Tighten loose screws if necessary using the tool kit included with
your EasyFold PRO 2.0.
Wheels: Make sure they turn easily. Heavy resistance may require new
bearings.
Armrests: Check for excessive wear or looseness. Replacement of parts
and more important maintenance issues should be left to a professional.
1.
2.
3.
MONTHLY MAINTENANCE
Use the batteries provided
by EasyFold; our batteries
are lithium batteries
specifically designed for use
in the EasyFold PRO 2.0.
Read all battery instructions
before attempting to change
or charge the batteries.
When you have not driven
the wheelchair for an
extended period of time,
make sure the battery is
charged once a month to
avoid shortening its life.
MODIFICATIONS
The EasyFold PRO 2.0 may be susceptible to electromagnetic interference, which is
interference from electromagnetic energy emitted by sources such as radio
stations, television stations, and cell phones.
Your EasyFold PRO 2.0 will arrive neatly packaged in a
cardboard box with thick foam padding. Open the top of the
box and turn it on its side for easy unpacking.
08
INITIAL SETUP

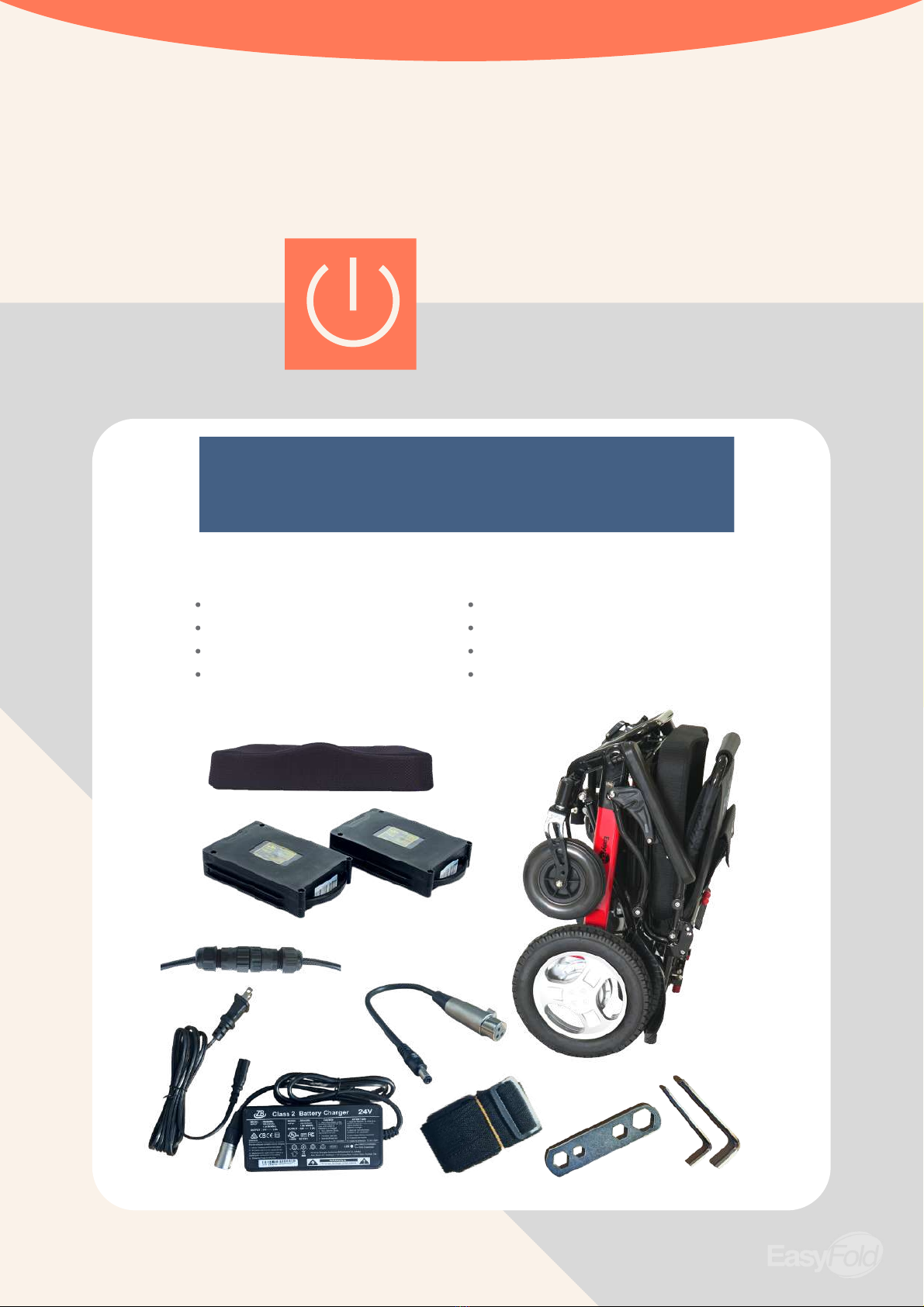

CONTENTS
Your EasyFold Pro 2.0 Chair
Charger
Charging Cables
Cushioned seat
Safety belt
Small tools
Serial connection cable
Lithium batteries (2pcs)
