Eaton Powerware 9125 Manuale utente
Powerware 9125 Two-in-One UPS
700–2000 VA
User’s Guide
®
US Patent 6,160,722
Requesting a Declaration of Conformity
Units that are labeled with a CE mark comply with the following harmonized standards and EU directives:
SHarmonized Standards: EN 62040-1-1 and EN 50091-2; IEC 60950-1
SEU Directives: 73/23/EEC, Council Directive on equipment designed for use within certain voltage limits
93/68/EEC, Amending Directive 73/23/EEC
89/336/EEC, Council Directive relating to electromagnetic compatibility
92/31/EEC, Amending Directive 89/336/EEC relating to EMC
The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of the EC
Declaration of Conformity, contact:
Eaton Power Quality Oy
Koskelontie 13
FIN-02920 Espoo
Finland
Phone: +358-9-452 661
Fax: +358-9-452 665 68
Powerware, ABM, X-Slot, LanSafe, and FERRUPS are registered trademarks and ConnectUPS is a trademark of
Eaton Electrical Inc. Modbus is a registered trademark of Modicon. AS/400 is a registered trademark of International
Business Machines Corp.
ECopyright 1999–2006 Eaton Corporation, Raleigh, NC, USA. All rights reserved. No part of this document may be
reproduced in any way without the express written approval of Eaton Corporation.
Class B EMC Statements
FCC Part 15
NOTE This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
SReorient or relocate the receiving antenna.
SIncrease the separation between the equipment and the receiver.
SConnect the equipment into an outlet on a circuit different from that to which the receiver is connected.
SConsult the dealer or an experienced radio/TV technician for help.
ICES-003
This Class B Interference Causing Equipment meets all requirements of the Canadian Interference Causing
Equipment Regulations ICES-003.
Cet appareil numérique de la classe B respecte toutes les exigences du Reglement sur le matériel brouilleur du
Canada.

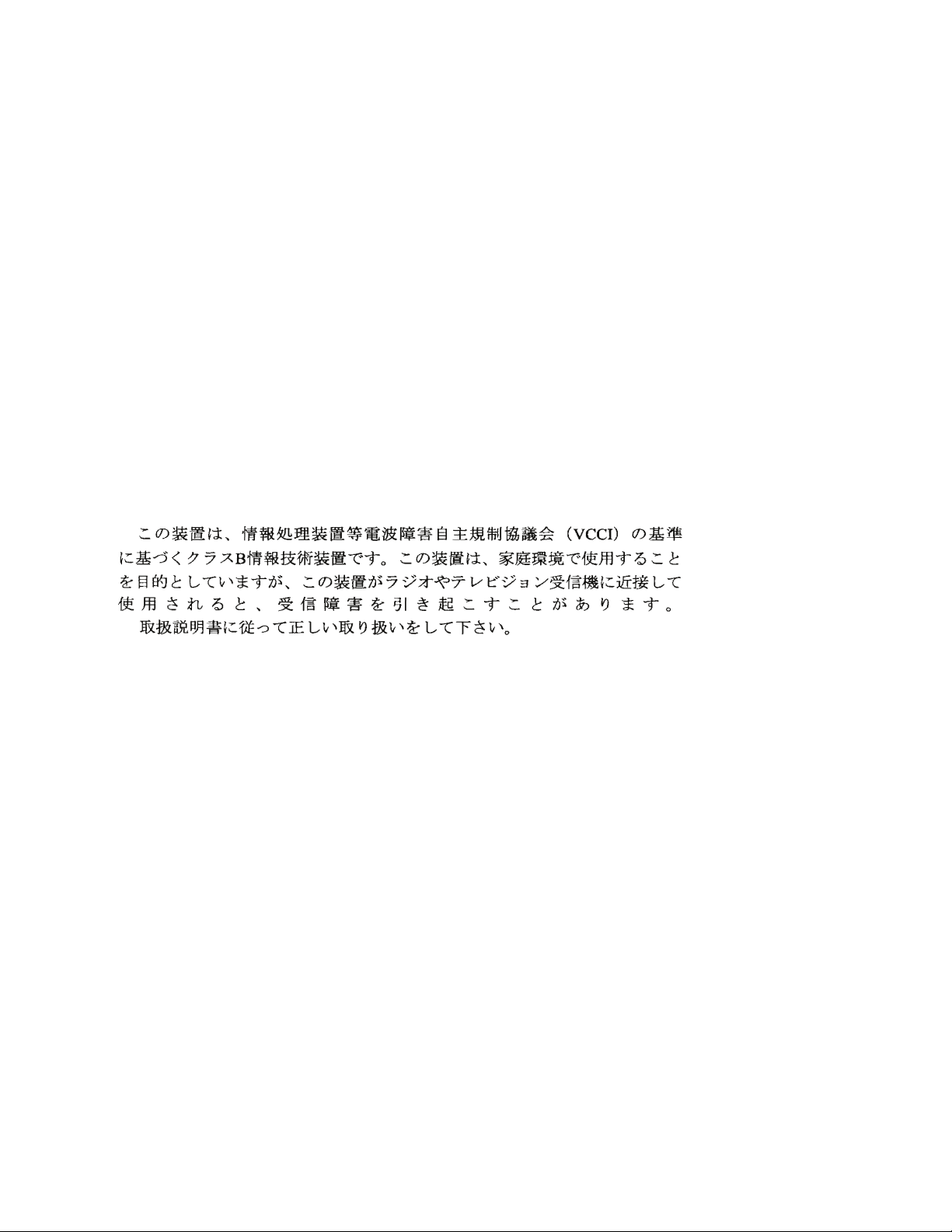

VCCI Notice

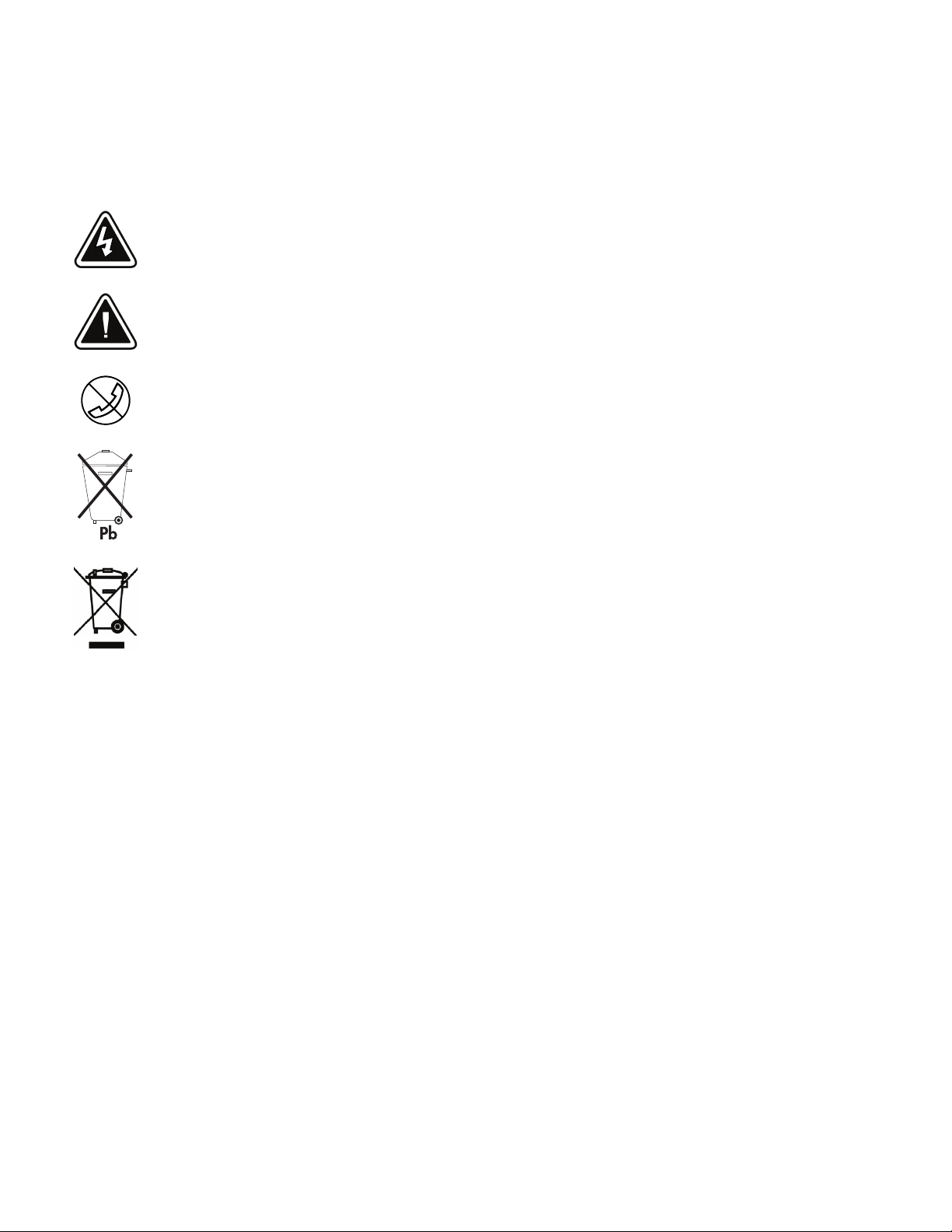

Special Symbols
The following are examples of symbols used on the UPS or accessories to alert you to important
information:
RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is present and the
associated warning should be observed.
CAUTION: REFER TO OPERATOR’S MANUAL - Refer to your operator’s manual for
additional information, such as important operating and maintenance
instructions.
RJ-45 RECEPTACLE - For 230V models only: this receptacle provides network
interface connections. Do not plug telephone or telecommunications equipment
into this receptacle.
This symbol indicates that you should not discard the UPS or the UPS batteries
in the trash. This product contains sealed, lead-acid batteries and must be
disposed of properly. For more information, contact your local recycling/reuse or
hazardous waste center.
This symbol indicates that you should not discard waste electrical or electronic
equipment (WEEE) in the trash. For proper disposal, contact your local
recycling/reuse or hazardous waste center.
EATON Powerware®9125 Two-in-One UPS (700–2000 VA) User’s Guide S164201514 Rev B www.powerware.com i
Table of Contents
1 Introduction 1.........................................................
2 Safety Warnings 3.....................................................
3 Installation 19..........................................................
Inspecting the Equipment 19................................................................
Connecting the UPS Internal Battery 20........................................................
UPS Setup 21..........................................................................
Rack-Mount Setup 21..................................................................
Tower Setup 22......................................................................
Installing the UPS 25.....................................................................
Remote Emergency Power-off Installation 27....................................................
UPS Rear Panels 29......................................................................
4 Operation 31...........................................................
Turning the UPS On 31....................................................................
Starting the UPS on Battery 31..............................................................
Turning the UPS Off 32....................................................................
Initiating the Self-Test 32..................................................................
Operating Modes 33.....................................................................
Normal Mode 34.....................................................................
Battery Mode 35.....................................................................
Bypass Mode 36......................................................................
Standby Mode 36.....................................................................
5 Configuration 37........................................................
6 Additional UPS Features 41...............................................
X-Slot Cards 41.........................................................................
Single-Port Card 42....................................................................
USB Card 44........................................................................
Network Transient Protector 45..............................................................
Load Segments 46.......................................................................
TABLE OF CONTENTS
EATON Powerware®9125 Two-in-One UPS (700–2000 VA) User’s Guide S164201514 Rev B www.powerware.com
ii
7 UPS Maintenance 47....................................................
UPS and Battery Care 47..................................................................
Storing the UPS and Batteries 47............................................................
When to Replace Batteries 48...............................................................
Replacing Batteries 48....................................................................
How to Replace Internal Batteries 49.......................................................
How to Replace Extended Battery Modules 50................................................
Testing New Batteries 52..................................................................
Recycling the Used Battery or UPS 52.........................................................
8 Specifications 53.......................................................
9 Troubleshooting 57......................................................
Audible Alarms and UPS Conditions 57........................................................
Silencing an Audible Alarm 57............................................................
Service and Support 60...................................................................
10 Warranty 61...........................................................
Two-Year Limited Warranty (US and Canada) 61..................................................
Ten-Year Pro-Rated Limited Warranty (US and Canada) 63..........................................
Load Protection Guarantee (US and Canada) 65..................................................
EATON Powerware®9125 Two-in-One UPS (700–2000 VA) User’s Guide S164201514 Rev B www.powerware.com 1
Chapter 1 Introduction
The Powerware®9125 uninterruptible power system (UPS) protects
your sensitive electronic equipment from the most common power
problems including power failures, power sags, power surges,
brownouts, line noise, high voltage spikes, frequency variations,
switching transients, and harmonic distortion.
Power outages can occur when you least expect it and power
quality can be erratic. These power problems have the potential to
corrupt critical data, destroy unsaved work sessions, and damage
hardware — causing hours of lost productivity and expensive repairs.
With the Powerware 9125, you can safely eliminate the effects of power
disturbances and guard the integrity of your equipment. Figure 1 shows
the Powerware 9125 UPS with an optional Extended Battery Module
(EBM).

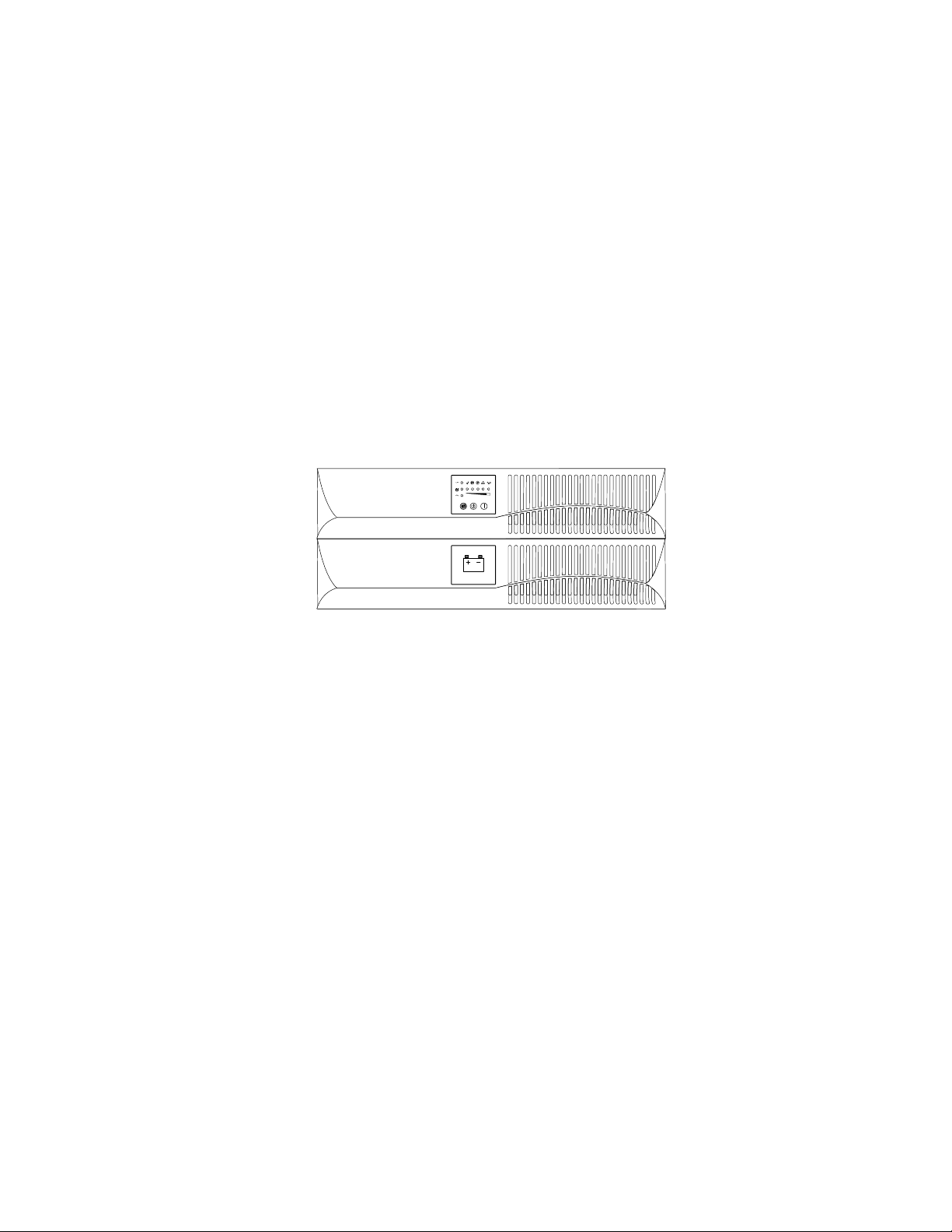

Figure 1. The Powerware 9125 UPS with Optional EBM
Providing outstanding performance and reliability, the Powerware 9125’s
unique benefits include the following:
SOnline UPS design with pure sine wave output. The UPS filters and
regulates incoming AC power and provides consistent power to your
equipment without draining the battery.
S2U rack height that conserves valuable rack space.
STwo-in-one form factor for using the UPS in a rack-mount
configuration or as a standalone cabinet.
SABM®technology that uses advanced battery management to
increase battery service life, optimize recharge time, and provide a
warning before the end of useful battery life.
SHours of extended runtime with up to four EBMs.
INTRODUCTION
EATON Powerware®9125 Two-in-One UPS (700–2000 VA) User’s Guide S164201514 Rev B www.powerware.com
2
SStart-on-battery capability for powering up the UPS even if utility
power is not available.
SHot-swappable batteries that simplify maintenance by allowing you to
replace batteries safely without powering down the critical load.
SEmergency shutdown control through the remote emergency
power-off (REPO) port.
SOptional X-Slot®cards with enhanced communication capabilities for
increased power protection and control.
SNetwork transient protector that guards your network
communications equipment from surges. Low voltage models can
also protect modems, fax machines, or other telecommunications
equipment.
SAdvanced power management with the Software Suite CD for
graceful shutdowns and power monitoring.
SSequential shutdown and load management through separate
receptacle groups, called load segments.
SBacked by worldwide agency approvals.
EATON Powerware®9125 Two-in-One UPS (700–2000 VA) User’s Guide S164201514 Rev B www.powerware.com 3
Chapter 2 Safety Warnings
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions that you should follow during installation and
maintenance of the UPS and batteries. Please read all instructions before operating the
equipment and save this manual for future reference.
DANGER
This UPS contains LETHAL VOLTAGES. All repairs and service should be performed by
AUTHORIZED SERVICE PERSONNEL ONLY. There are NO USER SERVICEABLE PARTS
inside the UPS.
WARNING
SThis UPS contains its own energy source (batteries). The output receptacles may carry
live voltage even when the UPS is not connected to an AC supply.
SFor 220–240V models, the output receptacles may remain electrically live. If the input
power source in your application is wired line-to-neutral (as in most European
applications), the voltage to the output receptacles is 0V. With line-to-line input wiring,
the voltage to the output receptacles is 110–120V (measured from line-to-ground or
line-to-neutral, depending on the UPS wiring).
SDo not remove or unplug the input cord when the UPS is turned on. This removes the
safety ground from the UPS and the equipment connected to the UPS.
STo reduce the risk of fire or electric shock, install this UPS in a temperature and humidity
controlled, indoor environment, free of conductive contaminants. Ambient temperature
must not exceed 40°C (104°F). Do not operate near water or excessive humidity (95%
maximum).
STo comply with international standards and wiring regulations, the total equipment
connected to the output of this UPS must not have an earth leakage current greater than
1.5 milliamperes.
SAFETY WARNINGS
EATON Powerware®9125 Two-in-One UPS (700–2000 VA) User’s Guide S164201514 Rev B www.powerware.com
4
CAUTION
SBatteries can present a risk of electrical shock or burn from high short-circuit current.
Observe proper precautions. Servicing should be performed by qualified service
personnel knowledgeable of batteries and required precautions. Keep unauthorized
personnel away from batteries.
SProper disposal of batteries is required. Refer to your local codes for disposal
requirements.
SNever dispose of batteries in a fire. Batteries may explode when exposed to flame.
Sikkerhedsanvisninger
VIGTIGE SIKKERHEDSANVISNINGER
GEM DISSE ANVISNINGER
Denne manual indeholder vigtige instruktioner, som skal følges under installation og
vedligeholdelse af UPS’en og batterierne. Læs venligst alle instruktioner inden betjening af
udstyret og gem denne manual mhp. fremtidige opslag.
FARE
Denne UPS indeholder LIVSFARLIG HØJSPÆNDING. Alle reparationer og vedligeholdelse bør
kun udføres af en AUTORISERET SERVICETEKNIKER. Ingen af UPS’ens indvendige dele kan
repareres af brugeren.
ADVARSEL!
SDenne UPS indeholder sin egen energikilde (batterier). Udgangsstikkene kan endog være
strømførende, når UPS’en ikke er koblet til en vekselstrømsforsyning.
SPå 220–240V-modeller kan udgangsstikkene være strømførende. Hvis ledningsføringen
til indgangsstrømkilden på din enhed er fase-til-neutral (som på de fleste europæiske
enheder), er spændingen til udgangsstikkene 0V. Med en fase-til-fase
indgangsledningsføring er spændingen til udgangsstikkene 110–120V (målt fra
fase-til-jord eller fase-til-neutral, afhængig af UPS-ledningsføringen).
SNetledningen må ikke fjernes og stikket må ikke trækkes ud, mens UPS’en er tændt.
Dette fjerner sikkerhedsjorden fra UPS’en og fra det udstyr, der er sat til.
SInstallér denne UPS i et temperatur- og fugtighedskontrolleret indendørsmiljø, frit for
ledende forureningsstoffer for at formindske risikoen for brand og elektrisk stød.
Rumtemperaturen må ikke overstige 40°C. UPS’en bør ikke betjenes nær vand eller høj
fugtighed (maksimalt 95%).
SI overensstemmelse med internationale normer og bestemmelser for el-installation må
det udstyr, der er forbundet til udgangen af denne UPS, tilsammen ikke overskride en
jordafdelingsspænding på mere end 1,5 milliampere.
Altri manuali per Powerware 9125
9
Indice
Altri manuali Eaton UPS
Eaton
Eaton MX 4000 RT Manuale utente
Eaton
Eaton Power Xpert 9395P Manuale
Eaton
Eaton Tripp Lite SmartOnline Series Manuale utente
Eaton
Eaton SU700XLCD Manuale utente
Eaton
Eaton 93PM IBC-L Manuale utente
Eaton
Eaton Pulsar Series Manuale utente
Eaton
Eaton 9E15Ki Manuale di istruzioni
Eaton
Eaton 9PX5KP1 Istruzioni per l'installazione e il funzionamento
Eaton
Eaton Powerware Series Manuale utente
Eaton
Eaton 5A1200I-UNI Manuale utente
Eaton
Eaton 9PX1000IRT2U-L Istruzioni per il montaggio
Eaton
Eaton MX 4000 RT Manuale per l'uso e la cura
Eaton
Eaton 3SMini Istruzioni per il montaggio
Eaton
Eaton Powerware 9355 Manuale utente
Eaton
Eaton 9PX Istruzioni per il montaggio
Eaton
Eaton Powerware 5125 Manuale utente
Eaton
Eaton Powerware 9355 Manuale utente
Eaton
Eaton 9395-275 Manuale
Eaton
Eaton 9SX Series Manuale utente
Eaton
Eaton 93PM-L IAC-B Manuale utente
Manuali UPS popolari di altre marche
Pylontech
Pylontech Victron & Pylontech US5000 Manuale utente
Tecnoware
Tecnoware EVO DSP PLUS MM 6.8 Manuale utente
Mecer
Mecer ME-1000-WTU Manuale utente
Mustek
Mustek PowerMust 530(B) Plus Manuale di installazione e funzionamento
Emerson
Emerson Liebert NXL series Manuale utente
MAKELSAN
MAKELSAN BOXER SERIES Manuale utente
