Ebode IPV38 Manuale utente
Pan & Tilt IP Camera
IPV38 & IPV38WE
User Manual
User guide 3
Bedienungsanleitung .
Gebruiksaanwijzing .
Användarmanual .
Guide utilisateur .
Guía del usuario .
Manual do utilizador .
Manuale per l’utente .
Before using our product, please read this documents carefully.
March 2013 IPV38 / IPV38WE
2
Index
1.0 Introduction
1.1 Features
1.2 Packing List
1.3 Product Views
1.3.1 Front View
1.3.2 Rear Panel
1.3.3 Bottom View
1.4 PC System Requirements
1.5 Hardware Installation
1.6 Software Installation
1.7 IP Camera Tool
1.7.1 Six Options Available
1.7.2 Basic Properties
1.7.3 Network Configuration
1.7.4 Upgrade Firmware
1.7.5 Refresh Camera List
1.7.6 Flush Arp Buffer
1.7.7 About IP Camera Tool
1.8 Camera Login
1.8.1 For IE Browser
1.8.2 For Safari, Firefox, Google Browser
1.8.3 For Mobile Phone
1.9 ActiveX Mode (For IE Browser)
1.9.1 For Visitor
1.9.2 For Operator
1.9.3 For Administrator
2.0 Settings as administrator
2.1 Multi-Device Settings
2.1.1 Set Multi-Device in LAN
2.1.2 Set Multi-Device for WAN
2.1.3 Upgrade Device Firmware
2.1.4 Restore Factory Settings
2.1.5 Reboot Device
2.2 Network Settings
2.3 Basic Network Settings
2.4 Wireless LAN Settings
2.5 ADSL Settings
2.6 UPnP Settings
2.7 DDNS Service Settings
2.7.1 To change the camera’s port
2.7.2 DDNS Status
March 2013 IPV38 / IPV38WE
3
2.7.3 Set Port Forwarding in the router
2.7.4 Belgian Customers with Telenet Modem/Router
3.0 Settings
3.1 System Settings
3.1 Device Info
3.2 Alias Settings
3.3 Settings
3.4 Date & Time Settings
3.5 Users Settings
3.6 Pan, Tilt, (PTZ) Settings
3.7 Indicator Settings
3.8 Backup & Restore
3.9 Other Settings
3.10 Mail Service Settings
3.11 FTP Service Settings
3.12 Alarm Service Settings
3.12.1 Motion Detect Armed
3.12.2 Motion Detect Sensitivity
3.12.3 Alarm Input Armed / IO Linkage on Alarm
3.12.4 IO Pins for IO Alarm Linkage
3.13 Send e-mail on Alarm
3.14 Path Settings
3.15 Server Push Mode (For Safari, FireFox, Google Browser)
4.0 Sign in mobile phone
4.1 Compatible Apps for mobile devices
5.0 Appendix
5.1 Frequently Asked Questions
6.0 Specifications
7.0 Obtaining Technical Support
March 2013 IPV38 / IPV38WE
4
1.0 Introduction
This is an integrated wireless IP Camera solution. It combines a high quality digital Video Camera with
network connectivity and a powerful web server to bring clear pictures to your Desktop from anywhere on
your local network or over the Internet.
The main function of the camera is to transmit remote video over IP network. The high quality video
image can be transmitted with 30fps speed on the LAN/WAN by using MJPEG hardware compression
technology.
It is based on the TCP/IP standard, build-in WEB server which supports Internet Explorer. Therefore the
management and maintenance of your camera becomes simple by using the network to achieve the
remote configuration, start-up and to upgrade firmware. You can use your IP Camera to monitor your
home or your office. Also, controlling and managing images are simple by visiting the web site.
1.1 Features
☆Powerful high-speed video protocol processor
☆High-sensitivity 1/4’’ CMOS sensor
☆Picture total 300K pixels
☆Supports Pan and Tilt (PT) control, Pan 270°, Tilt 120°
☆Optimized MJPEG video compression for transmission
☆Multi-level user management and passwords definition
☆Embedded Web Server for users to visit by IE
☆Supports wireless network (WI-FI/802.11/b/g)
☆Supports Dynamic IP (DDNS) and UPNP LAN and Internet (ADSL, Cable Modem)
☆Gives an alarm in case of motion detection
☆Supports image snapshot
☆Supports multiple protocols：HTTP/TCP/IP/UDP/SMTP/DDNS/SNTP/DHCP/FTP
☆Supports WEP/WPA/WPA2 encryption
☆Supports 3G phone, Smart phone control and surveillance
☆Supports IE, Firefox, Safari, and Google chrome browsers
1.2 Packing List
Please check that the following items are included:
●IP Camera - 6.0mm Lens (IPV38) or 3.6mm Lens (IPV38WE)
● Power Supply
● Wi-Fi Antenna
● Network Cable
● Mounting bracket
●Quick Start Guide
●CD with software and manual
NOTE: Please contact us immediately in case of any damaged or short of contents.
March 2013 IPV38 / IPV38WE
5
1.3 Product Views
1.3.1 Front View
Figure 1.1
1 Light Sensitive Hole: For light sensitive photocell
2 Infrared LED: 10 LEDs
3 LENS: CMOS sensor with fixed focus lens. (IPV38 has 6.0mm Lens, and the IPV38WE has 3.6mm Lens)
4 Network Indicator LED: If there is network activity, the LED will blink
5 Microphone: Build-in microphone
6 Speaker: Build-in speaker
7 Wireless Antenna: Wi-Fi Antenna
1.3.2 Rear Panel
Figure 1.2
March 2013 IPV38 / IPV38WE
6
LAN: RJ-45/10-100 base T
Power: DC 5V/2A power supply
Network Light: The green LED is on when connected to the network, the yellow LED blinks when data is
transferred.
Audio Output: The jack is used to connect an external speaker
I/O PINS: 1: Output A 2: Output B 3: Alarm input 4: Input (GND)

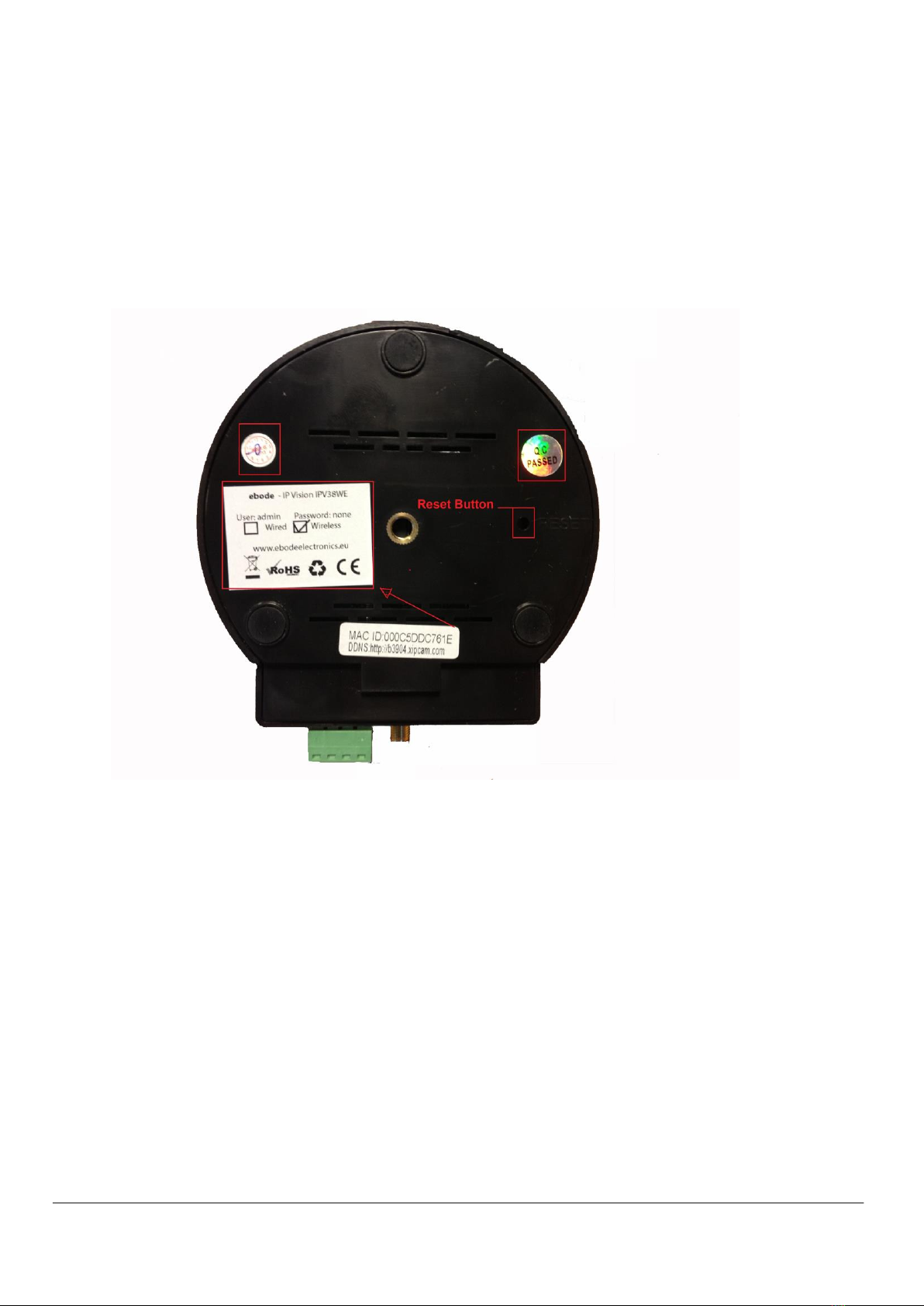

1.3.3 Bottom View
Figure 1.3
Please note the unique MAC and DDNS addresses on the bottom of the camera (different for every
camera).
RESET BUTTON: Press and hold the RESET BUTTON for 15 Seconds to reset the camera back to the
factory default settings. (Please keep the power on when doing a RESET)
1.4 PC System Requirements
System configuration requirements:
CPU: 2.06 GHZ or above.
Memory: 256M or above.
Network Card: 10M or above.
Display Card: 64M or above memory.
Recommended Operating system: Windows XP, Windows Vista, Windows 7.
March 2013 IPV38 / IPV38WE
7
1.5 Hardware Installation
You need to set up your camera using a network cable (wired) first, before you can use it wirelessly, so
let’s start with plugging in the network cable. Follow the steps below to set up your camera hardware.
1.Plug one end of the network cable into the camera, and the other end into an empty port of your
router/switch/modem.
2. Install the Wi-Fi antenna to the camera.
3. Plug the power adaptor into the camera and into an AC outlet.
Please note that your power supply will fit both the AC outlet and the Audio Output, please make sure
you put it in the AC outlet, however your IP camera will not be powered.
4. It takes approximately 30 seconds to boot up the camera.
5. When the power is on and the network cable is connected, the green LED on the rear panel next to the
network cable will stay on, please make sure the Green light is on before you continue.
The yellow LED will keep flashing, and the Indicator LED on the front of the camera will flash when the
connection is established. (The behavior of the front indicator LED can be controlled by software).
Figure 1.4
1.6 Software Installation

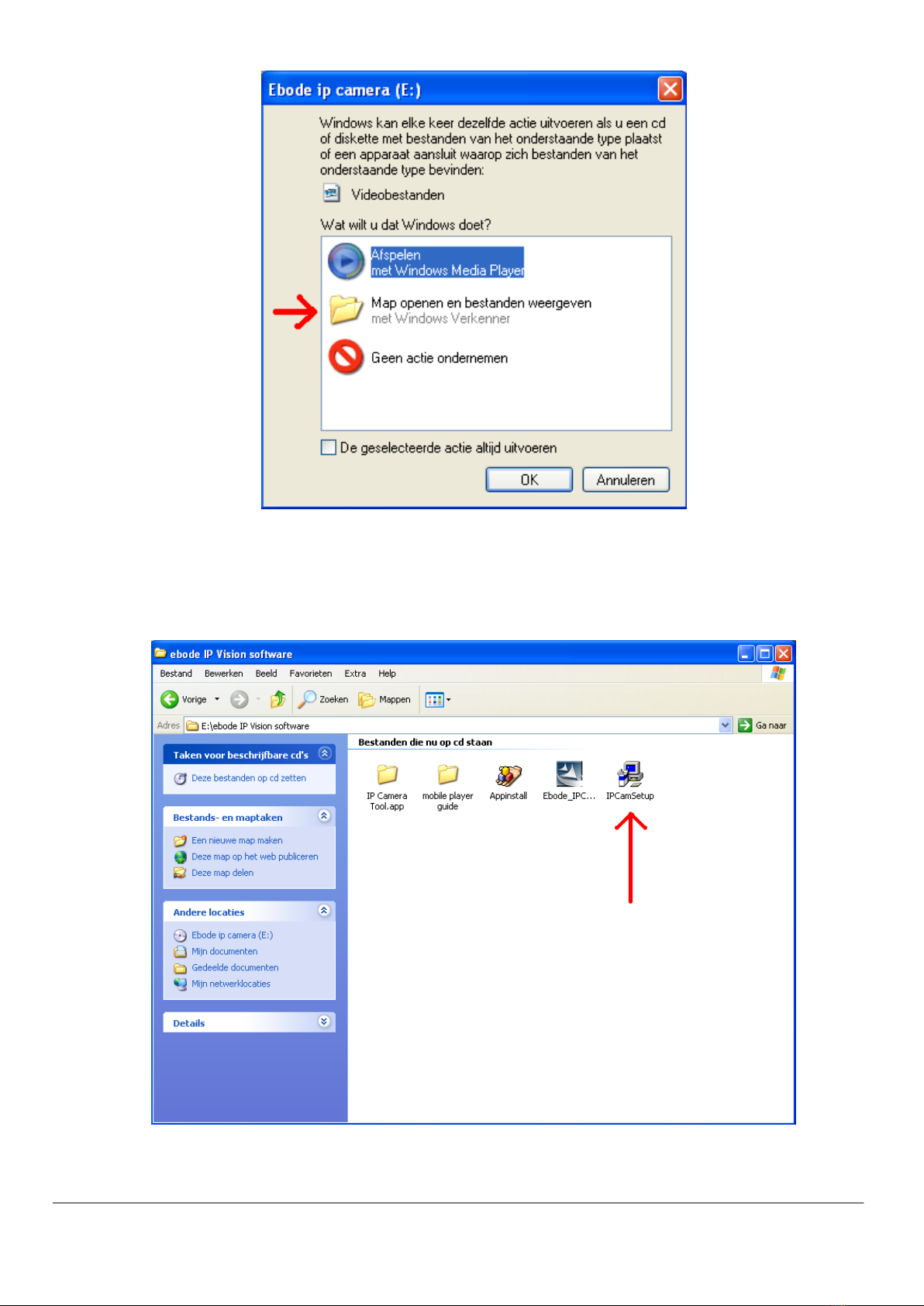

1.IP Camera Tool: Insert the CD, a popup menu might appear like shown in the picture below.
2.Select “Open Map” and click “OK”
March 2013 IPV38 / IPV38WE
8

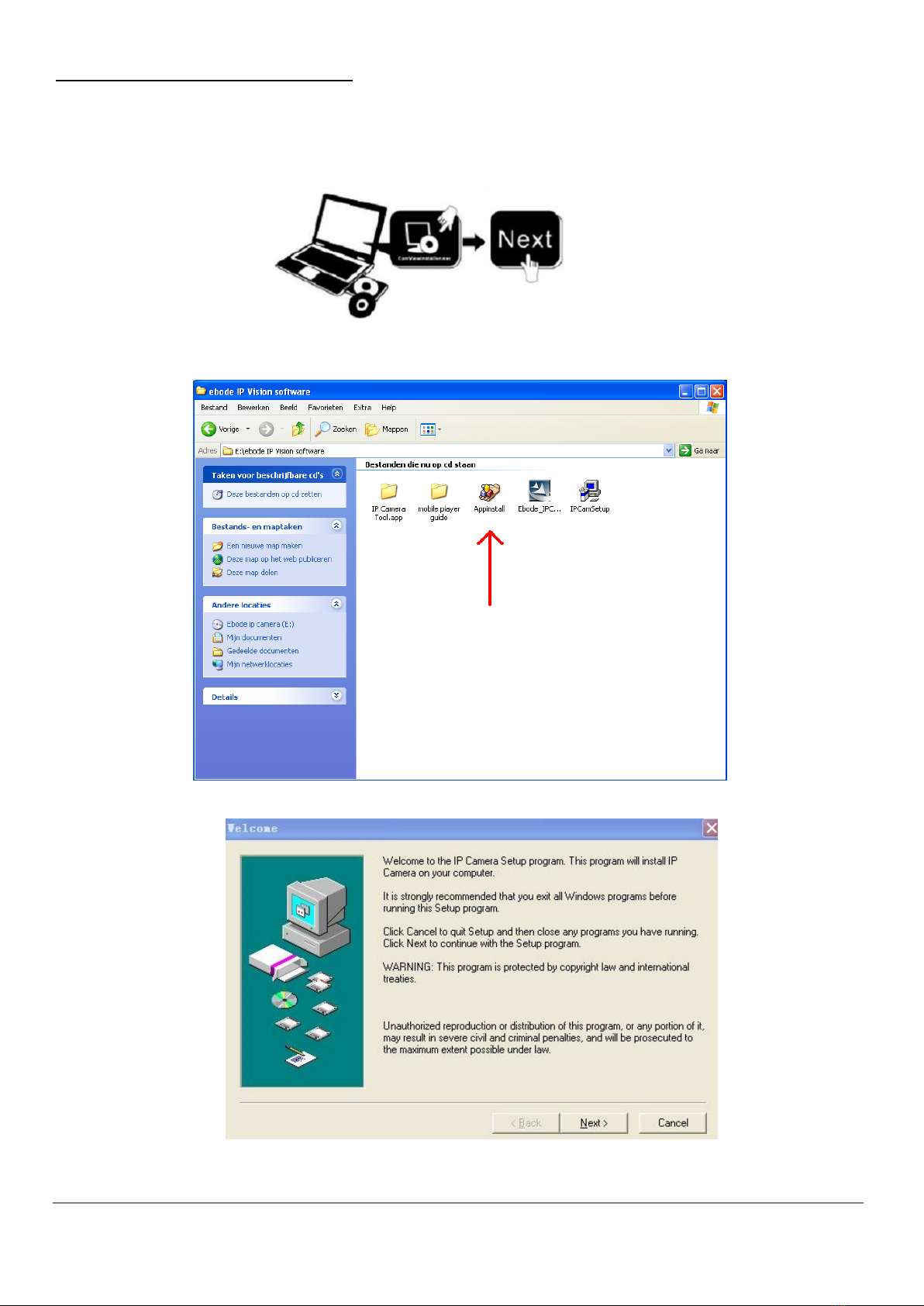

3. Open the “ebode IP Vision Software” folder and double click “IPCamSetup.exe”then click next to
complete the software installation. (Please note that on some computer systems it might take a few
seconds before the “IPCamSetup” icon will appear)
March 2013 IPV38 / IPV38WE
9
For Microsoft Windows users only: In order to run smooth we will need to install the “ActiveX App”on
each system we would like to use to visit the camera. The “AppInstall” file is located in the same folder as
the “IPCamSetup” file from the previous steps. Please take the following steps:
4. ActiveX: Double click “Appinstall.exe”—“Next”—“Install”—“Finish”.
Figure 1.5
Figure 1.6
March 2013 IPV38 / IPV38WE
10
Figure 1.7
Figure 1.8
After the systems has been restarted, the icon “IP Camera Tool” will be displayed on your
desktop.
CAUTION: Before installing and using the product, please read the following precautions carefully and
make sure they are fully understood.
Use only the power adaptor included with the product. Use of an unauthorized power adaptor
may cause damage to your IP Camera and avoid warranty.
The IPV38 is designed as an Indoor Camera and should be installed indoors only.
Do not touch the lens of the IP Camera. The optimum focus range has been set for you. If you
turn the lens, it may cause incorrect focus and blurry images.
