EchoStar D-2510 IP Viaccess Manuale utente

User Manual

DIGITAL, POSITIONER RECEIVER WITH

EMBEDDED VIACCESS AND COMMON INTERFACE

CONTENTS

Trade Mark of the DVB Digital Video Broadcasting Project (1970)

4. Remote Control Unit (RCU) ------------------------------------------------------- 6

5. Getting started ------------------------------------------------------------------------ 7

7. Operation and menu program ---------------------------------------------------- 12

8. Specifications ------------------------------------------------------------------------- 27

Front & rear view ------------------------------------------------------------------- 4

2. Features ------------------------------------------------------------------------------- 3

A. Receiver and TV set-up ------------ ------------------------------------------- 12

B. Main menu & Installation ---------------------------------------------------- 18

C. Advanced Installation --------------------------------------------------------- 25

Safety instructions ------------------------------------------------------------------- 2

How to connect your dish to the EchoStar D-2510IP VIACCESS -------- 10

Dear Customer,

Thank you for purchasing an EchoStarreceiver with Common Interface. We want you to get maximum enjoyment from

your receiver and for this reason we advise you to use only conditional access C.I. modules which are approved by the

service provider of the encrypted program you want to receive. This will enable your receiver to function properly.

Irregularities can be expected when unapproved C.I. modules are utilized, and EchoStar cannot and will not be held responsibl

e for the performance of such modules. If you choose to utilize an unapproved conditional access module with

your EchoStar receiver, EchoStarwill be unable to provide any support or assistance for the receiver.

If you have any doubt about which module you should be using, we highly recommend that you contact your programming ser

vice provider.

We hope you will enjoy using your EchoStar receiver.

Best Regards

EchoStar Int Corporation

The Netherlands.

WARRANTY LIMITATION

WARNING!

Always follow these instructions to avoid the risk of injury to yourself or damage to your equipment.

Unplug the receiver from the AC power outlet before cleaning. Use only a damp cloth for cleaning

the exterior of the receiver.

Do not use accessories or attachments not recommended by the receiver manufacturer, as they may

cause hazards and will void the warranty.

Do not operate the receiver in high-humidity areas, or expose it to water or moisture.

Do not place the receiver on an unstable cart, stand, tripod, bracket, or table. The receiver may fall,

causing serious personal injury and damage to the receiver.

Do not block or cover slots and openings in the receiver. These are provided for ventilation and

protection from overheating. Never place the receiver near or over a radiator or heat register. Do

not place the receiver in an enclosure such as a cabinet without proper ventilation.

Do not stack the receiver on top of or below other electronic devices.

Operate the receiver using only the type of power source indicated on the marking label. Unplug the

receiver power cord by gripping the power plug, not the cord.

Route power supply cords so that they are not likely to be walked on or pinched by items placed upon

or against them. Pay particular attention to cords at plugs, convenience receptacles, and the point

where they exit from the unit.

Use an outlet that contains surge suppression or ground fault protection. For added protection during

a lightning storm, or when the receiver is left unattended and unused for long periods of time, unplug

it from the wall outlet and disconnect the lines between the receiver and the antenna. This will

provide some protection against damage caused by lightning or power line surges.

Do not attempt to service the receiver yourself, as opening or removing covers may expose you to

dangerous voltage, and will void the warranty. Refer all servicing to authorized service personnel.

Unplug the receiver from the wall outlet and refer servicing to authorized service personnel whenever

the following occurs:

The power supply cord or plug is damaged;

Liquid has been spilled, or objects have fallen into the receiver;

The receiver has been exposed to rain or water;

The receiver has been dropped or the chassis has been damaged;

The receiver exhibits a distinct change in performance.

1. Safety Instructions

2. Features

1. MPEG-2 Video(MP@ML)

2. MPEG-1 Audio layer 1, layer 2

3. MPEG-2 Digital & fully DVB compliant

4. Viaccess embedded with 1 smart card

5. Capable of Interfacing with the CAMs of DVB Common Interface standard

6. Capable of scanning the frequency for SMATV system

7. Superb On-screen graphics with 256 colorful resolution

8. Plug & Play installing program setup

9. LD quality video, CD quality audio

10. Variety of LNB polarity control, 13/18V, 0/22kHz tone, 0/12V,

mechanical, magnetic polarizer and DiSEqC 1.0TM

11. RS-232C port for additional information service and updating of the receiver control software

12. 4-digit 7-segment LED on the front panel displays channel information

13. Displays local time on the front panel in stand-by mode

14. Displays signal level to setup the satellite antenna with ease

15. Power recovery function

16. 64-step volume control

17. Powerful editing facilities

; PIDs, TV or radio channel, Channel name, Satellite name/Transponders

18. Teletext function (Your TV should support teletext) & Subtitling

19. Favorite channel function

20. SCPC/MCPC receivable from C/Ku-band satellites

21. Proprietary Echostar OSG menu for full integrated functions

22. Last channel memory function

23. Variable aspect ratio (4:3, 16:9) with pan vector

24. EPG for on-screen channel information

25. Parental lock / Installation & Edit lock / Receiver lock

26. Multi-lingual function when provided by the satellite and broadcasting service provider

27. Total 5,000 channels programmable (TV: 4000 CH. & Radio : 1000 CH.)

28. DiSEqC 1.0TM compatible

29. Mechanical and magnetic polarizer control for each satellite

30. Channel storing for multi-satellites

31. Satellites : up to 50 satellites, 999 transponders

32. Built-in positioner (high power azimuth control(36Vdc, 5A))

33. VCR timer (Position, channel, start time, stop time)

34. Auto Sat position search

35. C/Ku control function

36. Receiver-to-receiver download function for program and data transmission

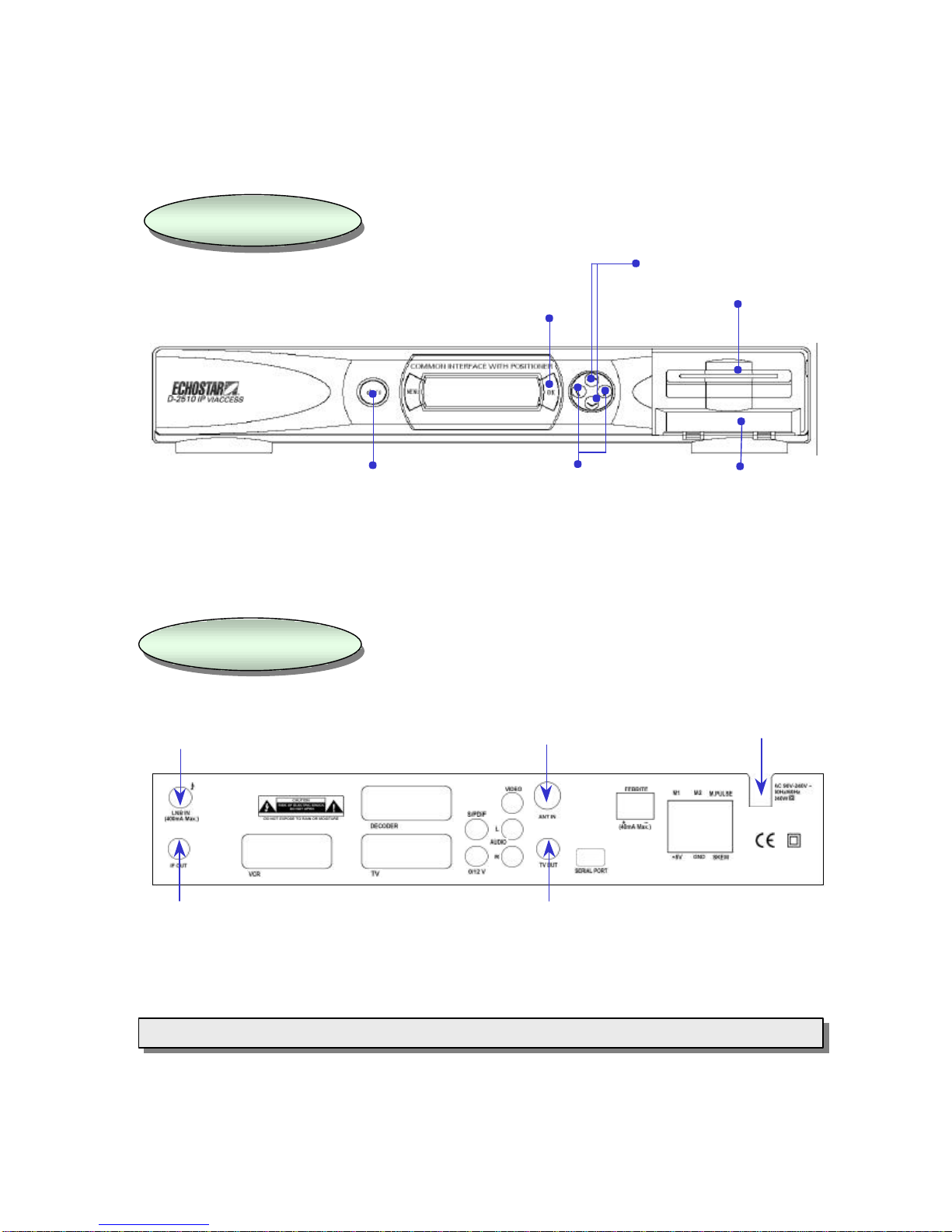

Front Panel

3. Front & Rear View

Rear Panel

AC power cord

RF output connector to TV

Antenna input

LNB input

Loop through

Note: All the cables used for Input/Output connection for the receiver should be well shielded.

Selection / confi

rmation

Channel up / down

Volume up / down 2 Slots for CI module

ON/Standby

1 Smart card slot

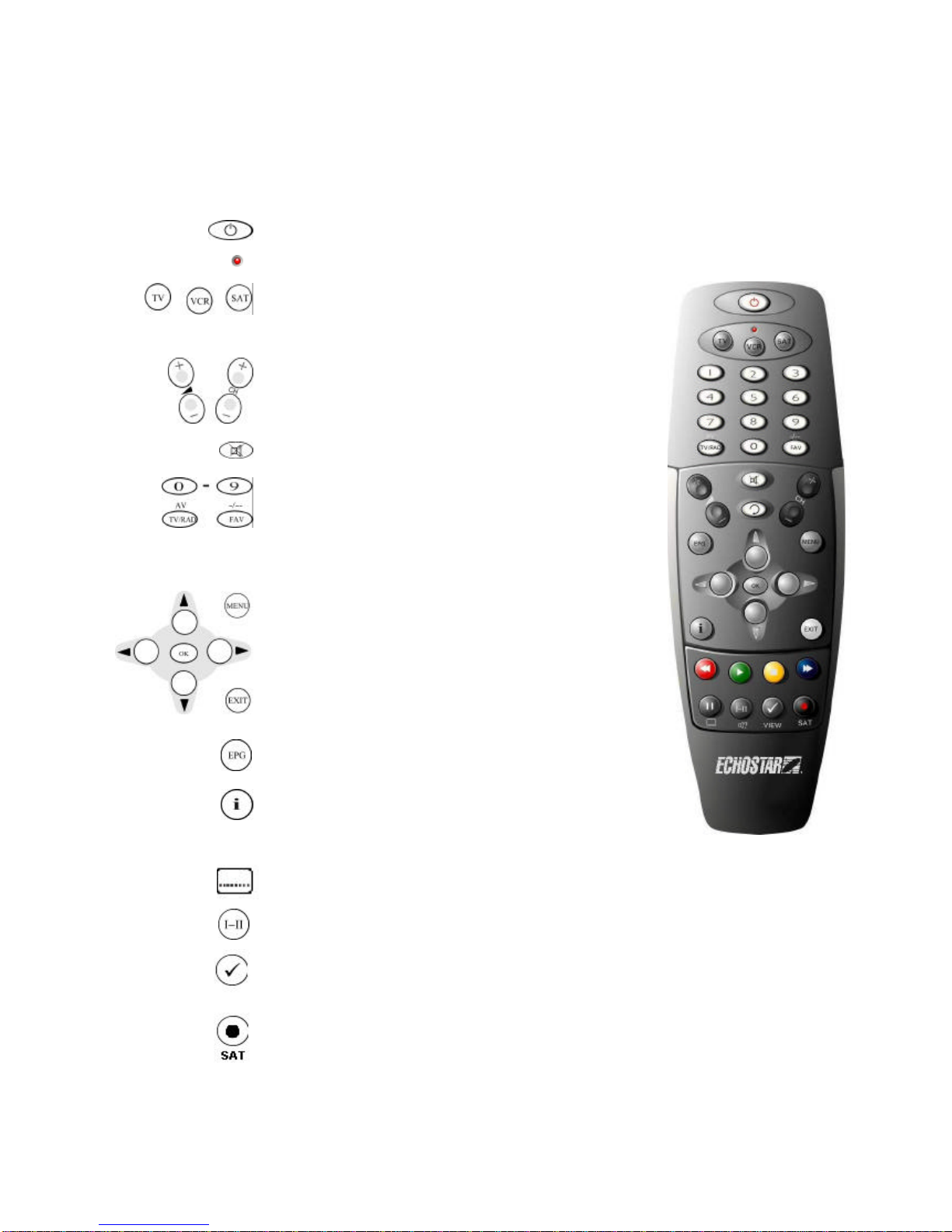

4. Remote Control Unit (RCU)

The Power key turns the receiver on and off.

The LED (Light Emitting Diode) flashes red to show the remote is working.

The TV, VCR and SAT keys select the device to be controlled.

Pressing the SATkey allows the remote to control the functions

of the receiver.

The Volume and Channel keys control the two most

frequently used functions of the receiver.

The Mute key switches the sound on and off.

The MENU key is used to see main menu or to return to previous

menu.

The cursor keys are for channel ?and ?and volume ?and ?.

The OK key is used to select a program, a highlighted line or

parameter value. Also you can see TV/Radio channel list while

watching TV or listening to the radio.

The EXIT key exits to the video viewing mode at any time.

Number / Inputkeys enable direct channel selection command

selection using numeric keys.

The TV/RAD(Radio) key switches between TV and radio mode.

The FAV key shows a list of your selected favorite channels (To

define channels as favorite select the “Edit TV channel”menu).

The EPG key shows program information of the selected channel.

(EPG; Electronic Program Guide)

The Subtitlekey enables subtitling (only when provided by the broadcaster).

Selects the Audio Language or Soundtrack from among the data transmitted for the current

channel.

Shows a thumbnail representation of the current channel in the “Edit TV Channel”,

“Parental Lock”and “EPG”.

The SATkey shows a list of selectable satellites.

VIEW

The Information key provides additional information about the

current channel and program (only available when provided by

the broadcaster). In the menus pressing this key provides up to

four lines of help.

Smart Card and CI Module

To watch payable program channels, a CI module and a smart card from the service provider is necessary.

(The service provider is the distributor of the programs). CI modules and smart cards are only licensed to

service providers only and they are distributed by their dealers or agents.

If you are subscribed to the services of more than one service provider, you might have to insert or change

proper smart card and proper CI module of your choice.

Without CI module and smart card,only FTA (free-to-air) programs are available to watch.

Note : 1)The main plug must not be plugged in before inserting the CI module.

2) Insert the CI module fully into the slot behind the lid in the front panel of the receiver,

towards the arrow on the module facing upwards and inwards.

3) Insert your smart card fully into the slot on the CI module towards the arrow on the card facing

upwards and inwards.

4) CI module and smart card may give special menus which are not described in this manual.

5) A smart card is connected to a single service provider and to a specific range of channels.

The receiver has a Viaccess build in conditional access system. If a service provider uses the

Viaccess conditional access system, it is not necessary to use a CI module. The smart card may directly

inserted in the smart card reader to watch the encrypted channels.

Embedded Viaccess

DO NOT PLUG the receiver into Main Power Outlet, until you complete all the connections to the receiver.

5. Getting Started

TV ANTENNA

RF IN

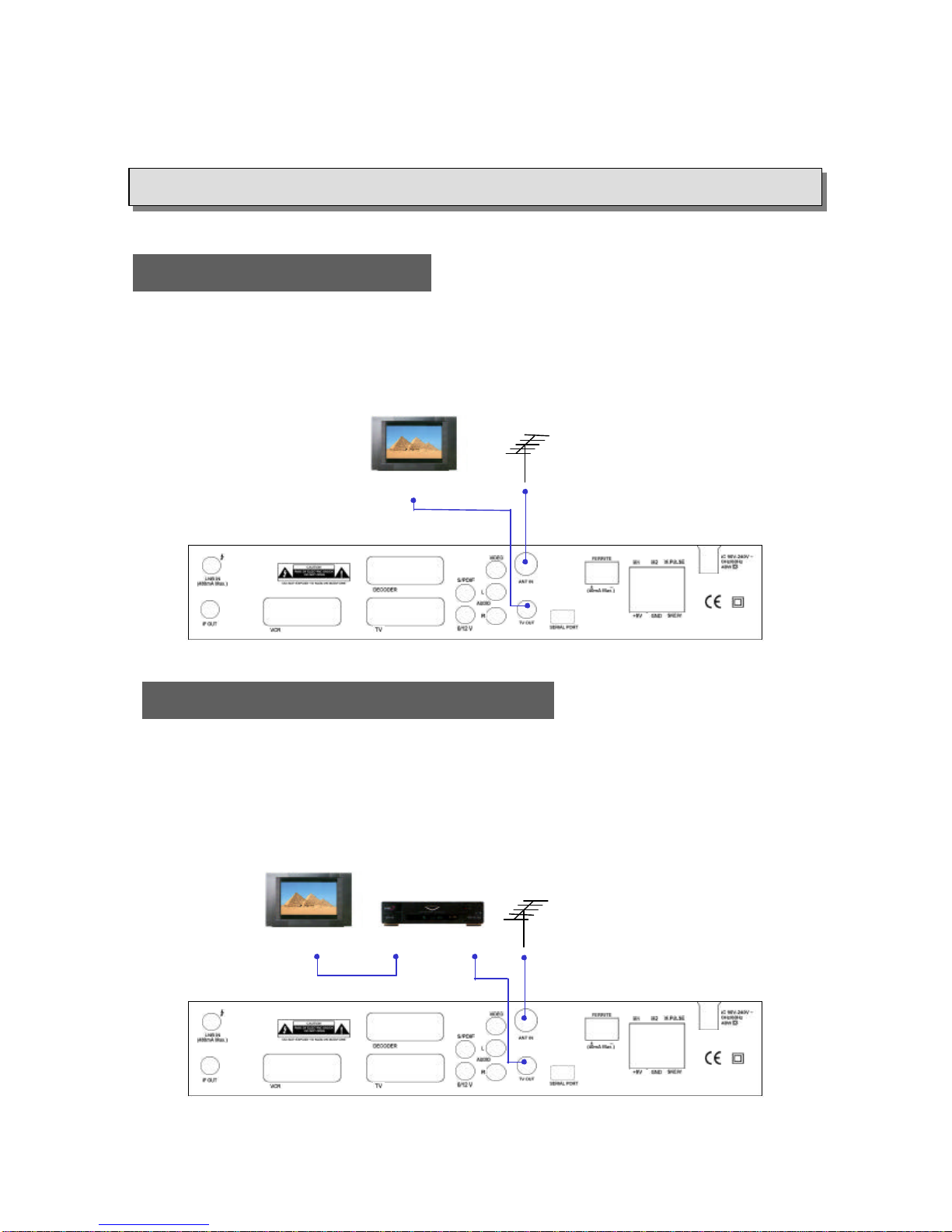

Receiver to TV with RF

VCR

RF IN RF INRF OUT

Receiver to VCR and then to TV with RF

1. Connect the Off-air TV antenna or cable if available to the ANT IN socket of the EchoStar D-2510IP VIACCESS.

2. Connect the TV OUT socket of theEchoStar D-2510IP VIACCESS to the RF IN of the TV set.

3. Search on the TV set for UHF channel # 38. This is the default channel where theEchoStar D-2510IP VIACCESS

is set to.

1. Connect the Off-air TV antenna or cable if available to the ANT IN socket of the EchoStar D-2510IP VIACCESS.

2. Connect the TV OUT socket of theEchoStar D-2510IP VIACCESS with the RF IN of the VCR.

3. Connect the RF OUT of the VCR to the RF IN of the TV set.

4. Search on the TV set and the VCR for UHF channel # 38. This is the default channel where the EchoStar D-2510IP VIACCESS

is programmed to.

Note : Use different UHF channels for VCR and EchoStar D-2510IP VIACCESS.

TV ANTENNA

RF IN

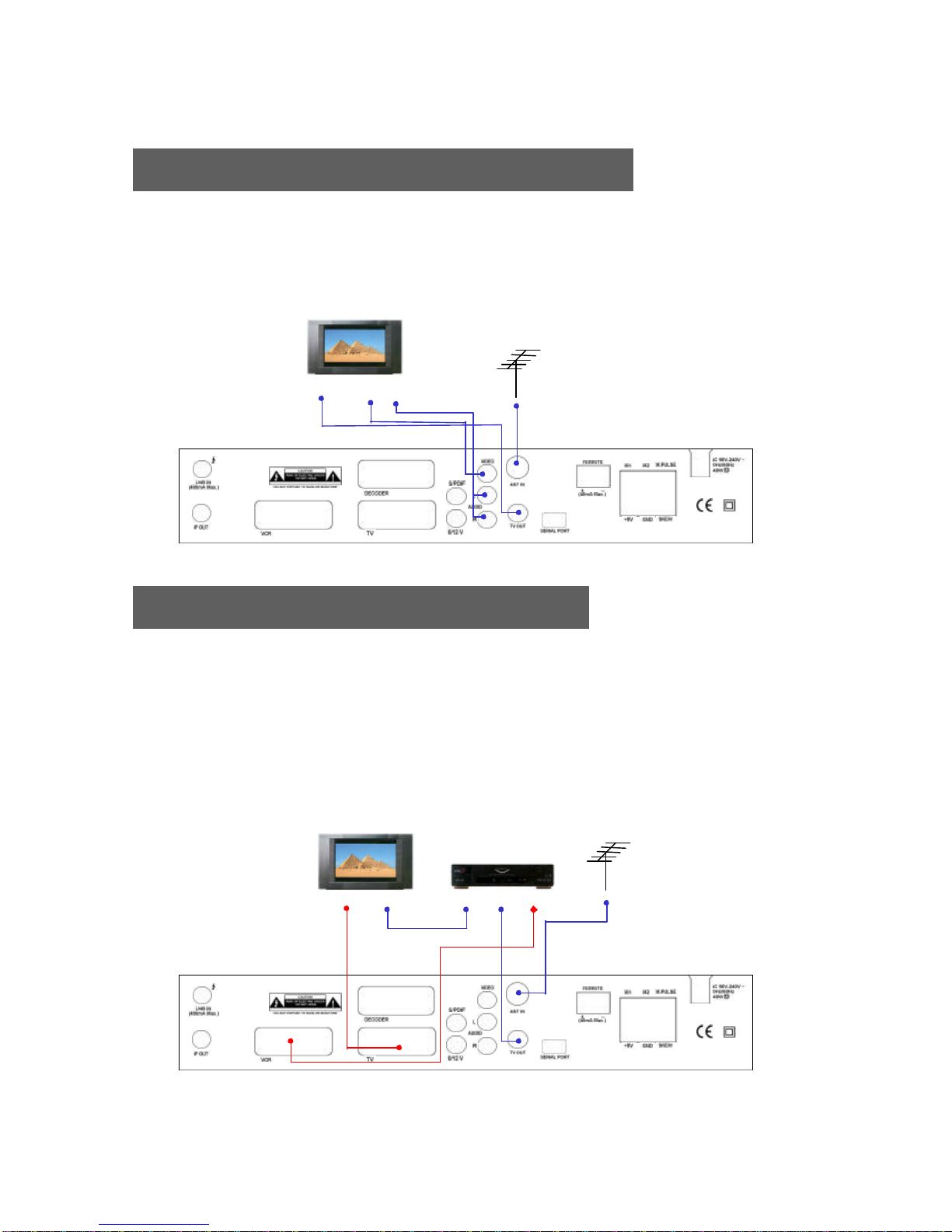

Receiver to TV with Audio and Vide RCAs

VIDEO AUDIO

IN IN

Receiver to TV and VCR with SCART Cables

1. Connect the Off-air TV antenna or cable if available to the ANT IN socket of the EchoStar D-2510IP VIACCESS.

2. Connect the TV OUT socket of theEchoStar D-2510IP VIACCESS with the RF IN of the VCR.

3. Connect the RF OUT of the VCR to the RF IN of the TV set.

4. Search on the VCR for UHF channel # 38. This is the default channel where the EchoStar D-2510IP VIACCESSis programmed to.

5. Connect the SCART cable from the TV SCART of the EchoStar D-2510IP VIACCESSto the SCART of the TV set.

6. Connect the SCART cable from the VCR SCART of theEchoStar D-2510IP VIACCESS to the SCART of the VCR.

7. When the EchoStar D-2510IP VIACCESS is switched on the TV set, TV set will automatically switch to the relevant SCART

input of the TV.

Note : Use different UHF channels for VCR and EchoStar D-2510IP VIACCESS.

TVSCART RF IN RF OUT RF IN VCR SCART

1. Connect the Off-air TV antenna or cable if available to the ANT IN socket of the EchoStar D-2510IP VIACCESS.

2. Connect the TV OUT socket of theEchoStar D-2510IP VIACCESS with the RF IN of the TV set.

3. Connect the Video and Audio RCAs of the EchoStar D-2510IP VIACCESS to the Video and Audio RCAs of the TV set.

TV ANTENNA

VCR

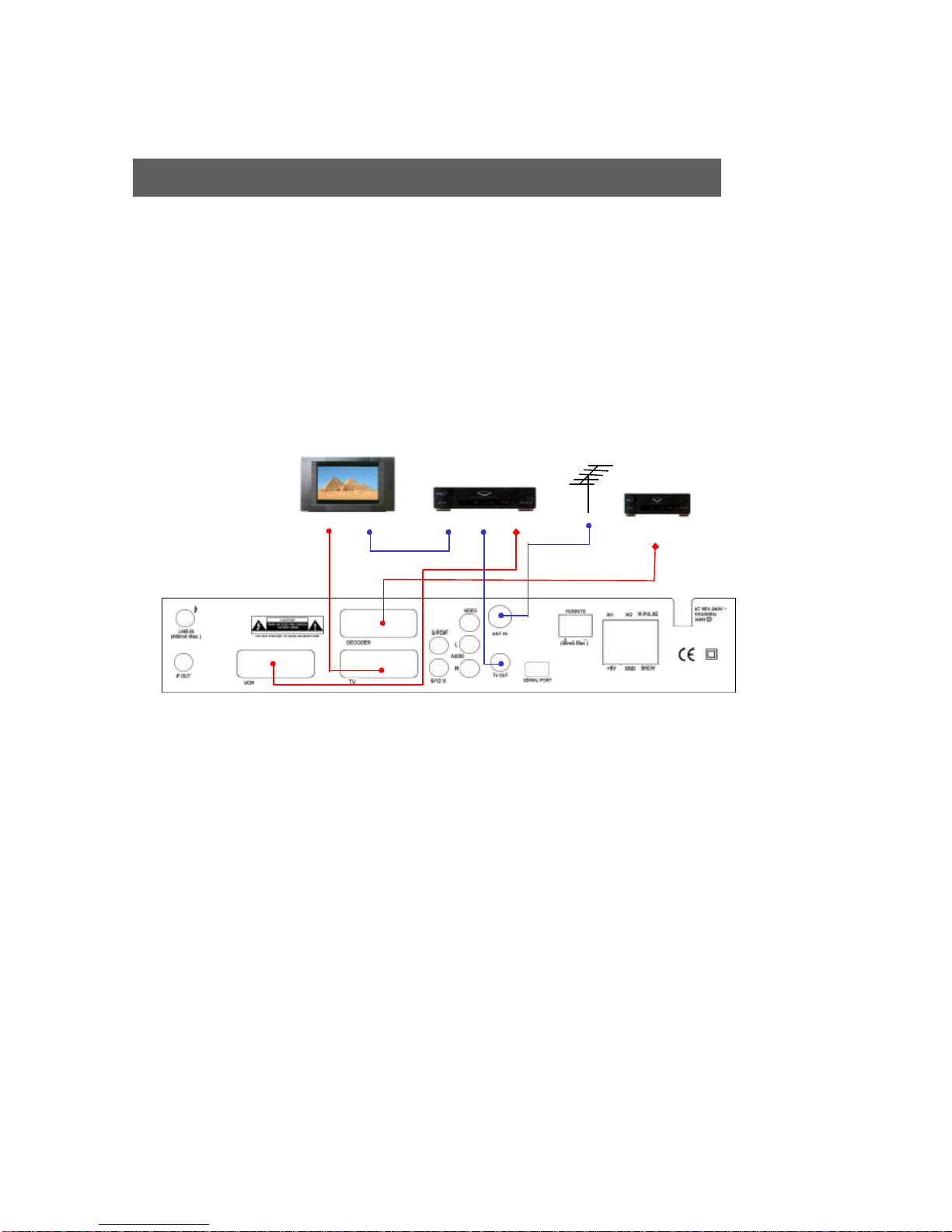

Receiver to TV, VCR and Decoder with SCART Cables

DECODER

DECODER SCART

1. Connect the Off-air TV antenna or cable if available to the ANT IN socket of the EchoStar D-2510IP VIACCESS.

2. Connect the TV OUT socket of theEchoStar D-2510IP VIACCESS to the RF IN of the VCR.

3. Connect the RF OUT of the VCR to the RF IN of the TV set.

4. Search on the VCR for UHF channel # 38. This is the default channel where the EchoStar D-2510IP VIACCESS is

programmed to.

5. Connect the SCART cable from the TV SCART of the EchoStar D-2510IP VIACCESS to the TV SCART from the TV

set.

6. Connect the SCART cable from the VCR SCART of theEchoStar D-2510IP VIACCESS to the SCART of the VCR.

7. Connect the SCART cable from the DECODER SCART of theEchoStar D-2510IP VIACCESS to the SCART of the

DECODER.

Note : Use different UHF channels for VCR and EchoStar D-2510IP VIACCESS.

TVSCART RF IN RF OUT RF IN VCR SCART

TV ANTENNA

VCR

Indice

Altri manuali EchoStar Ricevitore

EchoStar

EchoStar DSB-2220 2Ci Manuale utente

EchoStar

EchoStar DVR-7000 HDD Viaccess Manuale utente

EchoStar

EchoStar DSB-2110 2Ci Viaccess Manuale utente

EchoStar

EchoStar DSB-700 FTA Manuale utente

EchoStar

EchoStar T-222 FTA Manuale utente

EchoStar

EchoStar DSB-707 FTA Manuale utente

EchoStar

EchoStar DVR-7000 HDD Viaccess Manuale utente

EchoStar

EchoStar D-2400 IP Manuale utente

EchoStar

EchoStar DSB-890 2Ci Manuale utente

EchoStar

EchoStar DSB-808 2Ci Viaccess Manuale utente

EchoStar

EchoStar DSB-800 2Ci Manuale utente

EchoStar

EchoStar DSB-1200 Viaccess Manuale utente

EchoStar

EchoStar DVR-5000 HDD Viaccess Manuale

EchoStar

EchoStar DSB-1220 FTA Manuale utente

EchoStar

EchoStar DVR-5000 HDD Viaccess Manuale utente

EchoStar

EchoStar DSB-770 FTA Manuale utente

EchoStar

EchoStar D-2600 IP Viaccess Manuale utente

EchoStar

EchoStar T-105 Manuale utente

EchoStar

EchoStar DSB-1100 Manuale utente

EchoStar

EchoStar AD-3600 IP Viaccess Manuale utente

EchoStar

EchoStar DSB-709 FTA Manuale utente

EchoStar

EchoStar DSB-707 Viaccess Manuale utente

EchoStar

EchoStar DVR-7000 HDD Viaccess Guida rapida

EchoStar

EchoStar HDS-600RS Manuale di istruzioni

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
