Congratulations on the purchase of your ECOVACS ROBOTICS DEEBOT!

We hope it brings you many years of satisfaction. We trust the purchase of your

new robot will help keep your home clean and provide you more quality time to

do other things.

Live Smart. Enjoy Life.

Should you encounter situations that have not been properly addressed in

this Instruction Manual, please contact our Customer Service Center where a

technician can address your specic problem or question.

For more information, please visit the ECOVACS ROBOTICS official website:

www.ecovacs.com

The Company reserves the right to make technological and/or design changes

to this product for continuous improvement.

Thank you for choosing DEEBOT!

Benutzerhandbuch............................................................25

Manuale d'uso .................................................................103

..................................................51

Manual de instrucciones

.......................................................77

Manuel d'instructions

..............................................................2

Instruction Manual

EU-Declaration of conformity.............................................129

1. Important Safety Instructions......................................................................2

2. Package Contents and Technical Specications ......................................6

2.1 Package Contents ....................................................................................6

2.2 Specications ...........................................................................................6

2.3 Product Diagram.......................................................................................7

3. Operating and Programming.......................................................................9

3.1 Notes Before Cleaning .............................................................................9

3.2 Quick Start..............................................................................................10

3.3 Cleaning Mode Selection........................................................................13

3.4 Programming the Robot .........................................................................15

3.5 Indicator Light and Alarm Sounds...........................................................17

4. Maintenance................................................................................................19

4.1 Dust Bin and Filters ................................................................................19

4.2 Main Brush and Side Brushes................................................................20

4.3 Other Components .................................................................................21

4.4 Regular Maintenance .............................................................................22

5. Troubleshooting .........................................................................................23

Contents

.......................................................77

1. Important Safety Instructions

When using an electrical appliance, basic precautions should

always be followed, including the following:

READ ALL INSTRUCTIONS BEFORE USING THIS

APPLIANCE.

SAVE THESE INSTRUCTIONS

1. This Appliance can be used by children aged from 8 years and

above and persons with reduced physical, sensory or mental

capabilities or lack of experience and knowledge if they have

been given supervision or instruction concerning use of the

Appliance in a safe way and understand the hazards involved.

Children shall not play with the Appliance. Cleaning and user

maintenance shall not be made by children without supervision.

2. Clear the area to be cleaned. Remove power cords and small

objects from the floor that could entangle the Appliance. Tuck

rug fringe under the rug base, and lift items such as curtains and

tablecloths off the oor.

3. If there is a drop off in the cleaning area due to a step or stairs,

you should operate the Appliance to ensure that it can detect the

step without falling over the edge. It may become necessary to

place a physical barrier at the edge to keep the unit from falling.

Make sure the physical barrier is not a trip hazard.

4. Only use as described in this manual. Only use attachments

recommended or sold by the manufacturer.

5. Please make sure your power supply voltage matches the power

voltage marked on the Charging Dock.

6. For INDOOR household use ONLY. Do not use the Appliance in

outdoor, commercial or industrial environments.

7. Non-rechargeable batteries are prohibited.

8. Do not use without dust bin and/or lters in place.

9. Do not operate the Appliance in an area where there are lit

candles or fragile objects.

10. Do not use in extremely hot or cold environments (below

-5˚C/23˚F or above 40˚C/104˚F).

EN 3

1. Important Safety Instructions

11. Keep hair, loose clothing, fingers, and all parts of body away

from any openings and moving parts.

12. Do not operate the Appliance in a room where an infant or child

is sleeping.

13. Do not use Appliance on wet surfaces or surfaces with standing

water.

14. Do not allow the Appliance to pick up large objects like stones,

large pieces of paper or any item that may clog the Appliance.

15. Do not use Appliance to pick up flammable or combustible

materials such as gasoline, printer or copier toner, or use in

areas where they may be present.

16. Do not use Appliance to pick up anything that is burning or

smoking, such as cigarettes, matches, hot ashes, or anything

that could cause a re.

17. Do not put objects into the suction intake. Do not use if the

suction intake is blocked. Keep the intake clear of dust, lint, hair,

or anything that may reduce air ow.

18. Take care not to damage the power cord. Do not pull on or

carry the Appliance or Charging Dock by the power cord, use

the power cord as a handle, close a door on the power cord,

or pull power cord around sharp edges or corners. Do not run

Appliance over the power cord. Keep power cord away from hot

surfaces.

19. If the power cord is damaged, it must be replaced by the

manufacturer or its service agent in order to avoid a hazard.

20. Do not use the Charging Dock if it is damaged.

21. Do not use with a damaged power cord or receptacle. Do not

use the Appliance or Charging Dock if it is not working properly,

has been dropped, damaged, left outdoors, or come in contact

with water. It must be repaired by the manufacturer or its service

agent in order to avoid a hazard.

22. Turn OFF the power switch before cleaning or maintaining the

Appliance.

1. Important Safety Instructions

23. The plug must be removed from the receptacle before cleaning

or maintaining the Charging Dock.

24. Remove the Appliance from the Charging Dock, and turn OFF

the power switch to the Appliance before removing the battery

for disposal of the Appliance.

25. The battery must be removed and discarded according to local

laws and regulations before disposal of the Appliance.

26. Please dispose of used batteries according to local laws and

regulations.

27. Do not incinerate the Appliance even if it is severely damaged.

The batteries can explode in a re.

28. When not using the Charging Dock for a long period of time,

please unplug it.

29. The Appliance must be used in accordance with the directions

in this Instruction Manual. ECOVACS ROBOTICS cannot be

held liable or responsible for any damages or injuries caused by

improper use.

30. The robot contains batteries that are only replaceable by skilled

persons. To replace or remove the battery, please contact

Customer Service.

31. If the robot will not be used for a long time, fully charge the robot

and power OFF for storage and unplug the Charging Dock.

32.WARNING: For the purposes of recharging the battery, only

use the detachable supply unit DK18-190060H-V provided with

this appliance.

33. The Remote Control pre-installs two non-rechargeable AAA

batteries. To replace the battery of the Remote Control, please

turn over the Remote Control, press and remove its Battery

Cover. Remove the batteries, and insert the new batteries with

the correct polarity. Reassemble the Battery Cover.

34. Non-rechargeable batteries are not to be recharged.

35. Different types of batteries or new and used batteries are not to

be mixed.

EN 5

Correct Disposal of this Product

This marking indicates that this product should not be disposed

of with other household waste throughout the EU. To prevent

possible harm to the environment or human health from

uncontrolled waste disposal, recycle it responsibly to promote

the sustainable reuse of material resources. To recycle your used

device, please use the return and collection systems or contact

the retailer where the product was purchased. They can safely

recycle this product.

For EU Countries

1. Important Safety Instructions

36. Batteries of the Remote Control are to be inserted with the

correct polarity.

37. Exhausted batteries are to be removed from the Appliance and

safely disposed of.

38. If the Remote Control is to be stored unused for a long period,

the batteries should be removed.

39. The supply terminals are not to be short-circuited.

To disable Wi-Fi module on DEEBOT, power the robot ON.

Place the robot on the Docking Station making sure the Charging

Contacts on DEEBOT and the Docking Station Pins make a

connection.

Press and hold the AUTO Mode Button on the robot for 10

seconds until DEEBOT emits 3 beeps.

To enable Wi-Fi module on DEEBOT, power the robot OFF and

then power ON. The Wi-Fi module is turned on when DEEBOT is

restarted.

2. Package Contents and Technical Specications

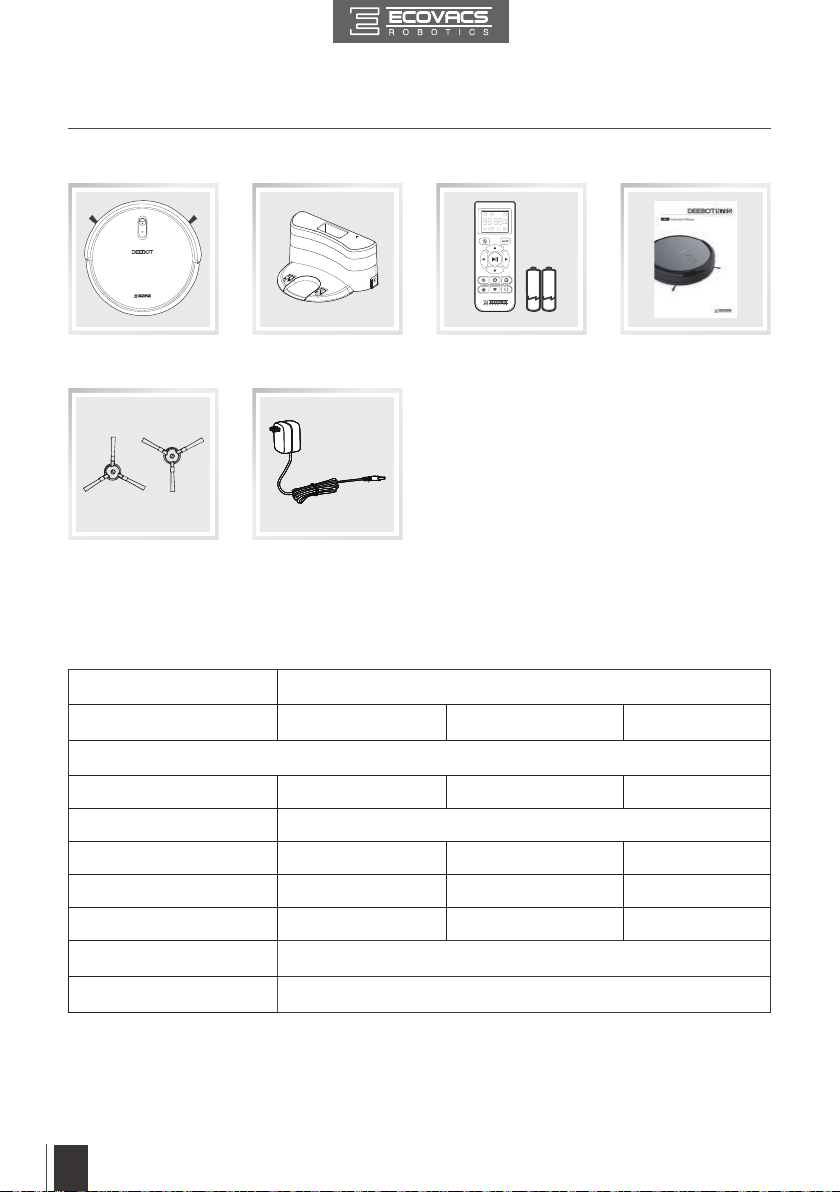

2.1 Package Contents

Robot

(2) Side Brushes Power Adapter

Charging Dock with

Power Adapter

Remote Control

(with battery)

Instruction Manual

Model DN622.11

Working Voltage 14.4V DC Rated Power 25W

Charging Dock

Rated Input Voltage 19V DC Rated output current 0.6A

Power Adapter Model DK18-190060H-V

Rated Input Voltage 100-240V AC Rated Input Current 0.5A

Rated output Voltage 19V DC Rated output current 0.6A

Remote Control Model RC1507 Input Voltage 3V DC

Off/Standby Mode Power Less than 0.50 W

Networked Standby Power Less than 2.00 W

2.2 Specications

* Technical and design specications may be changed in the course of continuous product improvement.

EN 7

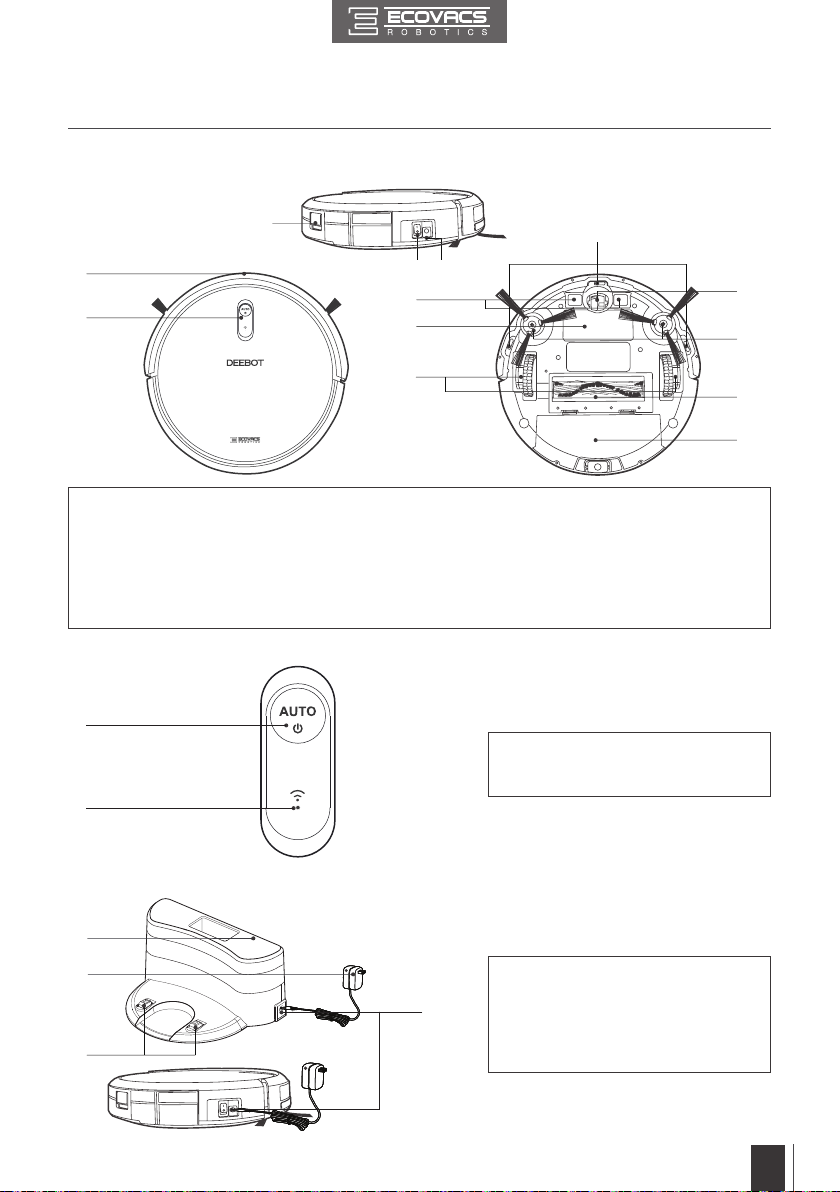

2.3 Product Diagram

Robot

1. Anti-Collision Sensors and Bumper

2. Control Panel

3. Dust Bin Release Button

4. Charging Contacts

5. Battery Cover

6. Driving Wheels

7. Power Adapter Port

8. Power Switch

9. Anti-Drop Sensors

10. Universal Wheel

11. Side Brushes

12. Main Brush

13. Dust Bin

2. Package Contents and Technical Specications

Charging Dock

1. Power Indicator Light

2. Power Adapter

3. Power Adapter Port

4. Charging Dock Pins

1. AUTO Mode Button

2. Wi-Fi Indicator Light

Control Panel

2. Package Contents and Technical Specications

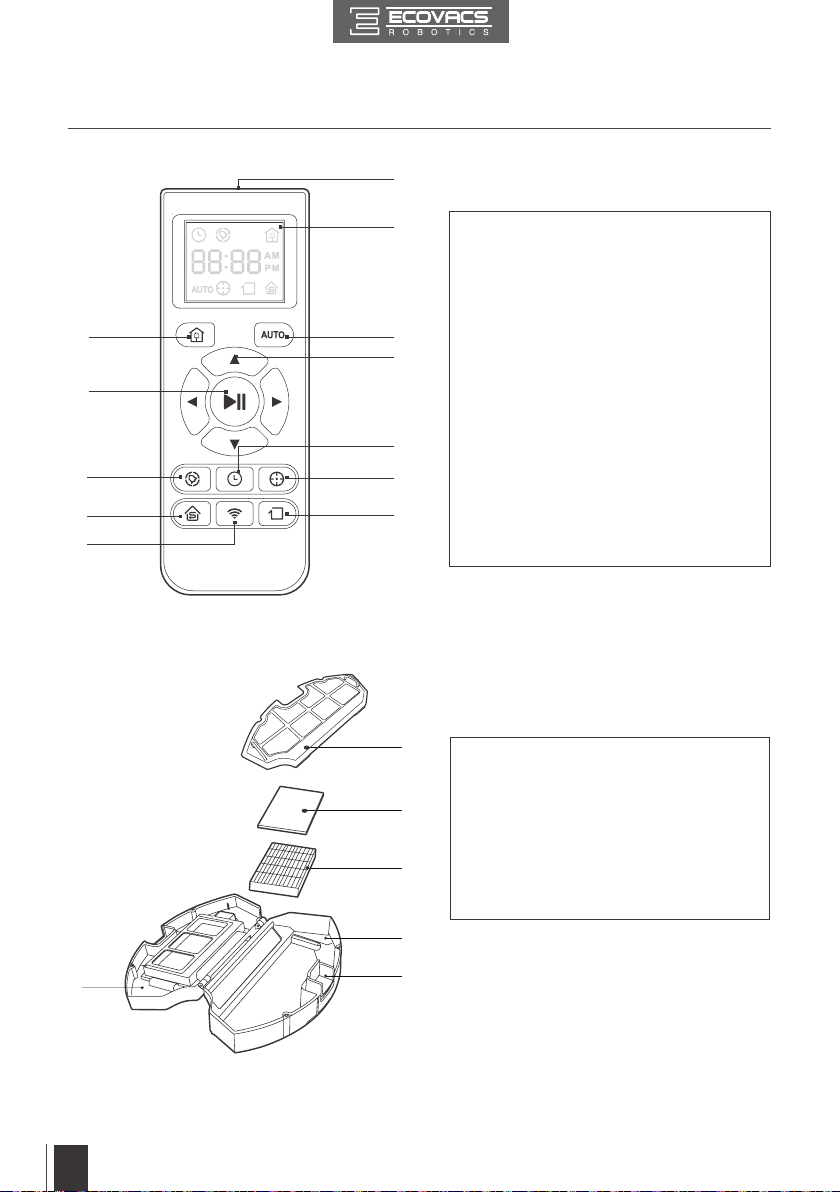

Remote Control

1. LCD Screen

2. Return to Charger Mode Button

3. AUTO Mode Button

4. Direction Control Buttons

5. START/PAUSE Button

6. Time Scheduling Button

7. Set Current Time Button

8. Spot Cleaning Mode Button

9. Single Room Mode Button

10. Network Setup Button

11. Edge Cleaning Mode Button

12. Infrared Emitter

Dust Bin

1. Filter Net

2. Sponge Filter

3. High Efciency Filter

4. Dust Bin Cover

5. Dust Bin

6. Dust Bin Release Button

Altri manuali per DEEBOT N79S

Indice

Altri manuali ECOVACS Aspirapolvere

ECOVACS

ECOVACS DEEBOT D77 Manuale utente

ECOVACS

ECOVACS DEEBOT 601 Manuale utente

ECOVACS

ECOVACS Deebot D56 Manuale utente

ECOVACS

ECOVACS WINBOT Manuale utente

ECOVACS

ECOVACS DEEBOT 661 Manuale utente

ECOVACS

ECOVACS DEEBOT X2 OMNI Manuale utente

ECOVACS

ECOVACS deebot m88 Manuale utente

ECOVACS

ECOVACS W555 Manuale utente

ECOVACS

ECOVACS DEEBOT OZMO Slim10 Manuale utente

ECOVACS

ECOVACS DEEBOT 601 Manuale utente

ECOVACS

ECOVACS ECO D54 Manuale utente

ECOVACS

ECOVACS DEEBOT DN78 Manuale utente

ECOVACS

ECOVACS WINBOT9 W930 Manuale utente

ECOVACS

ECOVACS DEEBOT OZMO 920 Manuale utente

ECOVACS

ECOVACS DEEBOT 7 Manuale utente

ECOVACS

ECOVACS DEEBOT T10 TURBO Manuale utente

ECOVACS

ECOVACS DEEBOT R98 Manuale utente

ECOVACS

ECOVACS Deebot X1 OMNI Manuale utente

ECOVACS

ECOVACS DEEBOT 900 Manuale utente

ECOVACS

ECOVACS DEEBOT 900 Manuale utente

ECOVACS

ECOVACS DEEBOT M82 Manuale utente

ECOVACS

ECOVACS DEEBOT OZMO 930 Manuale utente

ECOVACS

ECOVACS WINBOT 7 Manuale utente

ECOVACS

ECOVACS DEEBOT 710 Manuale utente

Manuali Aspirapolvere popolari di altre marche

Bissell

Bissell LittleGreen Proheat 1425 Series Manuale utente

Panasonic

Panasonic MC-YL637S147-AE Manuale utente

NEFF

NEFF N17XH10 0 Series Manuale utente

LG A9 Series Manuale utente

Oreck

Oreck Cordless Captura BK51700 Series Manuale utente

Kogan

Kogan KAVACROBVWA Manuale utente

Kränzle

Kränzle VENTOS 50 ID Guida utente

EVVO

EVVO Ai35 Manuale utente

DeWalt

DeWalt DWH200D Manuale utente

Pontec

Pontec Pondomatic Vacuum Cleaner Manuale utente

Cleanmaxx

Cleanmaxx PC-P007E Manuale utente

Exido

Exido 240-114 Manuale utente

RIDGID

RIDGID WD1685AU0 Manuale utente

Ezviz

Ezviz RE4P Manuale utente

STG global

STG global TANVAC HDV3000 Manuale utente

Shark

Shark ROTATOR PRO COMPLETE NV550 Series Manuale utente

Factory

Factory M3340 Manuale utente

Shop-Vac

Shop-Vac VN92 SERIES Manuale utente
