HP-5101AC
User Manual
08-2012 / v1.0
COPYRIGHT
Copyright©EdimaxTechnologyCo.,Ltd.allrightsreserved.Nopartofthis
publicationmaybereproduced,transmitted,transcribed,storedinaretrieval
system,ortranslatedintoanylanguageorcomputerlanguage,inanyformorby
anymeans,electronic,mechanical,magnetic,optical,chemical,manualor
otherwise,withoutthepriorwrittenpermissionfromEdimaxTechnologyCo.,
Ltd.
EdimaxTechnologyCo.,Ltd.makesnorepresentationsorwarranties,either
expressedorimplied,withrespecttothecontentshereofandspecifically
disclaimsanywarranties,merchantability,orfitnessforanyparticularpurpose.
Anysoftwaredescribedinthismanualissoldorlicensedasis.Shouldthe
programsprovedefectivefollowingtheirpurchase,thebuyer(andnotthis
company,itsdistributor,oritsdealer)assumestheentirecostofallnecessary
servicing,repair,andanyincidentalorconsequentialdamagesresultingfrom
anydefectinthesoftware.EdimaxTechnologyCo.,Ltd.reservestherightto
revisethispublicationandtomakechangesfromtimetotimeinthecontents
hereofwithouttheobligationtonotifyanypersonofsuchrevisionorchanges.
Theproductyouhavepurchasedandthesetupscreenmayappearslightly
differentfromthoseshowninthisQIG.Formoreinformationaboutthisproduct,
pleaserefertotheusermanualontheCD‐ROM.Thesoftwareandspecifications
aresubjecttochangewithoutnotice.Pleasevisitourwebsitewww.edimax.com
forupdates.Allbrandandproductnamesmentionedinthismanualare
trademarksand/orregisteredtrademarksoftheirrespectiveholders.
EdimaxTechnologyCo.,Ltd.
Add:No.3,Wu‐Chuan3rdRd.,Wu‐KuIndustrialPark,NewTaipeiCity,Taiwan
Tel:+886‐2‐77396888
Contents
Chapter1:Introduction.....................................................................................................................................1
1.1ProductFeatures..................................................................................................................................1
1.2Application...........................................................................................................................................1
1.3Compatibility........................................................................................................................................2
1.4SystemRequirements..........................................................................................................................2
Chapter2:AbouttheProduct............................................................................................................................3
2.1LEDDefinitions.....................................................................................................................................3
2.2Interface...............................................................................................................................................4
Chapter3:GettingStarted.................................................................................................................................5
3.1HardwareInstallation..........................................................................................................................5
3.2CreatingaPowerlineNetwork.............................................................................................................6
3.3CreatinganEncryptedPowerlineNetworkwithTwoAdapters..........................................................7
Chapter4:UtilitySoftwareInstallation.............................................................................................................8
Chapter5:UsingtheUtilitySoftware..............................................................................................................14
5.1MainTab............................................................................................................................................14
5.2PrivacyTab.........................................................................................................................................17
5.3DiagnosticsTab..................................................................................................................................19
5.4AboutTab...........................................................................................................................................20
Chapter6:PowerlineNetworkManagementwithGroupButton..................................................................21
6.1FormingaHomePlugAVLogicalNetwork.........................................................................................21
6.2JoiningaNetwork..............................................................................................................................22
6.3LeavingaNetwork&JoininganotherNetwork.................................................................................23
Chapter7:Troubleshooting.............................................................................................................................24
1
Chapter1:Introduction
1.1ProductFeatures
zIntegratedwithpowersocketjustasanadditionalwallsocket
zEasyplug‐n‐playsetupand128‐bitAESsecurity
zMax.powerlinespeedupto500Mbps
zBackwardcompatiblewith200Mbpspowerlineadapters
zFeaturesenergysavingmodetoreducepowerconsumption
zIntegratedpowersocketwithnoisefilter
zPowerlinetransmissionrangeupto300meters
1.2Application
zHigh‐definition(HD)andstandard‐definition(SD)videodistribution
zBroadbandInternetsharing
zInternetProtocolTelevision(IPTV)andVoiceoverInternetProtocol(VoIP)
applications
2
1.3Compatibility
200Mbps(EdimaxHP‐200xseries)and500Mbps(EdimaxHP‐500xseries)powerline
adaptersareabletocommunicatedirectlywithoneanother.200Mbpsand500Mbps
powerlineadapterscanbeusedonthesamehouseholdelectricwiringas14Mbps&
85Mbpspowerlineadapters(EdimaxHP‐85XXseries)withoutinterfering,butarenotable
tocommunicatedirectlywith14Mbpsand85Mbpspowerlineadapters.
1.4SystemRequirements
zComputerwithEthernetportrunningWindowsXP/Vista/7,Linux,MACOSXand
anyotheroperatingsystem.
zAnyconnecteddevicesmustfeatureanetworkport.
zUtilitysoftwaresupportsWindowsXP/Vista/7.
3
Chapter2:AbouttheProduct
2.1LEDDefinitions
LEDStatusDescription
LAN
GreenLANportconnected
BlinkingLANactivity(transferringdata)
Of
f
LANportnotconnected
PLC
Green/Yellow
Thegreenindicatorturnsonandtheyellowindicator
blinksslowlywhenthedeviceisdetectinga
powerlinelink.
Thegreenindicatorturnsonandtheyellowindicator
blinksquicklytoindicatedataisbeingtransferred
overthepowerlinelink.
Of
f
Noother PLC device detected
PWR
GreenPoweredon
Of
f
Poweredof
f
Note:Thedevicewillenterstandbymode,andallLEDswillextinguish,after
5secondswithoutanydatatransfer,includingwhentheEthernetcableis
disconnected.ThePowerLEDwillflashonceevery15seconds.
4
2.2Interface
InterfaceDescription
Integrated
PowerSocket
Theintegratedelectricalsocketenablesadditionalterminal
devicesormultiplesockettobeconnectedtotheadapter,just
asanormalwall socketwould.
EthernetPortThisisaFastEthernetportforconnectingtoacomputeror
otherdeviceswithanetworkport.
Group/ResetCreatesanencryptedpowerlinenetworkgroupautomatically
(pressthebuttonforlessthan3seconds).
Leavesanencryptedpowerlinenetworkgroup
(pressthebuttonfor5~8seconds).
Restoresthepowerlineadaptertofactorydefaults(pressthe
buttonfor10~15 seconds).
5
Chapter3:GettingStarted
3.1HardwareInstallation
1. Alwaysplugthepowerlineadapterdirectlyintoapowersocket.Neverplugitintoa
multiplesocketoruninterruptiblepowersupply(UPS).
2. Ifyouneedtouseamultiplesocketforadditionalnetworkdevices,
thenconnectthemultiplesockettotheintegratedpowersocketoftheadapter,and
plugthepowerlinedirectlyintoapowersocket,asshownbelow.Thepowersocketof
theadapterfeaturesafilterfunctionwhichisabletoimprovethedatatransmissionin
thenetwork.
6
3.2CreatingaPowerlineNetwork
1. ConnectapowerlineadaptertoyourrouterviaEthernetcable,andthenplugitintoa
powersocket.
2. Connectanotherpowerlineadaptertoyourcomputer,andthenplugitintoapower
socket.
Note:Youcanalsoconnecttheadaptertoaprinter,settopbox,gamingconsole,TVor
otherdevicewithanetworkport,toaddthedeviceintothepowerlinenetwork.
3. MakesurethatthePLCandLANLEDslightuponbothPLCadapters.
4. Thecomputerandtherouterwillbeconnectedtothepowerlinenetworkautomatically.
7

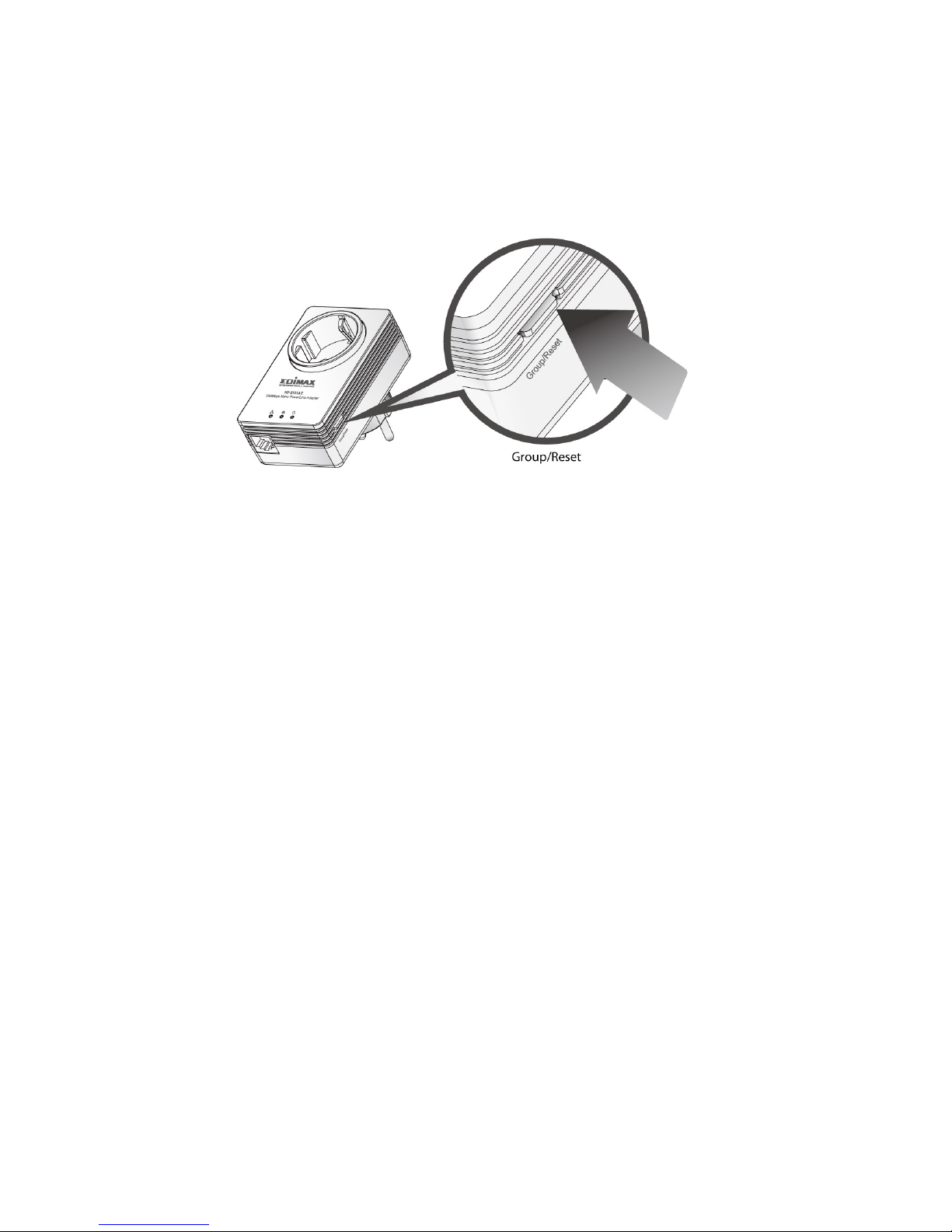

3.3CreatinganEncryptedPowerlineNetworkwithTwoAdapters
Oncebothadaptershavebeensuccessfullyconnected,pressthe“Group/Reset”button
ofeachadapterforlessthan3secondswithin2minutes.Theadapterswill
automaticallygeneratearandompasswordtoencryptthepowerlinenetwork.
Note:
zToaddadditionaladaptersintotheencryptedpowerlinenetworkortoremove
anadapterfromthepowerlinenetwork,pleaserefertotheChapter6inthe
manual
zIfthepowerlineadapterinyournetworkdoesnotfeaturea“Group/Reset”or
an“Encrypt”button,youcanusetheutilitysoftwareasanalternative.For
moredetailspleaserefertoChapter5inthemanual.
