EFIX F7 Manuale utente

EFIX F7 GNSS

USER GUIDE

Survey & Engineering | January 2021

Building the intelligent world with precise time and space.

Table of Content

EFIX F7 GNSS USER GUIDE | 2021-1 Page | 2

Table of Content

Table of Content...............................................................................................................2

Preface ............................................................................................................................5

Copyright ........................................................................................................................... 5

Safety Warnings................................................................................................................. 5

1Introduction..............................................................................................................6

1.1 Safety Information....................................................................................................... 6

1.1.1 Warnings and Cautions

..................................................................................... 6

1.2 Regulations and Safety ................................................................................................ 6

1.2.1 Use and Care

..................................................................................................... 7

1.3 Technical Support ........................................................................................................ 7

1.4 Disclaimer.................................................................................................................... 7

1.5 Your Comments ........................................................................................................... 7

2Getting Started with F7

..............................................................................................8

2.1 About the Receiver ...................................................................................................... 8

2.2 Parts of the Receiver

.................................................................................................... 8

2.2.1 Front Panel

........................................................................................................ 8

2.2.2 Receiver Ports.................................................................................................10

2.3 Batteries and Power .................................................................................................. 11

2.3.1 Built-in batteries ............................................................................................. 11

2.3.2 Charging the Battery

....................................................................................... 11

2.3.3 Battery Safe .................................................................................................... 11

2.3.4 External Power Supply.................................................................................... 12

2.4 Product Basic Supply Accessories

.............................................................................. 13

2.4.1 Rover Kit Basic Supply

..................................................................................... 13

2.5 Connecting to an Office Computer

............................................................................ 14

2.6 Connecting to a Controller ........................................................................................ 14

2.6.1 Connecting via Wi-Fi with eField Software

..................................................... 14

2.6.2 Connecting via Bluetooth with eField Software ............................................. 16

2.7 Downloading Logged Data

......................................................................................... 17

2.7.1 FTP Download

.................................................................................................18

2.7.2 Web Server Download

.................................................................................... 20

2.7.3 USB Download................................................................................................ 20

3Equipment Setup and Operation.............................................................................. 22

                                                                                            Table of Content

EFIX F7 GNSS USER GUIDE | 2021-1                                       Page |  3

1 Post-processing Base Station Setup........................................................................... 22
2 Real-Time Rover Station Setup.................................................................................. 24
3 Working with the Tilt Compensation......................................................................... 25
3.1 Operation Steps.............................................................................................. 25
3.2 Notes of using tilt measurement.................................................................... 27
4Configuring Through a Web Browser........................................................................ 29
1 Status Menu............................................................................................................... 30
1.1 Position Submenu........................................................................................... 31
1.2 Activity Submenu............................................................................................ 31
1.3 Google Map Submenu.................................................................................... 32
2 Satellites Menu.......................................................................................................... 32
2.1 Tracking Table Submenu................................................................................. 32
2.2 Tracking Info. Table Submenu......................................................................... 33
2.3 Tracking Skyplot Submenu.............................................................................. 33
2.4 Satellite Activation Submenu.......................................................................... 34
3 Receiver Configuration Menu.................................................................................... 35
3.1 Description ..................................................................................................... 35
3.2 Antenna Configuration Submenu................................................................... 35
3.3 Reference Station Settings Submenu ............................................................. 36
3.4 Receiver Reset Submenu................................................................................ 37
3.5 Languages Submenu....................................................................................... 37
3.6 User Management Submenu.......................................................................... 37
3.7 USB Function Switch....................................................................................... 38
3.8 HCPPP Settings ............................................................................................... 44
4 Data Recording Menu................................................................................................ 44
4.1 Log Settings Submenu .................................................................................... 45
4.2 FTP Push Settings Submenu ........................................................................... 47
4.3 FTP Push Log Submenu................................................................................... 48
4.4 Data Download Submenu............................................................................... 48
5 IO Settings Menu....................................................................................................... 50
5.1 IO Settings Submenu ...................................................................................... 50
6 Module Setting Menu................................................................................................ 57
6.1 Description Submenu ..................................................................................... 57
6.2 WiFi Submenu ................................................................................................ 57
6.3 Bluetooth Settings Submenu.......................................................................... 58
6.4 Radio Settings Submenu................................................................................. 58
7 Firmware Menu ......................................................................................................... 59
7.1 Firmware Info Submenu ................................................................................. 60

Table of Content

EFIX F7 GNSS USER GUIDE | 2021-1 Page | 4

5.7.2 Hardware Version Submenu........................................................................... 60

5.7.3 Config File Submenu....................................................................................... 60

5.7.4 System Log Download Submenu .................................................................... 61

5.7.5 User Log Submenu.......................................................................................... 61

5.7.6 Firmware Update Submenu............................................................................ 61

5.7.7 GNSS Board Upgrade Submenu...................................................................... 62

5.7.8 GNSS Registration Submenu........................................................................... 62

Preface

EFIX F7 GNSS USER GUIDE | 2021-1 Page | 5

Preface

Co., Ltd. All other trademarks are the property of their respective owners.

Trademarks

All product and brand names mentioned in this publication are trademarks of their respective

holders.

Safety Warnings

The Global Positioning System (GPS) is operated by the U.S. Government, which is solely

responsible for the accuracy and maintenance of the GPS network. Accuracy can also be

affected by poor satellite geometry and obstructions, like buildings and heavy canopy.

Introduction

EFIX F7 GNSS USER GUIDE | 2021-1 Page | 6

1 Introduction

The F7 GNSS receiver removes barriers to portability without sacrificing performance.

Featuring full GNSS technology, it offers best-in-class GNSS signal tracking even in a harsh

environment, enabling GNSS surveying beyond usual constraints. The F7 GNSS incorporates

the latest innovations such as an inertial module (IMU) providing automatic pole-tilt

compensation in a very compact design.

1.1 Safety Information

1.1.1 Warnings and Cautions

An absence of specific alerts does not mean that there are no safety risks involved.

A Warning or Caution information is intended to minimize the risk of personal injury and/or

damage to the equipment.

WARNING - A Warning alerts you to a potential misused or wrong setting of the

equipment.

CAUTION - A Caution alerts you to a possible risk of serious injury to your person

and/or damage to the equipment.

1.2 Regulations and Safety

The receivers contain a built-in wireless modem for signal communication through Bluetooth®

wireless technology or through external communication datalink. Regulations regarding the

use of the wireless modem vary greatly from country to country. In some countries, the unit

can be used without obtaining an end-user license. However, in some countries, the

administrative permissions are required. For license information, consult your local dealer.

Bluetooth® operates in license-free bands.

Before operating a F7 GNSS receiver, determine if authorization or a license to operate the unit

is required in your country. It is the responsibility of the end-user to obtain an operator's

permit or license for the receiver for the location or country of use.

Introduction

EFIX F7 GNSS USER GUIDE | 2021-1 Page | 7

1.2.1 Use and Care

This receiver is designed to withstand the rough environment that typically occurs in the field.

However, the receiver is high-precision electronic equipment and should be treated with

reasonable care.

CAUTION - Operating or storing the receiver outside the specified temperature range

will cause irreversible damage.

1.3 Technical Support

If you have a problem and cannot find the information you need in this manual or EFIX website

(www.efix-geo.com), contact your local EFIX dealer from which you purchased the receiver(s).

If you need to contact EFIX technical support, please contact us by email (support@ efix-

geo.com) or Skype (support@efix-geo.com).

1.4 Disclaimer

Before using the receiver, please make sure that you have read and understood this User Guide,

as well as the safety information. EFIX holds no responsibility for the wrong operation by users

and for the losses incurred by the wrong understanding about this User Guide. However, EFIX

reserves the rights to update and optimize the contents in this guide regularly. Please contact

your local EFIX dealer for new information.

1.5 Your Comments

Your feedback about this user guide will help us to improve it in future revision. Please email

your comments to support@ efix-geo.com.

Getting Started with F7

EFIX F7 GNSS USER GUIDE | 2021-1 Page | 8

2 Getting Started with F7

2.1 About the Receiver

The new F7 GNSS receiver offers integrated IMU-RTK technology to provide a robust and

accurate GNSS positioning in any circumstances. Unlike the standard MEMS based GNSS

receivers, the F7 GNSS IMU-RTK combines state-of-the-art GNSS RTK engine, calibration-free

professional IMU sensor and advanced GNSS tracking capabilities. Survey projects are

achieved with high productivity and reliability pushing the boundaries of conventional GNSS

RTK survey.

The receiver can be used as the part of an RTK GNSS system with EFIX eField software.

Moreover, user can download the GNSS data that recorded in the internal memory of receiver

to a computer.

To configure the receiver for performing a wide variety of functions, you can use the web

interface by connecting the receiver with PC or smartphone through Wi-Fi.

2.2 Parts of the Receiver

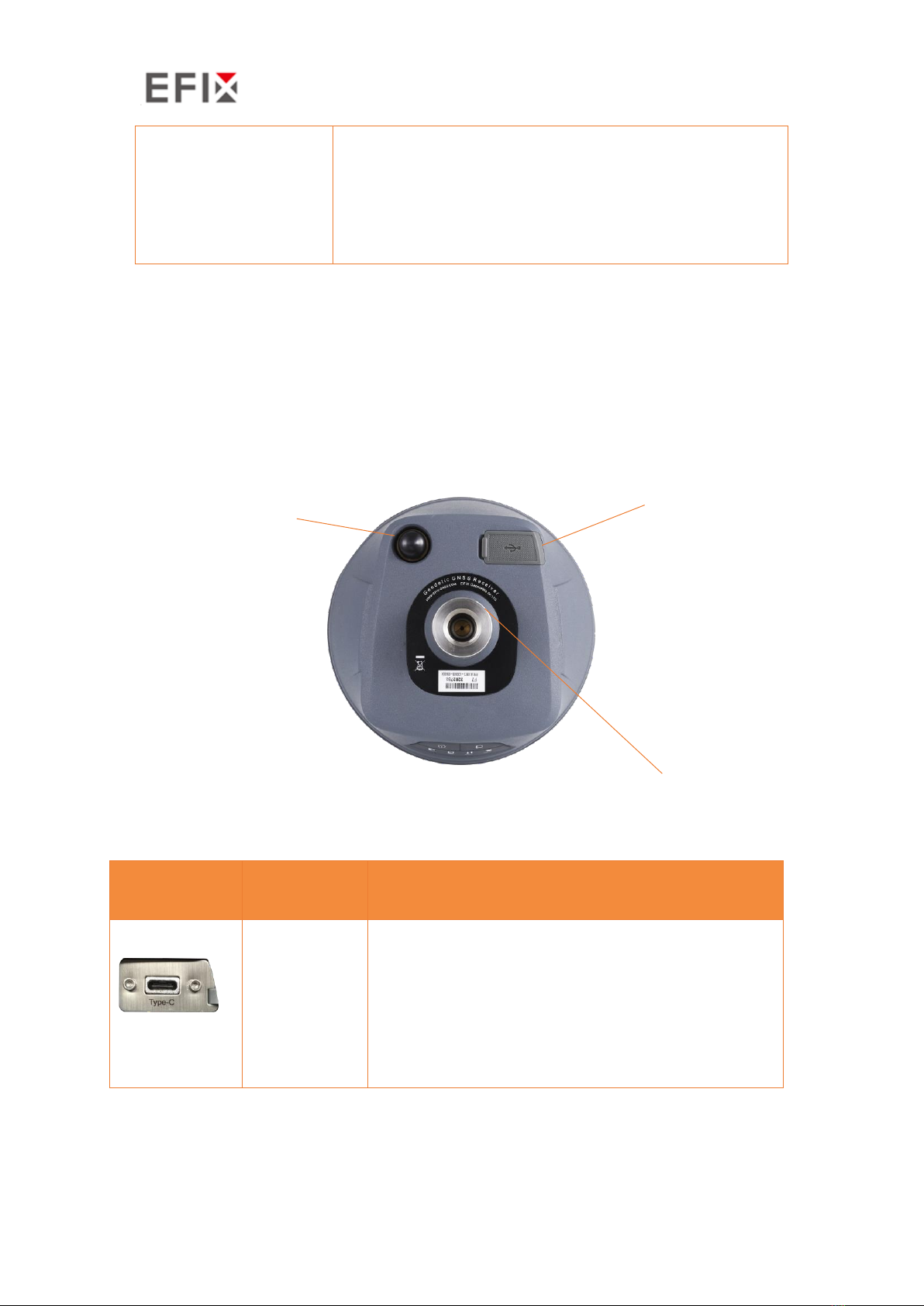

The operating controls are all located on the front panel. Serial ports and connectors are

located on the bottom of the unit.

2.2.1 Front Panel

The following figure shows a front view of the receiver.

Front panel

Getting Started with F7

EFIX F7 GNSS USER GUIDE | 2021-1 Page | 9

The front panel contains four indicator LEDs and two buttons.

Name

Description

Correction LED (Green)

•Indicates whether the receiver is

transmitting/receiving differential data.

•The green LED flashes once per second when

As a Base station: successfully transmitting

differential data.

As a Rover station: successfully receiving

differential data from Base station.

Satellite LED (Blue)

•Shows the number of satellites that the receiver

has tracked.

•When the receiver is searching satellites, the blue

LED flashes once every 5 seconds.

•When the receiver has tracked N satellites, the blue

LED will flash N times every 5 seconds.

Static LED (Yellow)

•Flash means static is on.

Power LED (Red)

•Under normal conditions red power light

•The power light shows orange when charging

•The power light shows green when fully charged

Function button

•Press and hold this button for 10 seconds to turn on

or turn off the static mode.

Satellite LED

Function button

Power button

Static LED

Correction LED

Power LED

Getting Started with F7

EFIX F7 GNSS USER GUIDE | 2021-1 Page | 10

Power button

•Works as a Power button

•Press and hold this button for 3 seconds to turn on

or turn off the receiver.

•Hold Fn button and press this button for 5 times

continuously to reset the mainboard.

2.2.2 Receiver Ports

The receiver ports contain one TNC radio antenna connector, one communication and power

ports, one 5/8-11 threaded insert, and one nameplate.

Port

Name

Description

USB Type-C

port

•This port is a USB Type-C connector that

supports USB communications.

•Users can use USB Type-C Cable supplied

with the system to download the logged data

to a computer.

USB communication

and power in port

5/8-11 threaded

insert

TNC radio

antenna connector

Indice

Altri manuali EFIX Ricevitore

EFIX

EFIX CM3 Manuale utente

Manuali Ricevitore popolari di altre marche

Garmin

Garmin GA 23 Manuale utente

Aiphone

Aiphone PS-12F Manuale utente

IMES

IMES TCS-01CA-PMI Manuale utente

BWI Eagle

BWI Eagle AIR-EAGLE SR Manuale

AMIMON

AMIMON AMN12310 WHDI Manuale utente

Dual

Dual DMCPA79BT Istruzioni operative

Sound Associates

Sound Associates SA652P Manuale utente

Sherwood

Sherwood NewCastle R-772 Manuale utente

Audio

Audio A10-RX Series Manuale utente

AllSee

AllSee PushShare PSRV1.1 Manuale utente

DEMAG

DEMAG DRC-DR D2 Manuale utente

Teleco

Teleco TVRCL868A02 Manuale utente

Bosch

Bosch RF3222E Manuale utente

Kramer

Kramer 631R Manuale utente

Xpress

Xpress xmc10 Manuale utente

JVC

JVC KD-MR1BTS Manuale utente

Omega Engineering

Omega Engineering UWTC-REC3 Manuale utente

e-survey

e-survey E300 Pro Manuale utente
